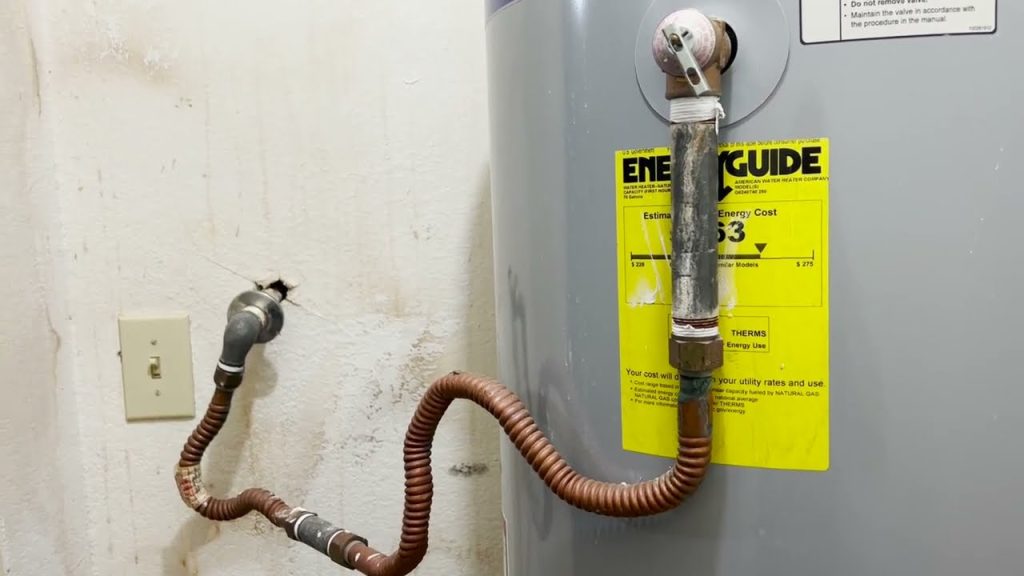

If you’ve ever asked yourself, “Can a TPR valve be plumbed into a drain pipe?”—you’re not alone. Homeowners and DIYers often wonder how to safely manage the discharge from their water heater’s Temperature and Pressure Relief (TPR) valve. Getting this wrong isn’t just a code violation—it can be dangerous. In this guide, we’ll walk you through everything you need to know about correctly plumbing a TPR valve, including legal requirements, safety best practices, and common mistakes to avoid.
What Is a TPR Valve and Why Does It Matter?
A Temperature and Pressure Relief (TPR) valve is a critical safety device installed on all residential water heaters. Its job? To automatically release water if the temperature or pressure inside the tank exceeds safe limits—typically 210°F (99°C) or 150 psi.
According to the U.S. Consumer Product Safety Commission (CPSC), faulty or improperly installed TPR valves contribute to hundreds of water heater-related incidents each year, including explosions and scalding injuries. That’s why understanding how to correctly route its discharge is both a safety issue and a legal requirement under most U.S. plumbing codes.
Can a TPR Valve Be Plumbed into a Drain Pipe? The Short Answer
Yes—but only under strict conditions. You can connect a TPR valve discharge pipe to a drain system, but it must never be directly connected to a sealed drain pipe. Doing so creates a cross-connection risk and traps pressurized discharge, which defeats the valve’s purpose and violates plumbing codes nationwide.
Instead, the discharge pipe must terminate near a floor drain, utility sink, or other approved indirect receptor, with an air gap (an unobstructed vertical space) to prevent backflow.
🔍 Key Rule: The discharge pipe must not be directly connected to the drainage system. It must discharge indirectly, with a visible air gap of at least 6 inches above the flood level rim of the receptor (per the International Plumbing Code, IPC §508.4).
Plumbing Code Requirements for TPR Valve Discharge
The International Residential Code (IRC) and Uniform Plumbing Code (UPC) set clear standards for TPR valve discharge piping. Here’s what you need to know:
✅ Allowed Features:
Pipe material: CPVC, copper, or galvanized steel (must be rated for hot water).
Pipe size: Same diameter as the valve outlet (usually 3/4 inch).
Slope: Must pitch downward continuously to the termination point (no sags or traps).
Termination: Within 6 inches of the floor or an approved indirect waste receptor.
No threads at the end: Discharge pipe must be unthreaded to prevent capping.
❌ Prohibited Actions:
Trapping the discharge line (e.g., with a P-trap).
Installing a valve or plug on the discharge pipe.
Directly connecting to a sewer or drain pipe without an air gap.
Step-by-Step: How to Properly Install a TPR Discharge Pipe
Follow these steps to ensure a safe, code-compliant installation:
Turn Off Power & Water: Shut off the water heater’s power (gas or electric) and close the cold water supply valve.
Check Valve Rating: Confirm your TPR valve is rated for your system’s max temperature (usually 210°F) and pressure (150 psi).
Use Correct Pipe Material: Install 3/4-inch CPVC or copper pipe—never PVC (not rated for hot water).
Maintain Downward Slope: Run the pipe straight down with a minimum 1/4-inch per foot slope toward the termination point.
Terminate Near Floor or Drain: End the pipe 6–12 inches above the floor or above a floor drain/sink—never submerged.
Ensure Air Gap: Leave a minimum 6-inch vertical air gap between the pipe end and any drain receptor.
Secure the Pipe: Use pipe straps every 2–3 feet to prevent movement or stress on the valve.
💡 Pro Tip: If your water heater is in a garage or basement, route the discharge to a visible area so leaks are immediately noticeable—not into a hidden drain.
Common Mistakes (and Why They’re Dangerous)
Mistake
Risk
Code Violation?
Connecting directly to a sewer line
Backflow contamination; pressure buildup
✅ Yes
Capping or plugging the end
Trap pressure → potential explosion
✅ Yes
Using a P-trap on the discharge line
Traps water, blocks flow during relief
✅ Yes
Installing upward pipe sections
Water can’t drain → valve failure
✅ Yes
A 2020 study by the American Society of Home Inspectors (ASHI) found that over 38% of inspected homes had TPR discharge violations, with direct drain connections being the most frequent error.
TPR Valve vs. Other Relief Valves: Know the Difference
Don’t confuse the TPR valve (on your water heater) with:
PRV (Pressure Reducing Valve): Regulates incoming water pressure; not a safety relief device.
Only the TPR valve is designed for emergency discharge—and its piping must follow specific safety rules.
When to Call a Professional
While DIY plumbing is tempting, TPR valve installation is not the place to cut corners. Call a licensed plumber if:
You’re unsure about local code requirements (they vary by city/state).
Your discharge pipe needs to travel through walls or floors.
You’ve had repeated leaks or pressure issues.
The water heater is older than 10 years (valves can corrode or seize).
Remember: A malfunctioning TPR system can turn a water heater into a boiler bomb—a real but preventable hazard.
FAQ Section
Q1: Can I drain my TPR valve into a floor drain?
A: Yes, but only if the pipe ends at least 6 inches above the drain with a visible air gap. Never insert the pipe into the drain.
Q2: Is it okay to cap a TPR discharge pipe?
A:No—never. Capping prevents emergency discharge and creates a serious explosion risk. It’s also a major code violation.
Q3: Can I use PVC pipe for the TPR discharge line?
A:No. PVC isn’t rated for continuous hot water exposure (TPR discharge can exceed 200°F). Use CPVC, copper, or galvanized steel instead.
Q4: How often should I test my TPR valve?
A: Test it every 6 months by lifting the test lever briefly. Water should flow freely and stop when released. Replace if it leaks afterward.
Q5: What if my TPR valve keeps leaking?
A: Frequent leaking usually indicates high pressure or thermal expansion. Install an expansion tank and check your home’s water pressure (should be <80 psi).
Q6: Can the discharge pipe go outside?
A: In cold climates, no—water can freeze and block the pipe. In warmer zones, it’s allowed if the pipe is protected from freezing and terminates safely (not onto a walkway).
Conclusion
So, can a TPR valve be plumbed into a drain pipe? Technically, yes—but only indirectly, with a proper air gap and no direct connection. Getting this right protects your home, complies with U.S. plumbing codes, and could literally save lives.
Don’t gamble with water heater safety. Follow the guidelines above, test your valve regularly, and when in doubt, call a licensed plumber.
Found this guide helpful? Share it with a friend or on social media to help others stay safe! 🔧💧
