Can I Do Plumbing In A Concrete Base?

Have you ever stared at a solid concrete floor, wondering if it’s possible to run water lines or drain pipes beneath it without causing structural damage? It is a common dilemma for homeowners renovating older homes or building new additions, leading many to ask, “Can I do plumbing in a concrete base?” The short answer is yes, but it requires precise planning, adherence to strict building codes, and the right techniques to ensure longevity and safety.

In this guide, we will break down everything you need to know about installing plumbing within or under concrete slabs. Whether you are a DIY enthusiast looking to understand the process or a homeowner verifying contractor work, this article provides the clarity and technical depth you need.

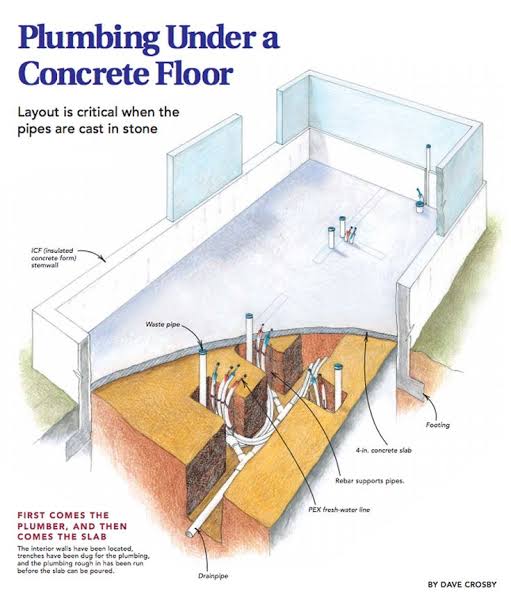

Understanding the Basics: Plumbing Under Slab

Before picking up a jackhammer or pouring cement, it is crucial to understand what “plumbing in a concrete base” actually entails. In the United States, this is commonly referred to as under-slab plumbing. This method involves placing water supply lines and drainage pipes below the concrete foundation before the slab is poured, or cutting into an existing slab to install new lines.

The primary concern here is not just functionality, but structural integrity. Concrete is strong under compression but weak under tension. Improperly installed pipes can create voids, lead to cracks, or cause catastrophic leaks that are incredibly difficult to access later.

According to general construction principles, any penetration of a structural slab must be carefully engineered. For those interested in the material science behind why concrete behaves this way, you can read more about the properties of concrete on Wikipedia.

Is It Legal and Code-Compliant?

One of the first questions homeowners ask is whether local regulations allow this type of installation. In the US, plumbing codes are generally based on the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC), depending on your state.

Key Code Requirements

• Depth: Pipes must be buried deep enough to avoid freezing (in colder climates) and physical damage from the weight of the concrete and foot traffic above.
• Material: Only specific materials are approved for under-slab use. Copper, PEX (cross-linked polyethylene), and PVC/ABS for drains are common, but each has specific bedding requirements.
• Bedding: Pipes cannot rest directly on sharp rocks or uneven soil. They require a bed of sand or fine gravel to prevent puncture and stress.

Note: Always check with your local building department. What works in Texas may not meet the frost-line requirements in Minnesota.

Methods for Installing Plumbing in Concrete

There are two main scenarios for installing plumbing in a concrete base: New Construction and Retrofitting.

1. New Construction (Pre-Pour)

This is the ideal scenario. Pipes are laid out on the compacted subgrade before the concrete is poured.

• Advantage: No demolition required.
• Process: Trenches are dug, pipes are laid, pressure-tested, and then covered with sand before the concrete pour.

2. Retrofitting (Post-Pour)

This involves cutting into an existing concrete slab. This is often necessary for renovations or repairing broken lines.

• Challenge: High labor cost, dust, and potential structural risk.
• Process: Using a concrete saw to cut channels, removing debris, laying pipes, and patching with high-strength concrete mix.

Step-by-Step Guide: How to Install Plumbing in an Existing Slab

If you are determined to tackle this project, here is a simplified overview of the retrofitting process. Warning: This is advanced DIY work. If you are unsure, hire a licensed plumber.

Step 1: Planning and Permitting

Map out your route. Use a stud finder and concrete scanner to locate rebar and existing utilities. Obtain necessary permits from your local municipality.

Step 2: Cutting the Concrete

Use a diamond-blade concrete saw. Cut two parallel lines to create a channel.

• Width: At least 3–4 inches wider than the pipe diameter.
• Depth: Deep enough to allow for 2 inches of bedding below the pipe and 2 inches of cover above it.

Step 3: Excavation and Bedding

Remove the concrete chunk and dig out the soil below.

• Add 2 inches of clean sand or fine gravel.
• Compact it firmly. This prevents the pipe from settling unevenly.

Step 4: Pipe Installation

Lay your pipe (PEX for supply, PVC for drain).

• Ensure proper slope for drains (1/4 inch per foot).
• For supply lines, avoid sharp bends that restrict flow.
• Crucial: Do not backfill yet. You must test for leaks first.

Step 5: Pressure Testing

• For water lines: Pressurize the system to 100 PSI (or local code requirement) and hold for at least 15–30 minutes. Check for drops in pressure.
• For drain lines: Perform a water test or air test to ensure no leaks at joints.

Step 6: Backfilling and Patching

Once tested:

1. Cover the pipe with another 2 inches of sand.
2. Fill the remaining trench with a concrete patching mix (not just regular mortar, as it needs structural strength).
3. Smooth the surface to match the existing floor.

Material Comparison: What Pipe Should You Use?

Choosing the right material is critical for longevity. Here is a quick comparison:

Expert Tip: For most modern US homes, PEX-A is becoming the gold standard for under-slab water supply due to its flexibility and resistance to scaling and chlorine.

Common Mistakes to Avoid

Even experienced contractors can make errors. Here are the most frequent pitfalls:

1. Insufficient Bedding: Placing pipes directly on rocky soil leads to punctures over time as the ground shifts.
2. Poor Slope on Drains: If the slope is less than 1/8 inch per foot, waste will accumulate, leading to clogs.
3. Ignoring Expansion Joints: Concrete expands and contracts. Pipes running through slabs should have sleeves or expansion loops to prevent stress fractures.
4. Skipping the Pressure Test: Never assume a joint is tight. A small leak under a slab can cause mold, foundation heaving, and massive repair bills later.

FAQ Section

1. Can I run hot water pipes in a concrete slab?

Yes, but you must insulate them. Hot water pipes in concrete can lose heat efficiently, raising your energy bills. Furthermore, thermal expansion can stress the concrete. Use foam pipe insulation or specialized sleeves to allow for movement and reduce heat loss.

2. How deep should plumbing be under a concrete slab?

Generally, pipes should be at least 12 inches below the slab in warm climates. In colder regions, they must be below the frost line, which can range from 12 inches to over 4 feet depending on your location. Always consult local codes.

3. Is it better to run plumbing in walls or under the slab?

Running plumbing in walls (above the slab) is generally preferred for repairs because it is accessible. However, under-slab plumbing is cleaner aesthetically and protects pipes from physical damage inside the home. For new builds, a hybrid approach is often best: supply lines in walls, drains under the slab.

4. What happens if a pipe leaks under the concrete?

A leak under the slab can cause foundation heaving (where water saturates the soil and lifts the concrete) or subsidence (where soil washes away, creating voids). Signs include unexplained increases in water bills, warm spots on the floor, or cracks in the foundation. Repair requires cutting into the slab again.

5. Can I use flexible hose for under-slab plumbing?

No. Standard rubber or braided hoses are not rated for burial or concrete encasement. They degrade quickly and cannot withstand the pressure and chemical environment. Use approved materials like PEX, Copper, or PVC.

Conclusion

So, can I do plumbing in a concrete base? Absolutely, but it is not a task to be taken lightly. It requires careful planning, adherence to local building codes, and precise execution. Whether you are building new or retrofitting, the key to success lies in proper bedding, rigorous testing, and using the right materials.

By following the steps outlined above, you can ensure a durable, leak-free system that stands the test of time. Remember, when in doubt, consult a licensed professional. A small investment in expert advice can save you thousands in future repairs.
