Renovating a bathroom or kitchen often leads to complex layout changes, leaving many homeowners wondering about the feasibility of moving pipes across room boundaries. It is a common dilemma: Can I run plumbing horizontally through adjacent walls without compromising structural integrity or violating building codes? Understanding the right approach ensures your project remains safe, legal, and efficient.
Understanding the Basics of Horizontal Plumbing Runs
Before you pick up a saw or drill, it is crucial to understand that plumbing is not just about connecting point A to point B. It involves gravity, pressure, and strict regulatory standards. When we talk about running pipes horizontally through adjacent walls, we are typically referring to two scenarios: moving supply lines (pressurized water) or drain-waste-vent (DWV) lines (gravity-fed waste).
The short answer is yes, you can run plumbing horizontally, but the “how” matters immensely. Horizontal runs in drainage systems require specific slopes to prevent clogs, while supply lines need protection from physical damage and temperature fluctuations. According to general construction principles, any penetration through wall studs must be carefully calculated to avoid weakening the load-bearing capacity of your home.
The Difference Between Supply and Drain Lines
It is vital to distinguish between these two types of plumbing because their rules differ significantly:
- Supply Lines: These carry fresh water under pressure. They can run horizontally with relative ease since gravity does not dictate their flow. However, they must be insulated if passing through unconditioned spaces to prevent freezing.
- Drain Lines: These rely on gravity. A horizontal drain pipe must have a downward slope (pitch). If you run a drain horizontally through an adjacent wall, you must ensure there is enough vertical drop available to maintain the required pitch, usually 1/4 inch per foot for pipes 3 inches in diameter or smaller.
Code Compliance and Structural Integrity
One of the most critical aspects of this project is adhering to local building codes. In the United States, most jurisdictions follow the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC). Violating these codes can lead to failed inspections, fines, or even having to tear out your work.
Stud Drilling Rules
When running pipes horizontally through walls, you will likely need to drill holes through the wooden studs. You cannot simply drill anywhere you please. Here are the general guidelines accepted by most inspectors:
- Hole Diameter: The hole should generally not exceed one-third the depth of the stud. For a standard 2×4 stud (which is actually 3.5 inches deep), the maximum hole diameter is roughly 1.125 inches.
- Location: Holes should be drilled in the center third of the stud’s height. Avoid drilling near the top or bottom plates where the stress concentrations are highest.
- Notching: Notching (cutting into the side of the stud) is more restrictive than drilling. For load-bearing walls, notching is often prohibited or limited to very shallow depths in the top third of the stud.
Expert Insight: “Structural integrity is non-negotiable. If you compromise a load-bearing wall, you risk sagging floors or cracked drywall down the line. Always consult a structural engineer if you are unsure about the wall type.” — John D., Licensed Master Plumber.
For more detailed technical standards on building materials and structural safety, you can refer to resources like Wikipedia’s article on Framing (construction) to understand the basic anatomy of wall structures.
Step-by-Step Guide to Running Pipes Through Adjacent Walls
If you have determined that your wall is non-load-bearing or you have reinforced it appropriately, follow these steps to execute the job correctly.
Step 1: Plan the Route and Check for Obstacles
Use a stud finder to locate all studs, electrical wires, and existing pipes. Mark your drilling points with a pencil. Ensure your planned horizontal route has a clear path. If you are moving a drain, verify that the new location allows for the necessary slope toward the main stack.
Step 2: Prepare the Tools
You will need:
- A high-quality auger bit or hole saw (sized appropriately for your pipe plus insulation).
- A level.
- Protective gear (goggles, gloves, mask).
- Pipe shielding plates (metal plates to protect pipes from nails/screws).
Step 3: Drill the Holes
Drill holes through the center of each stud along your marked path. Keep the drill perpendicular to the wall face to ensure the pipe runs straight. If the hole is slightly tight, do not force it; enlarge it slightly to avoid stressing the pipe.
Step 4: Install the Piping
Feed your pipe through the holes.
- For Supply Lines: Secure the pipe with hangers every 4–6 feet. Use foam insulation sleeves if the wall borders an exterior space.
- For Drain Lines: Use a level to check the pitch. For every foot of horizontal run, the pipe should drop 1/4 inch. Use adjustable hangers to fine-tune this slope.
Step 5: Protect and Seal

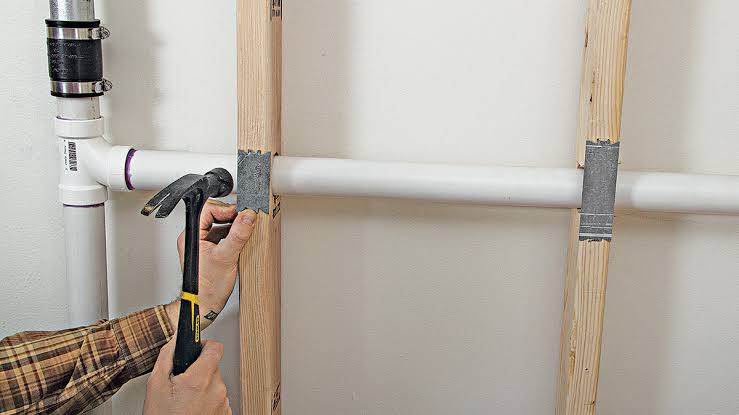

Install metal nail plates over any holes that are less than 1.25 inches from the edge of the stud. This prevents future drywall screws or nails from puncturing your pipes. Seal any gaps around the pipe with fire-rated caulk if required by local fire codes, especially in multi-family dwellings.
Pros and Cons of Horizontal Wall Routing
To help you decide if this method is right for your project, consider the following comparison:
| Feature | Advantages | Disadvantages |
|---|---|---|
| Aesthetics | Keeps pipes hidden behind drywall; clean look. | Requires patching and repainting walls. |
| Cost | Cheaper than rerouting through floors or ceilings. | Labor-intensive if studs need reinforcement. |
| Maintenance | Protected from physical impact. | Harder to access for repairs without cutting drywall. |
| Efficiency | Direct route reduces material usage. | Slope requirements for drains can limit flexibility. |
Common Challenges and Solutions
Challenge 1: Insufficient Slope for Drains
If you are moving a toilet or sink drain horizontally across a long distance, you might run out of vertical space to maintain the slope.
- Solution: Consider using a larger diameter pipe (e.g., 4-inch instead of 3-inch), which allows for a shallower slope (1/8 inch per foot). Alternatively, route the pipe through the floor joists below instead of the wall.
Challenge 2: Load-Bearing Walls
You discover the adjacent wall is load-bearing after starting.
- Solution: Stop immediately. Consult a structural engineer. You may need to install a header beam to redistribute the weight before proceeding. Do not attempt this as a DIY project without professional oversight.
Challenge 3: Condensation and Noise
Cold water pipes running through interior walls can sweat, causing mold, and water flow can be noisy.
- Solution: Wrap cold water pipes with closed-cell foam insulation. This prevents condensation and dampens sound transmission through the wall cavity.
FAQ Section
1. Can I run PVC drain pipes horizontally through a wall?
Yes, you can run PVC drain pipes horizontally through walls, provided you maintain the correct slope (pitch) for gravity flow. Ensure the holes drilled in the studs are large enough to accommodate the pipe and any necessary fittings without bending the pipe excessively.
2. What is the maximum distance for a horizontal plumbing run?
There is no single universal maximum distance, but it depends on the pipe size and slope. For a 1.5-inch sink drain, the maximum horizontal distance is typically around 6 feet before requiring a vent. Larger pipes can run further. Always check your local plumbing code for specific limits.
3. Do I need a permit to move plumbing through walls?
In most US jurisdictions, yes. Moving plumbing fixtures or altering pipe routes usually requires a permit and subsequent inspection. This ensures the work meets safety and health standards. Skipping this step can void your home insurance and cause issues when selling your home.
4. Can I run hot and cold water lines in the same wall hole?
It is better to drill separate holes for hot and cold lines to prevent heat transfer and allow for easier insulation. If they must share a space, ensure they are securely clipped apart and insulated properly to prevent condensation on the cold line.
5. How do I prevent leaks at wall penetrations?
Use proper grommets or rubber bushings if the pipe rubs against the wood. Ensure all connections are made outside the wall cavity whenever possible (e.g., in an access panel or vanity) so that joints are accessible for maintenance. Never glue or solder joints inside a closed wall.
Conclusion
So, can I run plumbing horizontally through adjacent walls? Absolutely, but it requires careful planning, adherence to building codes, and respect for structural limitations. Whether you are relocating a sink for a better layout or upgrading old pipes, understanding the difference between supply and drain requirements is key.
By following the steps outlined above—checking for load-bearing walls, maintaining proper slope, and protecting your pipes—you can achieve a professional-grade result. Remember, when in doubt, consult a licensed plumber or structural engineer. Your home’s safety and longevity are worth the extra precaution.
