Can I Use Acid Core Solder For Plumbing?

Have you ever stared at a leaking copper pipe, holding a spool of solder from your electronics kit, and wondered if it would do the job? It is a common temptation for DIY enthusiasts who have leftover materials from other projects. However, asking “Can I use acid core solder for plumbing“ is a question that often leads to costly disasters if answered incorrectly.

Using the wrong type of solder can compromise the integrity of your home’s water system, leading to hidden leaks, toxic contamination, and expensive repairs down the line. In this guide, we will break down exactly why acid core solder is dangerous for plumbing, what you should use instead, and how to ensure your next repair is safe, code-compliant, and built to last.

Why Acid Core Solder Is Dangerous for Plumbing

To understand why you cannot use acid core solder for plumbing, we must first look at what is inside the solder wire. Solder is not just metal; it contains a “flux” core that helps the metal flow and bond.

The Corrosive Nature of Acid Flux

Acid core solder contains an aggressive flux, typically made of zinc chloride or ammonium chloride. This acid is designed to eat through oxidation on electrical contacts or sheet metal rapidly. While this is excellent for electronics or auto body work, it is catastrophic for copper water pipes.

If you use acid core solder on a plumbing joint:

1. Residual Acid Remains: Even after the solder cools, acidic residues remain inside the pipe.
2. Continuous Corrosion: These residues continue to react with the copper over time, eating away at the metal from the inside out.
3. Pinhole Leaks: Within months or even weeks, this corrosion creates tiny pinhole leaks that are difficult to detect until significant water damage has occurred.

Health and Safety Risks

Beyond structural damage, there is a serious health implication. As the acid corrodes the copper, it can leach heavy metals and chemical byproducts into your drinking water. According to safety guidelines regarding potable water systems, any material in contact with drinking water must be certified as safe. Acid flux is not certified for this purpose.

Expert Insight: Professional plumbers adhere to strict codes because water pressure and temperature fluctuations exacerbate weak joints. A joint weakened by acid corrosion is far more likely to fail under thermal expansion than a properly soldered joint.

Acid Core vs. Rosin Core vs. Water-Soluble Flux

Not all fluxes are created equal. To make the right choice, you need to understand the differences between the three main types of flux cores available on the market.

Key Takeaway: Never substitute rosin core (electronics) or acid core (sheet metal) for plumbing applications. Always use a paste flux specifically labeled for plumbing or water-soluble flux that meets safety standards.

What Should You Use Instead?

If you cannot use acid core solder, what is the correct material for joining copper pipes? The industry standard involves two components: Lead-Free Solder and Plumbing Flux Paste.

1. Lead-Free Solder

Since the Safe Drinking Water Act amendments, lead-based solder has been banned for use in potable water systems in the United States. You must use lead-free solder, which is typically an alloy of:

• Tin (95-97%)
• Antimony or Copper (3-5%)

Look for spools explicitly labeled “Lead-Free” or “Safe for Drinking Water.” Common diameters for residential plumbing are 1/8 inch or 3/32 inch.

2. Plumbing Flux Paste

Instead of a core inside the wire, plumbers apply a separate paste flux to the outside of the pipe and the inside of the fitting before heating. This paste:

• Cleans the copper surface chemically.
• Prevents oxidation during heating.
• Helps the solder draw into the joint via capillary action.

Ensure your flux paste is compliant with NSF/ANSI Standard 61, which certifies materials for contact with drinking water. For more detailed technical specifications on soldering materials, you can refer to general engineering principles on Wikipedia’s Soldering page.

Step-by-Step Guide: How to Solder Copper Pipes Correctly

Now that you have the right materials, here is how to execute a professional-grade joint. This process requires precision and attention to detail.

Tools Needed:

• Propane or MAPP gas torch
• Emery cloth or sandpaper
• Wire brush (fitting brush)
• Lead-free solder wire
• Plumbing flux paste
• Flame-resistant pad
• Damp rag

The Process:

1. Cut and Clean: Cut the copper pipe squarely using a tube cutter. Deburr the inside edge to remove shavings. Use emery cloth to scrub the outside of the pipe end until it shines like a new penny. Do the same for the inside of the fitting.
   • Tip: If the copper isn’t shiny, the solder won’t stick. Cleanliness is 90% of the battle.
2. Apply Flux: Using a small brush, apply a thin, even layer of plumbing flux paste to the outside of the pipe and the inside of the fitting. Avoid getting flux inside the pipe where water will flow.
3. Assemble the Joint: Push the pipe fully into the fitting. Give it a slight twist to spread the flux evenly. Wipe away any excess flux that squeezes out with a rag.
4. Heat the Joint: Ignite your torch. Apply the flame to the fitting, not the solder. Move the flame around the fitting to heat it evenly.
   • Temperature Check: Touch the tip of the solder wire to the joint. If it melts instantly, the joint is ready. If it doesn’t, keep heating. Do not melt the solder directly with the flame.

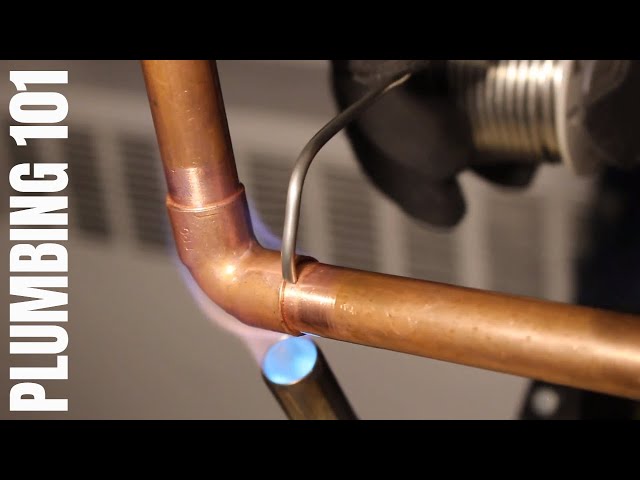

5. Apply Solder: Once the fitting is hot enough, touch the solder to the edge of the joint. Capillary action will pull the molten solder into the gap between the pipe and fitting. Feed enough solder to create a visible bead around the entire circumference.
   • Amount: For a ½-inch pipe, you typically need about ½ inch of solder length.
6. Cool and Clean: Remove the heat and let the joint cool naturally. Do not quench it with water, as this can crack the joint. Once cool, wipe the joint with a damp rag to remove residual flux. This prevents future surface corrosion.

Frequently Asked Questions (FAQ)

1. What happens if I already used acid core solder on my pipes?

If you have recently used acid core solder, you should consider the joint compromised. The acid will continue to corrode the copper from the inside. The safest course of action is to cut out the section and resolder it using proper lead-free solder and plumbing flux. Do not wait for a leak to appear.

2. Can I use rosin core solder for emergency plumbing repairs?

No. While rosin core solder is less corrosive than acid core, it is not designed for the high pressures and temperatures of plumbing systems. It also lacks the necessary certification for potable water. It may hold temporarily, but it is likely to fail and is not code-compliant.

3. Is silver solder better for plumbing?

Silver solder (often called brazing when used with higher temperatures) is stronger and has a higher melting point than standard tin-based solder. It is excellent for high-pressure or commercial applications. However, for typical residential DIY repairs, standard lead-free tin-antimony solder is sufficient and easier to work with.

4. Do I need to flush the pipes after soldering?

Yes. After completing your soldering work, turn on the water and let it run for several minutes. This helps flush out any loose debris or minor flux residue that may have entered the pipe. This is a crucial step for ensuring water quality.

5. Why does my solder ball up instead of flowing into the joint?

This usually indicates two problems: the pipe was not clean enough, or the fitting was not hot enough. Solder flows toward heat. If the pipe is dirty, the solder cannot bond. If the fitting is cold, the solder will solidify on the surface rather than being drawn into the capillary gap. Re-clean and reheat.

Conclusion

So, can I use acid core solder for plumbing? The definitive answer is no. While it might seem like a convenient shortcut, the risks of corrosion, leaks, and health hazards far outweigh any temporary convenience. Acid core solder is designed for electronics and sheet metal, not for the high-stakes environment of your home’s water supply.

By investing in the correct tools—lead-free solder and NSF-certified plumbing flux—you ensure that your repairs are safe, durable, and compliant with US building codes. Plumbing is about trust; you trust your pipes to hold back thousands of gallons of water. Don’t betray that trust with the wrong materials.
