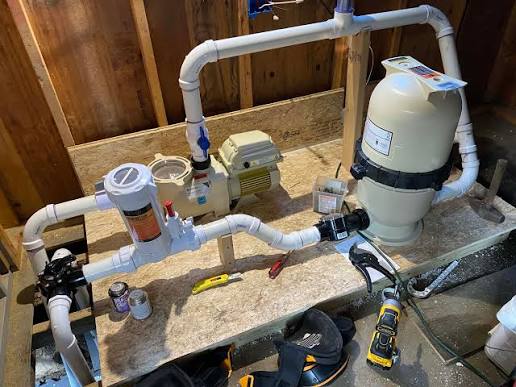

Building or renovating a swimming pool is an exciting investment, but navigating plumbing specifications can be overwhelming for homeowners. If you are currently staring at a pile of cheaper drainage pipes and asking, “Can I use DWV fittings on pool plumbing?” please pause before applying any glue. Using Drain-Waste-Vent (DWV) fittings in a pressurized pool system is not only a violation of building codes but also poses significant safety hazards that could lead to catastrophic pipe failure.
In this comprehensive guide, we will break down exactly why these two systems are incompatible, the specific risks involved, and the correct materials you need to ensure your pool operates safely for decades. We understand budget constraints are real, but cutting corners on pressure plumbing is never the answer. Let’s dive into the technical details so you can build with confidence and compliance.
Can I Use DWV Fittings On Pool Plumbing? The Short Answer
The definitive answer is no. You should never use DWV fittings or piping for any pressurized component of a swimming pool circulation system.
DWV stands for Drain-Waste-Vent. As the name implies, these pipes are engineered solely for gravity-flow applications where water moves downward without internal pressure. Pool plumbing, conversely, is a pressure system. Your pump pushes water through filters, heaters, and return jets at pressures typically ranging from 15 to 30 PSI, with surge spikes potentially exceeding 50 PSI during startup or valve closure.
According to industry standards outlined in resources like Wikipedia’s overview of plumbing systems, DWV and pressure systems utilize fundamentally different manufacturing tolerances. DWV fittings have thinner walls and shallower socket depths because they do not need to contain outward force. When subjected to pool pump pressure, DWV fittings are prone to splitting, leaking, or bursting entirely.
What Is the Difference Between DWV and Pressure Fittings?
Understanding the physical differences helps explain why interchangeability is impossible. While both may look like white PVC to the untrained eye, their engineering is distinct.
Wall Thickness and Pressure Rating
Pressure-rated PVC (typically Schedule 40 or Schedule 80) has uniform wall thickness designed to withstand internal hydrostatic pressure. DWV pipe often has variable wall thickness; it is thicker at the bottom to handle abrasion from waste and thinner at the top to save material. This inconsistency creates weak points under pressure.
Socket Depth and Joint Integrity
This is the most critical hidden difference. Pressure fittings have deep sockets that allow the pipe to seat fully, creating a large surface area for solvent welding. DWV fittings have significantly shallower sockets. Even if you manage to glue a pressure pipe into a DWV fitting, the bond surface is insufficient to resist the axial thrust generated by water pressure. Over time, vibration from the pump will work this joint loose.
Comparison Table: DWV vs. Pool Pressure Fittings
| Feature | DWV Fittings | Pressure Fittings (Sch 40/80) |
|---|---|---|
| Primary Function | Gravity drainage & venting | Pressurized fluid transport |
| Wall Thickness | Variable / Thinner | Uniform / Thick |
| Socket Depth | Shallow | Deep |
| Pressure Rating | None (0 PSI rated) | Rated for 100–400+ PSI |
| Code Compliance | Illegal for pool pressure | Required by IPC/UPC |
| Cost | Lower | Higher |
| Safety Risk | High (Burst potential) | Low (When installed correctly) |
Why Is Using DWV Fittings Dangerous for Pools?
Beyond code compliance, there are tangible safety and financial risks associated with using the wrong materials.
1. Catastrophic Failure Under Pressure
Pool pumps create dynamic pressure. When a pump starts, it generates a “water hammer” effect—a pressure spike that travels through the plumbing. A DWV elbow glued into a return line may hold during testing but fail months later when the pressure fluctuates. A burst pipe underground means excavating your pool deck or coping, turning a $5 savings on a fitting into a $2,000 repair bill.
2. Voided Warranties and Insurance Claims
Equipment manufacturers (pumps, filters, heaters) specify pressure-rated plumbing in their installation manuals. If a failure occurs and investigators find DWV fittings, your warranty is void. Similarly, homeowner’s insurance may deny water damage claims resulting from non-compliant plumbing installations.
3. Suction Side Air Leaks
On the suction side of the pump (skimmer to pump inlet), pipes operate under vacuum. While DWV might not burst here, the shallow sockets make achieving an airtight seal nearly impossible. Air leaks cause pump cavitation, loss of prime, and premature seal failure. Cavitation sounds like marbles grinding inside your pump and destroys impellers within weeks.
What Are the Correct Materials for Pool Plumbing?
To ensure longevity and safety, stick to these industry-standard materials:
- PVC Schedule 40: The gold standard for residential pools. Rated for well over 100 PSI at ambient temperatures. It is affordable, widely available, and easy to work with.
- PVC Schedule 80: Recommended for commercial pools or high-pressure applications (like spa jets or water features). Thicker walls provide extra margin against pressure surges and UV degradation.
- Flexible PVC (Pressure-Rated): Excellent for connecting equipment pads to rigid lines to absorb vibration. Note: Ensure it is labeled “Pressure Rated,” not “Flex Drain.”
- CPVC: Sometimes used for hot water lines in spas due to higher temperature tolerance, though standard PVC is usually sufficient for typical pool heater outputs.
Expert Tip: Always verify the printing on the pipe and fittings. Legitimate pressure-rated PVC will be stamped with “Schedule 40,” “NSF-pw” (potable water/pressure), or a specific PSI rating. If it says “DWV,” “ASTM D2665,” or lacks a pressure rating, put it back on the shelf.
Step-by-Step: Properly Gluing Pool Pressure Fittings
Even with the correct Schedule 40 fittings, improper installation causes leaks. Follow this precise method for bulletproof joints:
- Cut Square: Use a ratchet cutter or fine-tooth saw to cut the pipe perfectly perpendicular. A crooked cut reduces contact area inside the socket.
- Deburr and Chamfer: Remove all burrs from the inside and outside edges. Use a chamfer tool to bevel the outer edge slightly; this prevents the pipe from scraping glue off the fitting wall during insertion.
- Dry Fit First: Insert the pipe into the fitting without glue. It should slide in smoothly to about 2/3 of the socket depth. Mark the alignment with a marker.
- Clean and Prime: Apply purple primer to both the pipe end and fitting socket. This softens the PVC chemically. Do not skip primer on pressure lines; it is required by code and essential for fusion.
- Apply Cement: Apply a thin, even layer of medium-body PVC cement to the fitting socket first, then a heavier layer to the pipe end.
- Insert and Twist: Push the pipe firmly into the fitting until it bottoms out. Give it a quarter-turn twist to distribute the cement evenly. Hold firmly for 15 seconds to prevent push-out.
- Cure Time: Allow 30 minutes before handling and 24 hours before pressure testing. Rushing cure time is the #1 cause of new-installation leaks.
Frequently Asked Questions (FAQ)
Can I use DWV pipe for pool drain lines?
Yes, but only for true gravity drains that are completely isolated from the pressurized circulation system. If the drain connects to a main drain line that experiences suction from the pump, you must use Schedule 40 pressure pipe. When in doubt, use pressure-rated materials throughout.
Is Schedule 40 PVC the same as DWV?
No. They are manufactured to different ASTM standards. Schedule 40 (ASTM D1785) is pressure-rated with uniform walls. DWV (ASTM D2665) is non-pressure rated with variable walls. They are not interchangeable in pool systems.
Can I transition from DWV to Schedule 40 using a coupling?
You can physically connect them with a transition coupling, but you cannot use the DWV section in a pressure application. The entire run subject to pump pressure must be Schedule 40 or higher. Transitions are only acceptable at the exact point where a pressure line becomes a true gravity drain.
What happens if I already installed DWV fittings in my pool?
If the system is pressurized, plan to replace those sections immediately. Monitor closely for signs of stress: hairline cracks, moisture at joints, or air bubbles returning to the pool. Consider hiring a licensed pool plumber to perform a pressure test to identify weak points before they fail catastrophically.
Does flexible PVC count as pressure-rated?
Only if explicitly marked as such. Some flexible PVC products are designed exclusively for drainage and lack the reinforcement needed for pressure. Always check the manufacturer’s specifications and pressure rating before purchasing flex pipe for pool plumbing.
Conclusion
So, can I use DWV fittings on pool plumbing? Absolutely not. The short-term savings are vastly outweighed by the long-term risks of pipe failure, equipment damage, and safety hazards. Your pool is a pressurized hydraulic system that demands materials engineered for that specific purpose. Investing in proper Schedule 40 or Schedule 80 PVC ensures your backyard oasis remains a source of joy, not stress.
Found this guide helpful? Share it with fellow pool owners or DIY enthusiasts on Facebook, Pinterest, or your favorite pool forum to help others avoid costly plumbing mistakes. Safe building makes for better swimming!
