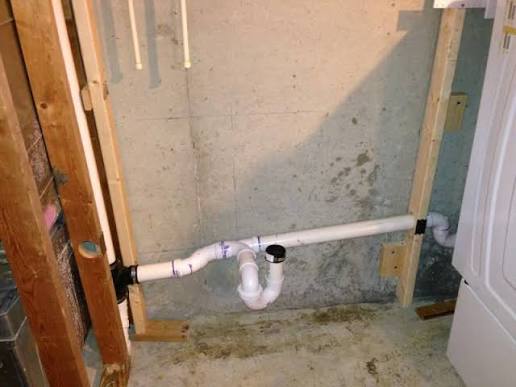

Can Laundry Plumbing Be Shared With A Sink?

Renovating a laundry room or adding a utility sink often leads to a common plumbing dilemma: space and budget constraints. Many homeowners ask, “Can laundry plumbing be shared with a sink?” to avoid running new lines through finished walls. The short answer is yes, but it requires strict adherence to local building codes to prevent dangerous siphoning and clogs.

In this guide, we will break down exactly how to connect these fixtures safely. We will cover venting requirements, pipe sizing, and the critical traps you must avoid to keep your home compliant and odor-free.

Understanding the Basics of Shared Drainage

Before picking up a wrench, it is vital to understand how drainage systems work. Your home’s plumbing relies on gravity and air pressure. When water flows down a drain, it creates a vacuum behind it. If this vacuum isn’t broken by fresh air (venting), it can suck the water out of your P-traps.

When you share a drain line between a washing machine and a sink, you are combining two very different types of water flow. A sink drains slowly and steadily. A washing machine discharges a large volume of water rapidly, often with lint and debris.

According to general plumbing principles found in resources like Wikipedia’s overview of plumbing, proper slope and venting are non-negotiable for maintaining sanitary conditions. If the shared line is too small or improperly vented, the washer’s rapid discharge can pull water from the sink’s trap, allowing sewer gases into your home.

Key Code Requirements for Connecting Fixtures

The International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) provide the framework for most US jurisdictions. While local amendments vary, the core rules for sharing drains remain consistent.

1. Pipe Diameter Matters

You cannot simply tee a washing machine hose into a standard 1.5-inch sink drain. This is a frequent cause of backups.

• Sink Drain: Typically uses 1.5-inch piping.
• Washing Machine Drain: Requires a minimum 2-inch diameter pipe.

If you are sharing the line, the common drain section must be sized to handle the combined load. In most cases, this means upgrading the main horizontal branch to at least 2 inches. Using a 1.5-inch pipe for a shared line will likely lead to slow draining and eventual clogs due to lint accumulation.

2. Venting Is Critical

Every fixture needs a vent. When sharing a drain, you have two options:

• Individual Vents: Each fixture has its own vent stack connecting to the roof.
• Common Vent: Both fixtures share a single vent, provided the pipe sizing meets code calculations.

A lack of proper venting causes “glugging” sounds in your sink when the washer drains. This indicates air starvation, which compromises the water seal in your traps.

Step-by-Step Guide to Sharing the Drain

If you have determined that your layout allows for a shared connection, follow these steps to ensure a professional-grade installation. Always check with your local building department before starting.

Step 1: Plan the Connection Point

Identify where the sink drain and washer standpipe will meet. The ideal scenario is a vertical stack where both fixtures connect above the main horizontal branch. This minimizes the risk of cross-contamination and backflow.

Step 2: Install the Proper Fittings

Use a sanitary tee or a wye fitting for horizontal-to-horizontal connections. Never use a sharp 90-degree elbow for drainage, as it restricts flow and catches lint.

• Connect the sink drain (1.5-inch) to the main line using a reducer if necessary, but ensure the main line remains 2-inch.
• Connect the washing machine standpipe (2-inch) directly to the 2-inch main line.

Step 3: Ensure Correct Slope

Drain pipes must slope downward toward the main stack. The standard requirement is 1/4 inch per foot of pipe length.

• Use a level to check your pitch.
• Too little slope causes standing water and sludge buildup.
• Too much slope allows water to outrun solids, leading to clogs.

Step 4: Secure the Standpipe Height

The washing machine drain hose must insert into a standpipe that meets specific height requirements.

• Minimum Height: 18 inches above the trap weir.
• Maximum Height: 42 inches above the trap weir.
• Diameter: The standpipe must be at least 2 inches in diameter.

If the standpipe is too short, wastewater can siphon out. If it is too high, the washer pump may struggle to push water out, causing error codes or leaks.

Common Mistakes to Avoid

Even experienced DIYers can stumble when mixing fixture types. Here are the most frequent errors:

The Danger of “Siphoning”

One of the biggest risks in shared plumbing is siphoning. If the washer drains faster than the pipe can ventilate, it creates negative pressure. This can pull water out of the sink’s P-trap. Once the trap is dry, sewer gases enter your laundry room. To prevent this, ensure your vent system is robust. If adding a new vent stack is impossible, consider installing a Studor Vent (AAV) under the sink, provided local codes allow it.

Pros and Cons of Shared Plumbing

Is it worth the effort? Let’s weigh the benefits against the drawbacks.

Advantages

• Cost Savings: You save on materials and labor by not running a separate line to the main stack.
• Space Efficiency: Ideal for small laundry rooms or converted closets where space is premium.
• Convenience: Having a sink next to the washer is highly functional for pre-treating stains.

Disadvantages

• Complexity: Requires precise calculations for pipe sizing and venting.
• Clog Risk: Lint from the washer can accumulate in the shared trap if not cleaned regularly.
• Code Restrictions: Some older homes or strict municipalities may prohibit sharing certain fixtures without major upgrades.

Frequently Asked Questions (FAQ)

1. Can I connect my washing machine directly to the sink drain pipe?

No, you should not connect the washer hose directly into the sink’s P-trap or tailpiece. The volume of water from a washer is too high and can overwhelm the sink’s drainage capacity. Instead, both fixtures should connect to a common larger-diameter drain line downstream of their individual traps.

2. Do I need a permit to share laundry and sink plumbing?

In most US jurisdictions, yes. Any alteration to the drainage system, especially involving fixture additions or re-routing, typically requires a plumbing permit. This ensures the work is inspected for code compliance, protecting your home’s value and insurance coverage.

3. What size pipe do I need for a shared laundry and sink drain?

The branch line serving both fixtures should be at least 2 inches in diameter. While a sink alone can use 1.5-inch pipe, the addition of a washing machine necessitates the larger size to handle the surge volume and prevent blockages.

4. Can I use an Air Admittance Valve (AAV) instead of a roof vent?

Yes, in many cases. An AAV (often called a Studor vent) allows air into the drain system when negative pressure occurs, preventing trap siphoning. However, they must be installed accessible locations (not inside walls) and are not permitted in all jurisdictions. Check your local code first.

5. Why does my sink gurgle when the washing machine drains?

Gurgling indicates a venting issue. The washer is pulling air through the sink’s trap because the vent stack is blocked, undersized, or missing. This is a health hazard as it compromises the water seal. You likely need to clean the vent or install an auxiliary vent like an AAV.

Conclusion

So, can laundry plumbing be shared with a sink? Absolutely, but it must be done with precision. By upgrading to 2-inch piping, ensuring proper venting, and maintaining correct slope, you can create a functional and code-compliant utility space. This setup not only saves money during renovation but also enhances the daily usability of your laundry room.

Remember, plumbing mistakes can lead to costly water damage and health hazards from sewer gas. If you are unsure about venting calculations or local code amendments, consult a licensed plumber. A small investment in professional advice now can save thousands in repairs later.
