Installing a new water softener is an exciting step toward protecting your home’s appliances and skin, but many homeowners hit a roadblock during setup: Can my water softener discharge into my plumbing? This is a critical question because improper drainage can lead to costly sewage backups, code violations, or even contaminated drinking water. We understand the frustration of navigating conflicting advice online, so let’s clarify exactly how to safely connect your system while keeping your home compliant and protected.
Can My Water Softener Discharge Directly Into My Plumbing Drain?
The short answer is no, not directly. You cannot simply hard-pipe a water softener drain line straight into your household waste plumbing. While the discharge must eventually enter your sanitary sewer system, building codes universally prohibit direct physical connections between the softener drain and the waste pipe.
This restriction exists to prevent cross-contamination. If a direct connection were allowed and a sewer backup occurred, raw sewage could be siphoned back into your water softener resin tank and potentially into your potable water supply. Instead, plumbing codes require an indirect waste connection utilizing an air gap.
According to standards referenced in Wikipedia, an air gap is the unobstructed vertical distance through the free atmosphere between the lowest opening from any pipe or faucet supplying water to a tank or plumbing fixture and the flood level rim of the receptacle. This physical separation ensures that no amount of negative pressure or backflow can contaminate your fresh water system.
What Is the Correct Way to Route Brine Discharge?
To answer “can my water softener discharge into my plumbing” safely, you must use an approved indirect waste method. Here are the three most common and code-compliant options for US homeowners:

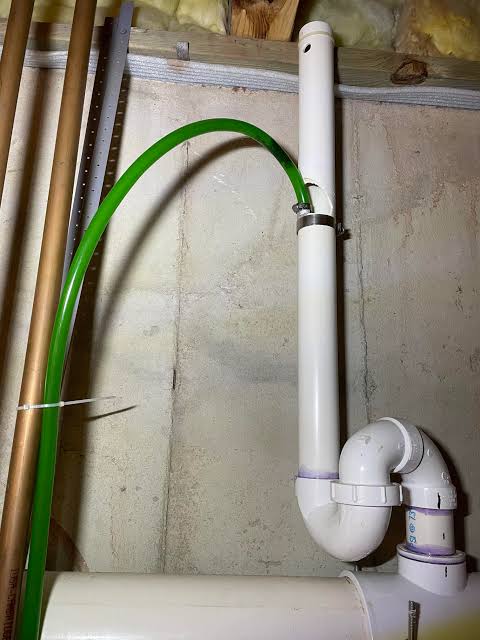

1. Standpipe with Air Gap (Most Common)
A dedicated standpipe is a vertical pipe connected to your drain system that terminates above the floor. The softener drain hose is secured above this pipe, leaving a visible gap.
- Air Gap Requirement: Minimum 1.5 inches or twice the diameter of the drain hose (whichever is greater).
- Standpipe Height: Typically 18–30 inches above the trap weir.
- Best For: Utility rooms, basements, and garages.
2. Laundry Sink or Utility Tub
Discharging into a utility sink is acceptable if done correctly. The drain hose must be clipped to the side of the sink so the end sits above the flood rim.
- Warning: Never submerge the hose in standing sink water.
- Securement: Use a hose clip or zip tie to prevent the hose from whipping out during regeneration.
- Best For: Homes without a dedicated standpipe.
3. Floor Drain with Proper Trap
Some older homes have floor drains that accept softener discharge. However, the same air gap rules apply. The hose cannot be shoved down the drain grate.
- Trap Primer: Ensure the floor drain has water in the trap; dry traps allow sewer gas entry.
- Flow Rate Check: Verify the floor drain can handle 2–4 gallons per minute (GPM) during backwash.
- Best For: Basement installations near existing drainage.
Step-by-Step: Installing a Code-Compliant Air Gap
If you are setting up your discharge yourself, follow these precise steps to ensure safety and compliance. Always verify local amendments to the International Plumbing Code (IPC) before starting.
- Locate Your Drain Point: Identify a sanitary drain within 20 feet of the softener. Longer runs increase the risk of clogging and reduced flow.
- Install or Verify the P-Trap: Every drain receiving softener brine must have a P-trap to block sewer gases. Use a 1.5-inch or 2-inch trap depending on local code.
- Measure the Air Gap: Measure the outer diameter (OD) of your softener drain hose. Multiply this number by two. If your hose is 0.5 inches OD, your minimum air gap is 1 inch. Most inspectors prefer 1.5 inches regardless of hose size.
- Secure the Drain Hose: Use a plastic hose clamp or bracket to fix the hose end at the correct height above the standpipe or sink rim. The hose should point downward into the drain but never touch the water or pipe interior.
- Test the Regeneration Cycle: Manually initiate a regeneration. Watch the discharge to ensure water flows freely without splashing excessively or backing up. Listen for gurgling sounds that indicate a restricted drain.
- Label the Connection: Place a permanent tag near the air gap stating “Water Softener Indirect Waste – Do Not Connect Directly.” This helps future plumbers and inspectors.
Expert Tip: During winter months in unheated spaces, insulate your standpipe and trap. Frozen brine lines are one of the most common causes of softener failure and indoor flooding.
Pros vs. Cons of Different Discharge Methods
| Method | Pros | Cons | Best Scenario |
|---|---|---|---|
| Dedicated Standpipe | Most code-compliant; reliable; easy inspection access | Requires plumbing work; takes up space | New installations & renovations |
| Utility Sink | No extra plumbing needed; visual monitoring easy | Risk of hose displacement; sink usability reduced | Renters or temporary setups |
| Floor Drain | Convenient location; no elevated piping | Harder to inspect air gap; potential odor issues | Finished basements with existing drains |
| Sump Pump Pit | Easy gravity feed | Often prohibited; salt damages pumps; environmental risk | Only where explicitly allowed by code |
Why High Salt Concentration Matters for Your Pipes
When asking “can my water softener discharge into my plumbing,” you must also consider pipe material compatibility. Brine discharge contains extremely high concentrations of sodium chloride (or potassium chloride), which can be corrosive over time.
- Cast Iron: Highly susceptible to salt corrosion. Avoid discharging into cast iron stacks unless lined or diluted.
- PVC/ABS: Resistant to salt corrosion. These are the preferred materials for softener drain lines.
- Copper: Generally resistant, but prolonged exposure to saturated brine can accelerate pitting in thin-wall tubing.
- Galvanized Steel: Should be avoided entirely for brine waste due to rapid deterioration.
If your home has cast iron drainage, consult a licensed plumber about installing a PVC insert liner or using a dilution tee to reduce salt concentration before it enters the main stack.
FAQ: Common Questions About Water Softener Discharge
Can I discharge my water softener into my septic system?
Yes, but with caution. Modern studies show that normal softener discharge does not harm septic bacteria and may actually improve soil percolation. However, you must still use an air gap. Limit discharge to 2–3 regenerations per week and avoid dumping entire brine tanks manually into the system. Always check your state’s specific septic regulations first.
Is it legal to discharge water softener brine outdoors?
In most US municipalities, no. Outdoor discharge violates Clean Water Act provisions and local stormwater ordinances because brine contaminates groundwater and kills vegetation. Some arid regions permit it with special permits, but assume it is prohibited unless your local water authority confirms otherwise in writing.
How far can I run my water softener drain line?
Most manufacturers recommend a maximum horizontal run of 20 feet and a maximum vertical lift of 8 feet. Beyond these limits, the softener’s internal ejector cannot overcome friction loss, leading to incomplete regeneration and resin bed fouling. If you need longer runs, install a condensate pump rated for brine service.
What happens if I don’t use an air gap?
Without an air gap, you risk catastrophic backflow contamination. Sewage can enter your softener during a backup event, ruining the resin bed ($200–$400 replacement cost) and potentially introducing pathogens into your drinking water. Additionally, failing an inspection can result in fines and mandatory rework.
Can I connect my softener drain to my washing machine standpipe?
Technically possible but generally discouraged. Washing machine standpipes are designed for intermittent high-volume discharge, not the sustained lower-flow pattern of softener regeneration. Simultaneous operation can cause overflow. If this is your only option, install a dual-inlet standpipe adapter with separate air gaps for each appliance.
Does the air gap need to be accessible?
Yes. Plumbing codes require that all indirect waste connections remain accessible for inspection and cleaning. Do not seal air gaps behind drywall or under permanent cabinetry. An inaccessible air gap is considered a code violation during home inspections.
Conclusion
So, can my water softener discharge into my plumbing? Yes—but only through a properly installed indirect waste connection with a verified air gap. Skipping this step risks your health, your home’s infrastructure, and your compliance with local codes. By choosing the right discharge method, securing adequate air gaps, and respecting pipe material limitations, you protect both your investment and your family’s safety.
