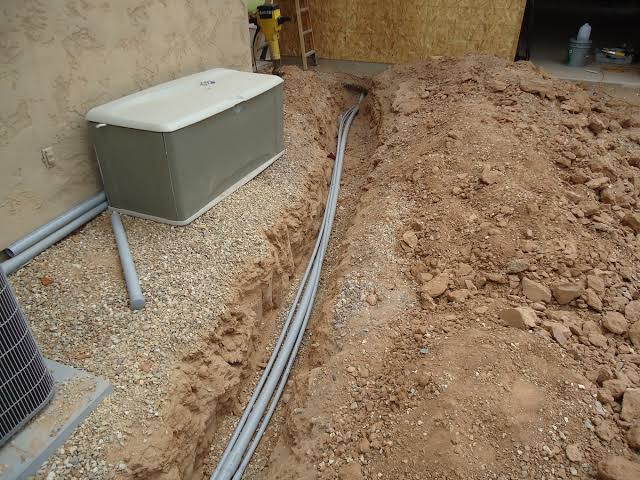

Can Plumbing And Electrical Be In Same Trench?

Have you ever stared at a blueprint or a dug-up backyard, wondering if you can save time and money by combining utility lines? It is a common dilemma for homeowners and even some contractors: can plumbing and electrical be in same trench? The short answer is yes, but with significant caveats that prioritize safety above all else.

Mixing water and electricity is inherently risky. While modern building codes allow for shared trenches under specific conditions, violating these rules can lead to catastrophic failures, code violations, and serious safety hazards. In this guide, we will break down exactly what the National Electrical Code (NEC) and International Plumbing Code (IPC) say, ensuring your project is safe, compliant, and durable.

Understanding the Core Safety Risks

Before we dive into the technical specifications, it is crucial to understand why regulators are so strict about this issue. Water is a conductor of electricity. If a water pipe leaks or bursts, it can saturate the soil surrounding an electrical conduit. If that conduit has even a minor breach, the result can be electrified soil, which poses a lethal shock hazard to anyone walking above it.

Furthermore, different utilities have different maintenance needs. Electrical lines may need upgrading or repair more frequently than water mains. Digging up a shared trench to fix one line often risks damaging the other, leading to costly double-repairs.

According to general engineering principles found on Wikipedia, proper separation of utilities is a foundational aspect of urban planning and residential safety. This separation minimizes the “cascade failure” risk where one broken utility disables another.

What Do Building Codes Say About Shared Trenches?

The primary authority in the United States is the National Electrical Code (NEC), specifically Article 300.50 regarding underground installations. However, local amendments always take precedence. Always check with your local building department before breaking ground.

The General Rule: Separation is Key

Most codes do not explicitly ban sharing a trench, but they mandate strict separation. The goal is to ensure that if one system fails, it does not compromise the integrity of the other.

• Vertical Separation: Typically, electrical lines must be buried deeper than water lines, or vice versa, depending on local frost lines and protection requirements. A common requirement is a minimum of 12 inches of vertical separation between the two systems.
• Horizontal Separation: If they run parallel at the same depth, a horizontal distance of at least 12 to 24 inches is often required.

The “Common Trench” Exception

Some jurisdictions allow plumbing and electrical to occupy the same trench if:

1. They are separated by a continuous barrier (like a concrete slab or specialized divider).
2. The electrical conduit is rated for direct burial and wet locations.
3. The water pipe is made of non-conductive material (like PVC or PEX) rather than metal.

Best Practices for Installing Utilities in One Trench

If you determine that a shared trench is necessary due to space constraints or budget, follow these step-by-step best practices to maintain compliance and safety.

1. Choose the Right Materials

Not all pipes and wires are created equal. For shared trenches, you must use materials that resist moisture and corrosion.

• Electrical: Use Schedule 40 or Schedule 80 PVC conduit. Ensure all junction boxes are rated for wet locations.
• Plumbing: Use PVC, CPVC, or PEX. Avoid copper or galvanized steel unless they are heavily insulated and grounded properly, as metal pipes can conduct stray electrical currents.

2. Maintain Proper Depth

Depth is your first line of defense.

• Electrical Direct Burial Cable: Usually requires 24 inches of cover.
• Electrical in Conduit: Often requires 18 inches of cover.
• Water Lines: Must be below the frost line (varies by region, often 12–36 inches).

Tip: Place the electrical line at the bottom of the trench if local code allows, covered by sand, then a separator, then the water line. This prevents water from pooling around electrical connections if a leak occurs above.

3. Use Physical Barriers

Never let the pipes touch. Use sand bedding or specialized plastic dividers.

• Lay 2 inches of sand at the bottom.
• Install the lower utility (usually electrical).
• Cover with 2–4 inches of sand.
• Install a physical separator (optional but recommended).
• Install the upper utility (usually plumbing).
• Backfill carefully.

4. Label Everything

Future you (or future homeowners) will thank you. Use bright, durable warning tape above each line.

• Red Tape: Electric Power Lines
• Blue Tape: Potable Water

Comparison: Shared Trench vs. Separate Trenches

To help you decide, here is a quick comparison of the two approaches.

Common Mistakes to Avoid

Even experienced DIYers make errors when combining utilities. Here are the most frequent pitfalls:

• Ignoring Local Amendments: The NEC is a baseline. Your city or county may have stricter rules. For example, some areas prohibit gas lines in any trench with electrical, regardless of separation.
• Using Metal Conduit Without Grounding: If you use metal conduit for electrical, it must be properly grounded. In a wet trench, ungrounded metal can become energized.
• Poor Backfilling: Throwing rocks and sharp debris into the trench can puncture conduits. Always use screened soil or sand around the utilities.
• Crossing at Sharp Angles: When plumbing and electrical must cross, they should do so at a 90-degree angle to minimize the contact zone and make future location easier.

FAQ Section

1. Can gas lines be in the same trench as electrical and plumbing?

Generally, no. Gas lines have their own strict set of codes (often governed by the National Fuel Gas Code). Most jurisdictions strictly prohibit gas lines in the same trench as electrical wiring due to the risk of explosion if an electrical spark ignites a gas leak. Gas lines usually require their own dedicated trench with specific separation distances from all other utilities.

2. What is the minimum distance between water and electrical lines in a shared trench?

While it varies by locality, the standard recommendation is 12 inches of vertical separation or 12–24 inches of horizontal separation. Some codes allow them to be closer if a solid, continuous barrier separates them. Always consult your local building inspector for the exact measurement required in your area.

3. Can I use flexible conduit for electrical in a shared trench?

Flexible conduit (like Liquidtight) is generally allowed, but rigid PVC (Schedule 40 or 80) is preferred for underground installations because it offers better protection against crushing and rodent damage. If you use flexible conduit, ensure it is rated for direct burial and wet locations.

4. Does it matter if the water pipe is plastic vs. metal?

Yes, it matters significantly. Plastic pipes (PVC, PEX) are non-conductive, which reduces the risk of electrical shock if a wire is compromised. Metal pipes (copper, steel) can conduct electricity. If you must use metal water pipes in a shared trench, ensure they are bonded and grounded according to NEC Article 250.

5. Who should I call to inspect my trench before backfilling?

You must call your local building department or a certified private inspector. Never backfill a trench containing electrical or plumbing lines without an inspection. Most jurisdictions require a “rough-in” inspection to verify depth, separation, and material compliance. Failing to do so can result in fines and being forced to dig it all up again.

6. What happens if I violate the code and combine them improperly?

Improper installation can lead to failed home inspections, making it difficult to sell your property. More importantly, it voids insurance coverage in the event of an accident. If an electrical fire or shock incident occurs due to code violations, your homeowner’s insurance may deny the claim.

Conclusion

So, can plumbing and electrical be in same trench? Yes, but it is a decision that demands respect for safety codes and meticulous execution. While sharing a trench can save money on excavation, it introduces complexity and risk that must be managed through proper separation, high-quality materials, and strict adherence to the NEC and local regulations.

If you are unsure about the specific requirements in your area, always err on the side of caution. Hiring a licensed electrician and plumber to coordinate the installation is often cheaper than fixing a mistake later. Remember, the goal is not just to get the job done, but to ensure your home remains safe for decades to come.
