Can Washing Machine Hook Into Adjacent Sink Plumbing?

Have you ever stared at a cramped laundry nook, wishing you could squeeze in a washer without breaking the bank on new plumbing lines? It is a common dilemma for homeowners in older apartments or compact houses where dedicated laundry hookups are missing or poorly placed. You might be wondering, “Can washing machine hook into adjacent sink plumbing?” The short answer is yes, but it requires careful planning to avoid costly disasters like leaks or code violations.

In this comprehensive guide, we will walk you through everything you need to know about connecting your washing machine to a nearby sink’s drainage and water supply. We will cover the technical requirements, safety considerations, and step-by-step instructions to ensure your setup is both efficient and compliant with US plumbing standards.

Is It Legal and Safe to Connect a Washer to a Sink Drain?

Before you pick up a wrench, it is crucial to understand the regulatory landscape. Plumbing codes in the United States, such as the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), have specific requirements for washing machine installations.

Generally, connecting a washing machine to an adjacent sink is permissible if certain conditions are met:

1. Proper Venting: The drain line must be properly vented to prevent siphoning and allow wastewater to flow freely.
2. Trap Requirements: Both the sink and the washing machine typically require their own P-traps, or they must share a common trap that is sized correctly to handle the volume of water from both fixtures.
3. Pipe Diameter: The drain pipe must be large enough to handle the sudden surge of water from a washing machine discharge. A standard sink drain (1.5 inches) may not be sufficient if it is also serving a washer; often, a 2-inch drain line is recommended for the shared section.

According to general plumbing principles outlined by resources like Wikipedia’s entry on Plumbing, improper connections can lead to backflow, where dirty laundry water contaminates the sink or even enters the clean water supply if cross-connections exist. Always check with your local building department, as codes can vary significantly by city and state.

Key Requirements for a Successful Connection

To ensure your setup works without causing clogs or odors, you need to meet specific technical criteria. Here is a breakdown of the essential components.

1. Drain Pipe Size and Capacity

A typical washing machine discharges between 10 to 20 gallons of water in a very short burst during the spin cycle. If your sink has a standard 1.5-inch drain, it might struggle to handle this volume alongside regular sink usage.

• Ideal Scenario: The main vertical stack or horizontal branch line is at least 2 inches in diameter.
• Minimum Requirement: Some local codes allow 1.5-inch drains if the run is short and properly vented, but this is risky for high-efficiency machines that pump water out quickly.

2. The Importance of Air Gaps and Standpipes

You cannot simply hose the washer discharge directly into the sink drain pipe. You must use a standpipe.

• Height: The standpipe should extend at least 18–30 inches above the floor trap.
• Diameter: The standpipe itself should be at least 2 inches in diameter.
• Air Gap: There must be an air gap between the end of the washing machine hose and the top of the standpipe to prevent siphoning. This ensures that dirty water never flows back into the machine.

3. Water Supply Lines

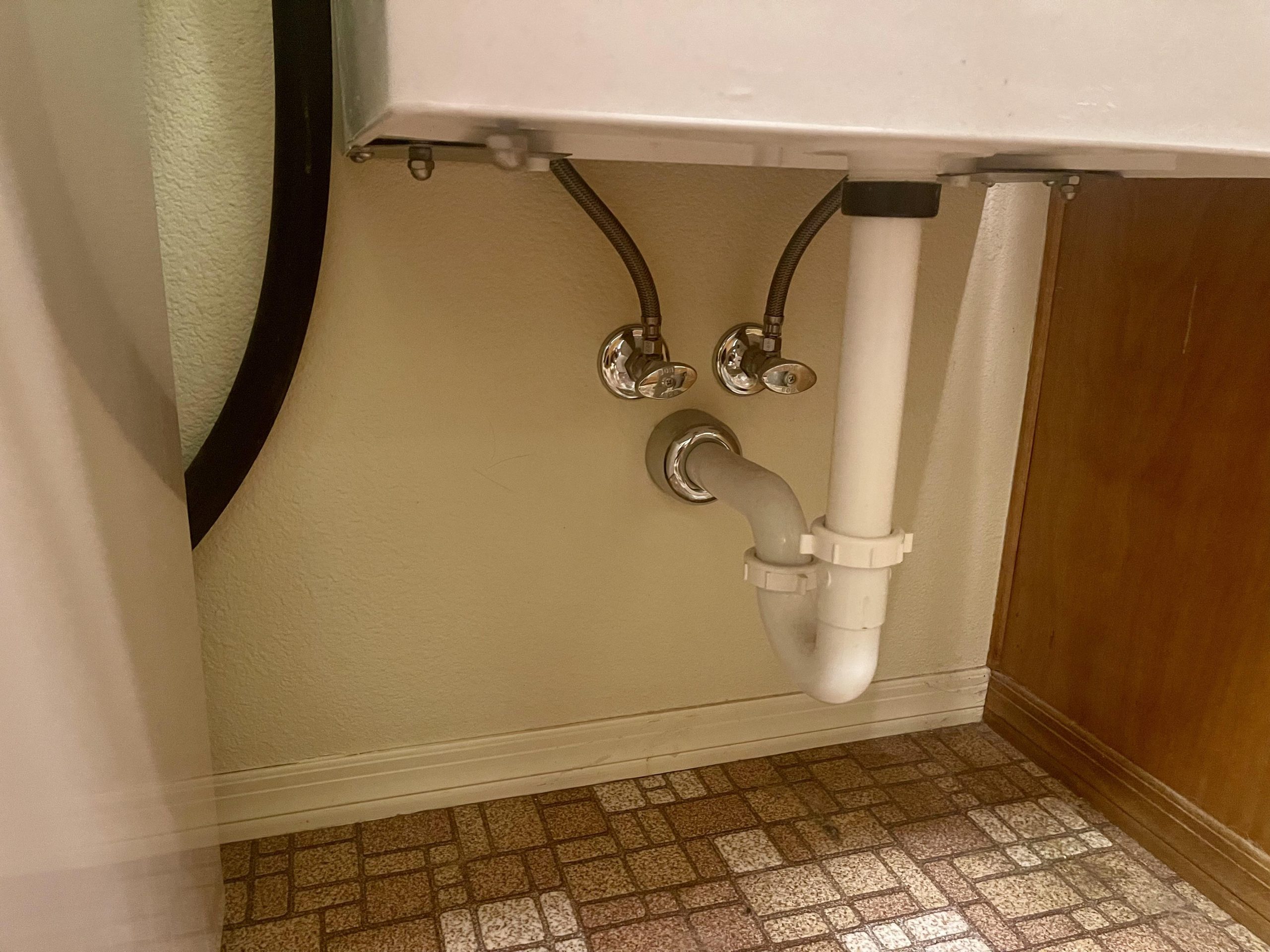

Connecting to the water supply is often easier than the drain. You can install a dual-outlet valve (often called a “washing machine box” or “angle stop with hose bibbs”) under the sink. This allows you to tap into the existing hot and cold water lines feeding the sink.

Step-by-Step Guide: How to Hook Up Your Washing Machine

If you have confirmed that your plumbing can handle the load, here is how to execute the installation. Note: If you are not comfortable with plumbing work, hire a licensed professional. Incorrect installation can void home insurance policies.

Step 1: Gather Your Tools and Materials

• Adjustable wrenches
• Pipe cutter or hacksaw
• PVC or ABS pipes and fittings (matching your existing system)
• 2-inch standpipe kit
• Dual-outlet water supply valves
• Teflon tape
• Hose clamps

Step 2: Install the Water Supply Connection

1. Turn off the main water supply to the house.
2. Locate the hot and cold water lines under the sink.
3. Install dual-outlet angle stops on both lines. These valves will have one outlet for the sink faucet and another threaded outlet for the washing machine hoses.
4. Wrap threads with Teflon tape and tighten securely. Do not overtighten, as this can crack the valves.

Step 3: Modify the Drainage System

1. Identify the sink’s drain tailpiece. You will need to intercept this line before it enters the wall or floor trap.
2. Cut the existing drain pipe if necessary to insert a wye fitting or a sanitary tee. This fitting will allow the washing machine drain to join the sink drain.
3. Ensure the connection is made downstream of the sink’s P-trap but upstream of the main vent stack. Crucial: Never connect the washer drain directly into the sink’s P-trap arm, as this can cause siphoning of the trap seal.
4. Install a 2-inch standpipe vertically. Secure it to the wall studs for stability.

Step 4: Connect the Washing Machine

1. Attach the washing machine drain hose to the top of the standpipe. Use a hose clamp to secure it, ensuring the hose does not go too deep into the pipe (maintain the air gap).
2. Connect the hot and cold water hoses from the washer to the new dual-outlet valves under the sink.
3. Turn the water supply back on slowly and check for leaks at all new connections.

Step 5: Test the System

Run a short wash cycle. Observe the sink drain while the washer discharges. If water backs up into the sink, your drain line is either too small or partially clogged. If you hear gurgling sounds, your venting may be insufficient.

Common Mistakes to Avoid

Even experienced DIYers can make errors when combining fixtures. Here are the most frequent pitfalls:

• Ignoring the Vent: Without proper venting, the rapid discharge from the washer can suck the water out of the sink’s P-trap, allowing sewer gases into your home.
• Using Flexible Drain Hoses Inside Walls: Never bury flexible plastic drain hoses inside walls or floors. They are prone to kinking and bursting. Use rigid PVC or ABS piping for concealed runs.
• Overloading Small Pipes: If your home has old galvanized steel pipes, adding a washer to the line can accelerate corrosion and clogging due to lint buildup. Consider replacing old pipes with copper or PEX.

FAQ: Frequently Asked Questions

1. Will connecting my washer to the sink cause slow draining?

It can, if the pipe diameter is insufficient. A 1.5-inch pipe may struggle to handle the simultaneous flow from a sink and a washer. Upgrading to a 2-inch drain line for the shared section usually resolves this issue.

2. Do I need a permit for this modification?

In most US jurisdictions, altering plumbing fixtures requires a permit. This ensures the work meets safety codes. Check with your local building department before starting. Unpermitted work can cause issues when selling your home.

3. Can I use a utility sink instead of a kitchen/bathroom sink?

Yes, a utility sink is actually the ideal candidate for this setup. Utility sinks are often designed with deeper basins and stronger drainage systems, making them more compatible with washing machine discharges.

4. What if my sink is on a different wall than the washer?

If the sink is not adjacent, the cost and complexity increase significantly. You would need to run new drain and supply lines through walls or floors. In this case, it is often more cost-effective to install a dedicated laundry box near the washer location rather than tying into a distant sink.

5. How do I prevent lint from clogging the sink drain?

Washing machines release significant amounts of lint. Install a lint trap on the washing machine discharge hose before it enters the standpipe. Clean this trap regularly to prevent blockages in the shared plumbing.

Conclusion

So, can washing machine hook into adjacent sink plumbing? Yes, it is a viable solution for spaces lacking dedicated laundry hookups, provided you adhere to strict plumbing codes regarding pipe size, venting, and trapping. By using a 2-inch standpipe, ensuring proper air gaps, and installing dual-outlet water valves, you can create a functional and safe laundry setup.

However, remember that this is not a “quick fix.” It requires careful planning and potentially professional assistance to ensure compliance with local regulations. If done correctly, it saves space and money; if done poorly, it risks water damage and health hazards.
