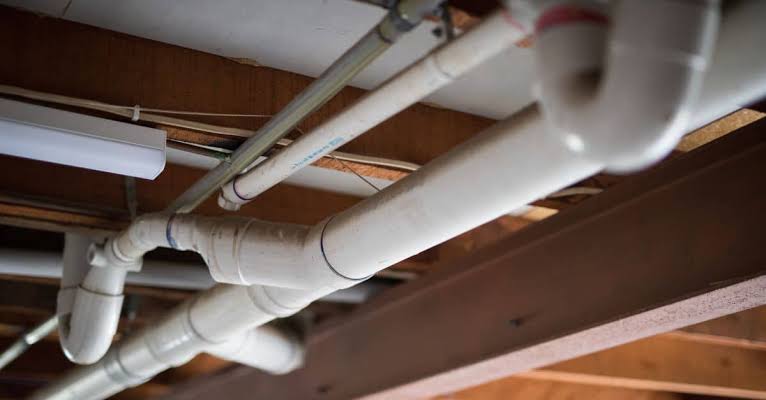

Renovating an older home is a dream for many, but it often comes with a hidden nightmare: the plumbing system. You want the sleek efficiency of modern fixtures, but your walls are lined with decades-old pipes that seem resistant to change. The pressing question on every homeowner’s mind is: Can you connect contemporary plumbing to old plumbing?
The short answer is yes, but it is not as simple as screwing two pieces together. It requires a deep understanding of material compatibility, local building codes, and potential health hazards. In this guide, we will break down exactly how to bridge the gap between the past and present without causing leaks or violating regulations.
Understanding the Compatibility Challenge
Before you pick up a wrench, you must identify what you are working with. “Old plumbing” is not a single entity; it varies significantly by era. Homes built before 1960 often feature galvanized steel or cast iron. Those from the 1970s and 80s might have polybutylene (PB) or early PVC. Contemporary plumbing typically utilizes Copper (Type L or M), PEX (Cross-linked Polyethylene), or CPVC.
Connecting these disparate materials is possible, but it introduces specific chemical and physical challenges. For instance, connecting copper directly to galvanized steel causes galvanic corrosion, a process where one metal corrodes preferentially when in electrical contact with another in the presence of an electrolyte (water). This can lead to pinhole leaks within months.
According to industry standards, you cannot simply solder or glue different materials together. You need specialized transition fittings. The Environmental Protection Agency (EPA) highlights the importance of material safety, especially regarding lead content in older brass fittings and pipes, which remains a critical concern in pre-1986 installations.
Key Factors When Mixing Old and New Pipes
When planning your renovation, three major factors dictate whether your connection will hold up over time.
1. Material Reaction and Corrosion
As mentioned, dissimilar metals react poorly. If you are connecting new copper to old galvanized steel, you must use a dielectric union. This fitting contains a non-conductive material (like plastic or rubber) that separates the two metals, preventing the electrical current that causes corrosion. Without it, your new plumbing investment could be ruined by the old infrastructure.
2. Pressure and Temperature Ratings
Older pipes, particularly polybutylene or degraded PVC, may not handle the higher pressure or temperature fluctuations of modern tankless water heaters or high-efficiency boilers. Always check the PSI (pounds per square inch) rating of the existing pipe. If the old pipe is rated for 100 PSI and your new system operates at 150 PSI, the old section becomes a weak link prone to bursting.
3. Diameter Mismatches
Pipe sizes have changed over the decades. Older homes often used larger diameter pipes to compensate for lower water pressure or buildup inside rusted pipes. Modern PEX or copper systems are more efficient and often use smaller diameters. Connecting a 1-inch galvanized pipe to a 3/4-inch PEX line requires a reducing adapter. Failing to account for this can cause turbulence, noise (water hammer), and reduced flow rate.
Step-by-Step Guide to Safe Connections
If you have determined that your old pipes are structurally sound enough to keep, here is how to professionally connect them to contemporary systems. Note that this is a general guide; always consult a licensed plumber for complex jobs.
Tools Needed:
- Pipe cutter (for copper/PEX) or hacksaw (for steel/iron)
- Dielectric unions or sharkbite push-to-connect fittings (for temporary/DIY ease)
- Teflon tape or pipe dope
- Adjustable wrenches
- Deburring tool
The Process:
- Shut Off the Water: Locate the main shut-off valve and turn it clockwise until tight. Open a faucet at the lowest point in the house to drain residual pressure and water.
- Cut the Old Pipe: Use a hacksaw to cut the old galvanized or cast iron pipe. Ensure the cut is straight and clean. If using steel, remove any burrs with a file.
- Prepare the Transition Fitting: For a copper-to-galvanized connection, install a dielectric union. Thread the female end onto the male threads of the galvanized pipe. Use Teflon tape on the threads to ensure a watertight seal. Tighten with two wrenches—one to hold the pipe, one to turn the fitting—to avoid twisting the pipe inside the wall.
- Connect the New Material: On the other side of the dielectric union, connect your new copper or PEX line. If using PEX, use a crimp ring and appropriate adapter. If using copper, sweat (solder) the joint or use a compression fitting.
- Pressure Test: Before closing up walls, turn the water back on slowly. Check for leaks at the connection point. Let the water run for 10–15 minutes to ensure stability under pressure.
Pros and Cons: Keeping vs. Replacing Old Plumbing
Is it worth the effort to connect, or should you rip it all out? Here is a comparison to help you decide.
| Feature | Connecting to Old Plumbing | Full Replacement |
|---|---|---|
| Cost | Lower upfront cost (30-50% less) | High initial investment |
| Time | Faster installation (days) | Lengthy project (weeks) |
| Risk | Higher risk of future leaks/corrosion | Long-term reliability |
| Code Compliance | May require variances or inspections | Fully compliant with current codes |
| Water Quality | Potential for rust/lead contamination | Clean, safe water delivery |
Expert Insight: Most professional plumbers recommend a full repipe if the home is over 50 years old and still has galvanized steel. However, if the budget is tight, connecting via dielectric unions is a viable temporary solution for 5–10 years.
Common Mistakes to Avoid
Even experienced DIYers make errors when bridging eras. Avoid these pitfalls:
- Ignoring Local Codes: Some municipalities strictly forbid mixing certain materials. For example, some areas ban the use of SharkBite fittings behind walls. Always check with your local building department.
- Skipping the Dielectric Union: Never connect copper directly to galvanized steel. It is a ticking time bomb for leaks.
- Over-tightening Plastic Fittings: When connecting PEX or CPVC to older threaded metal pipes, over-tightening can crack the plastic adapter. Hand-tighten plus a quarter turn is usually sufficient.
- Neglecting Support: Old pipes are often heavy and rigid. New PEX is flexible. Ensure you add proper strapping and support near the connection point to prevent stress on the joint.
FAQ Section
1. Can I connect PEX directly to galvanized steel?
No, you cannot connect them directly. You must use a transition fitting. Typically, you thread a male adapter into the galvanized pipe and then connect the PEX to that adapter using a crimp or clamp ring. A dielectric union is recommended if the adapter is metal to prevent corrosion.
2. Is it safe to leave lead pipes in place if I connect new plumbing?
Lead pipes pose a serious health risk. While you can technically connect to them using special compression fittings, most health experts and plumbers strongly advise against it. The vibration and pressure changes from new fixtures can dislodge lead particles. Full replacement is the only safe option for lead service lines.
3. What is the best fitting for connecting copper to PVC?
You should use a transition coupling designed specifically for copper-to-PVC connections. These usually involve a copper end that is soldered or compressed and a PVC end that is glued. Do not attempt to glue copper or solder PVC.
4. Will connecting new plumbing to old affect my water pressure?
It might. If the old pipes are heavily corroded or scaled inside, they restrict flow. Connecting high-flow modern fixtures to restricted old pipes can result in poor performance. If you notice low pressure after connection, the issue is likely the condition of the old pipe, not the connection itself.
5. Do I need a permit to connect new plumbing to old?
In most US jurisdictions, yes. Any alteration to the permanent plumbing system usually requires a permit and inspection. This ensures that the connections meet safety standards and do not violate cross-connection controls that protect potable water.
Conclusion
So, can you connect contemporary plumbing to old plumbing? Yes, you can, but it must be done with precision, respect for material science, and adherence to local codes. Using the right transition fittings, such as dielectric unions, is non-negotiable for preventing corrosion and ensuring longevity.
While connecting to existing pipes can save money in the short term, always weigh this against the long-term risks of aging infrastructure. If your budget allows, a full repipe offers peace of mind and improved water quality. However, for targeted renovations, a professional hybrid approach is entirely feasible.
