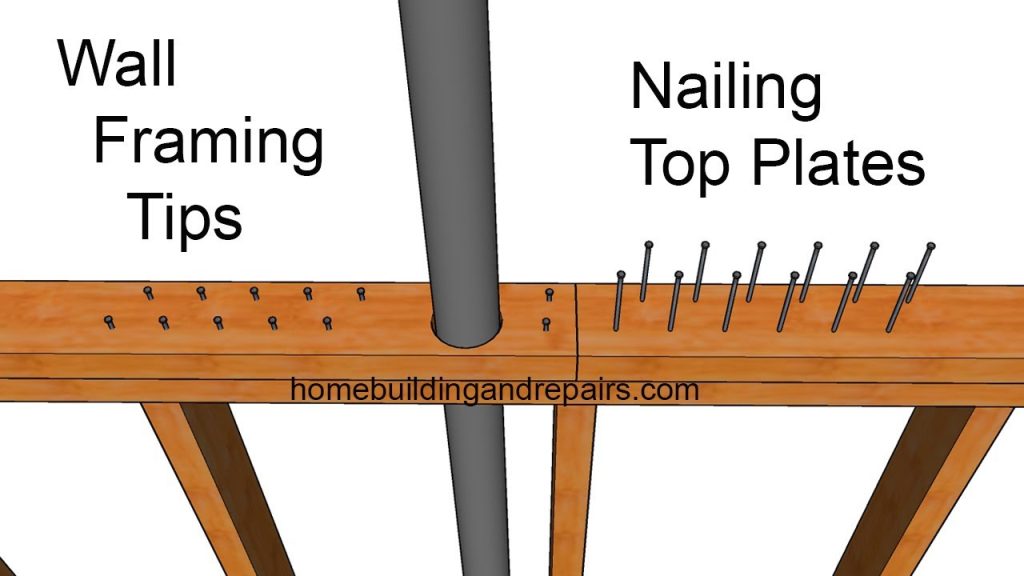

Renovating a bathroom or adding a new sink often leads to a critical structural question: can you drill through double top plate for plumbing without compromising your home’s integrity? It is a common dilemma for DIY enthusiasts and professional contractors alike, as running pipes through walls is essential for modern convenience but risky if done incorrectly. This guide will walk you through the exact building codes, safety margins, and best practices to ensure your project is both safe and compliant.
Understanding the Role of the Double Top Plate
Before you pick up a drill, it is vital to understand what you are drilling into. In standard US residential construction, walls are framed with vertical studs capped by horizontal plates. The “double top plate” consists of two layers of lumber (usually 2x4s or 2x6s) stacked on top of each other.
The primary function of this double layer is not just to hold the roof up, but to tie intersecting walls together. It provides lateral stability and distributes loads from the roof or upper floors evenly across the wall studs. When you drill through this member, you are potentially weakening this load path. Therefore, the International Residential Code (IRC) has specific stipulations about how much material can be removed.
Why Location Matters More Than Size
Many homeowners focus solely on the diameter of the pipe. However, where you place the hole is equally critical. Drilling near the edge of the plate can cause splitting under load, while drilling in the center maintains the structural integrity of the wood fibers. According to general engineering principles, the strength of a beam (or plate) is significantly compromised when cuts are made in the tension or compression zones, which are located at the top and bottom edges.
What Are the IRC Rules for Drilling Top Plates?
The International Residential Code (IRC) is the benchmark for most US jurisdictions. While local amendments may vary, the core rules regarding notching and boring in framing members are consistent.
Maximum Hole Diameter
For a standard 2×4 top plate (which is actually 1.5 inches thick by 3.5 inches wide), the rules are strict.
- General Rule: Holes should not exceed one-third of the depth of the member.
- Calculation: For a 3.5-inch deep 2×4, one-third is approximately 1.16 inches.
This means you can safely drill a hole up to roughly 1 inch in diameter through a single 2×4 top plate. Since a double top plate is two 2x4s stacked, you must treat each individual layer according to this rule. You cannot drill a massive 2-inch hole through the combined stack if it violates the one-third rule for the individual members or the overall assembly’s stability.
Edge Distance Requirements
You must maintain a minimum distance from the edge of the wood.
- Rule: The edge of the hole must be at least 5/8 inch from the edge of the stud or plate.
- Reason: This prevents the wood from splitting when the structure settles or experiences wind/seismic loads.
| Component | Standard Size (Nominal) | Actual Depth | Max Hole Diameter (1/3 Rule) | Min Edge Distance |
|---|---|---|---|---|
| 2×4 Plate | 2×4 | 3.5 inches | ~1.16 inches | 5/8 inch |
| 2×6 Plate | 2×6 | 5.5 inches | ~1.83 inches | 5/8 inch |
Note: Always check with your local building department, as some high-seismic zones may have stricter requirements.
Step-by-Step Guide: How to Drill Safely
If you have determined that your plumbing fit within the code limits, follow these steps to execute the job professionally.
Step 1: Verify Local Codes and Permits
Before cutting, confirm if your project requires a permit. While small repairs might not, moving plumbing lines often does. Check Wikipedia’s overview of building codes to understand the regulatory framework in your area.
Step 2: Locate Studs and Utilities
Use a high-quality stud finder to locate the exact position of the studs and any existing electrical wiring.
- Tip: Scan from both sides of the wall if possible.
- Safety: Turn off power to the circuit if you are drilling near known electrical paths.
Step 3: Mark the Center Point
Measure the width of the top plate. For a 2×4, the center is 1.75 inches from either edge. Mark this center point clearly.
- Why: Drilling in the center maximizes the remaining wood structure on both sides, adhering to the 5/8-inch edge distance rule easily.
Step 4: Select the Right Drill Bit
Use a sharp auger bit or a hole saw designed for wood.
- Recommendation: For PEX tubing (commonly 1/2 inch or 3/4 inch outer diameter), a 1-inch spade bit is usually sufficient and safe.
- Avoid: Using dull bits that require excessive force, as this can crack the wood.
Step 5: Drill Perpendicularly
Drill straight down through the first plate, then continue through the second plate.
- Technique: Start slowly to create a pilot indentation, then increase speed. Keep the drill perpendicular to the floor to ensure the pipe runs straight.
- Clearance: Ensure the hole is slightly larger than the pipe to allow for expansion and contraction, but not so large that it compromises structural integrity. If the hole is too big, you must use a steel nail plate for protection if it’s within 1.25 inches of the face (though this applies more to studs than top plates, it’s good practice).
Step 6: Install Protective Plates (If Required)
If your plumbing line runs vertically down a stud after passing through the top plate, and the hole in the stud is within 1.25 inches of the edge, you must install a metal nail plate. This protects the pipe from future drywall screws or nails.
Common Mistakes to Avoid
Even experienced DIYers make errors. Here are the most frequent pitfalls:
- Drilling Too Close to the Edge: This is the number one cause of structural failure. Always measure twice.
- Ignoring the “Double” Aspect: Treating the double top plate as a single solid beam can lead to oversized holes. Remember, each layer has its own structural role.
- Using Copper Without Deburring: If using copper pipes, sharp edges inside the hole can vibrate against the wood, causing noise or wear over time. Use grommets if necessary.
- Not Accounting for Insulation: Ensure your drilling path doesn’t compress insulation excessively, which reduces its R-value.
Alternatives to Drilling the Top Plate
If your plumbing requirements exceed the safe drilling limits (e.g., you need to run a 2-inch drain line), you have other options.
Option 1: Notching the Top Plate
In some cases, notching is permitted, but it is generally more restrictive than drilling. The IRC typically allows notches up to one-sixth of the depth in the top third of the span. However, notching a top plate is rarely recommended because it severely weakens the connection between walls.
Option 2: Running Pipes Outside the Wall
For exterior walls or non-aesthetic areas, you can run plumbing on the outside of the house, insulated and boxed in. This avoids structural modifications entirely.
Option 3: Using a Chase Wall
Build a false wall (chase) next to the existing wall to hide larger pipes. This adds width to the room but preserves the structural integrity of the original framing.
Option 4: Consulting a Structural Engineer
If you must make a large penetration, a structural engineer can design a header or reinforcement plan. This might involve adding a steel strap or doubling up studs around the penetration.
FAQ Section
1. Can I drill a 2-inch hole in a 2×4 top plate?
No. A 2-inch hole exceeds the one-third depth rule (1.16 inches) for a standard 2×4. Doing so would violate building codes and compromise the wall’s structural integrity. You should only drill holes up to 1 inch in diameter in a 2×4.
2. Does it matter if I drill through one or both layers of the double top plate?
Yes. You must adhere to the code for each member. If you drill through both, each hole must comply with the size and edge distance rules. Additionally, avoid stacking holes directly on top of each other if they are large; stagger them slightly if possible to maintain load distribution, though vertical alignment is often unavoidable and acceptable if within size limits.
3. What type of pipe is best for running through top plates?
PEX (Cross-linked Polyethylene) is ideal because it is flexible and has a smaller outer diameter compared to rigid copper or PVC for the same water volume. Its flexibility also allows it to absorb minor structural shifts without leaking.
4. Do I need a permit to drill through top plates for plumbing?
It depends. Minor repairs often don’t require permits, but new installations or relocating lines usually do. Always check with your local building department. Unpermitted work can cause issues when selling your home.
5. Can I drill through the bottom plate instead?
Generally, no. Bottom plates (sole plates) are critical for anchoring the wall to the foundation. Drilling through them can compromise the wall’s resistance to uplift forces (wind/earthquakes). It is much safer to drill through top plates or studs, following code guidelines.
6. What if I accidentally drill a hole that is too big?
Do not ignore it. You must repair it to restore structural integrity. Consult a contractor or structural engineer. Common fixes include sistering a new piece of lumber alongside the damaged plate or installing a steel reinforcement plate, but this must be done to code.
Conclusion
So, can you drill through double top plate for plumbing? The answer is a cautious yes. You can safely drill holes up to 1 inch in diameter in standard 2×4 top plates, provided you stay at least 5/8 inch from the edges and follow the one-third depth rule.
By respecting these guidelines, you ensure that your home remains structurally sound while enjoying the convenience of updated plumbing. Always prioritize safety, verify local codes, and when in doubt, consult a professional.
