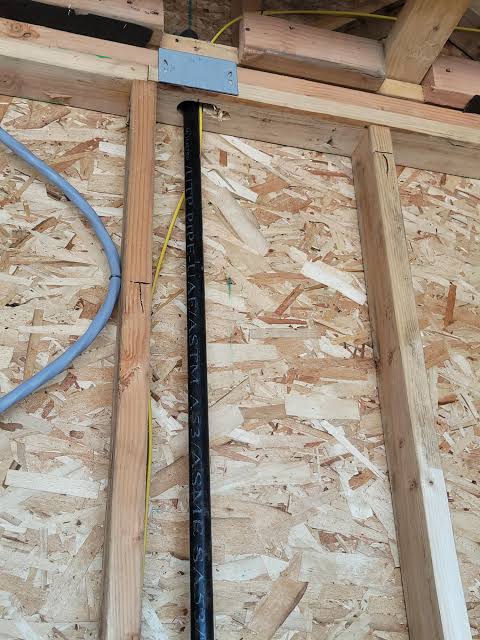

Can You Install Electrical Wiring Next To Plumbing?

Renovating a home often feels like solving a complex puzzle, especially when pipes and wires seem to compete for the same limited space within your walls. It is a common dilemma for DIY enthusiasts and homeowners alike: can you install electrical wiring next to plumbing without violating safety codes or risking dangerous accidents? Understanding the strict separation requirements between these two essential systems is crucial for ensuring the long-term safety and functionality of your residence.

The Short Answer: Yes, But With Strict Conditions

The immediate answer to whether you can run electrical wires near water pipes is yes, but it is never as simple as just nailing them side-by-side. The National Electrical Code (NEC) and local building regulations have specific guidelines designed to prevent moisture from compromising electrical insulation and to avoid physical damage during maintenance.

While they can share the same wall cavity, they cannot occupy the same hole or touch each other directly. The primary concern is not just immediate electrocution risk, but long-term degradation. Water condensation on cold pipes can drip onto electrical cables, leading to corrosion, short circuits, or even fire hazards over time. Therefore, proper spacing and protective measures are non-negotiable.

Why Separation Matters: Understanding the Risks

Before diving into the technical “how-to,” it is vital to understand the “why.” Combining electrical and plumbing systems without adequate precautions introduces several risks that can compromise your home’s integrity.

1. Moisture and Condensation

Cold water pipes often sweat due to condensation, especially in humid climates or unconditioned spaces like basements. If an electrical wire is in direct contact with a sweating pipe, the moisture can seep into the wire’s jacket. Over years, this leads to insulation breakdown.

2. Physical Damage During Repairs

Plumbing issues are frequent. If a plumber needs to cut or replace a pipe and electrical wires are stapled directly to it or running through the same borehole without protection, there is a high risk of accidentally cutting live wires. This poses a severe shock hazard to the worker and can cause power outages or fires.

3. Galvanic Corrosion

Although less common with modern plastic piping (PEX/CPVC), if you have copper plumbing and copper electrical grounding wires in close proximity, stray electrical currents can accelerate corrosion in the pipes. This is known as electrolysis.

What Do the Codes Say? NEC Guidelines Explained

To ensure your installation is legal and safe, you must adhere to the National Electrical Code (NEC). While local amendments may vary, the NEC provides the baseline standard for the United States.

According to general NEC principles and best practices derived from Wikipedia’s overview of the National Electrical Code, there is no single universal inch-measurement that applies to every scenario, but there are clear mandates regarding protection and separation.

• No Direct Contact: Wires should never be in direct contact with water pipes.
• Borehole Spacing: If wires and pipes must pass through the same stud, they should ideally use separate holes. If they must share a large enough cavity, they must be separated by a solid barrier or maintained at a safe distance (typically recommended at least 1.5 to 2 inches apart by professional inspectors).
• Protection Plates: If the distance between the edge of the stud and the wire/pipe is less than 1.25 inches, steel nail plates must be installed to protect against drywall screws or nails.

Comparison: Safe vs. Unsafe Installation Practices

Step-by-Step Guide to Safe Installation

If you are planning a renovation, follow these steps to ensure your electrical and plumbing systems coexist safely.

Step 1: Plan Your Route

Map out where your pipes and wires will go. Try to route electrical cables on one side of the stud bay and plumbing on the other. If they must cross, plan for them to cross at a 90-degree angle to minimize the contact area.

Step 2: Drill Separate Holes

When drilling through wooden studs, create separate holes for electrical cables and plumbing pipes.

• Drill Size: Ensure the hole is no more than 40% of the stud’s width to maintain structural integrity.
• Location: Keep holes centered in the stud whenever possible.

Step 3: Maintain Clearance

If separate holes are not feasible due to space constraints, you must maintain physical separation.

• Use spacers or stand-offs to keep wires away from pipes.
• Ensure a minimum gap of 1.5 inches between the outer edge of the pipe and the electrical cable.

Step 4: Install Protective Plates

If either the pipe or the wire is within 1.25 inches of the face of the stud, you must install a steel nail plate. This thin metal strip prevents drywall screws from penetrating and damaging the utilities behind the wall.

Step 5: Secure Properly

• Electrical: Staple cables every 4.5 feet and within 12 inches of boxes. Do not staple wires too tightly; allow slight slack.
• Plumbing: Secure pipes with appropriate hangers or straps. Never use electrical staples to hold plumbing pipes.

Step 6: Inspect Before Closing Walls

Before you install drywall, have a certified inspector review the work. They will check for proper spacing, secure fastening, and code compliance. This step is critical for insurance and resale value.

Common Mistakes to Avoid

Even experienced DIYers can make errors when dealing with mixed utilities. Here are the most frequent pitfalls:

• Running Wires Through Pipe Insulation: Never tuck electrical wires inside the foam insulation of a water pipe. This traps heat and moisture, creating a fire hazard.
• Using Metal Straps for Both: Do not use the same metal strap to hold both a copper pipe and an electrical cable. This creates a direct conductive path.
• Ignoring Local Amendments: Some cities have stricter rules than the NEC. Always check with your local building department before starting.

Frequently Asked Questions (FAQ)

1. Can electrical wires and water pipes touch if the wire is Romex?

No. Even though Romex (NM-B cable) has a protective outer jacket, it is not waterproof. Direct contact with water pipes, especially those prone to condensation, can degrade the jacket over time. Always maintain separation.

2. What is the minimum distance between electrical and plumbing lines?

While the NEC does not specify a universal fixed number for all scenarios, most professional electricians and inspectors recommend a minimum separation of 1.5 to 2 inches. If they must cross, they should do so at right angles with no direct contact.

3. Can I run electrical wires in the same hole as a PEX pipe?

It is strongly discouraged. PEX pipes can expand and contract with temperature changes, which may abrade the electrical wire’s insulation. Additionally, if the PEX leaks, the wire will be submerged. Always use separate holes.

4. Do I need a permit to move wires near pipes?

Yes, in most jurisdictions in the US, any new electrical installation or significant modification requires a permit and inspection. This ensures that the work meets safety standards and reduces liability.

5. What happens if water leaks on electrical wiring?

If water contacts live wiring, it can cause a short circuit, tripping the breaker. However, if the ground fault interruption fails, it can lead to electrocution hazards or electrical fires. Immediate professional repair is required if wiring gets wet.

6. Can gas lines and electrical wires run together?

Gas lines have even stricter separation requirements than water pipes. Generally, electrical switches and outlets must be at least 6 inches away from gas metering equipment, and wiring should not be in direct contact with gas pipes due to the risk of sparks igniting leaks.

Conclusion

Navigating the intersection of electrical and plumbing systems requires careful planning and adherence to safety codes. So, can you install electrical wiring next to plumbing? Yes, provided you maintain proper separation, use protective measures like nail plates, and strictly follow the NEC guidelines.

Prioritizing safety over convenience is key. By keeping wires and pipes in separate holes, maintaining a 1.5-inch clearance, and avoiding direct contact, you protect your home from moisture damage, fire hazards, and costly repairs. Always consult with a licensed electrician or plumber if you are unsure about local codes.
