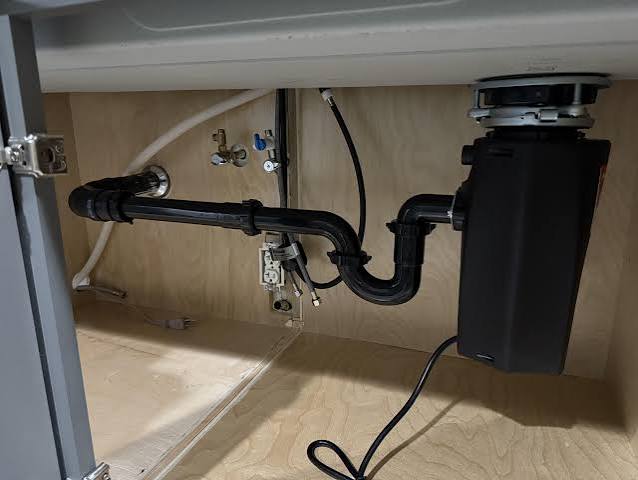

Can You Offset A Trap Drop Plumbing Code?

Have you ever stared at a confusing cluster of pipes under your sink or behind a wall, wondering if you can tweak the layout to fit your renovation plans? It is a common dilemma for homeowners and even some junior plumbers who face tight spaces or existing structural obstacles. The question “Can You Offset A Trap Drop Plumbing Code“ is not just about geometry; it is about legality, hygiene, and preventing nasty sewage backups in your home.

In this guide, we will break down exactly what the Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) say about offsetting traps. We will explore why “trap drops” are generally prohibited, the science behind siphonage, and the correct ways to adjust your drainage system without violating code.

What Is a Trap Drop and Why Is It Problematic?

Before we dive into the specific codes, let’s define our terms. In plumbing, a P-trap is the U-shaped pipe that holds water to create a seal against sewer gases. A “trap drop” typically refers to a configuration where the drain pipe drops vertically immediately after the trap outlet before connecting to the main drain line, or where the trap itself is lowered below the fixture outlet using extra fittings.

The Physics of the Seal

The primary function of a P-trap is to maintain a water seal. This seal prevents methane, hydrogen sulfide, and other dangerous sewer gases from entering your living space. When you introduce an unnecessary vertical drop or offset immediately after the trap, you alter the hydraulic dynamics of the flow.

According to fluid dynamics principles used in plumbing engineering, a sudden drop can increase the velocity of the wastewater. If the water moves too fast, it can create a siphoning effect, pulling the water out of the trap bowl. Once that water is gone, the seal is broken, and your home is open to the sewer system.

Key Insight: Most US plumbing codes are designed to protect health first and convenience second. Any modification that jeopardizes the trap seal is strictly regulated.

Can You Offset A Trap Drop Plumbing Code: The Short Answer

If you are looking for a quick yes or no: Generally, No.

Most major plumbing codes in the United States, including the Uniform Plumbing Code (UPC) and the International Plumbing Code (IPC), prohibit the installation of a “trap drop” or an improper offset that compromises the trap’s integrity. Specifically, codes forbid placing a vent or a drain connection in a way that allows the trap to be siphoned dry.

However, “offsetting” the pipe run horizontally is different from creating a vertical “drop.” Let’s clarify the distinction, as this is where many DIYers get confused.

Horizontal Offsets vs. Vertical Drops

• Horizontal Offsets: You can offset the drain line horizontally away from the wall or fixture tailpiece, provided you maintain the correct slope (1/4 inch per foot) and do not exceed the maximum distance allowed before venting.
• Vertical Drops: You cannot simply add a vertical section of pipe between the fixture outlet and the trap weir, nor can you drop the pipe vertically immediately after the trap without proper venting considerations. This is often referred to as a “double trap” or an unvented siphon risk.

What Do UPC and IPC Say About Trap Installations?

To understand the restrictions, we must look at the specific language used by the governing bodies. While local amendments vary by state and city, most US jurisdictions follow one of these two models.

Uniform Plumbing Code (UPC) Guidelines

The UPC is strict regarding trap installations. It states that each fixture must be trapped with a liquid-seal trap. Crucially, it prohibits S-traps and any configuration that creates a self-siphoning condition.

Under UPC Section 1002.1, traps must be set level with respect to the trap dip. If you offset the trap vertically downward (creating a drop), you are essentially creating an extended tailpiece that can act like a siphon. The code requires that the vertical distance from the fixture outlet to the trap weir be as short as possible.

International Plumbing Code (IPC) Standards

The IPC, widely used in the eastern and central US, has similar provisions. IPC Section 1002.1 mandates that traps shall be self-scouring and shall not have concealed interior partitions. More importantly, IPC Section 908 deals with venting. If you offset a trap drop significantly, you may violate the maximum distance requirements between the trap and its vent.

For more detailed historical context on plumbing standards, you can refer to general engineering principles outlined on Wikipedia’s Plumbing Page.

Risks of Ignoring the Code: Why You Shouldn’t Try It

You might think, “It’s just a few inches of pipe. What’s the worst that could happen?” The consequences of ignoring the code regarding trap drops and offsets go beyond failing an inspection.

1. Health Hazards

The most immediate risk is sewer gas exposure. Sewer gas contains methane (explosive in high concentrations) and hydrogen sulfide (toxic). A compromised trap seal allows these gases to seep into your bathroom or kitchen. Symptoms of low-level exposure include headaches, nausea, and eye irritation.

2. Constant Clogs

Improper offsets can create areas where water stagnates or flows too turbulently. If the offset creates a slight belly (a low spot) in the line, solids will settle there. Over time, this leads to chronic clogs that snaking cannot easily fix because the structural geometry is flawed.

3. Legal and Insurance Issues

If you perform unpermitted work that violates code, and it leads to water damage or health issues, your homeowner’s insurance may deny the claim. Furthermore, when selling your home, a home inspector will flag non-compliant plumbing, forcing you to pay for expensive repairs retroactively.

How to Properly Offset a Drain Without Violating Code

So, you have a structural beam or a wall stud in the way. You need to move the drain line. How do you do it legally? Here is a step-by-step approach to offsetting your drainage correctly.

Step 1: Calculate the Maximum Unvented Length

Before moving anything, check your local code for the maximum distance a trap can be from its vent. For a standard 1.5-inch bathroom sink drain:

• UPC: Typically 5 feet.
• IPC: Typically 6 feet.

If your offset keeps the total distance within this limit, you are safe.

Step 2: Use 45-Degree Elbows, Not 90s

When offsetting horizontally, avoid using two 90-degree elbows close together, which can restrict flow. Instead, use two 45-degree elbows. This creates a smoother transition for wastewater and reduces the risk of clogging.

Step 3: Maintain Proper Slope

Ensure that every horizontal section of your offset maintains a slope of 1/4 inch per foot. Use a level to check this. If the pipe is flat or slopes upward, waste will not drain, and the trap may not scour properly.

Step 4: Install an Air Admittance Valve (AAV) if Necessary

If you cannot reach a traditional vent stack within the allowed distance due to your offset, consider installing an Air Admittance Valve (AAV). These mechanical vents allow air into the system to prevent siphoning but close to prevent gas escape. Note: Check if your local jurisdiction approves AAVs, as some areas still require traditional venting.

FAQ: Common Questions About Trap Offsets

1. Can I use an S-trap instead of a P-trap to solve my offset issue?

No. S-traps are explicitly banned by all modern US plumbing codes (UPC and IPC). They are prone to siphoning their own seal dry because the downward leg after the trap creates a siphon effect. Always use a P-trap.

2. What is the maximum vertical drop allowed after a P-trap?

Ideally, there should be zero vertical drop immediately after the trap weir before the pipe turns horizontal or connects to a vented drain. The pipe should exit the trap and go directly into the drain line or turn horizontally. Any significant vertical drop increases the risk of siphonage.

3. Can I offset the trap itself sideways?

Yes, you can use street elbows or adjustable slip-joint nuts to shift the trap slightly left or right to align with the drain outlet. However, keep the horizontal distance minimal. If you need to move it more than a few inches, it is better to offset the drain pipe in the wall or floor rather than stressing the trap connections.

4. Does a garbage disposal change the rules for trap drops?

No. The same rules apply. In fact, garbage disposals add vibration and solid waste, making proper slope and venting even more critical. An improper offset with a disposal unit is a recipe for frequent jams and leaks.

5. What if my house was built with a trap drop? Is it grandfathered in?

Existing plumbing that was code-compliant at the time of installation is often “grandfathered in.” However, if you renovate or replace the piping, you must bring it up to current code. You cannot replicate a non-compliant trap drop during a remodel.

Conclusion

Understanding can you offset a trap drop plumbing code is essential for any safe and legal plumbing project. The short answer is that while horizontal offsets are permissible with the right slope and venting, vertical “trap drops” that compromise the water seal are strictly prohibited by both UPC and IPC standards.

Don’t risk your family’s health or your home’s value by cutting corners. Use 45-degree elbows for smooth horizontal offsets, maintain a 1/4 inch per foot slope, and ensure your venting is within code-mandated distances. If you are unsure, always consult a licensed plumber. Your nose—and your insurance agent—will thank you.
