High-Pressure T-Bolt Clamp: 1″ SST Guide

Leaking hoses in high-pressure systems are not just a nuisance; they are a significant safety hazard and a costly operational downtime trigger. Whether you are managing an industrial plant or upgrading your heavy-duty plumbing, finding a reliable sealing solution is critical. This is where the Clamp T-Bolt Highpressure 1 Sst Plumbing & Industrial component becomes essential. It offers the robustness needed to withstand extreme pressures while resisting corrosion in harsh environments. In this guide, we will break down everything you need to know about selecting, installing, and maintaining these vital components to ensure your system runs smoothly and safely.

What Is a T-Bolt Clamp and Why Choose Stainless Steel?

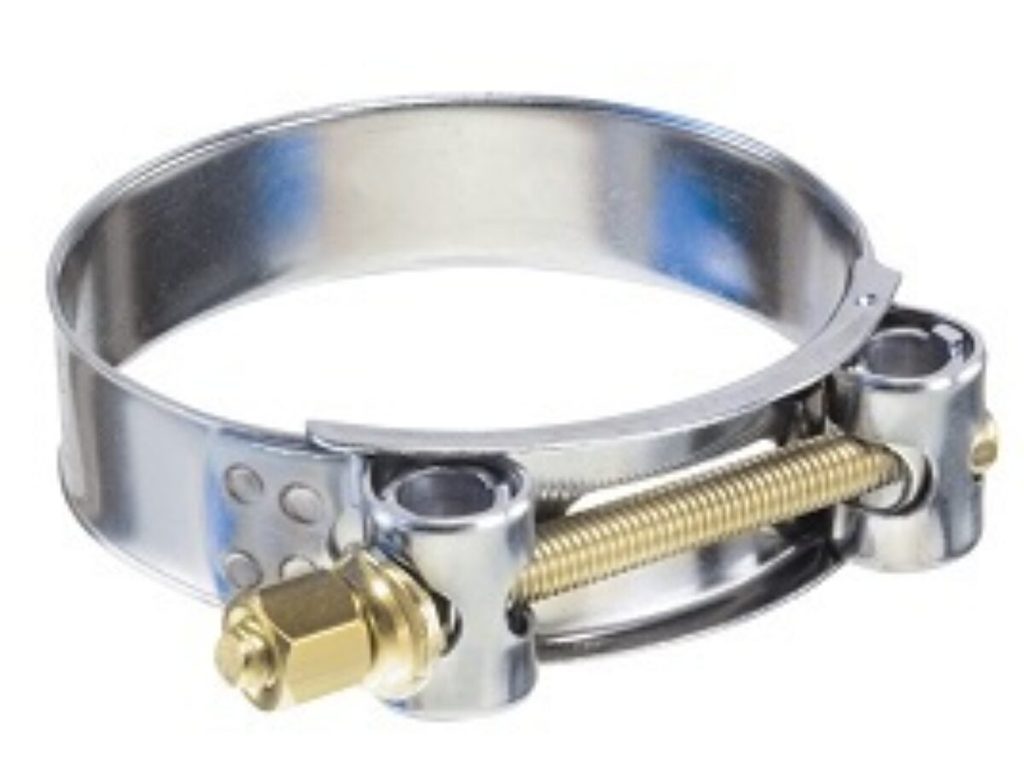

A T-bolt clamp is a specialized type of hose clamp designed for heavy-duty applications. Unlike standard worm-drive clamps that use a screw mechanism to tighten a band, a T-bolt clamp features a “T” shaped bolt head that slides into a track on the band. This design allows for uniform pressure distribution around the entire circumference of the hose, which is crucial for preventing leaks under high vibration and high pressure.

When we specify SST (Stainless Steel), we are referring to the material composition, typically Grade 304 or Grade 316 stainless steel. Why does this matter?

• Corrosion Resistance: Industrial environments often involve moisture, chemicals, and salt. Standard carbon steel clamps will rust quickly, leading to failure. Stainless steel resists oxidation, ensuring longevity.
• Strength-to-Weight Ratio: SST provides exceptional tensile strength without adding excessive weight to the piping system.
• Hygiene: In plumbing applications, especially those involving potable water or food processing, stainless steel is non-porous and easy to clean, meeting strict sanitary standards.

According to industry standards, stainless steel fittings can last up to five times longer than galvanized alternatives in corrosive environments, making them a cost-effective choice in the long run despite a higher initial investment.

Key Specifications of the 1-Inch High-Pressure Model

When searching for a Clamp T-Bolt Highpressure 1 Sst Plumbing & Industrial, understanding the specifications is vital to ensure compatibility. The “1-inch” designation usually refers to the nominal hose diameter it is designed to fit, but precise measurements are key.

Typical Dimensions and Ratings

Note: Always verify the exact Outer Diameter (OD) of your hose. A 1-inch nominal hose may have an OD slightly larger than 1 inch due to wall thickness.

The high-pressure capability of these clamps comes from their ability to maintain constant tension. Unlike spring clamps that can lose tension over time due to metal fatigue, T-bolt clamps are mechanically locked in place once tightened.

Installation Guide: Step-by-Step for Maximum Safety

Improper installation is the leading cause of clamp failure. Even the highest quality Clamp T-Bolt Highpressure 1 Sst Plumbing & Industrial part will fail if not installed correctly. Follow these steps to ensure a leak-proof seal.

Tools Needed:

• Calibrated torque wrench
• Socket set (usually 8mm or 5/16″)
• Clean rag

Step 1: Preparation Ensure the hose end and the fitting nipple are clean and free of debris, oil, or old gasket material. Inspect the hose for any cuts or weak spots near the end. If the hose is damaged, cut it back to a healthy section.

Step 2: Positioning Slide the T-bolt clamp onto the hose before connecting it to the fitting. Push the hose onto the fitting nipple until it bottoms out or reaches the marked insertion depth. Ensure the hose is fully seated.

Step 3: Aligning the Clamp Position the clamp so that it is centered over the junction of the hose and the fitting. The band should be perpendicular to the hose axis. Misalignment can cause the hose to bulge on one side, creating a leak path.

Step 4: Initial Tightening Hand-tighten the nut until the band is snug against the hose. Do not use power tools at this stage. Ensure the T-bolt head is properly engaged in the slot of the band.

Step 5: Torque Application Using a torque wrench, tighten the nut to the manufacturer’s specified torque. For a 1-inch stainless steel T-bolt clamp, this is typically between 45 to 60 inch-pounds. Over-tightening can crush the hose reinforcement layers, while under-tightening leads to leaks.

Step 6: Final Inspection After tightening, check that the band is parallel and the hose is evenly compressed. Run the system at low pressure first to check for leaks before ramping up to full operating pressure.

Common Applications in Plumbing and Industry

The versatility of the Clamp T-Bolt Highpressure 1 Sst Plumbing & Industrial makes it suitable for a wide range of sectors. Understanding where it excels helps in determining if it is the right choice for your project.

1. Industrial Hydraulic Systems: Used to secure high-pressure hydraulic hoses where pulse pressure and vibration are common. The T-bolt design prevents the clamp from loosening due to machine vibration.
2. Chemical Processing Plants: Due to the corrosion resistance of SST, these clamps are ideal for transporting aggressive chemicals, acids, and solvents.
3. Food and Beverage Industry: Sanitary plumbing requires materials that do not contaminate the product. 316 SST clamps are standard in breweries and dairy processing units.
4. Marine and Offshore: Saltwater environments are highly corrosive. Standard clamps fail rapidly here, but high-grade stainless steel T-bolt clamps provide reliable service life.
5. High-Performance Automotive: While often associated with industry, these clamps are also used in turbocharger intercooler piping where boost pressures exceed standard automotive limits.

For more detailed information on material properties of stainless steel, you can refer to Wikipedia’s page on Stainless Steel.

Maintenance and Troubleshooting Tips

Even the best components require maintenance. Here is how to keep your system in top shape.

• Regular Visual Inspections: Check for signs of rust, particularly if you are using 304 SST in a marine environment. If rust spots appear, consider upgrading to 316 SST.
• Re-Torquing: After the first 24 hours of operation, re-check the torque. Hoses can settle and compress slightly, leading to a minor loss of tension.
• Replace, Don’t Reuse: If a clamp has been removed, it is generally recommended to replace it. The T-bolt thread and the band track can wear, reducing the clamping efficiency.
• Lubrication: Apply a small amount of anti-seize compound to the bolt threads. This prevents galling (a form of wear caused by adhesion between sliding surfaces) and makes future removal easier.

FAQ Section

Q1: What is the difference between 304 and 316 Stainless Steel clamps? A: Both are corrosion-resistant, but 316 contains molybdenum, which provides superior resistance to chlorides and salts. Use 304 for general industrial use and 316 for marine or chemical environments.

Q2: Can I use a T-bolt clamp on a soft silicone hose? A: Yes, but you must use a clamp with a wider band to distribute the pressure. Narrow bands can cut into soft silicone. Always use an internal support sleeve if the pressure is very high.

Q3: How do I know if my clamp is tight enough? A: Use a torque wrench. Visual inspection is not reliable for high-pressure applications. Follow the manufacturer’s torque specification, usually found in the product datasheet.

Q4: Are T-bolt clamps reusable? A: They can be reused if they are in good condition, but it is not recommended for critical high-pressure applications. Wear on the T-slot and bolt threads can compromise the seal.

Q5: What size wrench do I need for a 1-inch T-bolt clamp? A: Most 1-inch T-bolt clamps use a hex nut that fits a 5/16″ or 8mm socket. Always check the specific product packaging to be sure.

Q6: Can these clamps handle vacuum pressure? A: Yes, T-bolt clamps are excellent for vacuum applications because they provide uniform 360-degree compression, preventing the hose from collapsing or pulling off the fitting.

Conclusion

Selecting the right Clamp T-Bolt Highpressure 1 Sst Plumbing & Industrial component is a decision that impacts the safety, efficiency, and longevity of your piping system. By choosing high-quality stainless steel and following proper installation protocols, you mitigate the risks of leaks and equipment failure. Remember, the initial cost of a premium SST clamp is negligible compared to the cost of downtime or environmental cleanup from a leak.
