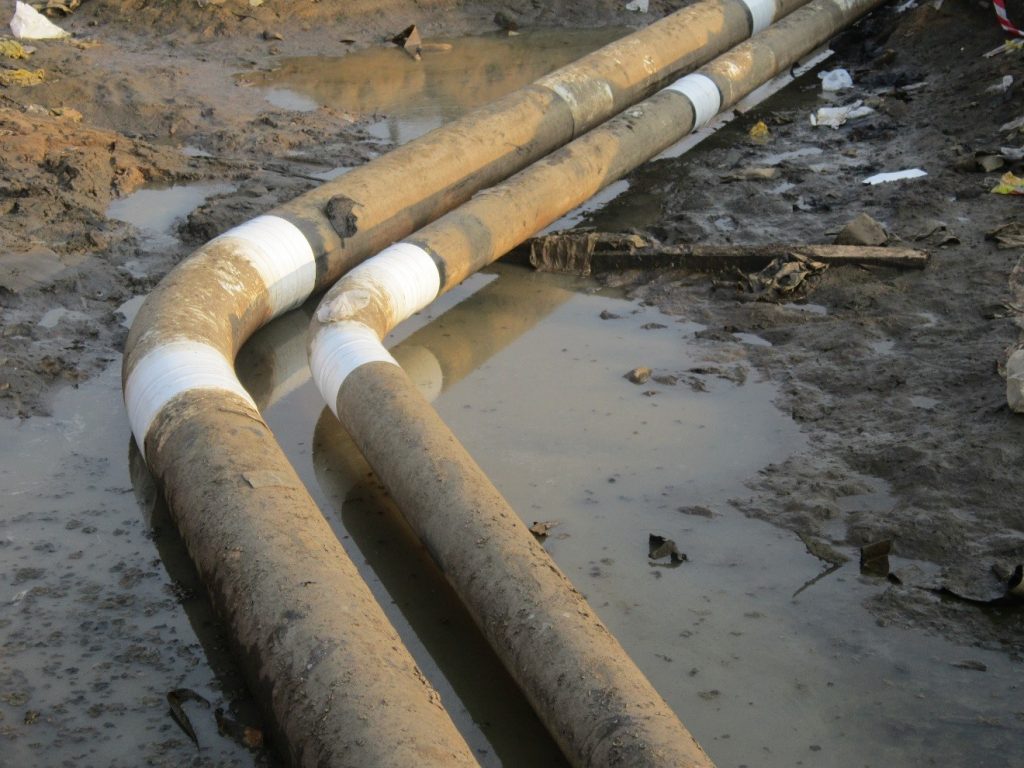

Mastering Plumbing Bends: Achieving Perfect Angles

Have you ever wondered why some drainage systems flow smoothly while others seem prone to constant clogs? The secret often lies not in the pipe diameter, but in the combination of bends to achieve proper angles in plumbing. Getting this wrong can lead to slow drains, nasty odors, and expensive repairs down the line.

Whether you are a DIY enthusiast tackling a basement renovation or a junior plumber looking to refine your craft, understanding how to navigate corners is crucial. In this guide, we will break down the mechanics of plumbing fittings, ensuring your next project meets both performance standards and local building codes. Let’s dive into the art of the perfect angle.

Why Angle Matters: The Physics of Flow

Before we pick up a wrench, it is essential to understand why angles matter. Water and waste do not move in straight lines forever. When they hit a sharp corner, turbulence occurs.

The Problem with Sharp Turns

When wastewater hits a hard 90-degree turn at high velocity, two things happen:

1. Velocity Drop: The water slams into the fitting wall, losing momentum.
2. Solids Settlement: Heavier waste particles separate from the water flow and settle at the bottom of the bend.

Over time, these settled solids build up, creating a blockage. This is why the combination of bends to achieve proper angles in plumbing is not just a suggestion—it is a necessity for long-term system health.

Expert Insight: According to fluid dynamics principles used in engineering, maintaining laminar flow (smooth movement) reduces friction loss. In plumbing, we mimic this by using gradual turns rather than abrupt stops.

The Building Blocks: Common Plumbing Bends

To create the right angle, you need to know your tools. Here are the primary fittings used in residential and commercial plumbing in the US.

1. The 90-Degree Elbow (Quarter Bend)

• Use Case: Transitioning from vertical to horizontal (e.g., behind a toilet).
• Warning: Never use a standard “hard” 90-degree elbow in horizontal drainage lines where water flows by gravity. It is a clog magnet.
• Exception: Long-sweep 90s are acceptable in horizontal lines if space is limited, as they provide a gentler curve.

2. The 45-Degree Elbow (Eighth Bend)

• Use Case: Changing direction gradually.
• Benefit: These are the workhorses of smooth drainage. They allow waste to maintain momentum while changing direction.

3. The 22.5-Degree and 11.25-Degree Elbows

• Use Case: Fine-tuning angles.
• Benefit: Useful for minor offsets or when navigating around existing structural obstacles like joists or studs.

4. Street Elbows

• Use Case: Saving space.
• Feature: One end has male threads, and the other has female threads. This eliminates the need for a short piece of pipe (nipple) between two fittings, reducing joint count and potential leak points.

How to Combine Bends for Specific Angles

This is the core of our topic. You rarely find a single fitting for every possible angle. Instead, professionals use a combination of bends to achieve proper angles in plumbing. Here is how to calculate and execute common angles.

Creating a 90-Degree Turn (The Right Way)

Instead of using one hard 90-degree elbow, use two 45-degree elbows with a short piece of pipe in between.

• Why? This creates a wider, smoother arc. The water flows around the curve rather than crashing into it.
• Code Compliance: Most US plumbing codes (including IPC and UPC) prefer this method for horizontal-to-horizontal changes.

Creating a 67.5-Degree Angle

Sometimes you need an angle that isn’t standard.

• Formula: 45-degree elbow + 22.5-degree elbow = 67.5 degrees.
• Application: Useful when aligning a drain line to a main stack that is slightly off-axis.

Creating a 135-Degree Angle (Obtuse Turn)

• Formula: 90-degree elbow + 45-degree elbow = 135 degrees.
• Application: Often used when bringing a line out from a wall at a shallow angle before turning it parallel to the foundation.

Table: Common Combinations for Proper Angles

Step-by-Step: Installing a Combined Bend

Let’s walk through a real-world scenario: You need to turn a drainage line 90 degrees horizontally under a sink.

Tools Needed:

• Tape measure
• Hacksaw or pipe cutter
• Deburring tool
• PVC Primer and Cement (for PVC/ABS) or Thread seal tape (for threaded)
• Two 45-degree elbows
• Short piece of pipe (calculated below)

Step 1: Measure the Offset

Determine the distance between the two pipes you are connecting. Let’s say the center-to-center distance is 10 inches.

Step 2: Calculate Pipe Length

When you insert pipes into fittings, they go in a certain depth (usually about 3/4 inch for 1.5-inch PVC).

• Formula: Total Distance – (Fitting Depth x 2) = Cut Length.
• Example: 10 inches – (0.75 x 2) = 8.5 inches.
• Cut your pipe to 8.5 inches.

Step 3: Dry Fit First

Never glue immediately. Assemble the two 45-degree elbows and the cut pipe without cement. Check the angle. Does it align perfectly with the outlet? Adjust if necessary.

Step 4: Prime and Cement

1. Clean the pipe ends.
2. Apply purple primer to the outside of the pipe and inside of the fittings.
3. Apply orange cement evenly.
4. Push the pieces together firmly and hold for 15 seconds.
5. Crucial: Wipe away excess cement. A messy joint can restrict flow internally.

For more detailed technical specifications on pipe materials, you can refer to Wikipedia’s entry on Plastic Piping, which outlines the chemical properties and durability standards of modern plumbing materials.

Code Compliance and Best Practices

Ignoring code can lead to failed inspections and insurance issues. Here is what you need to know about the combination of bends to achieve proper angles in plumbing regarding regulations.

The “Long Sweep” Rule

In horizontal drainage lines, if you must use a 90-degree turn, most codes require a long-sweep 90. This fitting has a much larger radius than a standard elbow, mimicking the effect of two 45s but in a single piece.

Venting Requirements

Every trap and drain needs venting. Complex combinations of bends can affect air pressure in the pipes.

• Rule of Thumb: If you use more than two 45-degree bends in a row, ensure you have adequate venting nearby to prevent siphoning of trap seals.

Accessibility

Avoid burying complex combinations of bends behind drywall without access panels. If a clog occurs in a multi-fitting assembly, it is harder to clear with a snake.

FAQ: Common Questions About Plumbing Bends

1. Can I use a 90-degree elbow in a horizontal drain line?

Generally, no. You should avoid standard 90-degree elbows in horizontal gravity-fed lines because they cause clogs. Use two 45-degree elbows or a long-sweep 90 instead. Vertical-to-horizontal transitions are the only place where a standard 90 is typically acceptable.

2. What is the difference between a “street elbow” and a regular elbow?

A regular elbow has female connections on both ends, requiring a short piece of pipe (nipple) to connect to another fitting. A street elbow has one male end and one female end, allowing it to screw directly into another fitting. This saves space and reduces the number of joints.

3. How many 45-degree bends can I use in a row?

While there is no strict limit on the number of bends, excessive bends increase friction and reduce flow efficiency. If you need more than four 45s to navigate an obstacle, consider rerouting the pipe or using offset fittings. Always check local codes, as some jurisdictions limit the total degrees of bend between cleanouts.

4. Is it better to use PVC or ABS for bends?

Both are acceptable in most US regions, but they cannot be glued together directly. PVC is white and requires primer; ABS is black and usually does not. Check your local plumbing code, as some areas mandate one over the other. The angle principles remain the same for both materials.

5. Why do my drains smell after installing new bends?

If you used too many tight bends without proper venting, you may have siphoned the water out of your P-traps. Without that water barrier, sewer gas enters your home. Ensure your vent stack is clear and that trap seals are intact.

6. Can I heat and bend PVC pipe manually?

While technically possible, it is not recommended for drainage systems. Hand-bent pipes often have inconsistent radii and weakened walls, leading to collapses or clogs. Always use manufactured fittings for reliable, code-compliant results.

Conclusion

Mastering the combination of bends to achieve proper angles in plumbing is a skill that separates amateur jobs from professional-grade installations. By avoiding sharp 90-degree turns in horizontal lines and utilizing strategic combinations of 45s and 22.5s, you ensure smooth flow, fewer clogs, and compliance with building codes.

Remember, plumbing is not just about connecting pipes; it is about managing flow. Take the time to measure twice, dry fit, and choose the right fittings for the job. Your future self (and your wallet) will thank you when the water flows freely for years to come.
