Have you ever turned on your tap only to worry about what is actually coming out? For many homeowners, the invisible network of pipes behind the walls is a mystery until something goes wrong. Understanding the proper Configuration Of Potable Water Plumbing In A House is not just about fixing leaks; it is about ensuring the health and safety of your family through reliable, clean water delivery.
Water is the lifeblood of your home. Yet, unlike electricity or gas, we often take its quality for granted until a crisis occurs. Whether you are building a new home, renovating an older property, or simply curious about how your water system works, getting the configuration right is critical. This guide will walk you through the essentials of designing and maintaining a potable water system that meets modern standards and keeps your household healthy.
Why Proper Configuration Matters for Health and Safety
Before diving into the technical layouts, it is vital to understand why configuration matters. It is not merely about water pressure; it is about preventing contamination.
According to the Centers for Disease Control and Prevention (CDC), waterborne diseases can result from contaminated drinking water. A poorly configured plumbing system can allow backflow, where non-potable water (like wastewater) mixes with your clean supply. This is why the physical separation of systems and the correct installation of backflow preventers are non-negotiable aspects of any residential design.
The Risk of Cross-Connection
A cross-connection is any actual or potential connection between the public water supply and a source of contamination. Common examples include:
- Garden hoses submerged in pools or chemical sprayers.
- Toilet tanks without proper fill valves.
- Dishwashers connected directly to the water line without air gaps.
By optimizing your Configuration Of Potable Water Plumbing In A House, you minimize these risks. A well-designed system uses physical barriers and pressure zones to ensure that water only flows in one direction: toward your tap.

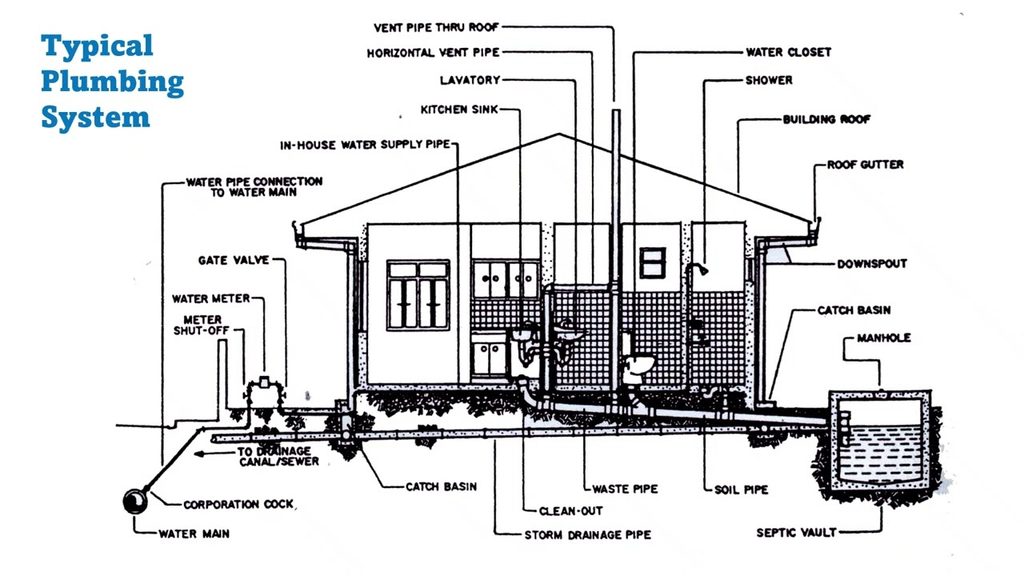

Key Components of a Residential Potable Water System
To configure your system correctly, you must understand the key players. Think of these as the organs of your home’s circulatory system.
1. The Main Shut-Off Valve
This is the most critical component for emergency control. It should be located where the water line enters your home, typically in the basement, crawlspace, or near the water heater. In a proper configuration, this valve must be easily accessible and clearly labeled.
2. Water Meter and Pressure Regulator
Most municipal supplies deliver water at high pressures, often exceeding 80 psi. While high pressure sounds good, it stresses pipes and fixtures, leading to premature failure. A pressure regulator reduces this to a safe level, usually between 50–60 psi, protecting your configuration from internal damage.
3. Distribution Pipes
These carry water from the main line to various fixtures. The material choice here significantly impacts water quality and longevity.
| Material | Pros | Cons | Best For |
|---|---|---|---|
| Copper | Durable, antimicrobial, long lifespan | Expensive, requires soldering | Traditional builds, high-end renovations |
| PEX | Flexible, freeze-resistant, easy to install | Can degrade in UV light, rodents may chew | Modern retrofits, cold climates |
| CPVC | Cheap, easy to glue | Brittle over time, sensitive to heat | Budget-friendly projects, hot/cold lines |
4. Fixtures and Faucets
The endpoint of your configuration. Look for fixtures certified by NSF/ANSI Standard 61, which ensures they do not leach harmful contaminants like lead into your drinking water.
Common Layouts: Trunk-and-Branch vs. Manifold
When planning the Configuration Of Potable Water Plumbing In A House, you generally have two architectural choices. Each has distinct advantages depending on your home’s size and your budget.
The Trunk-and-Branch System
This is the traditional method used in most older homes. A large main pipe (the trunk) runs through the house, with smaller pipes (branches) splitting off to feed individual fixtures.
- Pros: Lower material cost, simpler design for small homes.
- Cons: Water pressure drops when multiple fixtures are used simultaneously. If a leak occurs in a branch, you may need to shut off water to the entire house.
The Manifold (Home Run) System
In this modern configuration, a central manifold box distributes individual PEX lines directly to each fixture. There are no joints behind walls, reducing leak points.
- Pros: Consistent water pressure at every fixture, easier to isolate leaks (shut off only the affected line), faster hot water delivery if recirculation loops are used.
- Cons: Higher initial material cost, requires more space for the manifold box.
For new constructions or major renovations, the manifold system is increasingly recommended by experts for its reliability and efficiency.
Step-by-Step Guide to Optimizing Your Water Configuration
If you are overseeing a project, follow these steps to ensure your system is configured for safety and performance. Note that while DIY is possible for minor repairs, major configuration changes should involve licensed professionals to comply with local codes.
- Assess Water Quality First Before installing pipes, test your source water. If you have high sediment or hardness, your configuration must include pre-filtration or softening stages before the water reaches your distribution pipes.
- Plan the Route Map out the shortest, most direct routes from the main supply to fixtures. Avoid running potable water lines parallel to sewer lines to prevent contamination risks in case of leaks. Maintain at least 10 feet of horizontal separation if possible.
- Install Backflow Preventers Install atmospheric vacuum breakers or check valves on all outdoor spigots and irrigation systems. This is a mandatory step in most US building codes to protect the potable supply.
- Choose the Right Pipe Size Undersized pipes restrict flow. Typically, main lines are ¾ inch, while branch lines to sinks are ½ inch. Use a hydraulic calculation tool or consult a plumber to ensure your configuration supports peak demand.
- Pressure Test the System Once installed, the system must be pressure-tested. Fill the lines with water and pressurize them to 1.5 times the working pressure (e.g., if working pressure is 60 psi, test at 90 psi) for at least 15 minutes to check for leaks.
- Flush the System Before using water for drinking, flush all lines thoroughly. Run cold water from every faucet for at least 5 minutes to clear out debris, flux, or manufacturing residues from the pipes.
Maintaining Water Quality in Your Plumbing
Even the best Configuration Of Potable Water Plumbing In A House requires maintenance. Stagnant water can breed bacteria, and old filters can become sources of contamination themselves.
- Regular Flushing: If a guest room or outdoor tap is rarely used, run the water for a minute once a week to keep it fresh.
- Filter Replacement: Change sediment and carbon filters according to the manufacturer’s schedule, typically every 6–12 months.
- Inspect for Corrosion: Check exposed pipes under sinks for green stains (copper corrosion) or white buildup (mineral deposits). These can indicate pH imbalances that may affect water safety.
For more detailed information on water quality standards and contaminants, you can refer to the EPA’s Drinking Water Regulations or general overview on Wikipedia – Drinking Water.
FAQ: Common Questions About Potable Water Plumbing
1. How often should I replace my home’s water pipes?
It depends on the material. Copper pipes can last 50–70 years, while galvanized steel may only last 20–50 years due to rust. PEX and CPVC are rated for 25–40 years but can last longer if protected from UV light and extreme temperatures. If you notice discolored water or frequent leaks, it may be time for a replacement.
2. Can I configure my own potable water system?
While minor repairs like replacing a faucet are DIY-friendly, configuring the main distribution system involves complex code requirements regarding pressure, venting, and backflow prevention. Incorrect configuration can lead to health hazards. Always consult a licensed plumber for major installations.
3. What is the best pipe material for drinking water?
Copper and PEX are currently the top choices. Copper is naturally antimicrobial, making it excellent for hygiene. PEX is flexible, resistant to scale and chlorine, and does not corrode. Both are safe for potable water when certified by NSF International.
4. Why does my water taste metallic?
A metallic taste often indicates corrosion in your pipes, especially if you have older galvanized steel or copper pipes. It can also be caused by high mineral content (iron or manganese). Installing a whole-house filtration system or replacing corroded sections of pipe can resolve this issue.
5. Do I need a water softener in my plumbing configuration?
If you live in an area with hard water (high calcium and magnesium), a water softener is highly recommended. Hard water causes scale buildup in pipes and appliances, reducing efficiency and lifespan. However, softened water is not always ideal for drinking due to added sodium; consider a separate filtration tap for drinking water.
6. How can I prevent frozen pipes in my configuration?
In cold climates, ensure that potable water lines running through unheated spaces (like attics or crawlspaces) are insulated with foam sleeves. Additionally, consider using a manifold system with PEX, which is more resistant to freezing bursts than rigid copper. During extreme cold, let faucets drip slightly to relieve pressure.
Conclusion
Configuring your home’s water system is an investment in your family’s health and your property’s value. By understanding the Configuration Of Potable Water Plumbing In A House, you empower yourself to make informed decisions about materials, layouts, and maintenance. Whether you choose a traditional trunk-and-branch system or a modern manifold setup, prioritizing safety features like backflow preventers and high-quality materials is essential.
Clean, safe water should never be a luxury—it is a necessity. Take the time to inspect your current setup or plan your new one with care. If you found this guide helpful, please share it with friends and family who are planning home improvements. Together, we can ensure safer homes for everyone.
