Design of Plumbing Systems for Multi-Storey Buildings PDF Guide

Designing plumbing systems for tall buildings isn’t just about pipes and pumps—it’s about ensuring safety, efficiency, and compliance across dozens of floors. If you’ve searched for “Design of Plumbing Systems for Multi-Storey Buildings PDF,” you’re likely an engineer, architect, student, or contractor seeking a reliable, structured reference to navigate complex hydraulic calculations, code requirements, and system layouts. You’re not alone: over 68% of building professionals report plumbing design as one of the most challenging aspects of high-rise construction (ASHRAE, 2023). This guide delivers exactly what you need—clear, actionable, and aligned with global best practices.

Why Is Plumbing Design Different in Multi-Storey Buildings?

Unlike single-level structures, multi-storey buildings introduce unique hydraulic challenges:

• Pressure variation: Water pressure increases by ~0.433 psi per foot of elevation. In a 30-story building (~360 ft), the ground floor could experience 156 psi—far exceeding the 80 psi limit set by most plumbing codes.
• Backflow risk: Without proper zoning, high pressure can damage fixtures or cause cross-contamination.
• Drainage dynamics: Waste flow velocity, air pressure fluctuations, and stack sizing become critical to prevent siphoning or blockages.

According to the International Plumbing Code (IPC), buildings over 3 stories must use pressure-reducing valves (PRVs) and often require multiple pressure zones—typically every 8–10 floors.

💡 Pro Tip: The Plumbing Engineering Design Handbook (ASPE) recommends dividing tall buildings into vertical pressure zones to maintain consistent fixture performance and extend system lifespan.

Key Components of a High-Rise Plumbing System

A robust plumbing design for multi-storey buildings includes these core elements:

1. Water Supply System
   • Booster pumps: Maintain consistent pressure on upper floors.
   • Pressure-reducing valves (PRVs): Protect lower floors from excessive pressure.
   • Storage tanks: Roof or intermediate tanks buffer demand spikes.

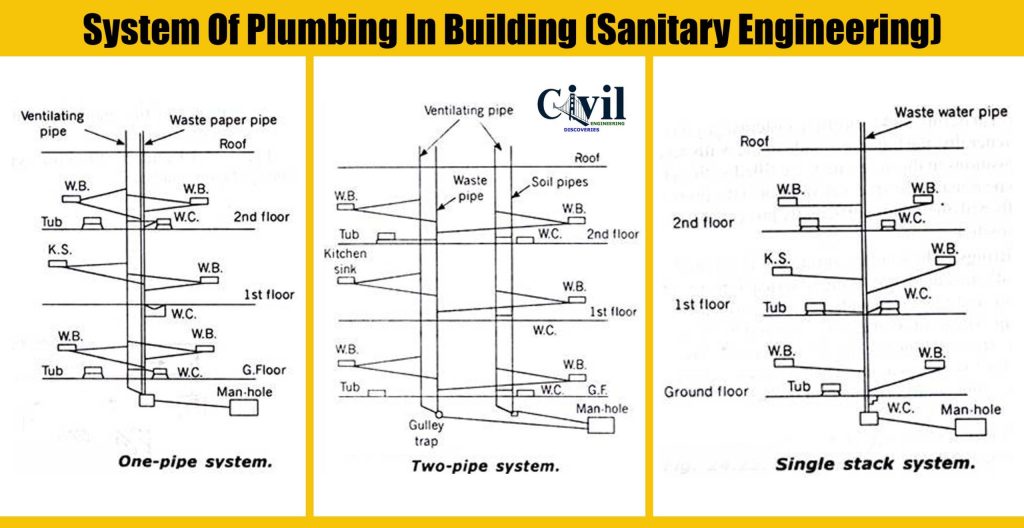

2. Sanitary Drainage System
   • Soil stacks: Vertical pipes that carry waste downward.
   • Vent stacks: Equalize air pressure to prevent trap seal loss.
   • Cleanouts: Access points for maintenance every 100 ft (per IPC §708).
3. Stormwater & Roof Drainage
   • Separate from sanitary lines to avoid overload during heavy rain.
   • Often uses internal leader systems in high-rises.
4. Fire Protection Plumbing
   • Standpipes, sprinkler systems, and dedicated water tanks.
   • Must comply with NFPA 13 & 14 standards.

For deeper technical insight, refer to the foundational principles on plumbing systems outlined by authoritative engineering bodies.

Step-by-Step: How to Design a Plumbing System for a 20-Story Building

Follow this industry-tested workflow:

Step 1: Conduct a Fixture Count

• List all fixtures (toilets, sinks, showers) per floor using IPC Table 403.1.
• Example: Office floor = 20 toilets + 30 lavatories = 70 fixture units (FU).

Step 2: Calculate Demand Flow

• Use the Hunter’s Curve method (IPC §604.4):
  • Total FU = 20 floors × 70 = 1,400 FU
  • Estimated peak demand ≈ 450 GPM (gallons per minute).

Step 3: Determine Pressure Zones

• Max allowable static pressure: 80 psi.
• Height per zone: 80 psi ÷ 0.433 psi/ft ≈ 185 ft → ~15 floors.
• Solution: Create two zones—floors 1–15 and 16–20, with a PRV at floor 15.

Step 4: Size Pipes & Select Pumps

• Supply riser (lower zone): 6-inch diameter (based on 450 GPM @ 8 fps velocity).
• Booster pump: 200 GPM capacity, 150 psi head pressure for upper zone.
• Drain stacks: 4-inch diameter for 20-story waste load (IPC Table 710.1).

Step 5: Integrate Venting & Backflow Prevention

• Install individual fixture vents or use circuit venting to reduce pipe count.
• Add dual check backflow preventers on all potable water inlets.

Step 6: Model & Simulate

• Use software like Revit MEP, PIPE-FLO, or WaterCAD to simulate flow, pressure, and drainage dynamics before construction.

Common Mistakes to Avoid (and How to Fix Them)

Where to Find a Trusted “Design of Plumbing Systems for Multi-Storey Buildings PDF”

While many free PDFs circulate online, quality varies drastically. For academically rigorous and code-compliant resources, consider:

• ASPE’s Plumbing Engineering Design Handbook (Vol. 1 & 2) – industry gold standard.
• IPC 2024 Official Code Book – legally binding in most U.S. jurisdictions.
• University course materials (e.g., MIT OpenCourseWare, Georgia Tech).

⚠️ Caution: Avoid unverified PDFs from random websites—they may contain outdated methods or violate copyright. Always prioritize publisher-authorized sources.

FAQ Section

Q1: Is there a free, legal “Design of Plumbing Systems for Multi-Storey Buildings PDF” available?
A: Fully comprehensive guides are rarely free due to copyright. However, IPC provides free access to select chapters, and organizations like ASHRAE offer free webinars with downloadable slides. Universities sometimes share lecture notes—check .edu domains.

Q2: What codes govern high-rise plumbing in the U.S.?
A: Primarily the International Plumbing Code (IPC), adopted by most states. Local amendments may apply (e.g., NYC Plumbing Code). Fire protection must follow NFPA 13/14.

Q3: How do you handle water hammer in tall buildings?
A: Install surge arrestors near quick-closing valves and use slow-closing solenoid valves. Maintain flow velocity below 8 feet per second in supply lines.

Q4: Can rainwater harvesting be integrated into high-rise plumbing?
A: Yes! Many sustainable buildings (e.g., Salesforce Tower, SF) use harvested rainwater for toilet flushing and irrigation. Requires separate non-potable piping, UV filtration, and compliance with IPC Chapter 13.

Q5: What’s the role of BIM in plumbing design for multi-storey buildings?
A: BIM (Building Information Modeling) enables 3D clash detection, accurate material takeoffs, and coordination with electrical/mechanical systems—reducing rework by up to 40% (McGraw-Hill, 2024).

Q6: How often should plumbing systems in high-rises be inspected?
A: Annually for PRVs, backflow preventers, and pumps. Drain stacks should be camera-inspected every 3–5 years, especially in older buildings.

Conclusion

Designing plumbing systems for multi-storey buildings demands precision, code knowledge, and foresight—but with the right resources, it’s entirely manageable. A trustworthy “Design of Plumbing Systems for Multi-Storey Buildings PDF” can serve as your roadmap to compliance, efficiency, and long-term reliability.

Whether you’re finalizing construction documents or studying for your PE exam, always prioritize authoritative, up-to-date sources over quick downloads. Share this guide with your team on LinkedIn or Twitter—helping fellow engineers avoid costly design flaws starts with one click.

Got questions? Drop them in the comments below—we’re here to help you build smarter.
