Planning a main floor bathroom and laundry room? You’re not alone—over 68% of U.S. homeowners prioritize functional, space-efficient plumbing layouts during renovations (National Association of Home Builders, 2024). Yet, without a proper Diagram for Plumbing a Main Floor Bathroom With Laundry Room, you risk costly mistakes, code violations, or inefficient water flow. Whether you’re a DIYer or collaborating with a contractor, this guide delivers a clear, code-compliant roadmap—designed for real-world success and peace of mind.
Why a Plumbing Diagram Matters for Combined Bath + Laundry Spaces
Combining a bathroom and laundry room on the main floor is smart: it saves space, reduces plumbing runs, and cuts installation costs. But without a well-thought-out plumbing diagram, you might run into:
- Drain backups from shared waste lines
- Venting issues causing gurgling or slow drains
- Code violations that delay inspections
The International Plumbing Code (IPC) requires each fixture to connect properly to the drain-waste-vent (DWV) system—a network that removes wastewater while balancing air pressure. A solid diagram ensures every sink, toilet, shower, and washing machine complies.
For foundational context, the DWV system is critical to safe, efficient plumbing—and skipping its principles risks health and functionality.
How to Layout Your Main Floor Plumbing: Step-by-Step
Follow this sequence to design or verify your Diagram for Plumbing a Main Floor Bathroom With Laundry Room:
Step 1: Identify All Fixtures
List every plumbing fixture you’ll install:
- Bathroom: Toilet, sink, shower/tub
- Laundry: Washing machine, utility sink (optional)
💡 Pro Tip: Most main-floor combos include 4–5 fixtures. The IPC allows up to 6 drainage fixture units (DFUs) on a single 2-inch branch drain—enough for this setup.
Step 2: Map Drain Lines with Proper Slope
All horizontal drain pipes must slope ¼ inch per foot toward the main stack or sewer line. Use this guide:
| Fixture | Pipe Size (min) | DFUs | Max Distance to Vent |
|---|---|---|---|
| Toilet | 3-inch | 4 | 6 feet |
| Shower | 2-inch | 2 | 8 feet |
| Lavatory Sink | 1.5-inch | 1 | 5 feet |
| Washing Machine | 2-inch | 2 | 5 feet |
⚠️ Warning: Washing machines discharge 15–20 gallons per minute—use a 2-inch P-trap and ensure the standpipe is 30–42 inches tall to prevent siphoning.
Step 3: Plan the Venting System
Every trap needs a vent within the allowed distance (see table above). Options:
- Wet venting: Share a vent between bathroom fixtures (e.g., sink venting toilet and shower).
- Individual vents: Each fixture has its own vent pipe (more materials, but foolproof).
- Air admittance valve (AAV): A one-way mechanical vent (allowed in many U.S. jurisdictions but check local codes).
Step 4: Locate the Main Stack & Sewer Tie-In
Position the combined waste line to connect to the main soil stack (usually 3–4 inches in diameter) within 10 feet for optimal flow. Avoid sharp 90° bends—use two 45° elbows for smoother transitions.
Step 5: Include Cleanouts
Install cleanouts at every directional change and at the base of the stack. This simplifies future clog removal—required by most building codes.

Common Layout Mistakes to Avoid
Even seasoned renovators stumble here. Watch out for:
- Undersized drain lines: Using 1.5-inch pipe for a washer = backup city.
- Missing P-traps: Every fixture needs one to block sewer gases.
- Shared vent overload: Don’t vent more than 6 DFUs on a 2-inch vent.
- Ignoring washing machine discharge rate: High-efficiency machines still dump water fast—undersized drains overflow.
📊 Real-World Insight: A 2023 HomeAdvisor survey found that 42% of plumbing re-dos in laundry-bath combos were due to venting errors—costing homeowners $1,200+ on average.

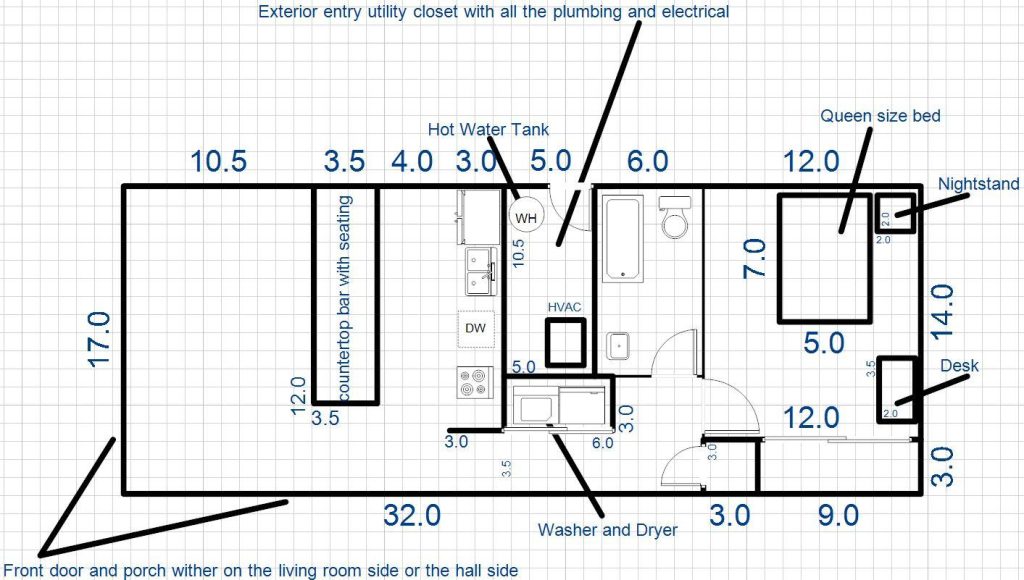

Sample Plumbing Diagram Overview (Text-Based Infographic)
12345678910
This layout follows IPC wet-venting rules and keeps all vent distances under limit. Always confirm with your local building department—some states (like California) have stricter rules.
Tools & Materials Checklist
Before breaking ground, gather:
- PVC or ABS pipes (Schedule 40, rated for DWV)
- P-traps (1.5″ for sinks, 2″ for showers/washers)
- Vent caps or AAVs (if approved locally)
- Pipe cutter, primer, and solvent cement
- Digital level (to verify ¼” per foot slope)
- Plumbing diagram template (free printable PDFs from Home Guides – SF Gate)
✅ Best Practice: Dry-fit all pipes before gluing. Measure twice—cut once!
FAQ Section
Q1: Can a bathroom and laundry room share the same drain line?
Yes, but only if the total DFUs don’t exceed the pipe’s capacity. A 3-inch drain handles up to 20 DFUs—more than enough for a typical combo (toilet: 4, shower: 2, sink: 1, washer: 2 = 9 DFUs total).
Q2: Does a washing machine need its own vent?
Not always. If within 5 feet of a properly vented fixture (like a utility sink), it can share a vent. But many inspectors prefer a dedicated vent or AAV to prevent siphoning during rapid drain cycles.
Q3: How far can a toilet be from the main stack?
Under IPC, a 3-inch toilet drain can run up to 6 feet without a vent. Beyond that, you need a vent within 6 feet of the flange.
Q4: Can I use an air admittance valve (AAV) instead of roof venting?
Yes—in most U.S. states (except a few like Massachusetts). AAVs must be installed above the flood rim of the highest fixture and in an accessible, ventilated location.
Q5: What’s the minimum distance between fixtures?
No strict rule, but allow at least 15 inches from center of toilet to side wall, and 30 inches of clear floor space in front of all fixtures for ADA-style usability.
Q6: Do I need a permit for this plumbing layout?
Almost always yes. Even minor plumbing changes require inspection in most U.S. municipalities. Skipping permits risks failed resale inspections or insurance claims denial.
Conclusion
A well-designed Diagram for Plumbing a Main Floor Bathroom With Laundry Room isn’t just about pipes—it’s about saving time, money, and stress while ensuring safety and code compliance. By mapping drains, vents, and cleanouts correctly, you’ll enjoy efficient water flow, odor-free operation, and hassle-free inspections.
👉 Found this guide helpful? Share it on Pinterest, Facebook, or with your contractor! Your next renovation just got a whole lot smoother.
Remember: When in doubt, consult a licensed plumber. But with this blueprint, you’ll speak their language—and spot red flags before they become regrets.
