Bathtub Drain Plumbing Diagram: A Visual Guide

Have you ever heard a mysterious gurgle from your bathtub or noticed water draining slower than usual? It can be frustrating and even alarming when your bathroom plumbing acts up, leaving you unsure of what lies beneath the porcelain surface. Understanding the diagram of the plumbing under a bath tub drain is the first step toward diagnosing issues, planning a renovation, or simply gaining peace of mind about your home’s infrastructure.

In this guide, we will break down the complex network of pipes into simple, easy-to-understand components. Whether you are a DIY enthusiast looking to fix a leak or a homeowner curious about how your house works, this visual and textual breakdown will provide the clarity you need.

What Does the Plumbing Under a Bathtub Look Like?

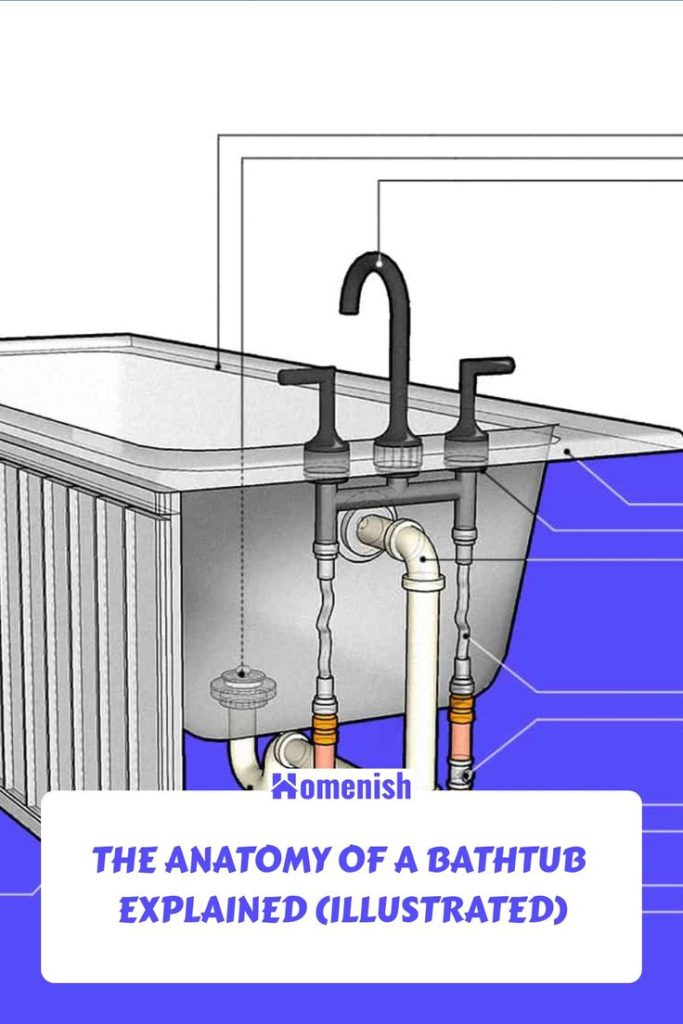

When you look at a diagram of the plumbing under a bath tub drain, you aren’t just seeing a single pipe. You are looking at a carefully engineered system designed to move wastewater out while keeping sewer gases out. The primary components visible in most standard diagrams include the drain shoe, the overflow tube, the P-trap, and the waste arm.

The system relies on gravity. Water flows from the tub, through the drain, down into the trap, and finally into the main soil stack. According to basic fluid dynamics principles used in residential plumbing, the slope of these pipes is critical. If the angle is too steep, water moves too fast and leaves solids behind; if it’s too shallow, waste doesn’t flow effectively.

For a deeper understanding of how these systems integrate into broader building standards, you can refer to general plumbing codes outlined on Wikipedia. This external resource provides historical context and regulatory frameworks that govern how these diagrams are implemented in real-world construction.

How Does a Bathtub P-Trap Work?

The P-trap is arguably the most important component in the diagram of the plumbing under a bath tub drain. Named for its “P” shape (which looks more like a “U” or “J” depending on the orientation), this curved section of pipe holds a small amount of water at all times.

The Water Seal Barrier

This standing water creates a seal that prevents sewer gases—such as methane and hydrogen sulfide—from rising up through the drain and entering your bathroom. Without this barrier, your home would smell unpleasant and could potentially harbor hazardous gases.

Key Features of a P-Trap:

• Material: Typically made of PVC (polyvinyl chloride) or ABS (acrylonitrile butadiene styrene) in modern homes, though older homes may have cast iron or copper.
• Diameter: Standard bathtub drains usually use a 1.5-inch diameter pipe.
• Accessibility: Most P-traps are installed with slip nuts, allowing for easy removal if a clog occurs deep in the curve.

If your bathtub hasn’t been used in a long time, the water in the P-trap may evaporate, breaking the seal. Simply running water for a minute or two will replenish the trap and restore the barrier against odors.

What Is the Role of the Overflow Tube?

Unlike kitchen sinks, bathtubs have a secondary drainage point known as the overflow tube. This is the opening located near the top rim of the tub, usually covered by a plate with a lever or knob.

Preventing Floods

The primary function of the overflow tube is safety. If you accidentally leave the tap running while the drain is closed, the water level rises. Before it spills over the edge onto your bathroom floor, it enters the overflow tube.

Connection to the Drain Assembly

In the diagram of the plumbing under a bath tub drain, you will see that the overflow tube connects to the main drain pipe via a flexible or rigid hose behind the tub wall. This connection usually happens just above the P-trap.

• Trip Lever Mechanism: Many overflow plates have a lever that controls a stopper at the bottom of the tub. When you pull the lever up, the stopper closes; when you push it down, the stopper opens.
• Maintenance Tip: Hair and soap scum often accumulate where the overflow tube meets the drain pipe. If your tub drains slowly, cleaning this junction can often solve the problem without needing to snake the main line.

How Are Bathtub Drains Vented?

A common misconception is that drains only need a pipe to carry water away. However, proper ventilation is essential for smooth drainage. In any accurate diagram of the plumbing under a bath tub drain, you will eventually see a vent pipe extending upward.

Why Venting Matters

As water flows down the drain, it can create a vacuum behind it. This negative pressure can suck the water out of the P-trap, breaking the seal against sewer gases. Additionally, without air intake, water may drain sluggishly, similar to pouring liquid out of a sealed bottle.

Types of Vents

1. Individual Vent: A pipe that goes directly from the drain line up through the roof.
2. Common Vent: Shared with other fixtures, such as a sink or toilet, to save space and materials.
3. Air Admittance Valve (AAV): In some renovation scenarios where running a pipe through the roof is difficult, an AAV (also known as a Studor vent) may be used. This one-way valve allows air in but prevents gases from escaping.

Note: Local building codes vary significantly regarding venting requirements. Always check with your local municipality before modifying vent lines.

Step-by-Step: Identifying Parts in Your Diagram

If you are looking at your own plumbing or a schematic, here is how to identify the key parts logically. Follow this sequence to trace the flow of water.

1. The Drain Shoe: This is the visible metal or plastic flange at the bottom of the tub. It is screwed into the crosspiece beneath the tub.
2. The Waste Tee: Directly below the drain shoe, the pipe often splits. One path goes down to the P-trap, and the other goes horizontally to connect with the overflow tube.
3. The Tailpiece: This is the short vertical pipe connecting the waste tee to the P-trap.
4. The P-Trap: The U-shaped bend. Ensure the dip is uniform and not distorted.
5. The Waste Arm: After the P-trap, the pipe turns horizontal. This section must slope downward at a rate of 1/4 inch per foot toward the main stack.
6. The Vent Takeoff: Usually located after the P-trap but before the waste arm connects to the main stack, a pipe extends upward to vent the system.

Comparison: PVC vs. Copper Pipes

Most modern renovations favor PVC or ABS due to cost-effectiveness and ease of repair, which is helpful when referencing a diagram of the plumbing under a bath tub drain for DIY fixes.

FAQ Section

1. Why does my bathtub make a gurgling sound when I drain it?

Gurgling usually indicates a venting issue. If the vent pipe is blocked by leaves, debris, or ice, air cannot enter the system to replace the draining water. This creates negative pressure, pulling air through the P-trap water seal, which causes the gurgle. It can also signal a partial clog in the main line.

2. Can I install a bathtub drain without a P-trap?

No. Building codes universally require a P-trap for all fixtures connected to a sanitary sewer system. Installing a drain without one is illegal in most jurisdictions and poses health risks due to sewer gas exposure.

3. How do I clean a clog under the bathtub drain?

Start by removing the overflow plate and using a drain snake (auger) through the overflow tube. This often reaches clogs located at the junction of the overflow and the main drain. If that fails, remove the P-trap slip nuts and clean it manually. Always place a bucket underneath to catch residual water.

4. What is the standard height for a bathtub drain pipe?

The rough-in height for a bathtub drain is typically between 14 and 18 inches from the finished floor. However, this can vary based on the tub design and local code. The P-trap itself should be positioned as close to the drain outlet as possible to minimize exposed piping.

5. Why is water leaking from under my bathtub?

Leaks often occur at the slip nuts of the P-trap or where the waste arm connects to the wall. Over time, rubber washers can degrade or shift. Tightening the nuts gently (do not overtighten, as plastic can crack) or replacing the washers usually resolves the issue. If the leak is from the drain shoe itself, the plumber’s putty seal may have failed.

6. Do I need a professional to interpret a plumbing diagram?

For simple maintenance, no. However, if you are moving pipes, adding fixtures, or dealing with persistent slow drains despite cleaning, consulting a licensed plumber is recommended. They can ensure that your modifications comply with local codes and do not compromise the structural integrity of your plumbing system.

Conclusion

Understanding the diagram of the plumbing under a bath tub drain empowers you to maintain your bathroom effectively. By recognizing the roles of the P-trap, overflow tube, and venting system, you can troubleshoot common issues like slow drains, odors, and leaks with confidence. Remember, while many minor fixes are DIY-friendly, complex venting or structural changes should always be handled by professionals to ensure safety and code compliance.
