Plumbing Pipes & Fittings: The Ultimate Guide

Have you ever stood in the hardware aisle, staring at a wall of colorful tubes and metal connectors, feeling completely overwhelmed? You are not alone. Choosing the wrong material can lead to leaks, costly repairs, or even health hazards in your home. Understanding the different types of pipes and fittings used in plumbing is the first step toward confident DIY projects or smarter conversations with your contractor.

Whether you are fixing a leaky faucet under the sink or repiping an entire bathroom, knowing which material works best for water supply versus drain lines is crucial. In this guide, we will break down the most common materials, their pros and cons, and exactly where they belong in your home’s infrastructure. Let’s demystify plumbing together.

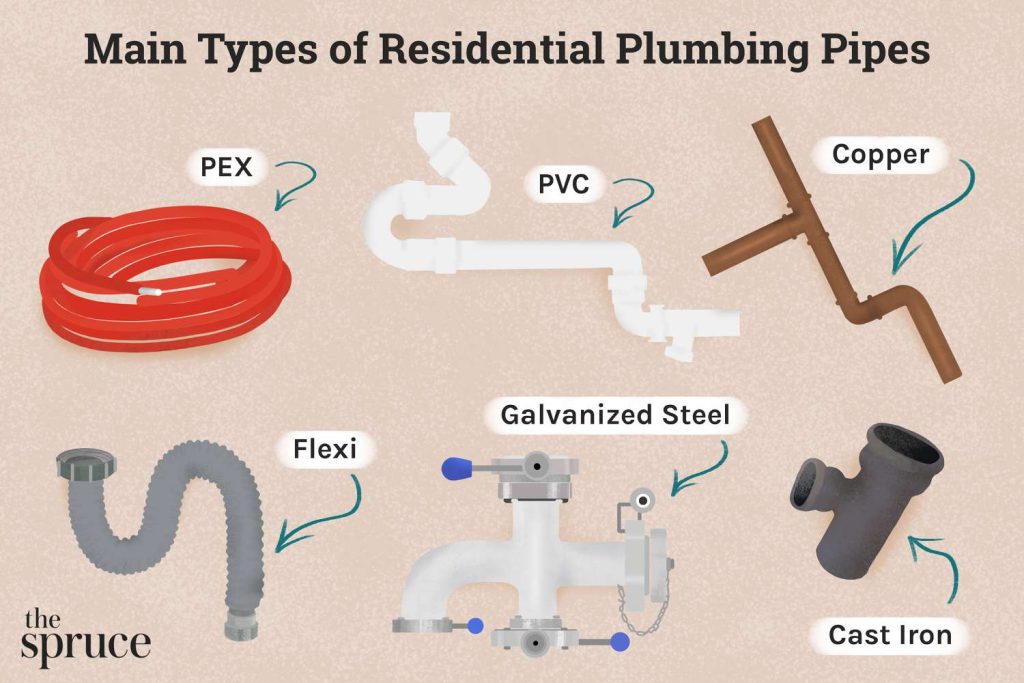

What Are the Most Common Types of Plumbing Pipes?

When it comes to residential plumbing in the United States, three materials dominate the market: PEX, Copper, and PVC/CPVC. Each has distinct properties that make it suitable for specific applications.

1. PEX (Cross-linked Polyethylene)

PEX has revolutionized the plumbing industry over the last two decades. It is a flexible plastic tubing that is now the go-to choice for new construction and remodels across the US.

• Best For: Water supply lines (both hot and cold).
• Key Advantage: Flexibility. PEX can bend around corners, reducing the need for elbow fittings and potential leak points.
• Durability: It resists scale and chlorine, making it ideal for areas with hard water. It also handles freezing temperatures better than rigid pipes, as it can expand slightly without bursting.

Pro Tip: PEX is color-coded (Red for hot, Blue for cold, White/Grey for either). While not strictly required by code everywhere, using this system helps future plumbers identify lines quickly.

2. Copper Pipes

Copper has been the gold standard for plumbing since the 1960s. If you live in an older home, you likely have copper pipes. It is known for its longevity and resistance to bacteria.

• Best For: Water supply lines, especially where exposure to UV light or high heat is a concern.
• Types:
  • Type M: Thin wall, used for residential indoor plumbing.
  • Type L: Medium thickness, good for both indoor and outdoor use.
  • Type K: Thickest wall, used primarily for underground service lines.
• Drawback: Copper is expensive and requires soldering (sweating) to connect, which demands a higher skill level than PEX.

3. PVC (Polyvinyl Chloride) and CPVC (Chlorinated Polyvinyl Chloride)

You will often see white (PVC) or cream-colored (CPVC) pipes in your home. These are rigid plastics primarily used for drainage, waste, and vent (DWV) systems, though CPVC can handle hot water.

• PVC: Used exclusively for cold water drainage and sewer lines. It cannot handle hot water, as it will warp and leak.
• CPVC: Treated with chlorine to withstand higher temperatures. It is often used for hot and cold water supply lines in older DIY setups, though it is becoming less common compared to PEX due to its brittleness over time.

Quick Comparison Table

Which Pipe Fittings Do I Need for My Project?

Pipes are only half the equation. To create a functional system, you need fittings to connect pipes, change directions, or alter flow sizes. Using the wrong fitting material for your pipe type is a recipe for disaster.

Essential Fitting Types

1. Couplings: The simplest fitting. Used to connect two pipes of the same size in a straight line. If you are repairing a broken section of pipe, a coupling is your best friend.
2. Elbows (90° and 45°): These change the direction of the flow. A 90-degree elbow turns a corner sharply, while a 45-degree elbow provides a gentler turn, which is better for maintaining water pressure and reducing clog risks in drain lines.
3. Tees: Shaped like the letter “T,” these allow you to split one line into two. They are essential for branching off to sinks, toilets, or showers from a main line.
4. Reducers: As the name suggests, these connect two pipes of different diameters. For example, connecting a 1-inch main supply line to a 1/2-inch line leading to a faucet.
5. Valves: While technically a control device, valves are critical fittings.
   • Ball Valves: Quarter-turn on/off switches. Highly reliable for main shut-offs.
   • Gate Valves: Older style, prone to corrosion. If you have these, consider replacing them with ball valves during a remodel.

Material Compatibility Rule

Always match the fitting material to the pipe material.

• Use PEX fittings (usually brass or plastic barbs) with PEX pipe.
• Use Copper fittings with copper pipe.
• Use PVC/CPVC fittings with their respective plastics.

Mixing metals (like connecting copper directly to galvanized steel) can cause galvanic corrosion, leading to rapid failure. Always use a dielectric union when connecting dissimilar metals.

How Do I Choose the Right Pipe for Water Supply vs. Drainage?

This is the most common mistake DIYers make: using supply pipe for drainage, or vice versa. The systems operate under different physics.

Water Supply Lines (Pressurized)

Supply lines carry fresh water under pressure. They must be strong enough to handle 40–80 PSI (pounds per square inch) consistently.

• Recommended: PEX or Copper.
• Why? They are seamless (or joined securely) and can handle the constant internal pressure without leaking. PVC is generally not approved for indoor pressurized hot water supply in many US jurisdictions due to safety concerns regarding heat deformation.

Drain-Waste-Vent (DWV) Lines (Gravity-Based)

Drain lines rely on gravity to move waste out of your home. They are not pressurized but must be large enough to prevent clogs.

• Recommended: PVC (Schedule 40).
• Why? PVC is smooth, allowing waste to slide easily. It is also inexpensive, which matters because drain pipes are large (1.5 inches to 4 inches in diameter).
• Sizing Matters:
  • Sink/Shower: 1.5-inch pipe.
  • Toilet: 3-inch or 4-inch pipe.
  • Main Sewer Line: 4-inch pipe.

For more detailed technical specifications on plastic piping standards, you can refer to the ASTM International standards on Wikipedia, which govern the manufacturing quality of these materials in the US.

Step-by-Step: Basic PEX Connection Tutorial

Since PEX is the most user-friendly option for beginners, here is how to make a secure connection using the Crimp Method.

Tools Needed:

• PEX Tubing
• Brass PEX Crimp Fitting
• Copper Crimp Rings
• PEX Crimp Tool
• Go/No-Go Gauge (usually included with the tool)
• Pipe Cutter

Instructions:

1. Cut the Pipe: Use a dedicated PEX cutter to make a clean, square cut. A jagged cut can compromise the seal.
2. Slide the Ring: Slide a copper crimp ring onto the end of the PEX tube. Move it back about 1–2 inches so it doesn’t interfere with the next step.
3. Insert the Fitting: Push the brass fitting into the end of the PEX tube. Ensure it goes all the way in until it hits the shoulder of the fitting.
4. Position the Ring: Slide the copper ring forward so it sits about 1/8 to 1/4 inch from the end of the pipe. It should cover the barb of the fitting.
5. Crimp: Place the jaws of the crimp tool over the ring and squeeze firmly until the tool releases or clicks. This compresses the ring onto the pipe and fitting.
6. Verify: Use the “Go/No-Go” gauge. The “Go” side should fit over the crimped ring; the “No-Go” side should not fit. If the “No-Go” side fits, the crimp is too loose—cut it off and start over.

FAQ: Common Questions About Plumbing Pipes

1. Can I use PVC pipes for hot water?

No. Standard PVC softens and deforms at temperatures above 140°F (60°C). Using it for hot water can lead to catastrophic leaks. Always use CPVC, PEX, or Copper for hot water lines.

2. Is PEX safe for drinking water?

Yes. Modern PEX tubing meets strict NSF/ANSI Standard 61 for drinking water system components. While there were concerns in the early 2000s, current manufacturing standards ensure that PEX does not leach harmful chemicals into your water supply.

3. Why is my copper pipe turning green?

Green corrosion (verdigris) indicates oxidation, often caused by acidic water or high velocity erosion. While a little surface oxidation is normal, significant green buildup inside the pipe can restrict flow and eventually cause pinhole leaks. If you see this, test your water’s pH level.

4. What is the difference between Schedule 40 and Schedule 80 PVC?

The “Schedule” refers to the wall thickness. Schedule 40 is standard for residential drain lines. Schedule 80 has thicker walls and can handle higher pressure, often used in industrial applications or commercial plumbing. For home DIY, Schedule 40 is almost always what you need.

5. How long do plumbing pipes last?

• Brass/Copper: 50–70 years.
• PEX: 40–50+ years (still being studied as it is newer).
• PVC/CPVC: 25–40 years.
• Galvanized Steel: 20–50 years (prone to rust, rarely used now).

6. Do I need a permit to replace pipes in my house?

In most US jurisdictions, yes. Replacing water supply lines or altering DWV systems usually requires a permit and inspection. This ensures the work meets local building codes and prevents future insurance issues. Always check with your local building department before starting.

Conclusion

Navigating the different types of pipes and fittings used in plumbing doesn’t have to be intimidating. By understanding that PEX is your flexible, budget-friendly friend for supply lines, Copper is the durable classic, and PVC is the king of drainage, you can make informed decisions for your home.

Remember, the key to a leak-free system is matching the right material to the right job and ensuring your fittings are compatible. Whether you are tackling a small repair or planning a major renovation, taking the time to choose quality materials pays off in peace of mind.
