If you’ve ever peeked into your closet or attic where your HVAC system lives, you might have noticed pipes connected to that large metal box and wondered: do air handler units have plumbing attached to them? It’s a common question, especially when you see water dripping or hear the sound of running water near your heating and cooling equipment. The short answer is yes, but not in the way you might think. Unlike your kitchen sink, these pipes aren’t for delivering fresh water for consumption. Instead, they play a critical role in removing moisture from your home or circulating heated water for comfort. Understanding this distinction is vital for maintaining your home’s efficiency and preventing costly water damage. In this guide, we’ll break down exactly what those pipes do, why they are there, and how to keep them functioning correctly.
Why Do Air Handlers Need Water Lines?
To understand whether an air handler has plumbing, we first need to look at its primary function. An air handler is the indoor component of a split-system HVAC (Heating, Ventilation, and Air Conditioning) unit. Its job is to circulate conditioned air throughout your home. However, the process of conditioning air—specifically cooling it—creates a byproduct: water.
The Physics of Cooling and Moisture
When warm, humid air passes over the cold evaporator coil inside the air handler, the moisture in the air condenses on the coil, much like water droplets forming on a cold glass of lemonade on a hot day. This process is known as condensation. If this water were allowed to pool inside the unit, it would lead to mold growth, rust, and eventually, system failure. Therefore, a drainage system is essential.
According to basic thermodynamic principles detailed on Wikipedia, the removal of latent heat (moisture) is just as important as removing sensible heat (temperature) for human comfort. This is why “plumbing” in the form of drain lines is a standard feature in almost all residential air handlers in humid climates like the Southeastern United States.
Types of Plumbing Found on Air Handler Units
Not all air handlers are created equal. The type of “plumbing” attached to your unit depends largely on the type of system you have installed. Generally, you will encounter one of two scenarios: condensate drainage lines or hydronic water connections.
1. Condensate Drain Lines (The Most Common)
For standard central air conditioning systems and heat pumps, the only plumbing attached to the air handler is the condensate drain line. This is typically a white PVC pipe (usually 3/4 inch or 1 inch in diameter) that exits the unit and leads to a floor drain, a utility sink, or outside your home.
- Function: Removes wastewater generated during the cooling cycle.
- Material: Usually PVC plastic or flexible vinyl tubing.
- Pressure: Gravity-fed; no water pressure is involved.
2. Hydronic Coils (Hot Water Heating)
In some homes, particularly in colder regions or older buildings, the air handler may be equipped with a hydronic heating coil. In this setup, the air handler uses hot water from a boiler to heat the air, rather than electric resistance strips or a gas furnace.
- Function: Circulates hot water from a boiler through a coil to heat the air passing over it.
- Material: Copper or steel supply and return pipes.
- Pressure: Pressurized system, connected directly to the home’s boiler plumbing.

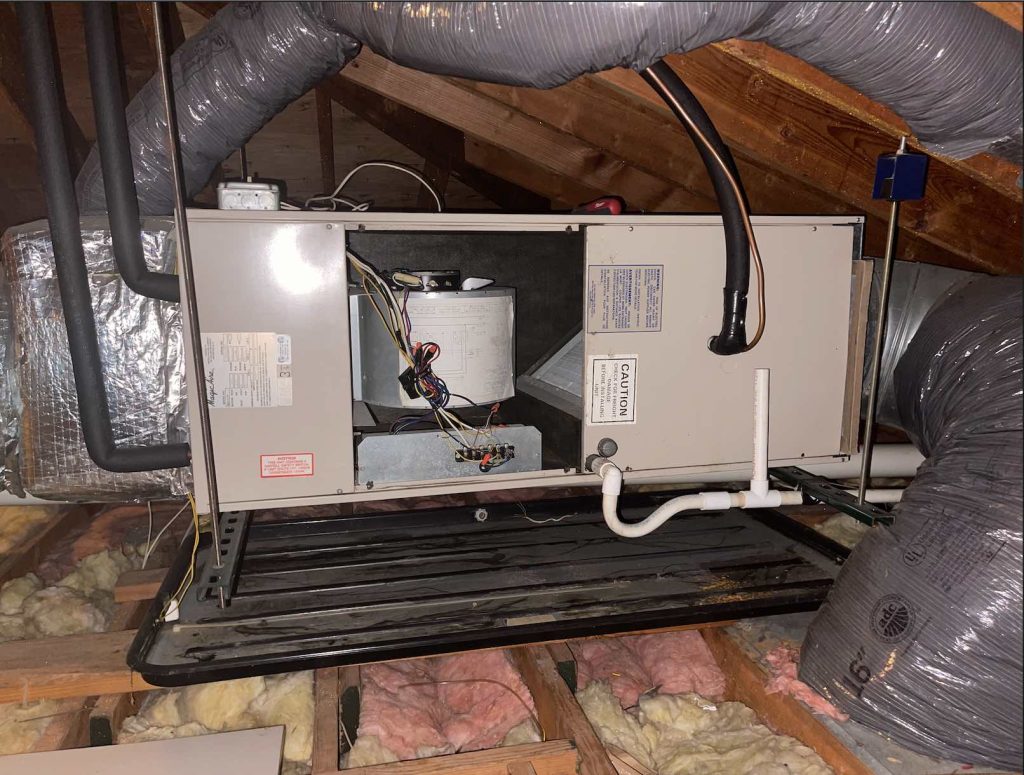

If you have two copper pipes entering and exiting your air handler, insulated with foam, you likely have a hydronic setup. If you only see a single white PVC pipe going down into a wall or floor, you have a standard condensate drain.
Key Components of Air Handler Plumbing
Whether you have a simple drain line or a complex hydronic system, several key components ensure the plumbing functions correctly. Familiarizing yourself with these parts can help you troubleshoot issues before they become emergencies.
| Component | Purpose | Common Issues |
|---|---|---|
| Condensate Pan | Catches water dripping from the evaporator coil. | Rusting, cracking, or overflowing due to clogs. |
| Primary Drain Line | Carries water away from the pan via gravity. | Clogged with algae, sludge, or mold (“biofilm”). |
| Secondary Drain Line | A backup outlet if the primary line clogs. | Often capped or routed to a visible location for alerts. |
| Condensate Pump | Pumps water uphill if gravity drainage isn’t possible. | Pump failure, float switch stuck, power loss. |
| P-Trap | Creates a water seal to prevent sewer gases from entering. | Drying out (if unused) or clogging with debris. |
Common Problems with Air Handler Plumbing
Even though the plumbing on an air handler seems simple, it is the source of many HVAC service calls. Here are the most frequent issues homeowners face.
Clogged Condensate Lines
The number one enemy of air handler plumbing is biological growth. The dark, damp environment of the condensate pan is a breeding ground for algae and mold. Over time, this “slime” builds up and blocks the drain line. When the line clogs, water backs up into the pan and overflows into your ceiling or floor.
Statistical Insight: Industry experts estimate that nearly 70% of emergency AC repairs during peak summer months are related to clogged condensate lines rather than mechanical compressor failures.
Failed Condensate Pumps
If your air handler is located in a basement or an interior closet where gravity drainage isn’t possible, a condensate pump is used. These pumps have a small reservoir and a float switch. If the float gets stuck due to debris, or if the pump motor burns out, water will overflow.
Leaking Hydronic Connections
For systems with hot water coils, leaks can occur at the connection points between the boiler pipes and the coil. These leaks are often more dangerous because the water is hot and under pressure, potentially causing significant damage quickly.
How to Maintain Your Air Handler Plumbing
Prevention is far cheaper than repair. Here is a simple maintenance routine to keep your air handler’s plumbing in top shape.
Step-by-Step: Cleaning the Condensate Line
You can perform this simple task twice a year (spring and fall).
- Locate the Access Point: Find the T-shaped vent or cap on the PVC drain line near the air handler.
- Remove the Cap: Unscrew or pull off the cap. You may see some water inside; this is normal.
- Inspect for Debris: Use a flashlight to look for visible sludge or blockages.
- Flush with Vinegar: Pour 1 cup of distilled white vinegar into the access point. This kills algae and mold without damaging the PVC pipes. Avoid using bleach, as it can corrode metal components and release harmful fumes.
- Let it Sit: Allow the vinegar to sit for 30 minutes.
- Flush with Water: Pour a gallon of water down the line to flush out the loosened debris. Ensure the water flows freely out of the termination point outside or into the drain.
Checking the Condensate Pump
If you have a pump, listen for its operation. When the AC runs, you should hear a faint humming or clicking sound as the pump activates. Pour a cup of water into the pump’s reservoir to ensure it pumps out correctly. If it doesn’t, the pump may need replacement.
FAQ Section
1. Can I connect my air handler drain to the sewer line?
Yes, but it must be done correctly. The drain line should never be directly connected to the sewer pipe without an air gap or a proper trap. Direct connections can allow sewer gases to back up into your home. Always check local building codes, as many jurisdictions require an indirect waste connection.
2. Why is my air handler leaking water only when it rains?
If your air handler leaks only during rain, the issue is likely not with the unit itself but with the roof penetration. Check the flashing around the exhaust flue or the intake pipe on the roof. Water may be seeping in through the roof and dripping onto the air handler casing, mimicking a plumbing leak.
3. Do mini-split air handlers have plumbing?
Yes, ductless mini-split units also produce condensate. However, because they are often mounted on walls, they typically use a small, flexible hose that runs alongside the refrigerant lines to the outside of the house. Some interior units may require a small condensate pump if gravity drainage is not feasible.
4. What happens if I ignore a clogged drain line?
Ignoring a clogged line can lead to severe consequences. Water damage to drywall, ceilings, and flooring can cost thousands to repair. Furthermore, standing water in the HVAC system promotes mold growth, which can negatively impact indoor air quality and pose health risks to residents with allergies or asthma.
5. Is it normal for the condensate line to drip outside?
Yes, it is completely normal for the condensate line to drip water outside while the AC is running. In fact, if it isn’t dripping on a hot, humid day, it might indicate that the line is clogged or the system isn’t cooling properly. However, ensure the dripping isn’t causing erosion or pooling near your home’s foundation.
Conclusion
So, do air handler units have plumbing attached to them? Absolutely. Whether it’s a simple PVC condensate drain line removing humidity from your home or complex hydronic pipes circulating hot water, these connections are integral to your HVAC system’s operation. Ignoring them can lead to messy leaks, mold issues, and expensive repairs.
By understanding the role of this plumbing and performing simple maintenance tasks like flushing the drain line with vinegar, you can protect your home and extend the life of your HVAC system. Don’t wait for a puddle to appear on your ceiling—take proactive steps today.
