Have you ever found yourself staring at an exposed copper pipe after a renovation, wondering how to seal it off without calling a plumber or firing up a torch? It’s a common dilemma for homeowners and DIY enthusiasts alike. The good news is that do quick connect end caps work on copper plumbing is a question with a resounding yes. These innovative fittings provide a secure, code-compliant, and incredibly easy way to terminate copper lines, saving you time, money, and the hassle of traditional soldering.
In this guide, we will break down exactly how these fittings work, why they are safe for your home, and how to install them correctly to ensure a leak-free seal every time.
How Do Quick Connect Fittings Seal Copper Pipes?
To understand why these caps work, you need to understand the mechanism inside. Quick-connect fittings, often referred to by the popular brand name SharkBite, utilize a “push-to-connect” design. But it’s not just magic; it’s engineering.
Inside the fitting, there are three critical components:
- A Stainless Steel Grab Ring: This ring has teeth that bite into the copper pipe when you push it in. It prevents the pipe from being pulled out under pressure.
- An O-Ring Seal: Made from EPDM (Ethylene Propylene Diene Monomer) rubber, this creates a watertight barrier against the outer surface of the copper pipe.
- A Release Collar: This allows you to disconnect the fitting if necessary using a simple clip tool.
When you insert a copper pipe into a quick-connect end cap, the grab ring locks onto the metal, and the O-ring compresses slightly to fill any microscopic imperfections on the pipe’s surface. This dual-action mechanism ensures that the fitting can handle standard residential water pressures (typically up to 200 PSI) and temperatures (up to 200°F).
According to industry standards, these fittings are tested to meet ASTM F877 and NSF/ANSI 61 certifications, ensuring they are safe for potable water systems. You can read more about the general standards for plumbing materials on Wikipedia’s page on Plumbing.
Are Push-to-Fit End Caps Safe for Permanent Installation?
One of the most common concerns among homeowners is longevity. Will this leak in five years?
The short answer is: Yes, they are safe for permanent installation.
Major manufacturers like SharkBite offer a 25-year warranty on their fittings when installed according to their instructions. Furthermore, these fittings are approved by the Uniform Plumbing Code (UPC) and the International Plumbing Code (IPC), which are the standard codes adopted by most jurisdictions in the United States.
Expert Insight
Professional plumbers often debate the use of push-to-fit fittings. While traditionalists prefer soldered joints for their proven track record over decades, modern data supports the reliability of quick-connects. A study by independent testing laboratories showed that push-to-fit fittings maintained integrity under cyclic pressure testing far beyond typical residential usage patterns.
However, there is a caveat: Accessibility. While you can bury these fittings behind drywall, many local inspectors prefer them to be accessible. If you plan to close up a wall, check your local building codes. Some areas require an access panel for any mechanical joint that isn’t soldered or brazed.
Step-by-Step: How to Install a Quick Connect Cap on Copper
Installing a quick-connect end cap is one of the easiest tasks in plumbing. You don’t need a torch, flux, or solder. You only need a pipe cutter and a deburring tool.
Follow these precise steps to ensure a perfect seal:
Step 1: Cut the Pipe Cleanly
Use a rotary tube cutter to cut the copper pipe. Ensure the cut is perfectly square (90 degrees).
- Why? An angled cut can prevent the pipe from seating fully against the internal stop of the cap, leading to leaks.
Step 2: Deburr and Clean the Pipe
This is the most critical step that beginners often skip.
- Use a deburring tool to remove the sharp inner and outer edges of the cut pipe.
- Clean the outside of the pipe with a clean cloth. Remove any dirt, oxidation, or moisture.
- Pro Tip: The pipe must be smooth. Any scratches or gouges deeper than 0.01 inches can compromise the O-ring seal.
Step 3: Measure the Insertion Depth
Each fitting size has a specific insertion depth. For standard 1/2-inch and 3/4-inch copper pipes, the insertion depth is typically 7/8 inch (22 mm).
- Most SharkBite fittings have a depth gauge molded into the plastic collar. Use this to mark your pipe with a marker or pencil.

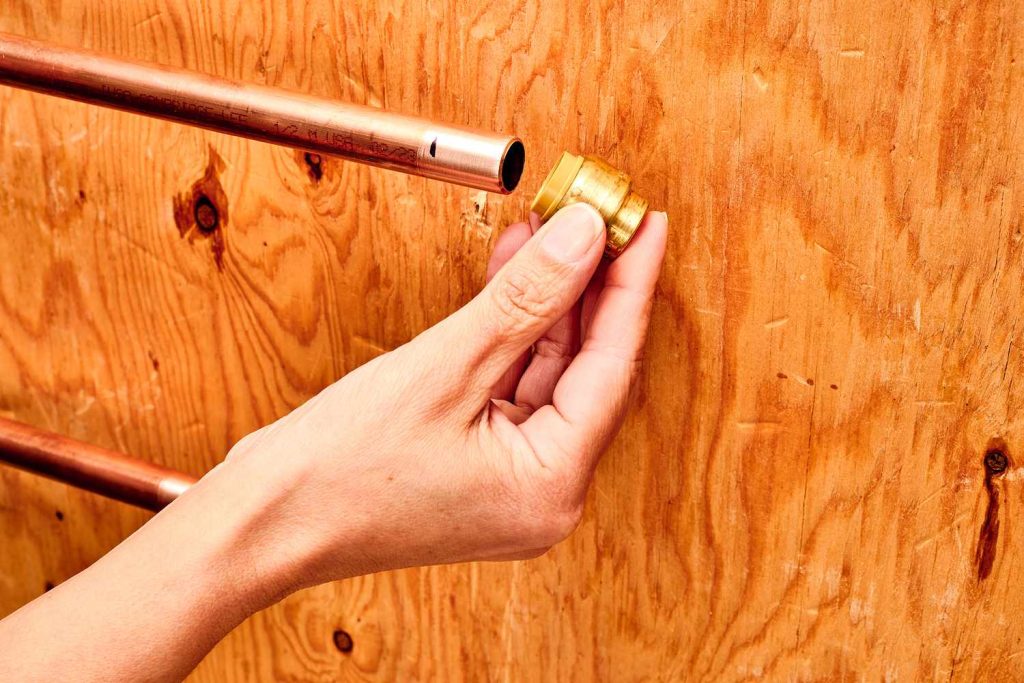

Step 4: Push to Connect
Align the cap with the pipe. Push firmly and steadily until the pipe hits the internal stop.
- You should feel it click or seat firmly.
- Check your marker line. If the line is still visible outside the fitting, the pipe is not fully inserted. Push harder or check for obstructions.
Step 5: Test for Leaks
Turn the water supply back on slowly. Inspect the connection for any signs of dripping. If it’s dry, you’re done!
Quick Connect Caps vs. Traditional Soldering: A Comparison
Is it worth switching to quick-connect caps? Let’s look at the data.
| Feature | Quick Connect End Caps | Traditional Soldered Caps |
|---|---|---|
| Installation Time | < 1 minute per joint | 5–10 minutes (plus cooling time) |
| Tools Required | Pipe cutter, deburrer | Torch, solder, flux, brush, heat shield |
| Skill Level | Beginner Friendly | Requires practice/skill |
| Fire Risk | None (Cold work) | High (Open flame near studs/insulation) |
| Reusability | Yes (with release clip) | No (Must be cut out) |
| Cost per Unit | Higher ($5–$8) | Lower ($0.50–$1.00) |
| Aesthetics | Bulky plastic/metal look | Sleek, low-profile metal joint |
When to Use Which?
- Choose Quick Connect Caps when: You are working in tight spaces, near flammable materials, doing a temporary repair, or lack soldering skills.
- Choose Soldering when: You are running long lines of new pipe, want the lowest material cost, or need a slim profile fitting inside a narrow wall cavity.
Common Mistakes to Avoid
Even though these fittings are “foolproof,” mistakes happen. Here are the top three reasons why quick-connect caps fail:
- Scratched Pipes: Using sandpaper that is too coarse or slipping with a knife while deburring can create deep scratches. These scratches act as channels for water to bypass the O-ring.
- Incomplete Insertion: If the pipe isn’t pushed all the way in, the grab ring won’t engage properly, and the O-ring won’t seal. Always use the depth gauge.
- Using the Wrong Pipe Type: Ensure the cap is rated for Type L, Type M, or Type K copper. Most standard quick-connect caps work on all three, but always check the package. Note that they do not work on soft, annealed copper tubing unless specifically stated.
FAQ Section
1. Can I use a quick connect end cap on hot water lines?
Yes. Most high-quality quick-connect fittings are rated for temperatures up to 200°F (93°C), which exceeds the standard temperature of residential hot water heaters (usually set between 120°F and 140°F).
2. Do I need to shut off the water to install an end cap?
Yes. While some specialized “live-line” tools exist for professional plumbers to tap into pressurized lines, standard quick-connect end caps must be installed on depressurized pipes. Attempting to install them on a live line will result in immediate water spray and potential injury.
3. Can I reuse a quick connect end cap?
Yes, but with caution. You can remove the cap using a disconnect clip or tongs. However, inspect the O-ring and grab ring for damage before reusing. If the O-ring looks flattened, cracked, or dirty, replace the fitting. It’s cheap insurance against a leak.
4. Are SharkBite fittings allowed by code in my state?
SharkBite and similar push-to-fit fittings are approved by the UPC and IPC, which are adopted by most US states. However, local amendments vary. For example, some jurisdictions in California or New York may have specific restrictions on where they can be used (e.g., not behind walls). Always check with your local building department.
5. What happens if the O-ring fails over time?
O-rings are made of EPDM, which is highly resistant to degradation from chlorine and heat. Failure is rare within the warranty period. If a leak does occur, it is usually due to improper installation (scratches or incomplete insertion) rather than material failure. If a leak develops, simply cut the pipe back slightly, deburr, and install a new cap.
6. Can I use these on galvanized or PEX pipe?
Standard quick-connect end caps are designed for copper, CPVC, and PEX. However, you cannot put a standard copper-sized cap directly onto galvanized steel pipe because the outer diameter differs. You would need a transition fitting. For PEX, ensure you use a stiffener insert if required by the specific brand instructions, though many modern caps are designed to work without one on PEX-A and PEX-B.
Conclusion
So, do quick connect end caps work on copper plumbing? Absolutely. They represent a significant advancement in DIY-friendly plumbing technology, offering a reliable, code-compliant, and fast solution for capping off copper lines. Whether you are finishing a basement remodel, repairing a leak, or decommissioning an old sink line, these fittings eliminate the need for open flames and complex skills.
By following the simple preparation steps—cutting cleanly, deburring thoroughly, and inserting fully—you can achieve a professional-grade seal in seconds. Remember, while the upfront cost is higher than solder, the time saved and the elimination of fire risk make it a worthwhile investment for most homeowners.
