Do You Need Extra Plumbing For A Double Vanity?

Upgrading your master bathroom with a sleek double vanity is one of the most popular home improvement projects in the United States. It adds convenience for couples and significantly boosts your home’s resale value. However, before you purchase that beautiful cabinet, you likely have one pressing question: do you need extra plumbing for a double vanity?

The short answer is: It depends on your current setup. If you are replacing an existing double vanity, the answer is usually no. But if you are converting a single sink into a double, you will almost certainly need to modify your water supply lines and drain configuration. In this guide, we will break down exactly what is required, helping you avoid costly surprises during your renovation.

Understanding the Basics: Single vs. Double Vanity Plumbing

To understand the plumbing requirements, we first need to look at the fundamental differences between a single and a double setup. A standard single vanity typically requires:

• One hot water supply line.
• One cold water supply line.
• One drain pipe (usually 1.25 or 1.5 inches in diameter).

A double vanity, however, doubles the demand. You now need two distinct faucet setups. While the water pressure from your main line remains the same, the physical infrastructure behind the wall or under the cabinet must accommodate two separate drainage paths and supply connections.

The “Rough-In” Reality

In construction terms, the “rough-in” refers to the initial installation of pipes before walls are closed up. For a double vanity, the rough-in must be wider. Standard single vanities often have a center-set rough-in (where the drain is in the middle). Double vanities typically require either two separate rough-ins spaced about 30–36 inches apart or a specialized wide-center configuration.

If your bathroom was originally built with a single sink, the drain stack is likely positioned directly behind that single basin. Moving this stack or adding a second branch to it is where the “extra plumbing” comes into play.

Do You Need New Water Supply Lines?

One of the most common misconceptions is that you need to run entirely new water lines from your main house manifold for a second sink. In most residential scenarios, you do not need new main lines, but you do need extensions or splits.

Splitting the Supply

Most modern homes use PEX or Copper piping. To add a second faucet, a plumber will typically install a “tee” fitting into the existing hot and cold supply lines. This splits the water flow, sending half to the original faucet location and half to the new one.

• Hot Water: A T-fitting is installed on the hot line.
• Cold Water: A T-fitting is installed on the cold line.

Expert Tip: Ensure your water heater has enough capacity. Adding a second sink doesn’t drastically increase hot water usage compared to a shower, but if you are also adding a soaking tub, you might need to upgrade your heater size.

When You Do Need New Lines

You might need entirely new runs if:

1. The existing pipes are old galvanized steel (prone to corrosion and low pressure).
2. The distance between the new vanity location and the nearest supply line is excessive (over 10 feet), which could lead to pressure drops.
3. Local building codes require dedicated lines for certain fixtures (rare for sinks, but possible in high-rise condos).

The Drainage Challenge: Venting and Slope

While splitting water supply lines is relatively straightforward, drainage is where most DIYers encounter code violations. This is the critical part of answering “do you need extra plumbing for a double vanity.”

The Trap Arm Limitation

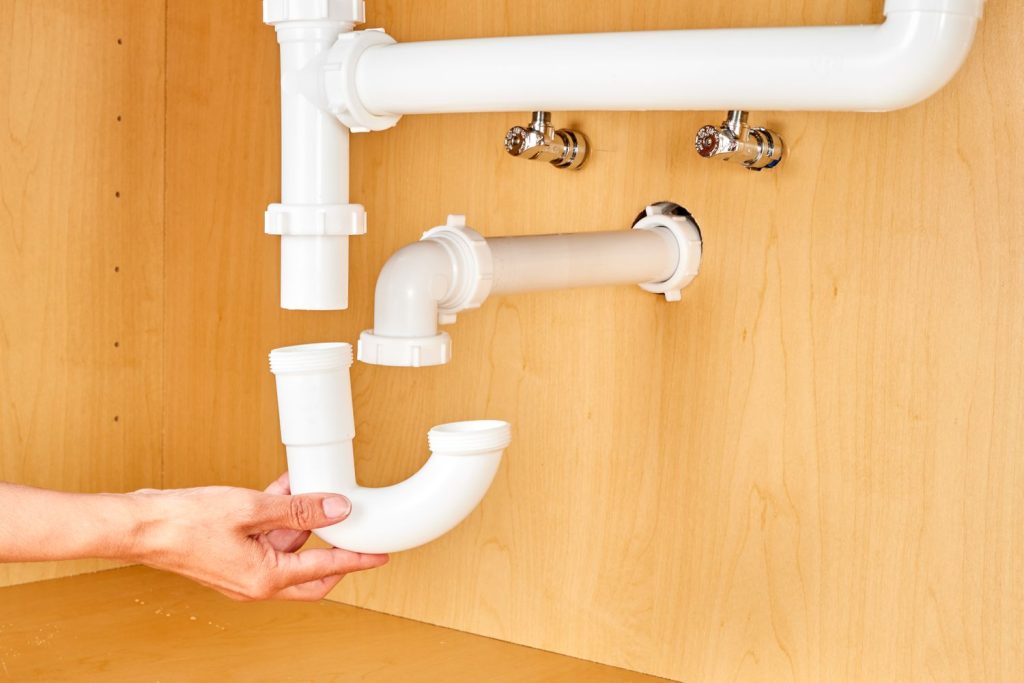

Every sink needs a P-trap to prevent sewer gases from entering your home. According to the Uniform Plumbing Code (UPC) and International Plumbing Code (IPC), there is a maximum distance a trap can be from the vent pipe.

• 1.25-inch drain: Maximum trap-to-vent distance is often limited to 30 inches.
• 1.5-inch drain: Maximum trap-to-vent distance can extend to 42 inches (depending on local amendments).

If you simply add a second sink far from the existing vent, the second sink may not drain properly, leading to gurgling sounds, slow drainage, or siphoning of the trap.

Solutions for Proper Venting

1. Common Venting: If the two sinks are close together (typically within 30 inches of each other), they can often share a single vent. This is known as a “common vent” or “dual fixture vent.”
2. Air Admittance Valves (AAVs): In situations where running a new vent pipe through the roof is too difficult or expensive, an AAV (often called a Studor vent) can be used. This one-way valve allows air into the drain system when water flows but prevents gas from escaping. Note: Check your local codes, as some jurisdictions restrict AAV use.
3. Re-venting: If you are moving the vanity significantly, you may need to cut into the drywall and install a new vertical vent stack that connects to the main vent line in the attic or roof.

For more technical details on plumbing ventilation standards, you can refer to the general principles outlined on Wikipedia’s page on Plumbing Ventilation.

Cost Breakdown: How Much Extra Will It Cost?

Understanding the financial implication is crucial for your budget. Here is a realistic estimate for the US market in 2026.

Note: If you are simply replacing an existing double vanity, labor costs should be minimal ($150-$300) as no new plumbing is required.

Step-by-Step: What to Expect During Installation

If you hire a professional, here is the workflow you should expect. If you are a skilled DIYer, these are the steps you must follow strictly.

1. Shut Off Water: Turn off the main water supply or the specific isolation valves for the bathroom.
2. Demolition: Remove the old vanity and cut away drywall to expose the studs and existing pipes.
3. Assess Vent Location: Determine if the existing vent can serve both new sink traps.
4. Run Supply Lines: Install tee fittings on hot/cold lines and run new PEX or copper lines to the second faucet location. Install angle stops (shut-off valves) for both sinks.
5. Install Drain Branches: Connect the new drain tailpiece to the main waste line. Ensure a proper slope of 1/4 inch per foot toward the main stack.
6. Pressure Test: Turn the water back on and check for leaks at all new joints.
7. Close Walls: Once inspections are passed (if required), patch the drywall.
8. Install Vanity: Set the cabinet, connect faucets, and seal with silicone caulk.

Frequently Asked Questions (FAQ)

1. Can I convert a single vanity to a double without moving walls?

Yes, but only if the existing wall is wide enough to accommodate two sinks (usually at least 60 inches total width) and the plumbing adjustments fit within the existing stud bays. If the wall is too narrow, you may need to expand into an adjacent closet or room.

2. Do I need a permit to add a second sink?

In most US jurisdictions, yes. Any alteration to the permanent plumbing system typically requires a permit. This ensures the work meets safety codes, particularly regarding venting and sewage handling. Skipping this can cause issues when selling your home.

3. What is the minimum width for a double vanity?

The absolute minimum is usually 48 inches, but this results in very small sinks. For comfortable use, 60 inches is the standard minimum, and 72 inches is ideal for spacious master bathrooms.

4. Can I use the existing drain hole for both sinks?

No. Each sink must have its own trap. However, both traps can connect to a single drain branch using a “double fixture fitting” or a sanitary tee, provided the venting is adequate.

5. Is it better to use PEX or Copper for the new lines?

For most DIY and retrofit scenarios, PEX is preferred. It is flexible, easier to install without soldering, resistant to freezing bursts, and generally cheaper. Copper is more durable and traditional but requires soldering skills and is more expensive.

6. Will adding a double vanity lower my water pressure?

Not noticeably. Household water pressure is determined by your municipal supply or well pump and pressure tank. Splitting the line for two sinks will not reduce the pressure enough to affect performance, unless you have extremely low incoming pressure to begin with.

Conclusion

So, do you need extra plumbing for a double vanity? If you are starting with a single sink, the answer is yes—you will need to extend supply lines and, more importantly, ensure your drainage venting meets code requirements. This involves more than just buying a wider cabinet; it requires strategic planning of the pipes behind the wall.

However, the investment is well worth it. A double vanity transforms the functionality of your morning routine and adds significant equity to your home. By understanding the basics of supply splitting and venting, you can communicate effectively with your plumber, avoid budget overruns, and ensure a smooth renovation process.
