If you’ve ever wondered, “Does a plumbing vent have to go straight up?”—you’re not alone. Homeowners, DIYers, and even new plumbers often get confused about vent pipe routing. The short answer? Not always—but there are critical rules to follow. Getting it wrong can lead to slow drains, sewer smells, or even health hazards. In this guide, we’ll break down the facts, codes, and real-world solutions so your plumbing system works safely and efficiently.
Why Plumbing Vents Matter (And What Happens Without One)
Before diving into angles and routing, it’s essential to understand why vents exist. A plumbing vent is part of your Drain-Waste-Vent (DWV) system. Its main jobs are:
Equalizing air pressure in pipes to allow wastewater to flow freely.
Preventing siphoning of trap seals (those U-shaped bends under sinks that block sewer gases).
Venting harmful gases safely outside your home.
Without proper venting, you might experience:
Gurgling toilets
Foul odors from drains
Slow or backed-up fixtures
Potential exposure to methane or hydrogen sulfide
According to the International Plumbing Code (IPC), every plumbing fixture must be vented—no exceptions.
Does a Plumbing Vent Have to Go Straight Up? The Truth
No, a plumbing vent does not have to go perfectly vertical—but it must trend upward with minimal horizontal runs. Here’s why:
The IPC (Section 904.1) states that vent pipes must rise continuously without dips or sags to prevent water from collecting and blocking airflow. However, limited horizontal sections are allowed—as long as they meet specific slope and height requirements.
Key Code Requirements (IPC & UPC)
Minimum vertical rise before horizontal run
Must rise at least 6 inches above the flood level rim of the highest fixture it serves
Similar: vent must extend above fixture flood level
Max horizontal offset
Allowed if pipe maintains upward slope and is above the highest fixture
Horizontal runs permitted above the overflow level of the highest fixture
Pipe slope for horizontal vents
Not required to slope (since no wastewater flows through)
Same—vents don’t carry waste, so slope isn’t mandatory
💡 Pro Tip: Even though horizontal runs are allowed, most plumbers prefer a near-vertical path to avoid condensation buildup, debris accumulation, or accidental blockages.

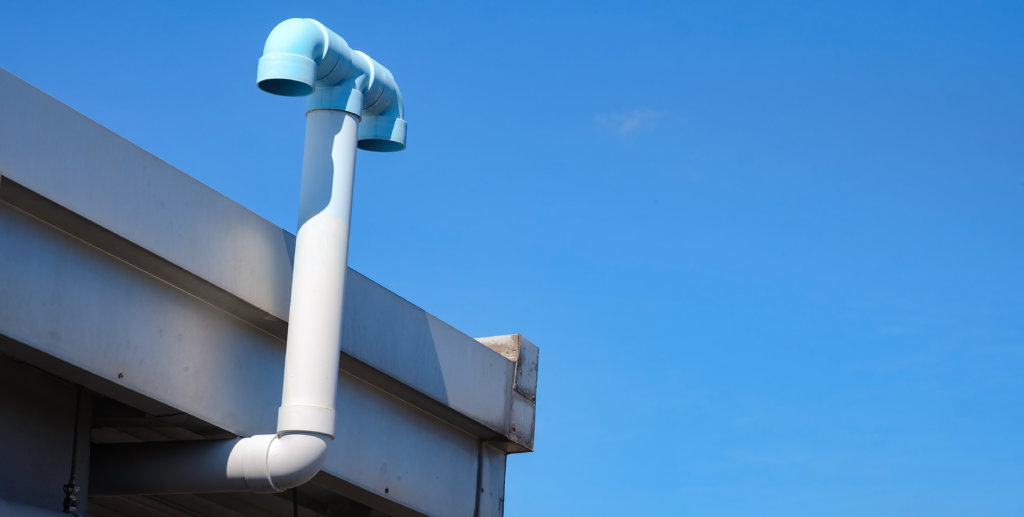

PVC pipe ventilation from the toilet in the building on blue sky background
How Much Can a Vent Pipe Bend or Angle?
You can use elbows and offsets—but with limits.
Maximum angle from vertical: Most inspectors allow up to 45 degrees off vertical for the main vent stack.
Elbows: Use long-sweep elbows (not sharp 90° bends) to reduce turbulence and improve airflow.
Horizontal sections: Must be installed at least 6 inches above the highest fixture’s flood rim (e.g., the top of your bathroom sink or toilet tank).
For example: If your kitchen sink’s flood level is 36 inches above the floor, any horizontal vent run must be at least 42 inches high.
📌 Real-World Case: In a 2022 inspection report from the Plumbing-Heating-Cooling Contractors Association (PHCC), 23% of venting failures were due to horizontal runs installed too low—causing trap siphonage in multi-story homes.
Common Vent Pipe Layouts That Work (Without Going Straight Up)
Here are three code-compliant alternatives to a perfectly vertical vent:
1. Offset Vent Stack
Used when a roof obstacle (like a chimney) blocks a straight path. The vent rises vertically, then uses two 45° elbows to shift horizontally before continuing upward.
✅ Allowed if the offset stays above the highest fixture and maintains upward flow.
2. Island Fixture Vent (Bow Vent)
Common in kitchen islands where a roof vent isn’t feasible. This looped design uses a vertical rise inside the cabinet, then connects back into the main vent system.
✅ Permitted under IPC Section 908, but requires precise sizing and cleanouts.
3. Air Admittance Valve (AAV)
A mechanical vent that opens to let air in when negative pressure occurs, then seals shut. No roof penetration needed.
⚠️ Limitations:
Not allowed in all jurisdictions (check local codes).
Cannot be used for toilets in some areas.
Has a lifespan (~20 years) and requires accessibility for replacement.
Step-by-Step: Installing a Compliant Vent Pipe (With Offsets)
If you’re routing a vent that can’t go straight up, follow these steps:
Identify the highest fixture on the branch (e.g., a second-floor sink).
Extend the vent pipe vertically at least 6 inches above that fixture’s flood rim.
Use two 45° long-sweep elbows to create a horizontal offset (never use 90° bends).
Ensure the entire vent remains above the flood level of all connected fixtures.
Terminate the vent at least 6 inches above the roof (12 inches if near a window or wall).
Install a roof flashing to prevent leaks.
Test the system with a smoke test or water flow test to confirm no siphoning occurs.
🛠️ Note: Always check with your local building department—some cities (like Chicago or Los Angeles) have stricter venting rules than the IPC.
Pros and Cons: Straight Up vs. Offset Vent
Installation ease
Easier in open attics
Requires planning around obstacles
Maintenance
Low risk of clogs
Slightly higher risk if not sloped properly
Code compliance
Universally accepted
Must meet height/slope rules
Aesthetics
May require roof penetration in visible areas
Can hide vent in walls or soffits
Cost
Lower (fewer fittings)
Moderate (extra elbows, supports)
FAQ: Plumbing Vent Questions Answered
Q1: Can a plumbing vent run horizontally in the attic?
Yes, as long as it’s above the highest fixture’s flood level and doesn’t sag. Horizontal vents in attics are common and code-compliant.
Q2: How far can a vent pipe run horizontally?
There’s no fixed maximum distance, but it must stay above the flood rim of all fixtures it serves. Longer runs may require larger pipe diameters to maintain airflow.
Q3: Can I use a 90-degree elbow in a vent pipe?
Avoid sharp 90° elbows. Use two 45° elbows or a long-sweep 90° to reduce airflow resistance and prevent moisture traps.
Q4: Do all vents need to go through the roof?
Not always. Alternatives like AAVs or wall-terminated vents (with proper height and clearance) are allowed in some areas—but roof vents are the most reliable.
Q5: What happens if my vent is too low?
A low vent can allow wastewater to enter the vent line, blocking airflow and siphoning trap seals—leading to sewer gas leaks.
Q6: Can I share a vent between multiple fixtures?
Yes! Wet venting and circuit venting allow multiple fixtures to share one vent pipe, as long as sizing and layout follow IPC guidelines (e.g., a 2-inch vent can serve up to 6 fixture units).
Conclusion
So, does a plumbing vent have to go straight up? Technically, no—but it must rise continuously and stay above the highest fixture it serves. Whether you use a slight offset, an island vent, or even an AAV, the goal is the same: protect your home from sewer gases and ensure smooth drainage.
By following IPC/UPC standards and prioritizing upward flow, you’ll keep your plumbing system safe, efficient, and code-compliant.
Found this guide helpful? Share it with a friend or DIYer who’s tackling a plumbing project! 🛠️🚽 And if you’re unsure about your vent layout, consult a licensed plumber—it’s a small investment that prevents big (and smelly) problems down the line.
