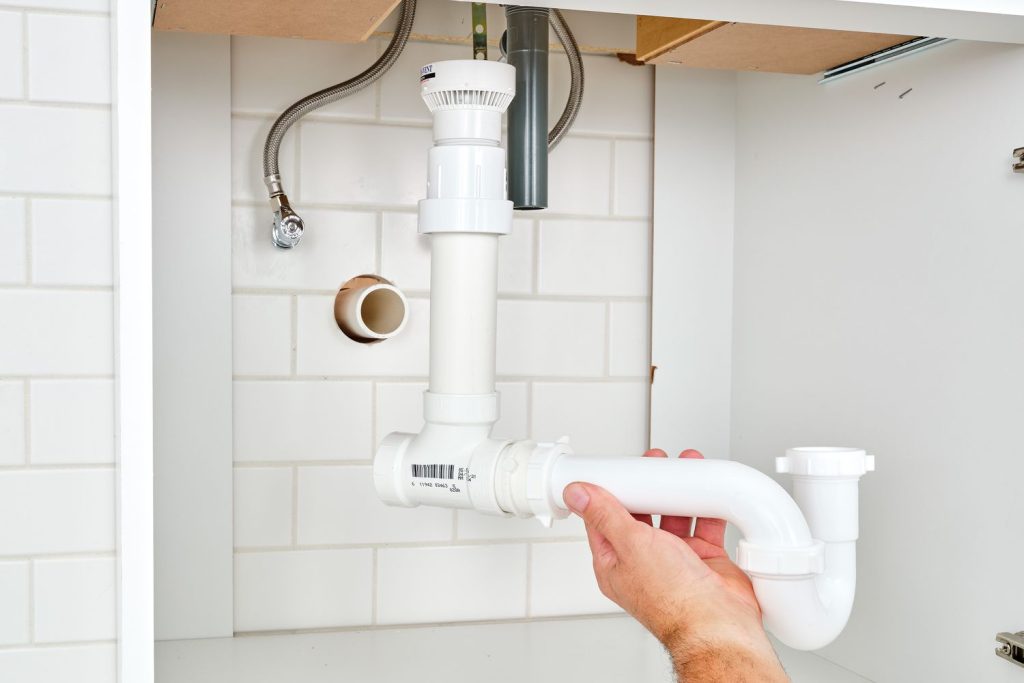

Have you ever stared at a bundle of pipes under your sink, wondering if that little plastic cap—the Air Admittance Valve (AAV)—is positioned correctly? It’s a common concern for homeowners tackling DIY renovations or repairs. Getting this wrong can lead to nasty sewer smells or slow-draining sinks. The short answer to the burning question, “does an air admittance valve have to be plumb,” is yes, but with specific nuances regarding its orientation and location that every homeowner must understand to ensure compliance and functionality.
In this guide, we will break down exactly what “plumb” means in this context, why vertical installation is non-negotiable for most valves, and how to avoid costly mistakes. Whether you are replacing a old vent or installing a new island sink, understanding these mechanics will save you time, money, and headaches.
Why Vertical Installation Is Non-Negotiable
When plumbers talk about a pipe being “plumb,” they mean it is perfectly vertical, at a 90-degree angle to the horizon. For an Air Admittance Valve, this orientation is not just a suggestion; it is a mechanical necessity.
The Mechanics of the Spring and Seal
Most AAVs operate using a simple yet precise mechanism: a spring-loaded seal or a gravity-based diaphragm. When negative pressure occurs in your drain line (like when water rushes down a sink), the valve opens to let air in. When the pressure equalizes, the seal closes tightly to prevent sewer gases from escaping into your home.
If the valve is installed horizontally or at an awkward angle:
- Gravity fails: The seal may not seat correctly, leading to constant slight openings.
- Spring tension shifts: The internal components may bind or wear out unevenly.
- Debris accumulation: Horizontal installation can allow condensation or debris to pool around the seal, preventing it from closing fully.
According to major manufacturers like Studor and Oatey, the valve must be installed vertically. This ensures that the internal mechanism operates solely against gravity and spring tension, as designed. Any deviation can compromise the seal, allowing methane and other hazardous sewer gases to leak into your living space.
What Do Plumbing Codes Say About AAV Orientation?
In the United States, plumbing is governed by model codes such as the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC). While local amendments vary, the stance on AAV orientation is remarkably consistent.
IPC and UPC Standards
Both major codes require that Air Admittance Valves be installed in accordance with the manufacturer’s instructions. Since virtually every manufacturer specifies vertical installation, code inspectors will fail an installation where the AAV is tilted or horizontal.
- IPC Section 917.4: States that AAVs shall be located a minimum of 4 inches above the horizontal branch drain or fixture drain being served. It implies verticality by requiring the valve to be accessible and operational within a specific vertical plane.
- UPC Section 910.2: Similarly mandates that the valve be installed in accordance with listed standards, which universally dictate vertical alignment.
For more detailed technical definitions on ventilation systems, you can refer to the general principles outlined on Wikipedia’s page on Plumbing Ventilation, which provides a solid overview of how venting systems maintain atmospheric pressure.
The “Within 15 Degrees” Rule
Some professional plumbers argue that a slight tilt (within 15 degrees of vertical) might not immediately break the seal. However, this is risky. Over time, vibration from washing machines or disposal units can shift a slightly tilted valve further out of alignment. To guarantee long-term reliability and pass any future home inspection, always aim for perfectly plumb.
Step-by-Step: How to Install an AAV Correctly
Installing an AAV is a straightforward task, but precision matters. Follow these steps to ensure your valve is plumb and functional.
Tools You Will Need
- Adjustable wrench or channel locks
- PVC primer and cement (if gluing)
- Level (a small torpedo level works best)
- Hacksaw or PVC cutter
- Tape measure
Installation Process
- Turn Off Water and Clear the Area: Ensure no water is running in the fixtures connected to the drain line you are working on.
- Cut the Pipe Cleanly: If you are adding a new tee fitting, cut the existing PVC pipe squarely. A jagged cut can cause leaks and make it hard to keep fittings aligned.
- Dry Fit the Components: Assemble the tee, the riser pipe, and the AAV without glue. Place your level against the riser pipe. Adjust until the bubble is perfectly centered.
- Tip: The riser pipe (the vertical piece holding the AAV) should be at least 4 inches long, but no more than necessary to keep the assembly compact.
- Check the Height: Ensure the AAV will sit at least 4 inches above the flood level rim of the highest fixture it serves. For a standard sink, this usually means the valve should be well above the countertop level if installed in a cabinet, or under the floor joists if accessed from below.
- Glue and Set: Apply PVC primer and cement. Push the fittings together firmly. Immediately check the level again. You have only a few seconds to adjust before the cement sets. Hold it steady until it bonds.
- Attach the AAV: Screw the AAV onto the threaded adapter. Hand-tighten it firmly. Do not over-tighten with tools, as this can crack the plastic housing.
Common Mistakes to Avoid
Even experienced DIYers can stumble when installing ventilation components. Here are the most frequent errors:
| Mistake | Consequence | Solution |
|---|---|---|
| Installing Horizontally | Seal failure, sewer gas leaks. | Always use a vertical riser. |
| Placing Below Flood Rim | Siphonage of trap, sewage backup into valve. | Keep valve ≥4 inches above fixture drain. |
| Using in Freezing Areas | Valve freezes open, causing drafts/smells. | Install only in conditioned spaces. |
| Over-Tightening | Cracked housing or stripped threads. | Hand-tighten only; use Teflon tape if needed. |
The “Island Sink” Scenario
A common point of confusion is the kitchen island sink. Since there are no walls to run a traditional vent up through the roof, an AAV is often used. In this case, the AAV is typically installed under the cabinet, connected to a loop vent. Even here, the valve itself must remain vertical. Do not try to hide it by laying it sideways behind the cabinet back panel. If space is tight, use elbow fittings to bring the pipe to a vertical position before attaching the valve.
FAQ: Everything You Need to Know About AAVs
1. Can I install an Air Admittance Valve horizontally?
No. You should never install an AAV horizontally. The internal mechanism relies on gravity to close the seal properly. Horizontal installation will likely lead to seal failure, allowing sewer gases to enter your home. Always install the valve vertically (plumb).
2. How high does an AAV need to be installed?
According to most plumbing codes, the AAV must be installed at least 4 inches above the horizontal branch drain or fixture drain it serves. Additionally, it should be accessible for maintenance and replacement. If installed in an attic, it must be above the insulation level.
3. Do Air Admittance Valves expire or wear out?
Yes. AAVs are mechanical devices with moving parts. The typical lifespan is between 20 to 30 years, depending on usage and quality. If you notice slow draining or faint sewer odors, the valve may be stuck open or closed and needs replacement. They are designed to be easily unscrewed and replaced.
4. Can I use an AAV for a toilet?
Generally, no. Toilets require robust venting due to the large volume of waste and water discharged. Most codes require a traditional vent stack for toilets. AAVs are best suited for sinks, lavatories, dishwashers, and washing machines. Always check your local code before attempting to vent a toilet with an AAV.
5. What happens if the AAV fails?
If an AAV fails in the open position, you may smell sewer gas in your home. If it fails in the closed position, your drains will gurgle, drain slowly, or suck water out of the P-traps, which also allows sewer gas in. Regular inspection for odors is the best way to monitor their health.
6. Is an AAV legal in all US states?
Most states adopt either the IPC or UPC, both of which allow AAVs. However, some local jurisdictions have stricter rules or may not permit them in certain applications (like new construction vs. remodels). Always verify with your local building department before starting work.
Conclusion
So, does an air admittance valve have to be plumb? Absolutely. Vertical installation is the cornerstone of a functioning AAV. It ensures the internal seal works correctly, prevents dangerous sewer gases from leaking into your home, and keeps you compliant with US plumbing codes.
By taking the extra minute to use a level during installation, you protect your home’s air quality and avoid expensive repairs down the road. Remember, plumbing is about precision, not just connection.
