If you’ve ever stared at your double kitchen sink wondering how to properly connect a garbage disposal and a dishwasher without causing a plumbing nightmare—you’re not alone. Many U.S. homeowners struggle with double sink plumbing with garbage disposal and dishwasher setups, especially during kitchen remodels or appliance upgrades. Done right, this configuration boosts efficiency and convenience. Done wrong? You’re looking at backups, foul odors, or even code violations. In this guide, we’ll walk you through everything you need to know—safely, legally, and effectively.
Why Double Sink Plumbing With Garbage Disposal and Dishwasher Is Tricky
Most double-basin sinks are designed so that only one side connects to the garbage disposal. The dishwasher then drains into the same disposal unit—not directly into the main drainpipe. This setup prevents cross-contamination and ensures proper drainage, but it requires precise plumbing.
According to the International Residential Code (IRC) and Uniform Plumbing Code (UPC), dishwashers must drain through an air gap or high-loop to prevent backflow of wastewater into your clean dishes. Ignoring this can lead to health hazards and failed inspections.
💡 Pro Tip: The National Kitchen & Bath Association (NKBA) reports that over 68% of kitchen renovations involve sink or appliance reconfiguration—yet nearly 1 in 3 DIY plumbing attempts result in call-backs to plumbers within 6 months.
How to Properly Plumb a Double Sink with Garbage Disposal and Dishwasher
Follow this step-by-step guide to ensure your system is efficient, code-compliant, and leak-free.
Step 1: Choose the Correct Sink Configuration
- Install the garbage disposal on the larger basin (typically the right side in U.S. kitchens).
- The smaller basin drains directly into the same P-trap via a T-fitting or dual-outlet tailpiece.
Step 2: Install the Garbage Disposal
- Mount the disposal under the chosen sink basin using the included flange and mounting assembly.
- Connect the dishwasher drain hose to the inlet port on the side of the disposal (usually labeled “DW”).
- Remove the knockout plug inside the disposal inlet—this is critical! (Use a screwdriver and hammer; wear eye protection.)
⚠️ Warning: Forgetting to remove the knockout plug is the #1 cause of dishwasher drainage failure in DIY installs.
Step 3: Create a High-Loop or Install an Air Gap
- High-loop method: Secure the dishwasher drain hose to the underside of the countertop, forming a loop at least 18 inches above the floor (or above the sink’s flood level). This prevents backflow.
- Air gap (required in some states like California and Texas): Install a small chrome fixture on the countertop that vents the dishwasher line. Connect the hose from the dishwasher to the air gap, then from the air gap to the disposal.
For more on plumbing codes, see the Uniform Plumbing Code overview on Wikipedia .

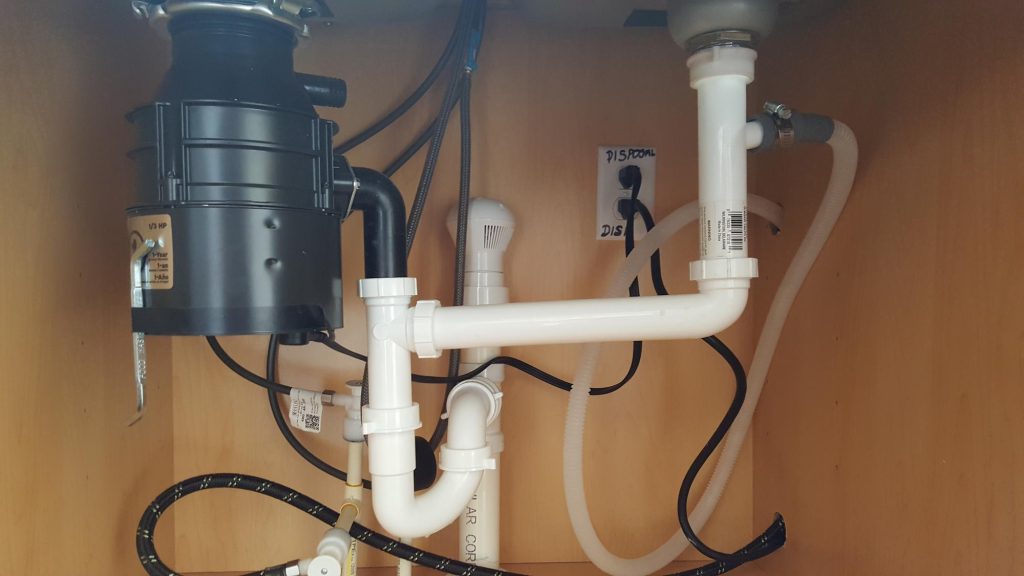

Step 4: Connect Drain Lines to a Single P-Trap
- Use a dual-outlet waste assembly or a T-branch tailpiece to merge both sink drains.
- Ensure the garbage disposal side connects directly to the P-trap.
- The non-disposal basin should drain into the same trap via a horizontal arm—never install two P-traps, as this causes siphoning and sewer gas leaks.
Step 5: Test for Leaks and Proper Drainage
- Run water in both basins.
- Turn on the garbage disposal.
- Start a dishwasher cycle.
- Check all connections for drips or slow drainage.
If water pools or gurgles, you likely have a venting issue or improper slope (drainpipes should slope ¼ inch per foot toward the main stack).
Common Mistakes to Avoid
| Two P-traps under one sink | Siphoning, sewer gas odor | Use a single P-trap with a T-fitting |
| Dishwasher hose connected directly to drainpipe (bypassing disposal) | Food debris clogs dishwasher | Always route through disposal or air gap |
| Knockout plug not removed | Dishwasher won’t drain | Remove plug before connecting hose |
| No high-loop or air gap | Contaminated water backflow | Install one per local code |
Pros and Cons of This Setup
✅ Advantages
- Efficiency: Food scraps go straight to disposal; dishes get cleaner.
- Space-saving: No need for separate drain lines.
- Code-compliant: When installed correctly, meets IRC/UPC standards.
❌ Challenges
- Installation complexity: Requires precise alignment and parts.
- Maintenance: Clogs can affect both sink and dishwasher.
- Local code variations: Some municipalities mandate air gaps.
Tools & Materials You’ll Need
- Garbage disposal unit
- Dishwasher drain hose (usually included with appliance)
- Dual-outlet sink tailpiece or T-fitting
- P-trap kit (1½-inch diameter)
- Plumber’s putty or silicone sealant
- Adjustable wrench, screwdrivers, bucket
- Air gap (if required by local code)
Total cost for parts (excluding appliances): $40–$90. Professional installation averages $200–$400, per HomeAdvisor 2023 data.
FAQ Section
Q1: Can I connect a dishwasher to a sink without a garbage disposal?
A: Yes—but you must use an air gap or high-loop and connect the dishwasher drain hose to the sink’s drain after the P-trap. However, without a disposal, food particles may clog the line over time. Most experts recommend using a disposal for better hygiene and flow.
Q2: Which side of the double sink should have the garbage disposal?
A: Conventionally, the larger basin (often on the right for right-handed users). This allows easier scraping of food waste and better access during use. But it’s ultimately your choice—just ensure proper drainage alignment.
Q3: Do I need an air gap for my dishwasher?
A: It depends on your local plumbing code. States like California, Washington, and Texas require air gaps. Elsewhere, a high-loop is often acceptable. Check with your city’s building department or refer to your dishwasher manual.
Q4: Why does my dishwasher smell after installing a new disposal?
A: Likely because the knockout plug wasn’t removed, trapping stagnant water. Or, the disposal hasn’t been run regularly—food debris is rotting inside. Run the disposal with cold water and a lemon or vinegar ice cube monthly to freshen it.
Q5: Can both sinks have garbage disposals?
A: Technically yes, but it’s rarely recommended. It doubles the cost, requires two separate drain lines (to avoid overloading the P-trap), and violates code in many areas. One disposal is sufficient for most households.
Q6: How often should I clean my double sink plumbing system?
A: Flush drains weekly with hot water and baking soda/vinegar. Run the disposal with cold water and citrus peels monthly. Inspect hose connections every 6 months for cracks or leaks.
Conclusion
Setting up double sink plumbing with garbage disposal and dishwasher doesn’t have to be overwhelming. With the right parts, a clear plan, and attention to local codes, you can enjoy a functional, odor-free, and efficient kitchen system for years. Whether you’re a DIYer or hiring a pro, understanding these fundamentals ensures you avoid costly mistakes and health risks.
