Drill & Plumb a 55-Gallon Tank: One Hole Guide

Setting up a reliable filtration system is the backbone of any successful aquarium, yet the prospect of modifying glass can be intimidating for many hobbyists. You want the clean aesthetics and superior filtration of a sump, but you are worried about cracking your tank or creating a messy multi-hole setup. Drilling plumbing a 55 gallon aquarium only one hole is not only possible; it is often the smartest, most efficient route for standard rectangular tanks.

This guide removes the guesswork. We will walk you through the exact tools, techniques, and plumbing configurations needed to achieve a professional-grade result. By using a single-hole “durso-style” or “bulkhead-only” overflow method, you minimize risk and maximize water flow efficiency. Let’s turn that standard 55-gallon tank into a powerhouse reef or freshwater system.

Why Choose a Single-Hole Overflow Design?

Before we pick up a drill, it is crucial to understand why this specific configuration is recommended for a 55-gallon tank. In the aquarium community, particularly among reef keepers, the “single-hole” method usually refers to using one large bulkhead for both intake and return, or utilizing a specific overflow box design that requires only one penetration in the glass.

The Efficiency Factor

A 55-gallon aquarium (typically 48″x13″x21″) has limited surface area compared to larger 125+ gallon tanks. Drilling multiple holes increases the structural weak points in the tempered or annealed glass. By limiting yourself to one hole, you maintain the structural integrity of the tank while still achieving high turnover rates.

According to general fluid dynamics principles applied in aquariums, a single 1.5-inch or 2-inch hole can handle upwards of 600–1,000 gallons per hour (GPH) depending on the head pressure. This is more than sufficient for a 55-gallon system, which typically requires a turnover rate of 10x–20x its volume (550–1,100 GPH).

Aesthetic and Space Benefits

• Cleaner Look: Fewer pipes mean less visual clutter in your cabinet or stand.
• Easier Maintenance: Cleaning one bulkhead and associated piping is faster than scrubbing multiple nooks and crannies.
• Cost-Effective: You save money on extra bulkheads, valves, and PVC fittings.

Tools and Materials Checklist

Success in drilling plumbing a 55 gallon aquarium only one hole relies heavily on preparation. Do not attempt this without the correct gear. Using improper tools is the number one cause of cracked tanks.

Essential Tools

1. Diamond Hole Saw Kit: Ensure it is specifically designed for glass/tile. A 1.5-inch or 2-inch size is standard for main overflows.
2. Variable Speed Drill: A corded drill is preferred for consistent torque, but a high-quality cordless works if fully charged.
3. Masking Tape: Painter’s tape to prevent the drill bit from slipping.
4. Water Source: A spray bottle or a helper with a cup of water.
5. Safety Gear: Safety glasses and cut-resistant gloves.

Plumbing Components

• Bulkhead Fitting: 1.5″ or 2″ PVC or ABS bulkhead (choose based on your pump capacity).
• Uniseal or Gasket: High-quality rubber gaskets are vital for a watertight seal.
• PVC Pipes and Elbows: For constructing the internal standpipe and external plumbing.
• Ball Valve: To control flow rate.
• Silicone Sealant: 100% aquarium-safe silicone (e.g., GE Silicone I or specialized aquarium brands).

Pro Tip: Always verify if your tank is made of annealed or tempered glass. You cannot drill tempered glass; it will shatter instantly. Annealed glass is required for drilling. Most standard 55-gallon tanks from major pet stores are annealed, but always check the manufacturer’s specifications. For more details on glass types, you can refer to this Wikipedia article on Glass.

Step-by-Step: Drilling the Perfect Hole

This is the most critical phase. Take your time. Rushing here leads to disaster.

Step 1: Marking the Spot

For a single-hole overflow, the placement is key. You want the hole low enough to allow for adequate water volume in the sump during a power outage, but high enough to leave room for substrate if you plan a deep sand bed (though bare bottom is recommended for sumps).

• Measure 1–2 inches from the bottom corner of the tank (back panel).
• Apply two layers of masking tape in an “X” pattern over the spot. This gives the drill bit traction.
• Mark the center of the “X” with a permanent marker.

Step 2: The Drilling Process

1. Secure the Tank: Place the tank on a flat, stable surface. If possible, have a helper hold it steady, or use clamps with wood blocks to protect the glass edges.
2. Start Slow: Set your drill to the lowest speed. Hold the drill at a 90-degree angle to the glass.
3. Create a Pilot Dimple: Gently press the diamond hole saw against the mark. Do not push hard. Let the diamond grit do the work.
4. Keep it Wet: Continuously spray water on the drilling site. The water cools the diamond bit and washes away glass dust. Never drill dry.
5. Breakthrough: As you feel the bit beginning to break through the other side, reduce pressure significantly. Pushing too hard at the end will chip the exit side of the glass.

Step 3: Smoothing the Edges

Once the hole is drilled, remove the tape. Use a piece of wet sandpaper (200–400 grit) to gently smooth the inner and outer edges of the hole. This prevents stress fractures and ensures the bulkhead gasket sits flush.

Plumbing Configuration: The Single-Hole Setup

Now that the hole is drilled, we move to the plumbing. Since we are using only one hole, we will utilize a “Standpipe Overflow” design inside the tank, which drains into a sump, while a separate return line (if using a second hole) or a hang-on-back style return is used. However, for a true single-hole drill job, the most common efficient setup is the Durso Standpipe modified for a single bulkhead, or simply using that single hole as the drain and running the return line over the back wall of the tank (no drill needed for return).

Note: If you strictly mean one hole total for the entire system, you must use a Hang-On-Back (HOB) return pump or a submersible pump in the sump with a hose running over the tank edge. Drilling is only for the overflow drain.

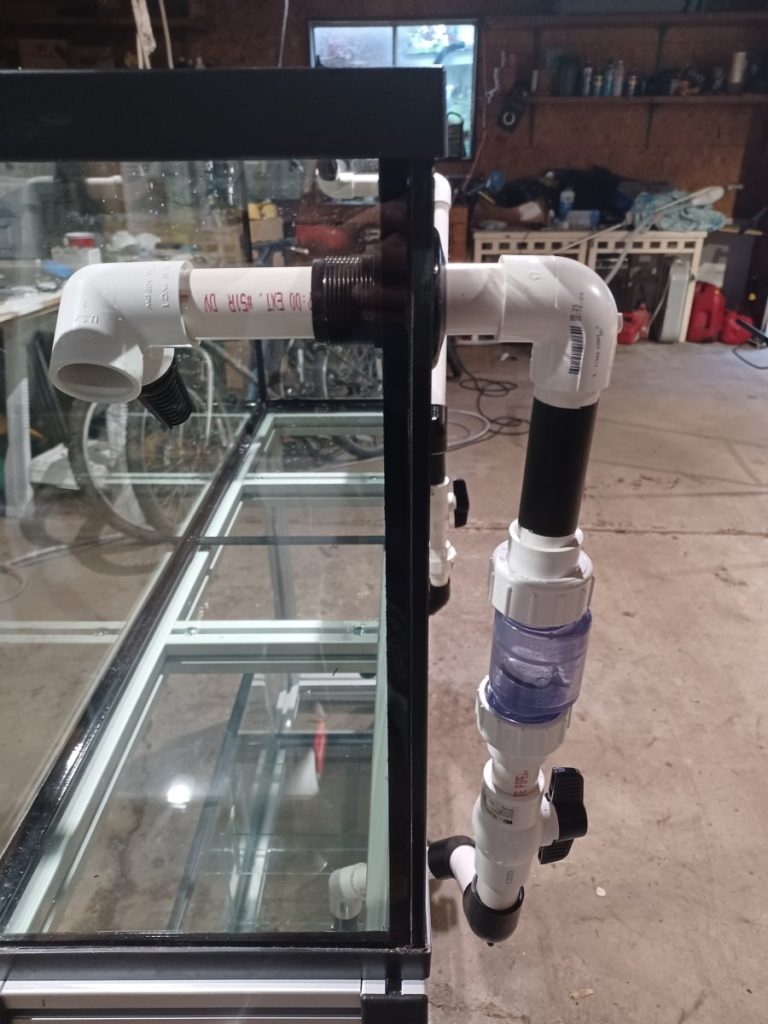

Installing the Bulkhead

1. Dry Fit: Insert the bulkhead into the hole from the inside of the tank. Place the rubber gasket on the outside. Screw on the locking nut.
2. Tighten Correctly: Hand-tighten first. Then, use pliers to give it a quarter-turn. Do not overtighten. Overtightening cracks the glass or distorts the gasket, causing leaks.
3. Seal (Optional but Recommended): Apply a thin bead of aquarium-safe silicone around the bulkhead flange on the inside of the tank. This acts as a secondary safety barrier. Let it cure for 24 hours.

Building the Internal Standpipe

To silence the water flow and regulate the water level in the display tank:

1. Attach a 90-degree elbow to the inside of the bulkhead.
2. Connect a vertical PVC pipe (standpipe) that reaches your desired water level (usually 1 inch from the top).
3. Cap the top of the standpipe with a drilled cap or use a Durso-style air intake tube to break the siphon noise.

Troubleshooting Common Issues

Even with careful planning, issues can arise. Here is how to handle them.

FAQ Section

1. Can I drill a 55-gallon tank if I don’t know the glass type?

It is risky. Look for a stamp in the corner of the glass. If it says “Tempered,” do not drill. If there is no stamp, it is likely annealed, but proceed with extreme caution. When in doubt, consult the manufacturer or use a non-drilled overflow box.

2. What size hole is best for a 55-gallon sump?

A 1.5-inch hole is the sweet spot. It allows for high flow (up to 600+ GPH) which is plenty for a 55-gallon tank, and it fits standard PVC fittings easily. A 2-inch hole is also fine if you plan to upgrade to a larger tank in the future.

3. Do I need to seal the bulkhead with silicone?

While a properly installed rubber gasket should be watertight, adding a bead of aquarium-safe silicone is a best practice. It provides peace of mind and protects against minor gasket shifts over time. Always let silicone cure for at least 24–48 hours before adding water.

4. How do I stop the overflow from making a gurgling noise?

The noise is caused by air being pulled down the drain pipe. To fix this, you need to break the siphon. Installing a Durso Standpipe is the most effective solution. It allows air to enter the pipe at the top, silencing the flow.

5. Can I use this single-hole method for a freshwater planted tank?

Absolutely. While sumps are more common in reef tanks, a drilled 55-gallon freshwater tank with a sump provides excellent mechanical and biological filtration. It keeps equipment out of the display tank, showcasing your plants and fish better.

Conclusion

Mastering the art of drilling plumbing a 55 gallon aquarium only one hole transforms a standard off-the-shelf tank into a custom, high-performance aquatic system. By following this guide, you have minimized the risks associated with glass modification and optimized your filtration for both efficiency and aesthetics.

Remember, patience is your most valuable tool. Measure twice, drill slowly, and seal carefully. Your future self—and your fish—will thank you for the stable, crystal-clear water environment you’ve created.
