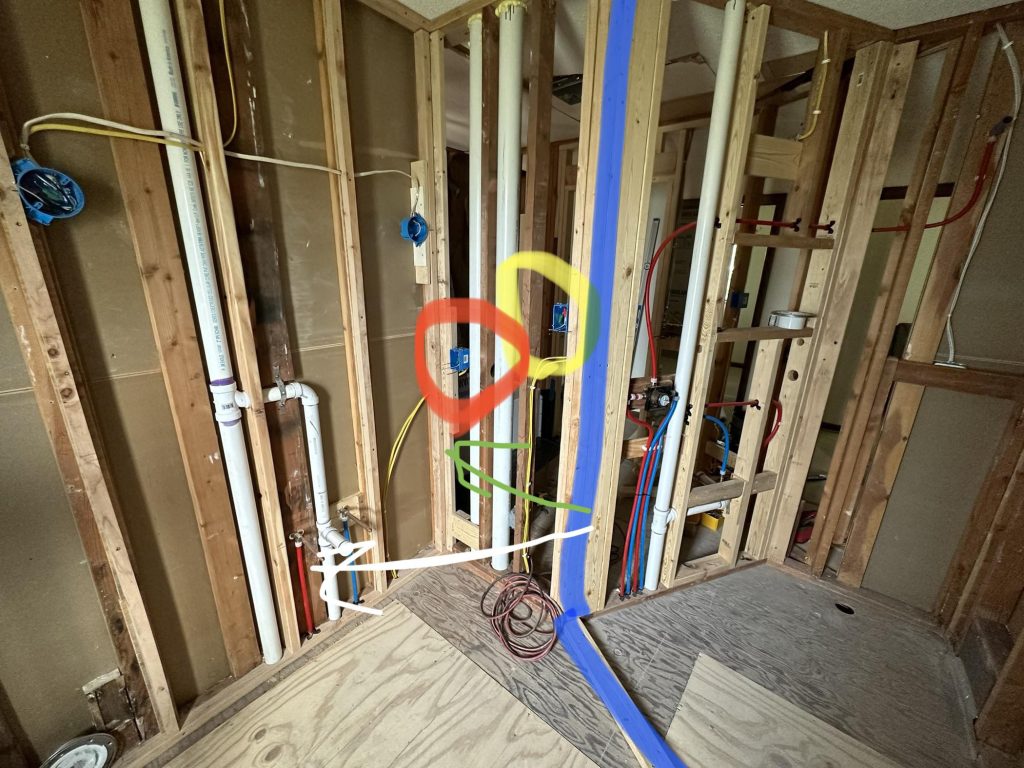

Finding an electrical outlet in the same bay as plumbing behind shower walls can be a startling discovery during a home inspection or renovation project. It raises immediate concerns about water intrusion, electrical shocks, and potential code violations that could endanger your family. You are not alone in worrying about this setup; many older homes feature framing layouts where utilities share space without adequate separation.
In this guide, we will demystify the safety implications of this configuration. We will explore what the National Electrical Code (NEC) says, how moisture travels through wall cavities, and the practical steps you must take to ensure your bathroom remains a safe sanctuary. Whether you are a DIY enthusiast or a homeowner planning a remodel, understanding these risks is crucial for protecting your property and your peace of mind.
Is It Legal to Have Wiring and Plumbing in the Same Stud Bay?
The short answer is: It depends on the separation and protection methods used.
While the National Electrical Code (NEC) does not explicitly ban electrical components and plumbing from existing within the same general wall cavity, it imposes strict rules on how they interact. The primary concern is not just physical proximity, but the risk of water contacting live electrical parts.
The NEC Stance on Wet Locations
According to the NEC, bathrooms are classified as “damp” or “wet” locations depending on their proximity to water sources. Article 406.9 specifically addresses receptacles in damp or wet locations. If an outlet is installed in a wall that shares a bay with shower plumbing, it is considered to be in a high-risk zone for moisture migration.
Key code considerations include:
- GFCI Protection: All 125-volt, 15- and 20-ampere receptacles installed in bathrooms must have Ground Fault Circuit Interrupter (GFCI) protection. This is non-negotiable.
- Box Integrity: The electrical box must be listed for use in wet locations if there is any chance of water spray or accumulation.
- Physical Barriers: While wires and pipes can share a bay, they should not be in direct contact. Sharp edges on metal pipes can abrade wire insulation over time due to vibration or thermal expansion.
Expert Insight: “The code allows coexistence, but best practice dictates separation. If a pipe leaks, the water follows the path of least resistance. If that path leads to an electrical box, you have a hazardous situation.” — Senior Residential Electrician, 15+ Years Experience.
For more detailed definitions on electrical safety standards, you can refer to the general principles outlined by Wikipedia’s article on Ground Fault Circuit Interrupters, which explains the mechanism behind these life-saving devices.
What Are the Risks of Moisture Migration in Shared Wall Cavities?
Even if your installation is technically “code-compliant” regarding distance, the physics of moisture movement poses a significant threat. An electrical outlet in the same bay as plumbing behind shower creates a perfect storm for hidden damage.
How Water Moves Behind Walls
Water is persistent. It does not need a massive burst pipe to cause damage. Minor condensation on cold water pipes, slow leaks from shower valves, or even humidity from daily showers can accumulate in the stud bay.
- Condensation: Cold water supply lines running through warm wall cavities can sweat. This droplet accumulation can drip directly onto electrical boxes or wiring below.
- Capillary Action: Drywall and wooden studs absorb moisture. If the plumbing leak is small, the water may wick sideways through the wood framing toward the electrical box.
- Vapor Pressure: High humidity in the shower pushes vapor through microscopic gaps in tile grout or shower liners. This vapor can condense inside the wall cavity on cooler surfaces, such as metal electrical boxes.
The Consequences of Ignoring Moisture
- Corrosion: Moisture causes rust on metal boxes and screws, compromising the structural integrity of the outlet mount.
- Short Circuits: Water bridging the hot and neutral terminals can cause arcing, leading to fires.
- Mold Growth: Damp insulation and wood promote mold, which can spread to other parts of the house and affect indoor air quality.
| Risk Factor | Probability | Severity | Mitigation Strategy |
|---|---|---|---|
| Pipe Condensation | High | Medium | Insulate all cold water pipes. |
| Slow Valve Leak | Medium | High | Install leak detectors; regular inspections. |
| Direct Spray Penetration | Low | Critical | Ensure proper waterproofing membrane behind tiles. |
| Wire Abrasion | Low | High | Use plastic grommets where wires pass through studs. |
How to Safely Install an Outlet Near Shower Plumbing
If you are renovating or building new, you have the opportunity to get this right. If you are dealing with an existing setup, you need to verify its safety. Here is a step-by-step approach to managing an electrical outlet in the same bay as plumbing behind shower.
Step 1: Assess the Current Setup
Before touching any wires, turn off the power at the breaker panel. Remove the outlet cover plate and gently pull out the receptacle. Look for:
- Signs of water staining or rust on the box.
- Damp insulation.
- Wires touching metal pipes.
Step 2: Implement Physical Separation
If possible, reroute either the plumbing or the electrical line. If rerouting is impossible:
- Install a Barrier: Place a rigid plastic or metal shield between the pipe and the electrical box. This prevents direct contact and deflects minor drips.
- Use Weather-Resistant Boxes: Replace standard plastic boxes with “in-use” weather-resistant covers if the outlet is accessible from the shower area (though outlets should generally not be inside the shower stall).
Step 3: Insulate and Seal
- Pipe Insulation: Wrap all cold water pipes in closed-cell foam insulation. This prevents condensation from forming on the pipe surface.
- Air Sealing: Use caulk or expanding foam (non-expanding for delicate areas) to seal gaps around the plumbing penetrations in the top and bottom plates. This stops humid air from entering the wall cavity from the bathroom side.
Step 4: Upgrade to GFCI and AFCI
Ensure the circuit is protected by both:
- GFCI (Ground Fault Circuit Interrupter): Trips if current leaks to ground (water).
- AFCI (Arc Fault Circuit Interrupter): Trips if it detects dangerous arcing (frayed wires).
Most modern breakers combine both functions (Dual-Function Breakers). This provides the highest level of safety for mixed-utility bays.
Can I Use a Standard Outlet Cover in This Scenario?
No. If there is any possibility of moisture reaching the outlet, a standard flat cover is insufficient.
You must use a Weather-Resistant (WR) Receptacle paired with an In-Use Cover. These covers have a bubble or hood design that allows plugs to remain connected while keeping rain or spray out. While typically required for outdoor outlets, using them in a bathroom with known plumbing proximity adds a critical layer of defense.
Additionally, ensure the outlet itself is marked “WR” on the face. Standard outlets can degrade faster in humid environments, causing the plastic to become brittle and crack.
FAQ Section
1. How far must an electrical outlet be from a shower?
The NEC requires that no outlet be installed within the shower or bathtub space. Generally, outlets should be at least 3 feet (1 meter) away from the edge of the bathtub or shower stall to avoid direct spray. However, if the outlet is on a wall shared with plumbing, distance from the pipe is less regulated than protection from moisture.
2. What happens if water gets into the electrical box?
If water enters the box, it can cause a short circuit, tripping the breaker. In worse scenarios, it can cause electrocution hazards if the GFCI fails or is absent. Long-term exposure leads to corrosion, which increases resistance and heat, potentially starting an electrical fire.
3. Do I need a permit to move an outlet away from plumbing?
Yes, in most US jurisdictions, moving electrical outlets or plumbing lines requires a building permit and subsequent inspection. This ensures the work meets local codes and safety standards. Always check with your local building department before starting work.
4. Can I insulate the wall to prevent moisture issues?
Insulation helps with temperature control but can trap moisture if not done correctly. Use moisture-resistant insulation (like closed-cell spray foam) in bathrooms. Avoid fiberglass batts in areas prone to leaks, as they absorb water and lose their R-value, becoming a sponge for mold.
5. Is it safe to have an outlet on the wall opposite the shower?
Yes, generally. The wall opposite the shower is less likely to receive direct spray. However, if that wall shares the same stud bay with plumbing running vertically to the shower, the same moisture migration risks apply. Proper vapor barriers and GFCI protection are still essential.
6. How often should I test my bathroom GFCI outlets?
You should test your GFCI outlets monthly. Press the “Test” button to ensure the outlet trips and cuts power, then press “Reset” to restore it. If it fails to trip, replace the outlet immediately.
Conclusion
Discovering an electrical outlet in the same bay as plumbing behind shower is a common scenario in many homes, but it should never be taken lightly. While not inherently illegal, this configuration demands rigorous attention to detail regarding moisture management and electrical protection.
By ensuring your outlets are GFCI-protected, using weather-resistant components, and insulating plumbing to prevent condensation, you can mitigate the risks effectively. Remember, electricity and water are a dangerous mix, but with the right safeguards, your bathroom can remain both functional and safe.
Stay safe and informed! If you found this guide helpful, please share it on social media to help other homeowners navigate their renovation projects with confidence. Don’t hesitate to consult a licensed electrician if you are unsure about your specific setup.
