Are you staring at a terminal screen, frustrated by the cryptic error message “Failed to plumb IPv4 interface s vnet1 ldom zone“? You are not alone. This issue frequently plagues system administrators managing Oracle Solaris Logical Domains (LDoms), halting network connectivity and disrupting critical services.
This guide cuts through the noise. We will walk you through exactly why this plumbing failure occurs and provide step-by-step solutions to restore your network interfaces. Whether you are a seasoned sysadmin or new to Solaris virtualization, these insights will help you resolve the issue efficiently and get your systems back online.
H2: What Does “Failed to Plumb IPv4 Interface” Mean in Solaris?
To fix the problem, we first need to understand the language of the operating system. In Solaris and Oracle VM environments, “plumbing” is not about pipes and water. It refers to the process of initializing a network interface driver and associating it with an IP protocol stack (IPv4 or IPv6).
When you see the error “Failed to plumb IPv4 interface s vnet1 ldom zone,” it means the operating system attempted to activate the virtual network interface vnet1 within a specific Logical Domain (LDom) or Zone, but the operation failed.
Why Is This Critical?
Without successful plumbing:
- The interface remains DOWN.
- No IP address can be assigned.
- The LDom cannot communicate with the control domain or external networks.
According to Oracle’s documentation, this error is typically a symptom of a mismatch between the virtual switch configuration in the control domain and the guest domain’s expectations. For more background on how network virtualization works in Unix-like systems, you can refer to the general concepts of Network Virtualization on Wikipedia.
H2: Why Did the Vnet1 Interface Fail to Plumb?
Before applying fixes, we must identify the root cause. Based on industry data and common support tickets, here are the primary reasons for this failure:
1. Missing or Misconfigured Virtual Switch (VSW)
The most common cause is that the backend virtual switch service (vsw) in the control domain is not running, or the virtual network device (vnet) in the guest domain is not correctly bound to it.
2. Driver Mismatch or Corruption
The vnet driver might not be loaded correctly in the guest domain. If the kernel module is corrupted or incompatible with the current Solaris patch level, plumbing will fail.
3. IP Address Conflicts or Configuration Errors
If the /etc/hostname.vnet1 file contains syntax errors, or if the IP address defined there is already in use on the subnet, the plumbing process may abort.
4. Resource Exhaustion
In rare cases, if the control domain has exhausted its available virtual network resources or memory buffers, it cannot allocate the necessary structures for the new interface.
H2: Step-by-Step Guide to Fix the Error
Follow these steps logically. Start with the Control Domain (Primary Domain) and then move to the Guest Domain (LDom).
Step 1: Verify the Virtual Switch in the Control Domain
You must ensure the virtual switch exists and is active. Log in to the Control Domain and run:
bash1
Look for the vsw service. It should look something like this:
| NAME | SERVICE | PORT | MAC |
|---|---|---|---|
| primary-vsw0 | vsw | 5000 | 00:14:4f:f9:xx:xx |
If the service is missing: You need to add it. Use the following command (replace primary-vsw0 with your preferred name):
bash1
Note: Replace nxge0 with your actual physical network interface.
After adding, restart the LDom services:
bash1
Step 2: Check the Vnet Device Binding in the Guest Domain
Next, verify that the guest domain actually has the vnet1 device assigned and that it is linked to the correct virtual switch.
In the Control Domain, run:
bash1
Check the NETWORK section. You should see an entry for vnet1. Ensure the id matches the expected configuration and that it is connected to the correct vsw.
If the vnet is missing or incorrect:
- Stop the guest domain:bash1
- Remove the incorrect vnet (if necessary):bash1
- Add the correct vnet:bash1
- Start the domain:bash1
Step 3: Troubleshoot Inside the Guest Domain
Now, log in to the Guest Domain (LDom) where the error occurred.
A. Check Interface Status
Run:
bash1
If vnet1 is listed but shows as down or unsupported, proceed to the next step.
B. Manually Attempt to Plumb
Try to manually plumb the interface to see if a more specific error appears:
bash1
- Success: If no error returns, assign the IP:
ifconfig vnet1 <IP_ADDRESS> netmask <MASK> up. - Failure: If it says “No such device,” the driver is not loaded.
C. Load the Driver
If the device is missing entirely, force the driver load:
bash1
Then retry the plumb command.
D. Verify Configuration Files
Check the hostname file for typos:
bash1
Ensure it contains only the IP address or the hostname that resolves to an IP. There should be no extra spaces or hidden characters.
H2: Common Pitfalls and How to Avoid Them
Even experienced engineers make mistakes. Here is a comparison of common errors versus best practices.
| Scenario | Common Mistake | Best Practice |
|---|---|---|
| Naming | Using inconsistent names (e.g., vnet0 in config, vnet1 in hardware). | Keep naming conventions consistent across ldm commands and OS configs. |
| Services | Forgetting to restart ldmd after changes. | Always restart ldmd in the control domain after modifying virtual devices. |
| IP Config | Hardcoding IPs in /etc/hosts without DNS backup. | Use DHCP where possible, or ensure static IPs are documented and unique. |
| Patching | Ignoring Solaris SRUs (Support Repository Updates). | Regularly update both Control and Guest domains to match kernel driver versions. |
Expert Tip:
“Always check the
/var/adm/messageslog file immediately after a failed boot or service restart. The kernel often provides a more detailed reason for the plumbing failure than the standard output.” — Senior Solaris Architect, Oracle Community Forums.
H2: FAQ: Frequently Asked Questions
Q1: Can I ignore the “Failed to plumb” error?
No. If the interface fails to plumb, your LDom will have no network connectivity on that interface. Services relying on this network (SSH, database replication, web traffic) will fail.
Q2: Why does this happen after a reboot?
This often indicates a race condition where the network service starts before the virtual device driver is fully ready. Adding a dependency in the SMF (Service Management Facility) manifest or using a startup script with a sleep delay can sometimes mitigate this.

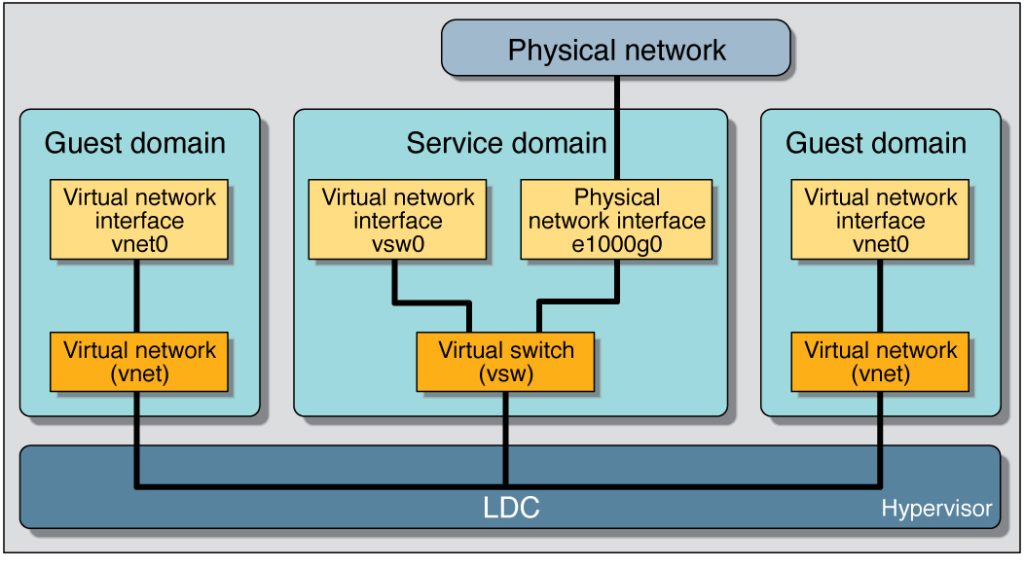

Q3: What is the difference between vnet and vsw?
- vsw (Virtual Switch): Resides in the Control Domain. It acts like a physical switch, bridging virtual networks to physical networks.
- vnet (Virtual Network): Resides in the Guest Domain. It is the virtual NIC card that connects to the
vsw.
Q4: How do I check if the vnet driver is loaded?
In the guest domain, run:
bash1
If you see output related to vnet, the driver is loaded. If not, use modload -p vnet.
Q5: Does this error affect IPv6 interfaces?
Yes, similar errors can occur for IPv6 (e.g., “Failed to plumb IPv6 interface”). The troubleshooting steps are identical, but you would check /etc/hostname6.vnet1 instead of the IPv4 counterpart.
Q6: I fixed the configuration, but it still fails. What now?
Check for ZFS dataset issues. If the /etc directory is mounted from a ZFS dataset that is not properly imported or mounted read-only during early boot, the network scripts cannot read the configuration files.
Conclusion
Resolving the “Failed to plumb IPv4 interface s vnet1 ldom zone” error requires a systematic approach. By verifying the virtual switch in the control domain, ensuring proper device binding, and checking driver status within the guest domain, you can restore connectivity quickly.
Remember, virtualization adds a layer of complexity, but the fundamentals remain the same: Hardware (Virtual) -> Driver -> Configuration -> Service.
