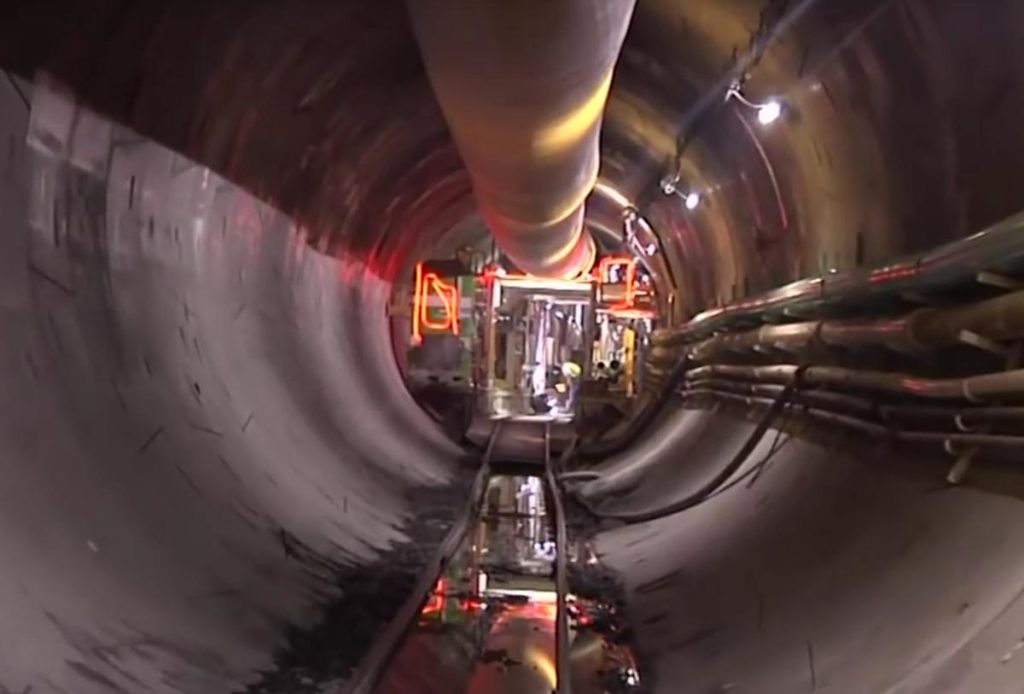

Fixing NYC’s 55-Story Deep Plumbing Leak

Imagine a crisis happening not just below your feet, but deeper than the foundation of most skyscrapers. For New York City residents and building managers, the thought of fixing a massive NYC plumbing leak 55 stories underground sounds like science fiction, yet it represents a very real, high-stakes engineering challenge. When water infrastructure fails at such extreme depths, the pressure is immense, and the margin for error is non-existent.

This guide breaks down exactly how modern engineering tackles these subterranean emergencies. We will explore the specialized technology, the logistical nightmares, and the step-by-step processes used to seal leaks in one of the world’s most complex urban environments. Whether you are a property manager, an engineering student, or a curious New Yorker, understanding this process reveals the hidden resilience of our city.

The Reality of Depth: What Does “55 Stories Underground” Mean?

Before we can discuss the fix, we must understand the environment. In construction terms, “55 stories underground” is a hyperbolic way to describe extreme depth, likely referring to deep-bedrock tunneling or the deepest foundations of super-tall skyscrapers like Central Park Tower or 432 Park Avenue. However, for the sake of this technical analysis, we are addressing leaks occurring at depths exceeding 500 to 600 feet.

At this depth, two factors dominate the repair strategy:

1. Hydrostatic Pressure: The weight of the earth and the water table creates crushing pressure. A small leak can quickly become a torrent.
2. Accessibility: You cannot simply send a plumber down with a wrench. Access requires industrial elevators, shafts, or tunnel boring machines (TBMs).

According to geological data, the bedrock beneath Manhattan (Manhattan Schist) is incredibly hard, which protects foundations but makes retrofitting plumbing lines exceptionally difficult. For more context on Manhattan’s geology, you can refer to the detailed entries on Manhattan Schist on Wikipedia.

Why Do Deep Underground Leaks Happen in NYC?

Understanding the cause is the first step in prevention and repair. Leaks at this depth are rarely due to simple wear and tear; they are usually systemic failures.

• Ground Settlement: NYC is constantly shifting. As new super-tall buildings are constructed, the soil compacts, putting stress on existing older pipes that were laid decades ago.
• Corrosion from Salinity: Proximity to the Hudson and East Rivers means groundwater can be brackish. Saltwater accelerates corrosion in metal pipes, even those coated for protection.
• Vibration Fatigue: The constant vibration from subway lines and heavy traffic above can loosen joints and create micro-fractures in rigid piping systems over time.

Step-by-Step: How Engineers Fix the Unfixable

Fixing a leak at this depth is not a DIY job. It is a military-grade operation involving hydrologists, structural engineers, and specialized robotics. Here is the standard protocol for fixing a massive NYC plumbing leak 55 stories underground.

1. Detection and Mapping (The Diagnostic Phase)

You cannot fix what you cannot see. Before any digging begins, teams use advanced sonar and ground-penetrating radar (GPR).

• Acoustic Sensors: These listen for the specific frequency of escaping water.
• Thermal Imaging: Detects temperature differences caused by leaking water moving through cooler soil.
• Robotics: Small, waterproof drones are sent into accessible shafts to visually confirm the breach location.

2. Depressurization and Diversion

Once the leak is located, the immediate goal is to stop the flow.

• Valve Isolation: Engineers identify the nearest upstream and downstream valves. In deep systems, these are often automated butterfly valves.
• Pumping Out: Industrial-grade pumps are deployed to lower the water level in the affected shaft or tunnel, creating a dry workspace. This can take anywhere from 12 to 48 hours depending on the volume of the leak.

3. Access Creation

Getting humans and materials to 55 stories down is a logistical hurdle.

• Service Elevators: If available, freight elevators are used.
• Shaft Scaffolding: If no elevator exists, temporary scaffolding is rigged down the service shaft. Safety protocols here are stricter than OSHA standards due to the confined space and depth.

4. The Repair Execution

There are two primary methods used, depending on the pipe material and damage severity.

Method A: Cured-In-Place Pipe (CIPP) Lining This is the preferred method for minimal disruption.

1. A flexible tube coated with resin is inserted into the damaged pipe.
2. It is inflated against the inner walls of the old pipe.
3. Hot water or UV light cures the resin, creating a “pipe within a pipe.”
4. Benefit: No excavation required.

Method B: Clamping and Welding (For Steel/Iron Pipes) If the pipe is structurally compromised:

1. Workers install a stainless steel split-sleeve clamp around the leak.
2. High-pressure epoxy is injected behind the clamp to seal gaps.
3. For larger bursts, sections of the pipe are cut out and replaced with welded segments.

5. Testing and Recommissioning

After the repair, the system is pressurized slowly.

• Pressure Test: The line is held at 1.5 times its normal operating pressure for 24 hours.
• Leak Detection Scan: Acoustic sensors are used again to ensure zero leakage.

Comparison: Traditional Repair vs. Trenchless Technology

When dealing with deep infrastructure, choosing the right method is critical. Below is a comparison of the two main approaches.

For a leak 55 stories underground, Trenchless Technology is almost always the winner due to the impossibility of large-scale excavation at that depth.

The Cost of Depth: Financial Implications

Why does this cost so much? The expense isn’t just in the materials; it’s in the logistics.

• Labor Rates: Hazardous duty pay for workers operating in confined, deep spaces.
• Equipment Rental: Specialized pumps, robots, and lighting systems.
• Insurance: Liability insurance for deep-underground work in a dense urban area is astronomical.

A minor leak repair at street level might cost $5,000. A similar repair 500 feet underground can easily exceed $250,000 to $500,000 due to the complexity and risk involved.

FAQ: Common Questions About Deep Underground Plumbing

Q1: Is it safe to live in a building with a deep underground leak? Generally, yes. These leaks occur in utility tunnels or deep foundations, far removed from living spaces. However, if left untreated, they can compromise structural integrity over time. Immediate repair is essential for long-term safety.

Q2: How long does it take to fix a leak at this depth? Simple repairs using trenchless technology can take 3–5 days. Complex structural repairs involving shaft access and welding can take 2–4 weeks.

Q3: Can I detect a deep underground leak myself? No. Deep leaks do not show surface signs until significant damage has occurred. Building managers rely on professional monitoring systems and annual inspections by licensed engineers.

Q4: Who is responsible for these repairs? In NYC, responsibility depends on the location. If the pipe is within the building’s foundation, the property owner is liable. If it connects to the city main under the sidewalk, the Department of Environmental Protection (DEP) may be involved.

Q5: Does climate change affect these leaks? Yes. Rising sea levels and increased rainfall raise the water table, increasing hydrostatic pressure on underground pipes and accelerating corrosion rates.

Q6: What prevents future leaks after repair? Regular maintenance using smart sensors (IoT devices) that monitor pressure and flow in real-time allows engineers to catch issues before they become massive leaks.

Conclusion

Fixing a massive NYC plumbing leak 55 stories underground is a testament to human ingenuity and engineering precision. It combines advanced robotics, material science, and rigorous safety protocols to solve problems that are literally out of sight. For building owners and city planners, the key takeaway is the importance of proactive maintenance and investing in modern, trenchless repair technologies.

While the costs are high, the alternative—structural failure or massive water damage—is far worse. By understanding the complexity of these repairs, we gain a deeper appreciation for the invisible systems that keep our cities running.
