FL Plumbing Code: Air Gap Height Under Sink

Are you renovating your kitchen in Miami, Orlando, or Tampa and worried about passing your final plumbing inspection? One of the most common reasons for failure is improper dishwasher drainage, specifically regarding the FL plumbing code height for air gap under sink. Getting this wrong can lead to backflow contamination and failed inspections. In this guide, we’ll break down exactly what the Florida Building Code requires so you can install your system correctly the first time.

Understanding the Florida Plumbing Code Requirements

When it comes to plumbing in the Sunshine State, the rules are strict for a good reason: protecting public health. The Florida Building Code (FBC), which is largely based on the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC) depending on the specific edition adopted by your county, has clear mandates for backflow prevention.

What Is an Air Gap and Why Is It Mandatory?

An air gap is the simplest, most effective form of backflow prevention. It is a physical, vertical separation between the end of a water supply outlet (like your dishwasher drain hose) and the flood-level rim of the receiving vessel (your sink or disposal).

Why does Florida care so much? Without an air gap, dirty sink water could siphon back into your dishwasher if there is a sudden drop in pressure or a clog in your main drain line. This creates a serious health hazard. According to general plumbing standards referenced in Florida, an air gap prevents “cross-connection” between potable water systems and non-potable waste.

For more technical definitions on backflow prevention mechanisms, you can refer to the general principles outlined on Wikipedia’s Backflow Prevention page.

The Specific Height Requirement in Florida

So, what is the magic number? While local municipalities in Florida (such as Miami-Dade or Broward County) may have slight amendments, the general rule adhered to across the state follows the standard UPC/IPC guidelines adopted by the FBC.

The Rule: The air gap device must be installed above the flood-level rim of the sink.

However, when homeowners ask about the “height under the sink,” they are often confused about two different measurements:

1. The height of the air gap device itself (mounted on the countertop/deck).
2. The height of the drain loop (if an air gap device is not used, though this is rarely accepted in Florida for dishwashers).

Scenario A: Using a Dedicated Air Gap Device (Recommended & Often Required)

In many Florida jurisdictions, a physical air gap device mounted on the sink deck or countertop is mandatory for dishwasher installations.

• Installation Height: The device sits on the counter. There is no specific “under-sink” height requirement for the device itself, other than it must be accessible.
• Under-Sink Piping: The hose from the dishwasher goes to the air gap inlet. The hose from the air gap outlet goes to the disposal or drain tailpiece. These hoses under the sink should be kept as short and direct as possible to prevent sagging, which can trap water.

Scenario B: The “High Loop” Method (Often Prohibited in FL)

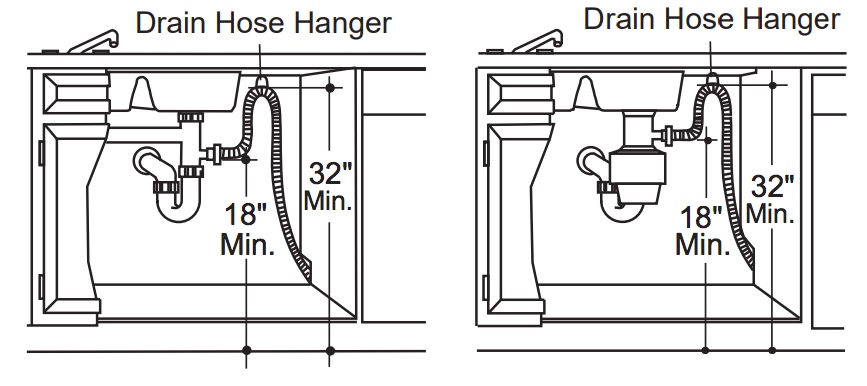

Some older codes or other states allow a “high loop” instead of a physical air gap device. A high loop involves strapping the dishwasher drain hose to the highest point under the sink cabinet before connecting it to the disposal.

• Height Requirement: The loop must be secured as high as possible, typically within 32 inches of the floor, or at least 8–10 inches above the trap weir.
• Florida Stance: Most modern Florida plumbing inspectors reject the high-loop method for new installations. They require a physical air gap device. Always check with your local county building department.

Step-by-Step Installation Guide for Florida Compliance

To ensure you meet the FL plumbing code height for air gap under sink standards and pass inspection, follow these precise steps. We assume you are installing a standard countertop air gap device, which is the safest bet for compliance.

Tools You Will Need

• Drill with a 1-1/4 inch hole saw (check your air gap manual for exact size)
• Screwdriver
• Hose clamps (stainless steel preferred)
• Teflon tape
• Bucket and towels

Step 1: Mounting the Air Gap Device

1. Locate a pre-drilled hole on your sink deck or countertop. If none exists, drill a hole near the faucet base.
2. Insert the air gap body through the hole from the top.
3. Under the sink, screw the mounting nut onto the threaded shank of the air gap. Tighten it firmly by hand, then give it a quarter turn with pliers. Do not overtighten, as this can crack the plastic.

Step 2: Connecting the Dishwasher Hose (Inlet)

1. Take the drain hose coming from your dishwasher.
2. Connect it to the smaller nipple on the side of the air gap device (usually labeled “Dishwasher” or has a smaller diameter).
3. Secure it with a hose clamp. Ensure the hose does not kink under the sink.

Step 3: Connecting to the Disposal or Drain (Outlet)

1. Take a separate piece of drain hose (usually 5/8” or 7/8” ID, matching the air gap outlet).
2. Connect one end to the larger nipple on the air gap (labeled “Disposal” or “Drain”).
3. Connect the other end to your garbage disposal’s dishwasher inlet port or your sink’s tailpiece.
4. Crucial Step: If connecting to a garbage disposal, ensure you have knocked out the metal plug inside the disposal inlet. If you don’t, your dishwasher won’t drain, and you’ll think you have a code violation when it’s just a blockage.

Step 4: Checking the “Under Sink” Clearance

While the code focuses on the deck-mounted device, the under-sink arrangement matters for functionality.

• Ensure the hose from the air gap to the disposal slopes downward. It should never go up after leaving the air gap.
• Keep the hoses organized and away from moving parts or sharp edges.

Common Mistakes That Fail Inspection in Florida

Even with the right hardware, installation errors can cause failures. Here are the most frequent issues seen by Florida plumbing inspectors:

Why Local Amendments Matter in Florida

Florida is a “home rule” state, meaning local jurisdictions can adopt stricter codes than the state baseline.

• Miami-Dade County: Known for very strict enforcement. They often require specific listed devices and may have additional requirements for backflow prevention on the main water line, which indirectly affects how inspectors view under-sink setups.
• Broward County: Generally follows the Florida Building Code closely but may have specific inspector preferences for how the air gap is secured.
• Rural Counties: May be more lenient, but relying on leniency is risky if you plan to sell your home later.

Pro Tip: Before starting your project, call your local building department’s plumbing division. Ask specifically: “Is a physical air gap device required for residential dishwasher installations, or is a high loop acceptable?” Write down the name of the person you speak with.

FAQ Section

1. Can I hide the air gap under my sink in Florida?

No. If you are using a physical air gap device, it must be mounted on the countertop or sink deck to be visible and accessible for maintenance. Hiding it under the sink defeats the purpose of the visual inspection and makes cleaning difficult. If you hate the look, some modern faucets have built-in air gaps, or you can buy low-profile air gaps that blend with your faucet.

2. What happens if I don’t install an air gap in Florida?

If you skip the air gap where required, you will likely fail your final plumbing inspection. This means you cannot get a Certificate of Occupancy (for new builds) or close on a renovation permit. Additionally, if backflow occurs and contaminates your water, your homeowner’s insurance may deny claims related to water damage or illness.

3. How high should the dishwasher drain hose be under the sink if I use a high loop?

If your local jurisdiction allows a high loop (rare in new FL construction), the loop must be secured to the underside of the countertop or the highest point possible in the cabinet, typically at least 8 to 10 inches above the trap weir (the bottom of the P-trap). However, again, a physical air gap is the superior and safer choice.

4. Does the air gap need to be cleaned?

Yes. Over time, food particles and gunk can clog the air gap. If your dishwasher drains slowly, check the air gap cap. Unscrew it, remove any debris, and rinse it out. This is much easier than snaking a clogged drain line.

5. Is there a difference between commercial and residential air gap heights in FL?

Yes. Commercial kitchens in Florida have much stricter requirements, often requiring reduced pressure zone (RPZ) assemblies or larger air gaps depending on the hazard level. This article focuses on residential under-sink installations. Commercial codes are governed by different sections of the Florida Building Code and health department regulations.

Conclusion

Navigating the FL plumbing code height for air gap under sink requirements doesn’t have to be stressful. By understanding that Florida generally mandates a physical, deck-mounted air gap device rather than just a high loop, you can ensure your kitchen is safe, compliant, and inspection-ready. Remember, the goal of these codes is to protect your family from contaminated water, so cutting corners isn’t worth the risk.
