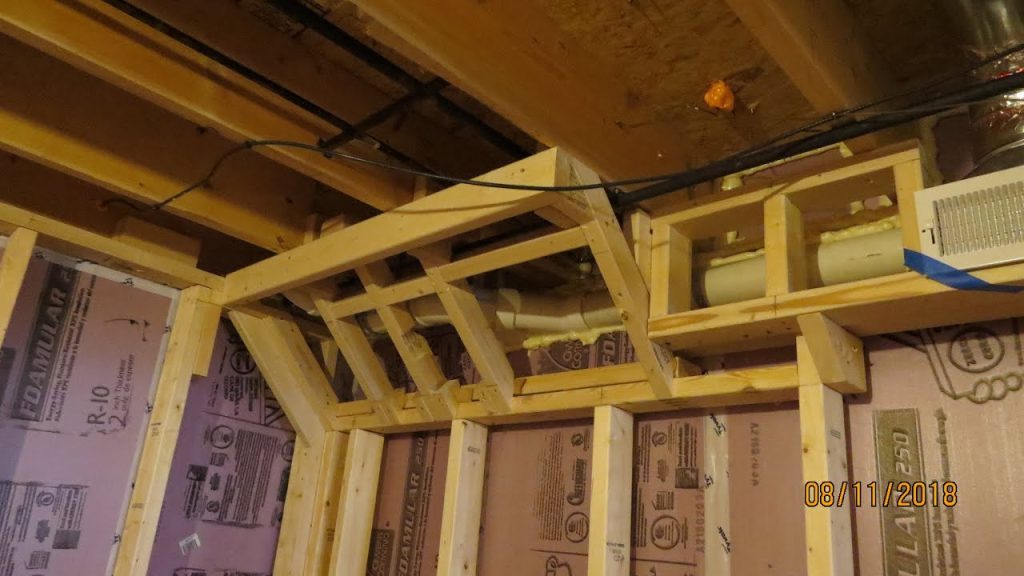

Frame a Wall Around Plumbing on Ceiling Joists

Have you ever looked up at your basement ceiling or crawlspace and wondered how to neatly conceal those exposed water lines and drain pipes without compromising structural integrity? You are not alone; many homeowners struggle with the challenge of how to frame a wall around plumbing on ceiling floor joists effectively while adhering to local building codes. This guide will walk you through the process with empathy and expertise, ensuring your project is safe, compliant, and aesthetically pleasing.

Why Proper Framing Around Plumbing Matters

Before we pick up a hammer, it is crucial to understand why this task requires precision. Plumbing systems are the lifeline of your home, but they are also vulnerable. Exposed pipes in unfinished ceilings are susceptible to accidental damage, condensation issues, and even freezing in colder climates.

According to general construction standards, protecting these utilities is not just about aesthetics; it is about longevity and safety. When you frame a wall around plumbing on ceiling floor joists, you create a protective barrier that allows for easier maintenance access if needed, while also providing a surface for insulation and drywall.

Expert Insight: “Improper framing around plumbing can lead to vibration noise (water hammer) and restricted access for future repairs. Always prioritize accessibility over concealment.” – General Contractor Best Practices.

For more detailed information on residential plumbing standards, you can refer to the Wikipedia page on Plumbing, which offers a broad overview of system components and historical context.

People Also Ask: Key Questions Answered

To ensure this guide meets your specific needs, we have structured the following sections based on common questions asked by DIYers and homeowners.

1. Can I Build a Wall Directly Under Ceiling Joists with Plumbing?

The short answer is yes, but with significant caveats. You cannot simply nail a top plate directly into the bottom of a joist if plumbing runs perpendicular to your intended wall line.

• Parallel Runs: If the plumbing runs parallel to the joists and sits between them, you can often frame a standard wall below it, provided you leave enough clearance (usually 1-2 inches) to prevent contact.
• Perpendicular Runs: If pipes cross through the joist bays where you want to build a wall, you must construct a “soffit” or a dropped ceiling section, rather than a full-height wall, or frame a chase specifically for the pipes.

Critical Rule: Never force a pipe against a wooden frame member. Wood expands and contracts with humidity changes, which can stress PVC or copper joints, leading to leaks.

2. What Materials Do I Need to Frame Around Plumbing?

Gathering the right materials before starting ensures a smooth workflow. Here is a checklist for a standard 2×4 framing job:

3. How Do I Measure and Plan the Wall Layout?

Precision is key. A misaligned wall can crush a pipe or make drywall installation impossible.

1. Locate the Plumbing: Use a stud finder with AC/metal detection or visually trace the pipes. Mark the exact center line of the plumbing run on the floor below using a chalk line.
2. Determine Wall Width: Standard 2×4 walls are 3.5 inches wide. However, if you are framing a chase (a box-like structure) around large drain lines, you may need a wider frame. Add 1 inch of clearance on all sides of the pipe.
   • Example: For a 4-inch drain pipe, your chase interior should be at least 6 inches wide to allow for movement and insulation.
3. Check for Obstructions: Look for electrical wires, HVAC ducts, or fire sprinklers that might intersect with your new wall.

4. Step-by-Step: How to Frame the Wall

Follow these steps to frame a wall around plumbing on ceiling floor joists safely.

Step 1: Prepare the Site

Clear the area beneath the joists. If you are working in a basement with a concrete floor, ensure the bottom plate location is clean and dry. If the concrete is damp, use a sill sealer gasket under the bottom plate to prevent wicking moisture into the wood.

Step 2: Install the Bottom Plate

• Lay your 2×4 bottom plate on the floor along your marked line.
• If the plate runs perpendicular to the floor joists above, mark the stud locations every 16 inches on center (OC).
• Secure the plate to the concrete using concrete anchors (Tapcons) every 24–32 inches, or nail it to the subfloor if applicable.

Step 3: Construct the Wall Frame

It is often easier to build the wall frame on the floor and lift it into place, unless space is tight.

• Cut studs to fit between the bottom plate and the bottom of the ceiling joists.
• Important: Measure the height at multiple points. Floor joists are rarely perfectly level. Cut your studs to the shortest measurement, then use shims at the top to fill gaps.
• Assemble the frame on the floor: Nail the studs to the bottom and top plates.

Step 4: Lift and Secure the Top Plate

• Lift the assembled wall into position.
• Align the top plate with the ceiling joists.
• Avoiding Plumbing: If a stud lands directly on a pipe, do not force it. Instead:
  1. Cut the stud short.
  2. Install a horizontal “block” or “bridge” between two adjacent studs that bypasses the pipe.
  3. Ensure no wood touches the pipe. Use foam pipe insulation as an extra buffer if clearance is tight (less than 1/2 inch).

Step 5: Shim and Plumb

• Use a 4-foot level to check that each stud is plumb (vertically straight).
• Insert shims between the top plate and the joists where gaps exist.
• Nail or screw through the shims and plate into the joist above. Note: Do not over-drive nails, as this can bow the studs.

Step 6: Add Blocking for Stability

If the wall is tall (over 8 feet) or supports heavy fixtures (like cabinets or TVs later on), install horizontal blocking between studs at 4-foot intervals. This adds rigidity and provides nailing surfaces for drywall edges.

5. Insulating and Closing the Wall

Once the frame is secure, you must address temperature and noise.

• Insulate: Wrap hot water pipes with foam sleeves to prevent heat loss. For cold water pipes, insulation prevents condensation from dripping onto your new drywall. Fill the stud bays with fiberglass batts or rigid foam board.
• Vapor Barrier: In cold climates, install a vapor barrier on the warm side of the insulation (usually the interior face) to prevent moisture from entering the wall cavity.
• Drywall: Hang 1/2-inch or 5/8-inch drywall. Use screws every 12 inches on studs. Tape, mud, and paint as desired.

Common Mistakes to Avoid

Even experienced DIYers can stumble here. Watch out for these pitfalls:

• Ignoring Code Clearances: Some local codes require specific access panels for valves and cleanouts. Check with your local building department before closing the wall completely.
• Squeezing Pipes: Forcing a pipe into a tight spot creates stress points. Always maintain a minimum of 1 inch of air gap around plumbing.
• Skipping Fire Blocking: If the wall connects different floors or acts as a fire barrier, you must install fire blocking (solid wood or approved material) at the top and bottom of the wall cavity to stop the spread of flames.

FAQ Section

Q1: Do I need a permit to frame a wall around plumbing?

A: In most US jurisdictions, non-load-bearing partition walls do not require a permit. However, if you are altering the structure, moving plumbing, or finishing a basement for habitable space, a permit is likely required. Always check with your local building department.

Q2: Can I use metal studs instead of wood?

A: Yes, metal studs are an excellent alternative, especially in basements prone to moisture. They are straight, lightweight, and termite-proof. However, you must use self-tapping screws designed for metal framing and ensure you ground the electrical system properly if wires are nearby.

Q3: How do I handle a cleanout plug that is inside the wall?

A: You cannot bury a cleanout plug. You must install an access panel (a removable door) in the drywall directly over the cleanout. This ensures you can clear clogs without demolishing the wall.

Q4: What if the plumbing leaks after I close the wall?

A: This is why accessibility is key. Before closing the wall, pressure test the plumbing lines. Leave access panels near shut-off valves and unions. If a leak occurs behind drywall, you will need to cut out the drywall section to repair it, so proper insurance and quick response are vital.

Q5: Can I hang heavy items on this new wall?

A: Standard 2×4 walls can support moderate weight. For heavy items like TVs or cabinets, ensure you screw directly into the studs, not just the drywall. If the plumbing limits stud placement, use toggle bolts or install plywood backing behind the drywall during the framing stage.

Q6: How do I reduce noise from water flowing in the pipes?

A: Noise transmission is common. To mitigate this:

1. Use foam pipe insulation.
2. Ensure pipes do not touch wood framing (use rubber straps or shims).
3. Fill the wall cavity densely with sound-dampening insulation (like rock wool).

Conclusion

Learning how to frame a wall around plumbing on ceiling floor joists is a valuable skill that enhances both the functionality and appearance of your home. By following these steps—planning carefully, maintaining proper clearance, and insulating effectively—you ensure a durable, code-compliant result.

Remember, patience and precision are your best tools. Take the time to measure twice, cut once, and always prioritize the safety of your plumbing system.
