GDC 3 Bed 2 Bath Plumbing Layout Guide

Are you planning a renovation or new build based on classic General Development Corporation blueprints and feeling overwhelmed by the complexity of the piping system? You are not alone; many homeowners and junior contractors struggle to visualize how water supply and waste lines intersect in a compact General Development Corporation 3 bed 2 bath plumbing layout.

This guide simplifies that process. We will break down the essential components, code requirements, and strategic placements needed to ensure your plumbing system is not only functional but also durable and efficient. By understanding the backbone of these popular mid-century and modern suburban layouts, you can avoid costly mistakes and ensure a smooth construction process.

Understanding the GDC 3-Bedroom Footprint

Before diving into pipes and fittings, it is crucial to understand the architectural context. General Development Corporation (GDC) was known for creating efficient, family-oriented suburban homes. The “3 Bed 2 Bath” configuration is a staple in American housing because it balances privacy with practicality.

In these layouts, the master bedroom usually has an en-suite bathroom, while the second bathroom serves the two additional bedrooms and guests. This separation creates two distinct “wet zones” that must be coordinated carefully.

Why Layout Efficiency Matters

An inefficient plumbing layout leads to:

• Higher Material Costs: Excessive pipe runs increase copper or PEX usage.
• Water Waste: Long distances between the heater and fixtures result in cold water waiting times.
• Maintenance Nightmares: Hidden leaks in complex walls are difficult to detect and repair.

According to industry standards, optimizing the plumbing stack location can reduce material costs by up to 15%. Therefore, centralizing your wet walls is not just a design choice; it is a financial imperative.

Key Components of the Plumbing System

To execute a successful General Development Corporation 3 bed 2 bath plumbing layout, you must distinguish between the three primary systems:

1. Potable Water Supply: Delivers fresh water under pressure.
2. Drain-Waste-Vent (DWV): Removes wastewater and sewer gases using gravity.
3. Gas Lines (if applicable): Supplies fuel for heaters, stoves, or dryers.

The Importance of Venting

Venting is often overlooked by DIY enthusiasts. Every fixture trap must be vented to prevent siphonage, which pulls water out of the trap and allows sewer gas into the home. In a 3-bed, 2-bath setup, proper venting ensures that flushing a toilet in the master bath does not gurgle the sink in the hallway bath.

For detailed technical definitions of plumbing vents and their historical evolution, you can refer to this Wikipedia article on Plumbing Vents.

Optimizing the Wet Wall Strategy

The most critical decision in your General Development Corporation 3 bed 2 bath plumbing layout is the placement of the “wet wall.” A wet wall is a single interior wall that houses the majority of your vertical stacks and horizontal branches.

Ideal Placement for GDC Homes

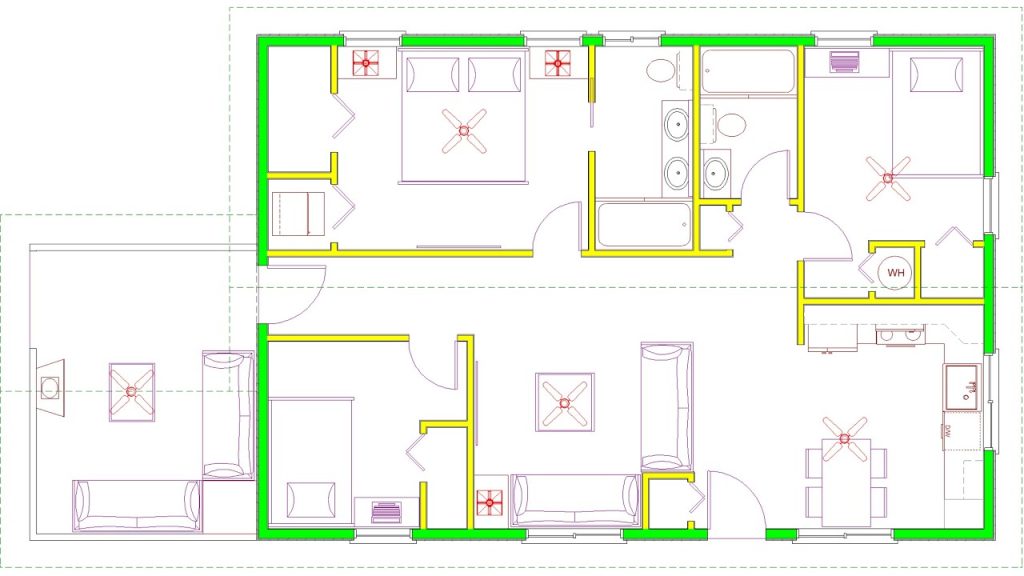

In typical GDC floor plans, the two bathrooms are often positioned back-to-back or adjacent to each other, separated by a bedroom or a hallway.

• Scenario A: Back-to-Back Baths: This is the gold standard. The master bath and guest bath share a common wall. This allows a single 3-inch or 4-inch soil stack to serve both toilets, significantly reducing roof penetrations and foundation work.
• Scenario B: Adjacent Baths: If the baths are side-by-side, you may need two separate stacks or a complex horizontal branching system under the slab. This is less efficient and more prone to clogs if not sloped correctly.

Step-by-Step Wet Wall Installation

1. Frame the Wall: Use 2×6 studs instead of 2x4s to accommodate larger drain pipes (3-inch or 4-inch) without cutting into structural members.
2. Install the Stack: Run the main vertical stack from the foundation up through the roof. Ensure it is plumb.
3. Branch Connections: Connect the master toilet and guest toilet to the stack using wye fittings at a 45-degree angle to facilitate smooth waste flow.
4. Vent Integration: Tie the vent line into the stack above the highest flood rim level of the fixtures (usually 6 inches above the sink overflow).

Pipe Sizing and Material Selection

Using the correct pipe size is non-negotiable for code compliance and performance. Below is a general guideline for a standard US residential build.

Material Choices: PEX vs. Copper

For the General Development Corporation 3 bed 2 bath plumbing layout, PEX (Cross-linked Polyethylene) is generally recommended over copper for supply lines for several reasons:

• Flexibility: PEX can bend around corners, reducing the number of fittings required. Fewer fittings mean fewer potential leak points.
• Cost: PEX is significantly cheaper than copper.
• Freeze Resistance: PEX can expand slightly if water freezes, making it less likely to burst compared to rigid copper.

However, local codes vary. Always check with your municipal building department before finalizing material choices.

Navigating Code Compliance and Inspections

Adhering to the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) is essential. While GDC plans provide the architectural framework, they do not override local laws.

Common Code Pitfalls

• Improper Slope: Drain pipes must slope downward at a rate of 1/4 inch per foot. Too steep, and water outruns solids, causing clogs. Too flat, and waste stagnates.
• Trap Arm Length: The distance between the trap weir and the vent connection is limited. For a 1.5-inch pipe, this distance typically cannot exceed 3.5 feet. Exceeding this requires an auxiliary vent.
• Cleanout Access: Every change of direction greater than 45 degrees in the drainage system requires a cleanout access point. In a 3-bed layout, ensure cleanouts are accessible from the exterior or a crawl space, not buried behind drywall.

The Inspection Checklist

Before closing up walls, ensure your inspector can verify:

1. All pressure tests have passed (usually 100 PSI for water lines).
2. DWV systems have been tested with air or water to check for leaks.
3. Strapping and supports are installed every 4 feet for horizontal pipes and every 10 feet for vertical pipes.

FAQ Section

1. Can I move the bathrooms in a GDC 3-bed layout?

Technically, yes, but it is expensive. Moving bathrooms away from the original wet wall requires extending drain lines under the concrete slab or through joists, which increases the risk of slope issues and clogs. It is best to keep fixtures close to the existing stack.

2. What is the minimum ceiling height for plumbing chases?

If you are running horizontal drains above a ceiling, you typically need a minimum of 12–14 inches of clearance to accommodate the pipe diameter, slope, and insulation. In a single-story GDC home, this may require raising the roof trusses or lowering the ceiling in specific areas like hallways.

3. How many water heaters do I need for a 3-bed, 2-bath home?

One standard 50-gallon tank water heater is usually sufficient for a family of four. However, if the master bath has a large soaking tub, consider a tankless water heater or a hybrid system to ensure endless hot water during peak usage times.

4. Is it better to use ABS or PVC for drain lines?

Both are acceptable under most codes. ABS (black pipe) is easier to install as it doesn’t require primer, but it can warp in direct sunlight. PVC (white pipe) is more rigid and UV resistant. Choose based on local availability and inspector preference.

5. Where should the main shut-off valve be located?

The main water shut-off should be located near where the water line enters the house, typically in the garage, basement, or a utility closet. It must be easily accessible in case of emergencies. Label it clearly.

6. Do I need a permit for replumbing a GDC home?

Yes. Almost all jurisdictions require a permit for replacing or altering plumbing systems. This ensures the work is inspected and meets safety standards, which is crucial for insurance and resale value.

Conclusion

Designing and implementing a General Development Corporation 3 bed 2 bath plumbing layout requires a blend of strategic planning and technical precision. By centralizing your wet walls, selecting the right materials like PEX, and adhering to strict slope and venting codes, you create a system that is efficient, durable, and cost-effective.

Remember, plumbing is the circulatory system of your home. Investing time in the design phase pays dividends in reduced maintenance and improved daily comfort. Whether you are a contractor or a homeowner managing a project, prioritizing these fundamentals will ensure your GDC-style home stands the test of time.
