Connect Your Frigidaire Ice Maker to Plumbing

Is your new Frigidaire refrigerator sitting idle because you’re intimidated by the idea of drilling into your walls and dealing with water lines? You are not alone. Many homeowners hesitate to get your Frigidaire ice machine to work with connecting to plumbing because they fear leaks or complex technical requirements. However, with the right preparation and a methodical approach, this DIY project is entirely manageable and can save you hundreds of dollars in professional installation fees.

In this guide, we will walk you through every step of the process, from gathering the necessary tools to testing for leaks. We aim to provide clear, actionable advice that prioritizes safety and efficiency, ensuring your ice maker is producing crystal-clear cubes in no time.

Why Proper Plumbing Connection Matters for Your Ice Maker

Before we dive into the wrenches and tubing, it is crucial to understand why the connection method matters. An improperly installed water line is the leading cause of kitchen floor damage due to leaks. According to insurance industry data, water damage claims related to appliance failures are among the most common and costly household repairs.

Connecting your Frigidaire ice maker correctly ensures:

• Consistent Water Pressure: Essential for forming full, solid ice cubes rather than slush or hollow shapes.
• Water Quality: Using the right tubing prevents chemical leaching that can affect taste.
• Longevity: Reduces strain on the refrigerator’s internal water valve.

For a deeper understanding of residential water supply standards, you can refer to general plumbing guidelines on Wikipedia.

Tools and Materials You Will Need

Preparation is half the battle. Having everything within arm’s reach prevents mid-installation trips to the hardware store. Here is your checklist:

Essential Tools

• Adjustable Wrench (or Crescent Wrench): For tightening compression nuts.
• Power Drill: With a 1/4-inch drill bit (if tapping into a copper pipe) or a hole saw bit (for drilling through cabinets/walls).
• Tube Cutter: Specifically for copper or plastic tubing (avoid using a hacksaw as it creates burrs).
• Screwdriver: Flathead and Phillips head.
• Bucket and Towels: To catch any residual water during the process.

Materials

• Water Supply Line: 1/4-inch OD (Outer Diameter) tubing.
  • Copper: Durable and traditional, but harder to bend.
  • Braided Stainless Steel: Highly recommended for durability and kink resistance.
  • Plastic (Polyethylene): Easy to work with but more prone to cracking over time.
• Saddle Valve Kit or T-Valve: A T-valve is preferred by professionals as it is more reliable than older saddle valves.
• Compression Fittings: Usually included with the tubing kit.
• Teflon Tape: For sealing threaded connections.

Step 1: Choosing the Right Water Source

The first decision you must make is where to tap into your home’s water supply. Most users connect to the cold water line under the kitchen sink. This is the most accessible location and requires minimal drilling.

Option A: Under-Sink Connection (Recommended)

This method involves installing a T-valve on the existing cold water line under your sink. It is non-invasive regarding your cabinetry and easier to shut off if maintenance is required.

Option B: Direct Wall Connection

If your refrigerator is on an exterior wall or far from the sink, you may need to tap into a water line inside the wall. Note: This requires higher skill levels and knowledge of local building codes. If you are unsure about locating studs and pipes, consult a licensed plumber.

Step 2: Installing the Water Valve

Once you have chosen your source, it is time to install the valve. We recommend using a T-Valve over a saddle valve for better long-term reliability.

1. Shut Off the Water: Locate the main shut-off valve for your kitchen sink and turn it clockwise until tight. Open the faucet to drain remaining pressure.
2. Disconnect the Existing Line: Use your adjustable wrench to disconnect the flexible hose supplying water to your faucet.
3. Install the T-Valve: Screw the T-valve onto the shut-off valve stem. Ensure it is hand-tight, then give it a quarter-turn with the wrench. Do not overtighten, as this can strip the threads.
4. Reconnect the Faucet: Attach your original faucet hose to the top outlet of the T-valve.
5. Attach the Ice Maker Line: Connect one end of your 1/4-inch supply tube to the side outlet of the T-valve. Use a compression nut and ferrule (ring) to secure it. Tighten snugly, but avoid crushing the ferrule.

Step 3: Routing the Tubing to the Refrigerator

This step requires patience. The goal is to run the tube from the under-sink area to the back of your refrigerator without kinks or sharp bends.

• Measure Twice: Pull the refrigerator out slightly to measure the distance. Add 2–3 feet of extra length to allow for movement when cleaning behind the unit.
• Drilling Access Holes: If you need to pass the tube through a cabinet wall or floor, drill a 1/2-inch hole. Smooth any rough edges with sandpaper to prevent the tubing from chafing.
• Avoid Heat Sources: Keep the tubing away from hot water pipes, exhaust vents, or the refrigerator’s compressor coil, as heat can degrade plastic tubing over time.
• Secure the Line: Use plastic clips or zip ties to secure the tubing along the cabinet baseboards. This prevents tripping hazards and keeps the line organized.

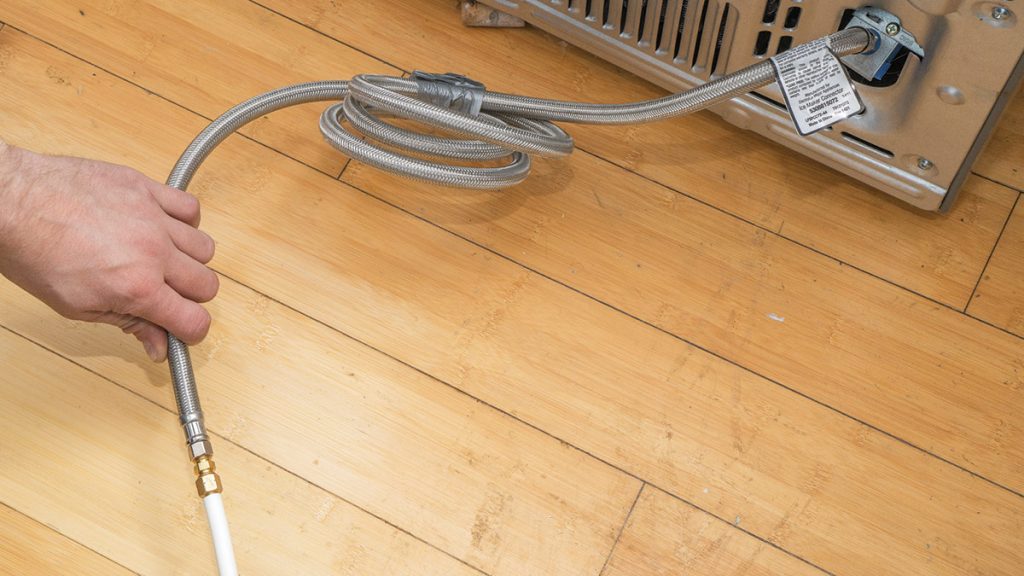

Step 4: Connecting to the Frigidaire Ice Machine

Now that the line reaches the refrigerator, you need to connect it to the appliance itself.

1. Locate the Inlet: On the back of most Frigidaire models, the water inlet valve is located near the bottom center or lower left side. It is usually a small brass or plastic protrusion with a 1/4-inch thread.
2. Prepare the Tube: Ensure the end of the tubing is cut squarely. If using copper, use a tube reamer to remove internal burrs.
3. Insert the Tubing: Slide the compression nut and ferrule onto the tube. Insert the tube fully into the inlet valve until it bottoms out.
4. Tighten the Nut: Hand-tighten the compression nut onto the valve. Then, use your wrench to tighten it an additional 1/2 to 3/4 turn. Warning: Overtightening can crack the valve housing.

Step 5: Flushing and Testing for Leaks

This is the most critical phase. Do not skip this step.

1. Turn On the Water: Slowly open the T-valve under the sink. Listen for hissing sounds, which indicate air escaping.
2. Check for Leaks: Immediately inspect both connection points (under the sink and at the back of the fridge). Use a dry paper towel to wipe the joints; if the towel gets wet, you have a leak. Tighten slightly if necessary.
3. Flush the System: Before making ice, you must flush air and carbon fines from the system.
   • Dispense water from the refrigerator door dispenser (if equipped) for 3–5 minutes.
   • If your model does not have a dispenser, you may need to manually trigger the ice maker cycle or wait for the first batch to form and discard it.
4. Discard Initial Ice: The first three batches of ice should be discarded. This ensures that any residual manufacturing particles or stale water from the lines are removed.

Troubleshooting Common Issues

Even with careful installation, issues can arise. Here is how to address them:

FAQ Section

1. Can I use a saddle valve instead of a T-valve?

While saddle valves are cheaper and easier to install (they pierce the pipe without cutting), they are prone to leaking and clogging over time. Most professional plumbers recommend T-valves for their reliability and ease of maintenance.

2. How long does it take for the Frigidaire ice maker to produce ice after connection?

Typically, it takes 24 hours for the first batch of ice to be ready. The freezer must reach the proper temperature (0°F / -18°C) before the ice maker cycle initiates. Do not panic if no ice appears in the first few hours.

3. What type of tubing is best for Frigidaire ice makers?

Braided stainless steel tubing is the gold standard. It is resistant to kinks, bursts, and corrosion. Copper is a good second choice, while plastic polyethylene tubing should be considered a temporary or budget-only option due to its fragility.

4. Do I need a water filter for my ice machine?

Yes, highly recommended. Frigidaire refrigerators have built-in water filters. Ensure you install a new filter before flushing the system. This improves taste and protects the ice maker mechanism from sediment buildup.

5. Why is my ice maker making noise but not producing ice?

This could indicate an air lock in the line. Try flushing the water dispenser for several minutes to push the air out. If the problem persists, check that the water inlet valve is receiving power and that the house water pressure is at least 20 psi.

Conclusion

Learning how to get your Frigidaire ice machine to work with connecting to plumbing is a valuable skill that enhances your home’s convenience and functionality. By following this step-by-step guide, choosing high-quality materials like braided stainless steel tubing, and meticulously testing for leaks, you can ensure a safe and efficient installation.

Remember, patience is key. Rushing the tightening process or skipping the flushing stage can lead to problems down the road. Take your time, double-check your connections, and enjoy the luxury of fresh, homemade ice.
