GM LS Engine 4 Corner Steam Line Kits Guide

Are you struggling with inconsistent temperature readings or mysterious hot spots in your high-performance build? Many enthusiasts overlook a critical component of the cooling system, leading to head gasket failures and warped heads. Properly installing GM LS engine 4 corner steam line plumbing kits is the secret to maintaining optimal thermal management and ensuring your engine runs cool under pressure.

If you are building a street rod, a track monster, or simply swapping an LS into a classic chassis, understanding steam lines is non-negotiable. These small but mighty passages are responsible for venting trapped air and hot coolant from the cylinder heads back to the cooling system. Without them, your engine is literally boiling from the inside out. In this guide, we will break down everything you need to know about selecting, installing, and optimizing these essential plumbing kits.

What Are Steam Lines and Why Do They Matter?

Before diving into the hardware, let’s address the fundamental question: What exactly do steam lines do?

In a GM LS engine, coolant flows through the block and up into the cylinder heads. As the engine heats up, steam and air pockets can form in the highest points of the cylinder heads—specifically near the exhaust valves and spark plugs. If this steam is not evacuated, it creates “hot spots.” These hot spots can cause localized overheating, leading to pre-ignition (knock), detonation, and eventually, catastrophic head gasket failure.

Steam lines connect the steam ports on the cylinder heads to either the radiator, the thermostat housing, or the water pump inlet. This allows the trapped air and superheated coolant to escape and re-enter the main cooling cycle where it can be cooled down.

The Danger of Ignoring Steam Ports

Many beginners cap off these ports during an engine swap because they don’t know where to route the hoses. This is a critical mistake. Capping steam lines traps air in the heads. According to general automotive engineering principles found on Wikipedia’s Internal Combustion Engine cooling page, efficient heat transfer requires the elimination of insulating air pockets. By ignoring steam lines, you are reducing the efficiency of your entire cooling system.

Understanding the “4-Corner” Configuration

When we talk about a GM LS engine 4 corner steam line plumbing kit, we are referring to a setup that addresses all four steam ports on a V8 engine. An LS V8 has two cylinder heads, and each head typically has two steam ports (one on the front side and one on the rear side, though configurations can vary slightly by head casting).

Why Use a 4-Corner Kit?

A standard factory setup might only utilize two ports or route them internally. However, in performance applications, aftermarket cylinder heads often have enlarged or relocated steam ports. A 4-corner kit ensures that:

1. Both Heads are Balanced: Coolant flows evenly across both banks of the engine.
2. Air is Fully Evacuated: Every potential pocket for air trapping is addressed.
3. Flexibility in Routing: You have more options for where to send the coolant, which is crucial in tight engine bays like those in Miata swaps or classic Mustangs.

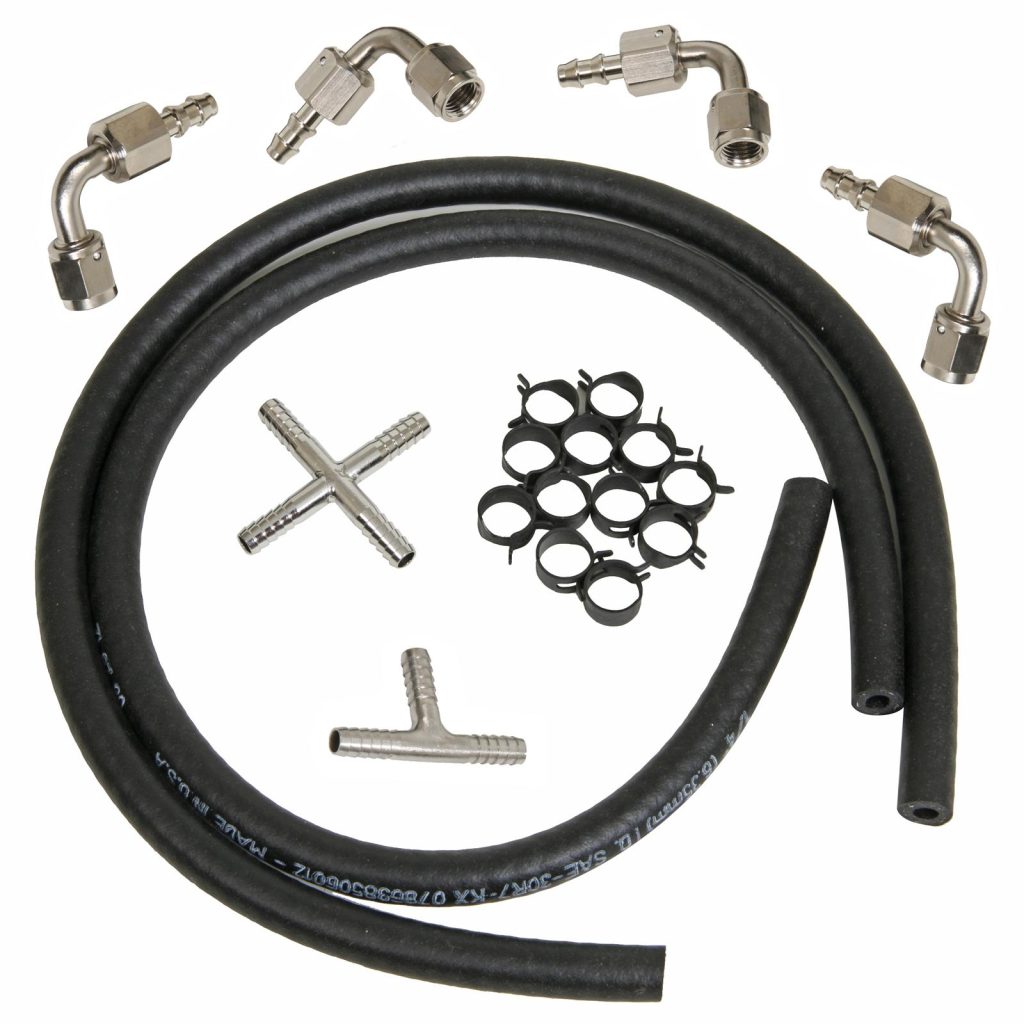

Key Components of a Quality Plumbing Kit

Not all plumbing kits are created equal. When shopping for your GM LS engine 4 corner steam line plumbing kit, look for these specific features to ensure durability and performance.

1. Material Quality

• Stainless Steel Braided Hoses: These offer the best resistance to heat and abrasion. They look professional and last longer than rubber.
• AN Fittings (AN -6 or AN -8): Army-Navy fittings provide a leak-proof seal and are easier to install in tight spaces compared to traditional hose clamps.
• Billet Aluminum Adapters: Ensure the adapters that screw into the cylinder heads are made from high-grade billet aluminum to prevent stripping threads.

2. Hose Diameter

Most LS engines use 5/16-inch or 3/8-inch inner diameter hoses for steam lines. Using a hose that is too small can restrict flow, while one that is too large may be difficult to route. Check your specific cylinder head manufacturer’s recommendation, but 5/16-inch is the industry standard for most aftermarket LS heads.

3. Routing Options

A good kit will offer versatility. You should be able to route the lines to:

• The radiator neck (most common).
• The thermostat housing.
• The water pump inlet (requires a specialized adapter).

Step-by-Step Installation Guide

Installing your GM LS engine 4 corner steam line plumbing kit doesn’t require a degree in mechanical engineering, but it does require precision. Follow these steps for a leak-free installation.

Step 1: Preparation and Safety

Ensure the engine is completely cool. Disconnect the battery negative terminal. Drain the coolant if your current setup interferes with the installation. Clean the steam port threads on both cylinder heads using a thread chaser or brake cleaner to ensure a perfect seal.

Step 2: Install the Adapters

Screw the billet aluminum adapters into the steam ports on the cylinder heads.

• Tip: Use a high-quality thread sealant rated for coolant and high temperatures (such as Permatex Ultra Grey). Do not use Teflon tape, as shreds can enter the cooling system and clog your radiator.
• Torque the adapters to the manufacturer’s specification, usually around 10–15 ft-lbs. Over-tightening can crack the head or strip the threads.

Step 3: Plan Your Routing

Lay out your hoses before cutting or bending. The goal is to avoid contact with exhaust manifolds, alternators, or moving parts.

• Front Ports: Typically route forward toward the radiator or thermostat housing.
• Rear Ports: May need to cross over to the opposite side or route backward depending on your firewall clearance.

Step 4: Connect the Hoses

Attach the braided stainless steel hoses to the AN fittings.

• Ensure the hose ends are cut square.
• Slide the nut and sleeve over the hose before inserting the fitting insert.
• Tighten the AN nuts by hand first, then use a wrench for the final quarter-turn. Do not overtighten AN fittings, as this can damage the flare seat and cause leaks.

Step 5: Connect to the Cooling System

Connect the other end of the steam lines to your chosen destination (radiator neck or thermostat housing). If you are using a radiator with built-in steam ports, this is straightforward. If not, you may need a “steam line tee” or a specialized thermostat housing with extra ports.

Step 6: Fill and Bleed the System

Refill your cooling system with the appropriate coolant mixture (usually 50/50 ethylene glycol and water).

• Crucial Step: Start the engine with the radiator cap off. Allow the thermostat to open. You should see coolant flowing through the steam lines.
• Squeeze the upper radiator hose to help push out any remaining air bubbles.
• Top off the coolant as the level drops.

Comparison: Rubber Hoses vs. Braided Stainless Steel

For a daily driver, rubber hoses are acceptable. However, for any performance build, braided stainless steel is the superior choice due to its longevity and resistance to the high under-hood temperatures generated by LS engines.

FAQ Section

Q1: Can I just cap off the steam lines if I don’t have a place to route them?

A: No. Capping steam lines traps air in the cylinder heads, leading to hot spots, detonation, and potential head gasket failure. Always route them to a pressurized part of the cooling system.

Q2: Do all LS heads have steam ports?

A: Most production LS heads do. However, some dedicated racing heads may eliminate them or require external pluming. Always check your specific head casting. Aftermarket heads almost always require external steam line kits.

Q3: What size hose do I need for an LS steam line kit?

A: The standard size is 5/16-inch ID (Inner Diameter). Some older setups or specific aftermarket heads may use 3/8-inch. Measure your fittings or consult your head manufacturer to be sure.

Q4: Can I run the steam lines directly to the water pump?

A: Yes, but you need a specialized adapter that replaces the standard plug on the water pump. This method is effective because it pulls the steam directly into the suction side of the pump, ensuring rapid evacuation.

Q5: Why is my engine still overheating after installing steam lines?

A: Steam lines are part of the solution, not the whole cure. Check your radiator capacity, fan shroud sealing, water pump impeller condition, and thermostat operation. Air pockets in the radiator itself can also cause issues; ensure you have properly bled the system.

Q6: Is a 4-corner kit necessary for a stock LS swap?

A: If you are using stock heads and a stock radiator with built-in steam ports, you might not need a full aftermarket kit. However, if you are using aftermarket heads or a custom radiator, a GM LS engine 4 corner steam line plumbing kit is highly recommended to ensure proper flow and cooling efficiency.

Conclusion

Upgrading your cooling system with a GM LS engine 4 corner steam line plumbing kit is one of the smartest investments you can make for your engine’s longevity. It solves the hidden problem of air trapping and hot spots, ensuring that your LS engine runs at peak efficiency whether you are cruising downtown or tearing up the track.

By choosing high-quality materials like braided stainless steel and following proper installation procedures, you eliminate the risk of overheating-related failures. Don’t let something as small as a steam line be the weak link in your powerful build.
