ADA Hand Sink Rough-In Height Guide

Are you worried that your commercial kitchen renovation might fail inspection due to a simple measurement error? You are not alone; many restaurant owners and contractors struggle with the specific height for rough-in plumbing restaurant hand sinks ADA compliant standards. Getting this wrong can lead to costly tear-outs, delayed openings, and potential legal issues regarding accessibility.

In this guide, we will break down the exact measurements, code requirements, and best practices to ensure your handwashing stations are both functional for staff and fully compliant with the Americans with Disabilities Act (ADA). Let’s get your plumbing right the first time.

What Is the Standard ADA Height for Hand Sink Rough-Ins?

When planning the plumbing for a commercial hand sink, precision is key. The “rough-in” refers to the stage where water supply lines and drain pipes are installed in the walls or floor before the finish materials (like drywall or tile) and the sink itself are installed.

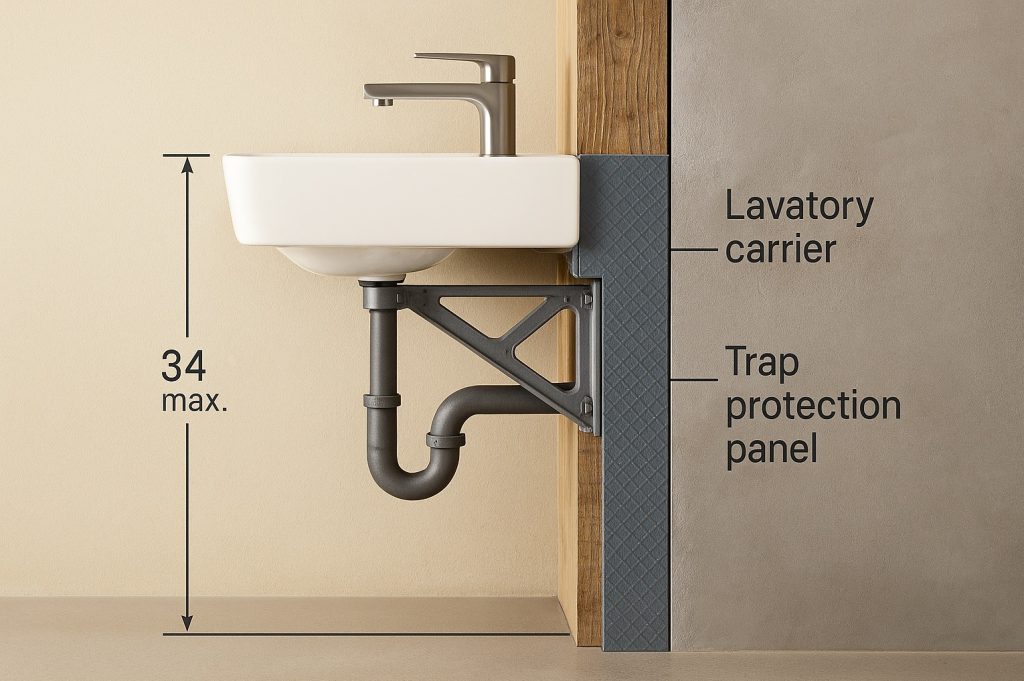

The Critical Measurement: 34 Inches Maximum

According to the 2010 ADA Standards for Accessible Design, the rim or counter surface of the hand sink must be no higher than 34 inches (865 mm) above the finished floor.

However, for rough-in purposes, you must account for the thickness of the countertop and the sink basin. Here is the professional breakdown:

• Maximum Rim Height: 34 inches from the finished floor.
• Recommended Rough-In Height: Most plumbers aim for a supply valve center height of 31 to 32 inches from the finished floor. This allows enough flexibility to install a standard commercial sink while keeping the final rim under the 34-inch cap.
• Drain Rough-In: The drain should typically be centered with the sink bowl, often roughly 20–24 inches from the finished floor, depending on the sink’s depth and P-trap configuration.

Pro Tip: Always check with your local building department. While the ADA is a federal law, some states or municipalities have stricter codes (such as California’s Title 24) that may require lower heights or different clearances.

Why “Rough-In” Accuracy Matters

If you rough in the water lines too high, you may be forced to raise the floor around the sink or use an non-compliant shallow sink. If you go too low, the sink may be unusable for standing staff who are not wheelchair users, creating ergonomic hazards. Balancing ADA compliance with general usability is the hallmark of good commercial design.

What Are the Clear Floor Space Requirements?

Installing the sink at the correct height is only half the battle. The ADA also mandates specific clear floor space to ensure a wheelchair user can approach and use the sink comfortably.

Knee and Toe Clearance

For a forward approach (where the wheelchair user faces the sink directly), you must provide adequate knee and toe clearance under the sink.

Insulation and Protection

If hot water pipes are exposed under the sink, they must be insulated or configured to prevent contact. A wheelchair user’s legs could easily touch hot pipes, causing burns. Therefore, during the rough-in phase, consider routing pipes against the back wall or using insulating wraps.

For more detailed technical diagrams on clearances, you can refer to the ADA Standards for Accessible Design overview on Wikipedia, which provides historical context and broad regulatory frameworks.

How Deep Can the Sink Bowl Be?

This is a common question that trips up many designers. If the rim is at 34 inches, how deep can the actual basin be?

The answer lies in the knee clearance. Since the bottom of the apron (the front part of the sink cabinet or structure) must be at least 27 inches off the ground, your sink bowl cannot interfere with this space if it protrudes forward.

• Self-Rimming Sinks: If the sink sits on top of a counter, the counter height dictates the rim height.
• Undermount Sinks: These are often preferred for ADA compliance because they allow for a thinner countertop edge, maximizing the usable depth without violating knee clearance.
• Maximum Depth: Generally, if the rim is at 34 inches and the required knee clearance starts at 27 inches, you have a 7-inch vertical zone where the sink bowl can exist if it does not obstruct the knee space. However, most ADA-compliant sinks are designed with a shallower bowl depth (around 5–6 inches) or are set back to allow leg room.

Recommendation: Use sinks specifically labeled as “ADA Compliant.” These units are engineered with the correct bowl depth and apron cutouts to meet the 27-inch knee clearance rule automatically.

Where Should Faucet Controls Be Located?

The plumbing rough-in isn’t just about water height; it’s about accessibility of controls. The ADA has strict rules about how a user interacts with the faucet.

Operable Parts Requirements

1. Height: Faucet handles or sensors must be within reach ranges. For a forward approach, the maximum high reach is 48 inches (1220 mm) from the finished floor. However, for practical use at a 34-inch sink, handles are typically placed 8–10 inches behind the front edge of the sink.
2. Operation: Controls must be operable with one hand and not require tight grasping, pinching, or twisting of the wrist. Lever-operated, push-type, and electronically controlled mechanisms are acceptable.
3. Force: The force required to activate controls should not exceed 5 pounds (22.2 N).

Sensor Faucets: The Best Choice for Restaurants

For commercial kitchens, sensor-operated (touchless) faucets are highly recommended. They naturally comply with ADA requirements because they require zero physical force to operate. When roughing in plumbing for sensor faucets, remember to include:

• Hot and cold water supplies.
• An electrical outlet or battery pack location (check manufacturer specs).
• Proper spacing for the sensor window to avoid false triggers from nearby walls.

Step-by-Step Guide to Roughing In an ADA Hand Sink

Follow these steps to ensure your plumbing installation meets all criteria.

1. Mark the Finished Floor Level (FFL): Determine exactly where the final floor surface will be. All measurements start from here, not the subfloor.
2. Locate the Centerline: Mark the vertical centerline of the sink on the wall studs. Standard hand sinks are usually 15–18 inches wide.
3. Install Water Supplies:
   • Install hot and cold water stops.
   • Height: Center the valves at 31–32 inches above FFL.
   • Spacing: Typically 4–8 inches apart, centered on the sink’s midline (check sink spec sheet).
4. Install the Drain Stub-Out:
   • Position the drain pipe vertically.
   • Height: The stub-out should be high enough to allow for a proper P-trap connection while maintaining the 27-inch knee clearance. Usually, 18–20 inches above FFL is safe, but verify against the specific sink’s trap location.
5. Frame for Knee Clearance: Ensure no structural blocking interferes with the 27-inch high by 17-inch deep knee space. If blocking is needed for mounting, place it outside this zone.
6. Insulate Pipes: Wrap any exposed hot water pipes within the knee/toe clearance area with foam insulation.
7. Verify Local Codes: Before closing the wall, have your inspector verify the rough-in heights.

FAQ Section

1. Does every hand sink in a restaurant need to be ADA compliant?

No. The ADA requires that a certain percentage of fixtures be accessible. Generally, at least one hand sink in each restroom and one in the food preparation area (if public-facing) must be ADA compliant. However, many health departments now require all employee handwashing stations to meet certain ergonomic standards, so checking local health codes is crucial.

2. Can I use a standard 36-inch high counter for an ADA sink?

No. A standard 36-inch counter is too high for ADA compliance. The maximum rim height is 34 inches. You must create a lowered section of the counter or install a wall-mounted sink that adheres to the 34-inch limit.

3. What happens if my sink fails ADA inspection?

Failing an ADA inspection can result in fines, stop-work orders, and the requirement to demolish and redo the plumbing and cabinetry. This is significantly more expensive than getting the rough-in right the first time. It can also delay your restaurant’s opening date, leading to lost revenue.

4. Are there exceptions for existing buildings?

Yes, under the “Existing Facilities” clause, some alterations may have different requirements if full compliance is technically infeasible. However, for new construction or major renovations, strict adherence to the 2010 ADA Standards is mandatory. Always consult with a certified accessibility specialist if you are working in an older building.

5. Do sensor faucets need special plumbing rough-ins?

Standard sensor faucets use standard hot/cold water rough-ins. However, if the unit is AC-powered rather than battery-operated, you will need an electrician to rough in a low-voltage transformer or an electrical outlet nearby. Always check the specific model’s installation manual before closing up walls.

Conclusion

Getting the height for rough-in plumbing restaurant hand sinks ADA compliant is not just about avoiding fines; it’s about creating an inclusive and efficient workspace. By adhering to the 34-inch maximum rim height, ensuring proper knee clearance, and selecting accessible faucet controls, you protect your business from liability and ensure comfort for all users.

Remember, precision during the rough-in phase saves thousands of dollars in corrections later. Keep this guide handy during your next renovation, and don’t hesitate to consult with a licensed plumber who specializes in commercial ADA compliance.
