Have you ever faced a minor leak under your sink and realized you had to shut off the water to your entire house just to fix it? It is a frustrating scenario that many homeowners face, but there is a simple, effective solution. Installing a hex head inline plumbing valve with screw in middle allows you to isolate specific fixtures, saving you time and hassle during future repairs.
This small but mighty component is a staple in professional plumbing because of its reliability and ease of use. Whether you are a DIY enthusiast looking to upgrade your home’s plumbing infrastructure or a homeowner dealing with an aging pipe system, understanding this valve is crucial. In this guide, we will break down exactly what this valve is, why the “screw in the middle” design matters, and how to install it correctly to ensure a leak-free connection.

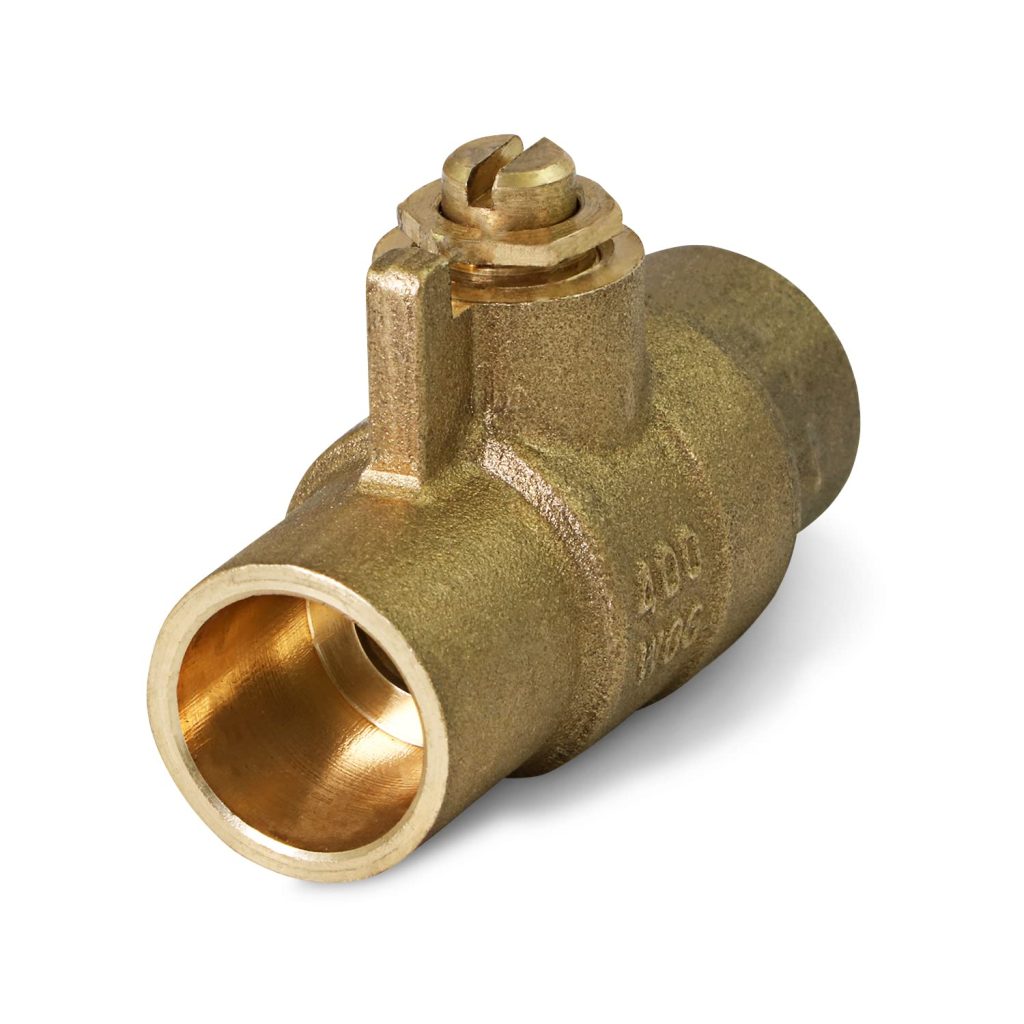

What Is a Hex Head Inline Plumbing Valve?
To understand the value of this component, we must first define its structure. An inline valve is designed to be installed directly into a continuous run of tubing, such as copper, PEX, or CPVC lines. Unlike angle stops, which connect a wall pipe to a fixture at a 90-degree angle, inline valves maintain the straight flow of water until you choose to stop it.
The term “hex head” refers to the exterior shape of the valve body. This six-sided design allows plumbers to use a standard wrench or adjustable pliers to tighten the valve securely onto the pipe without damaging the internal components. It provides the necessary torque to create a watertight seal, especially in compression-style fittings.
The Significance of the “Screw in Middle”
The phrase “screw in middle” typically describes the operation mechanism of a standard globe or compression-style shut-off valve. Inside the hex body, there is a stem with a rubber washer or O-ring at the end. When you turn the handle (or the slotted screw head) clockwise, this stem moves downward, pressing the washer against the valve seat. This action blocks the water flow.
This design is distinct from ball valves, which use a rotating sphere with a hole in it. The screw-type mechanism offers a gradual shut-off, which can be beneficial in older plumbing systems where sudden pressure changes (water hammer) might cause issues. However, it requires more turns to fully open or close compared to a quarter-turn ball valve.
Why Choose This Valve Over Other Types?
When selecting plumbing hardware, you have several options. Why should you specifically look for a hex head inline valve with a screw mechanism? Here is a comparison to help you decide.
Comparison: Screw-Type vs. Ball Valves
| Feature | Hex Head Screw-Type Valve | Quarter-Turn Ball Valve |
|---|---|---|
| Operation | Multi-turn (gradual) | Quarter-turn (fast) |
| Flow Control | Excellent for throttling | On/Off only |
| Durability | High, but washer may wear over time | Very high, less prone to wear |
| Installation Space | Compact, linear profile | Slightly bulkier handle |
| Best Use Case | Older homes, fine-tuning flow | New construction, main shut-offs |
According to industry standards, compression fittings with hex heads are preferred for retrofitting because they do not require soldering. This makes them ideal for DIY projects where using a torch is unsafe or impractical.
For more detailed information on plumbing valve types and their mechanical engineering principles, you can refer to the general overview on Wikipedia’s Valve page.
Key Benefits of Using Hex Head Inline Valves
1. Easy Maintenance and Isolation
The primary benefit is isolation. If your toilet supply line bursts, you can turn off the inline valve serving only the toilet. The rest of your house retains water pressure. This is invaluable during emergencies.
2. No Soldering Required
Most hex head inline valves use compression fittings. This means you simply slide a nut and a ferrule (olive) over the pipe, insert the pipe into the valve, and tighten the hex head. This reduces the risk of fire hazards associated with soldering copper pipes.
3. Durability and Leak Prevention
The hex design ensures that you can apply even pressure around the entire circumference of the fitting. This uniform tightening minimizes the risk of cross-threading or uneven seals, which are common causes of leaks in plastic-handled valves.
4. Aesthetic and Space Efficiency
Inline valves are sleek and sit flush with the pipe. In tight cabinets under sinks or vanities, where space is at a premium, the low profile of a hex head inline valve is superior to bulky angle stops or large-handled ball valves.
Step-by-Step Installation Guide
Installing a hex head inline plumbing valve with screw in middle is a straightforward process if you follow safety protocols. Always ensure you have turned off the main water supply before beginning.
Tools You Will Need:
- Two adjustable wrenches (or channel-lock pliers)
- Tubing cutter (for copper or PEX)
- Emery cloth or sandpaper (if using copper)
- Bucket and towels (to catch residual water)
Installation Steps:
- Cut the Pipe: Identify the section of the pipe where the valve will be installed. Use a tubing cutter to make a clean, straight cut. Remove any burrs from the inside and outside of the pipe using emery cloth. A smooth surface is critical for a watertight seal.
- Prepare the Fittings: Slide the compression nut onto the pipe, followed by the ferrule (the small brass or plastic ring). Ensure they are facing the correct direction—towards the valve body.
- Insert the Pipe: Push the pipe firmly into the valve body until it hits the internal stop. Hold it in place.
- Tighten the Hex Head: Hand-tighten the compression nut first. Then, use one wrench to hold the valve body steady (on the hex flats) and another wrench to tighten the nut.
- Pro Tip: Tighten the nut approximately 1/2 to 3/4 of a turn past hand-tight. Do not overtighten, as this can crush the ferrule excessively or crack the valve body.
- Test for Leaks: Turn the main water supply back on slowly. Open the new inline valve by turning the screw counter-clockwise. Check the connections for any drips. If you see a leak, tighten the nut slightly more—usually no more than an additional 1/8 turn.
Common Mistakes to Avoid
Even experienced DIYers can make errors. Here are the most common pitfalls when installing these valves.
- Overtightening: This is the number one cause of failure. Cracking the brass body or deforming the ferrule too much can lead to immediate or delayed leaks.
- Reusing Ferrules: Never reuse a compression ferrule. Once compressed, it takes the shape of the pipe and valve. Reusing it will almost certainly result in a leak. Always use a new ferrule.
- Ignoring Pipe Alignment: The pipe must enter the valve straight. If the pipe is bent or forced into alignment, the stress on the fitting will eventually cause it to fail.
- Using Teflon Tape Incorrectly: Compression fittings do not require Teflon tape on the threads that compress the ferrule. Tape is only used on threaded pipe connections (NPT), not compression connections. Adding tape here can actually prevent a proper seal.
FAQ Section
1. Can I use a hex head inline valve on PEX tubing?
Yes, but you must ensure the valve is compatible with PEX. Some compression valves are designed specifically for copper. For PEX, you may need a specific PEX-compatible compression fitting or use a barbed insert with a clamp ring, depending on the valve design. Always check the manufacturer’s specifications.
2. What does the “screw in the middle” control?
The screw in the middle is the valve stem. Turning it clockwise closes the valve by pressing a washer against the seat, stopping water flow. Turning it counter-clockwise opens the valve, allowing water to pass through.
3. How do I know if my inline valve is bad?
Signs of a failing valve include visible leaks around the hex nuts, difficulty turning the handle (stiffness), or water continuing to flow even when the valve is fully closed. If the handle spins freely without resistance, the internal stem may be broken.
4. Is this valve suitable for hot water lines?
Most brass hex head inline valves are rated for both hot and cold water. However, always check the temperature rating on the packaging. Standard brass valves can typically handle temperatures up to 200°F (93°C), which is sufficient for residential hot water systems.
5. Can I replace just the stem if it leaks?
In some high-quality valves, the stem is replaceable. However, for standard inline compression valves, it is often more cost-effective and reliable to replace the entire valve. The labor involved in disassembling a small inline valve often outweighs the cost of a new unit.
Conclusion
A hex head inline plumbing valve with screw in middle is an essential component for any well-maintained home plumbing system. It offers the perfect balance of durability, ease of installation, and functional control. By allowing you to isolate specific fixtures, it empowers you to handle minor repairs without disrupting your entire household’s water supply.
Remember, the key to a successful installation lies in preparation: clean cuts, proper alignment, and careful tightening. Avoid the temptation to overtighten, and always use new ferrules for every installation.
If you found this guide helpful, please share it with your friends and family on social media. Helping others understand their home plumbing can save them from costly emergency calls and stressful water damage scenarios. Happy plumbing!
