If you’ve ever stared at the back of your washer-dryer combo wondering how to hook up both hot and cold water lines without flooding your laundry room—you’re not alone. Many homeowners struggle with hot and cold line plumbing to washer dryer in one unit, especially in compact spaces or older homes with outdated setups. The good news? With the right guidance, it’s a manageable DIY project that can save you hundreds on plumber fees—while ensuring your machine runs efficiently and safely.
Why Do Washer-Dryer Combos Need Both Hot and Cold Lines?
Most modern washer-dryer combos are designed to use both hot and cold water supplies, even if they primarily rely on cold water for washing. Here’s why:
- Hot water improves stain removal and sanitization (especially for towels, bedding, or baby clothes).
- Cold water saves energy and is gentler on fabrics.
- Many machines mix hot and cold internally to reach the ideal wash temperature based on your cycle selection.
According to the U.S. Department of Energy, using warm or hot water only when necessary can reduce your laundry energy use by up to 90%. That’s why proper plumbing setup matters—it gives you control over performance and efficiency.
💡 Pro Tip: Even if your combo unit says “cold-fill only,” check the manual. Some models (like certain LG or Samsung units) still benefit from dual-line connections for enhanced drying or steam functions.
Can You Use Just One Water Line for a Washer-Dryer Combo?
Yes—but with caveats.
Many compact washer-dryer combos sold in the U.S. (especially European-style units) are designed for cold-fill only. They heat water internally during the wash or steam cycle. However, if your model supports dual inlet valves (one for hot, one for cold), using both lines offers significant advantages:
| Feature | Cold-Only Setup | Dual Hot & Cold Setup |
|---|---|---|
| Energy Use | Higher (machine heats all water) | Lower (uses existing hot water) |
| Wash Time | Slightly longer | Faster heating = shorter cycles |
| Fabric Care | Good | Better (precise temp control) |
| Installation Cost | Lower upfront | Slightly higher, but long-term savings |
👉 Bottom line: If your laundry area already has both hot and cold supply lines within reach, connect both. It’s future-proofing your setup.
Step-by-Step: How to Install Hot and Cold Line Plumbing to Washer Dryer in One Unit
Follow these steps carefully. Always turn off water supply before starting!
Tools & Materials Needed:
- Adjustable wrench
- Teflon tape
- Two braided stainless steel hoses (60″ recommended)
- Shut-off valves (if not already installed)
- Bucket & towels (for spills)
Step 1: Confirm Your Machine’s Inlet Configuration
Check the back panel. You should see two threaded ports labeled “H” (hot) and “C” (cold). If only one port exists, your unit is cold-fill only—skip hot line installation.
Step 2: Install or Inspect Shut-Off Valves
Ensure you have dedicated shut-off valves for both hot and cold lines near the machine. If missing, install ¼-turn ball valves (code-compliant per IPC Section 414.2). Never rely on main house valves for routine access.

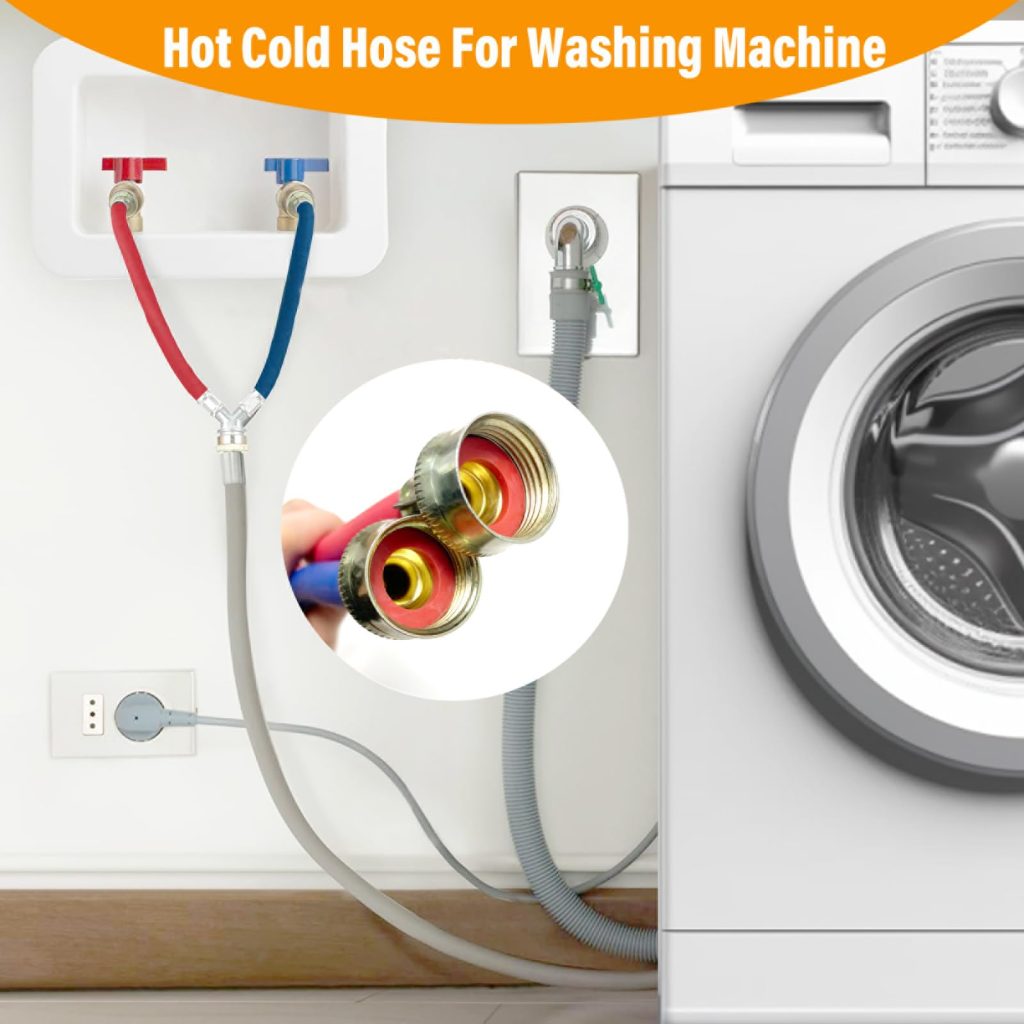

Step 3: Attach Hoses Correctly
- Connect the blue-marked hose to the cold water valve and the “C” port on the machine.
- Connect the red-marked hose to the hot water valve and the “H” port.
- Hand-tighten first, then give ¼ turn with a wrench—over-tightening cracks fittings!
⚠️ Safety Note: Use only washer-rated hoses (look for “UL-listed” or “NSF-certified”). Standard garden hoses can burst under pressure.
Step 4: Test for Leaks
Turn on both valves slowly. Place a dry paper towel under each connection. Wait 5 minutes. Any moisture = re-tighten or replace washer seal.
Step 5: Level and Ventilate
Ensure the unit is level (use a bubble level). Leave at least 4 inches of clearance behind for hose flex and airflow—critical for combo dryers that vent internally.
For visual learners, this plumbing diagram from Wikipedia on residential water supply illustrates standard hot/cold line routing in U.S. homes.
Common Mistakes to Avoid
Even experienced DIYers slip up here:
- Reversing hot and cold lines → Machine may malfunction or display error codes.
- Using old rubber hoses → These degrade in 3–5 years; stainless braided last 10+.
- Ignoring local codes → Some municipalities require anti-siphon valves or drip pans.
- Skipping the drain trap → Washer drains must connect to a vented P-trap to prevent sewer gas backup.
A 2023 HomeAdvisor report found that 68% of laundry-related water damage claims stemmed from improper hose or valve installation—not appliance failure.
When to Call a Professional Plumber
DIY is great—until it isn’t. Call a licensed plumber if:
- You need to extend or reroute supply lines through walls/floors.
- Your home has galvanized pipes (prone to corrosion; may need replacement).
- Local code requires permits or inspections for plumbing modifications.
- You smell gas or notice low water pressure after installation.
Most plumbers charge $150–$300 for a full washer hookup—far less than the $2,000+ average cost of water damage repair.
FAQ Section
Q1: Can I use a Y-splitter to connect both hot and cold to a single inlet?
No. Y-splitters force mixed water into one port, which confuses the machine’s temperature sensors and may void your warranty. Only use if your manual explicitly allows it (rare in the U.S.).
Q2: Do all-in-one washer dryers really need hot water?
Not always—but steam cycles, sanitize modes, and faster drying often do. Check your user manual. Models like the LG WM3488HW or GE GFW148SSMWW perform better with dual lines.
Q3: How far can the washer be from the water lines?
Ideally, within 6 feet. Longer hoses reduce water pressure and increase leak risk. If farther, consider relocating valves or using a laundry box.
Q4: What size are washer water connectors?
Standard is ¾-inch female hose thread (FHT) on the wall side and ¾-inch male hose thread (MHT) on the machine. Always verify before buying hoses.
Q5: Should I install an automatic shutoff valve?
Highly recommended. Smart valves like FloodStop or Watts IntelliFlow detect leaks and cut water flow instantly—great for vacation homes or basements.
Q6: Can I share water lines with a kitchen sink?
Technically yes, but not advisable. Shared lines cause pressure drops during simultaneous use (e.g., running dishwasher while washing clothes), leading to poor fill performance.
Conclusion
Setting up hot and cold line plumbing to washer dryer in one unit doesn’t have to be intimidating. With the right parts, a little patience, and attention to detail, you’ll ensure your combo appliance runs efficiently, safely, and for years to come. Not only will you avoid costly water damage, but you’ll also unlock your machine’s full cleaning potential.
✅ Recap the wins:
- Lower energy bills with smart water temp use
- Extended appliance lifespan
- Peace of mind with leak-free connections
Found this guide helpful? Share it on Pinterest, Facebook, or Twitter to help a friend tackle their laundry room upgrade! Got questions? Drop them in the comments—we reply to every one.
Remember: Great laundry starts with great plumbing. 🧺💧
