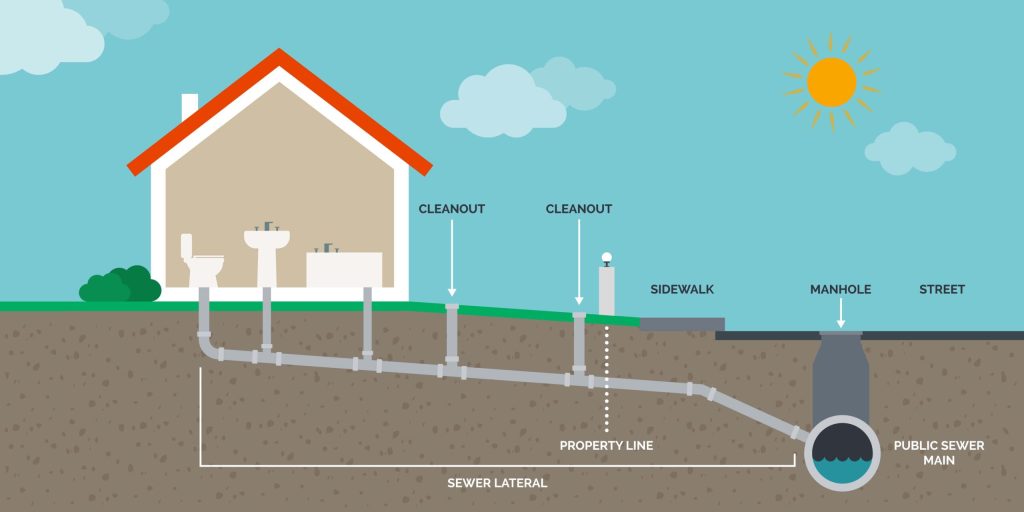

If you’ve ever grabbed a drill only to freeze mid-swing—wondering, “How do I find out where my plumbing pipes are?”—you’re not alone. Hitting a pipe can cause costly water damage, ruined walls, and serious headaches. Whether you’re hanging shelves, remodeling a bathroom, or troubleshooting a leak, knowing your home’s plumbing layout is essential. The good news? You don’t need to be a plumber to find those hidden lines. With the right tools and techniques, you can map your pipes safely and confidently.
Why Knowing Your Pipe Locations Matters
Before diving into detection methods, it’s worth understanding why this knowledge is critical:
Avoid accidental damage: A single misplaced nail can puncture a supply line.
Speed up repairs: Knowing pipe routes helps diagnose leaks faster.
Plan renovations wisely: Bathroom or kitchen remodels require precise plumbing knowledge.
Increase home value: Documented plumbing layouts impress inspectors and buyers.
According to the Insurance Information Institute, water damage from plumbing issues accounts for nearly 10% of all homeowners’ insurance claims, with average repair costs exceeding $7,000. Prevention starts with awareness—and location.
How Do I Find Out Where My Plumbing Pipes Are? 5 Reliable Methods
1. Check Your Home’s Original Plumbing Blueprint
If you bought your home new or have access to renovation records, start with the blueprints. Most building departments keep copies of original plans, including plumbing schematics.
Contact your local municipal office or county assessor.
Ask your builder or previous owner if available.
Look for labels like “Plumbing Riser Diagram” or “Utility Plan.”
💡 Pro Tip: Even older homes (pre-1980s) often have rough plumbing maps filed with permit applications.
2. Use a Stud Finder with Pipe Detection
Modern multi-function stud finders can detect live wires, wood studs, and metal pipes behind drywall.
Recommended models: Franklin Sensors ProSensor 710, Bosch GMS120.
How it works: These devices use electromagnetic fields to sense density changes.
Limitations: Only detects metal pipes (not PEX or PVC). Accuracy drops beyond 1.5 inches deep.
Step-by-Step Guide:
Calibrate the device on a known empty wall section.
Slowly slide it horizontally across the wall.
Watch for LED alerts or audio cues indicating metal.
Mark suspected pipe locations with painter’s tape.
⚠️ Note: False positives can occur near nails or electrical boxes. Cross-check with other methods.
3. Trace Pipes from Visible Fixtures
All hidden pipes connect to visible fixtures—sinks, toilets, water heaters, and outdoor spigots. Use these as starting points.
Supply lines typically run vertically from basement/crawlspace up through walls.
Drain lines slope downward toward the main sewer line (usually ¼ inch per foot).
In kitchens and bathrooms, pipes often align within 6–12 inches of fixtures.
Real-World Example: A homeowner in Austin, TX, traced a mysterious leak by following the cold-water line from the kitchen sink upward. Using thermal imaging, they found a pinhole leak inside the cabinet wall—saving over $3,000 in potential mold remediation.
4. Use a Thermal Imaging Camera
Thermal cameras detect temperature differences caused by water flow or condensation around pipes.
Best for: Active water lines (especially hot water).
Affordable options: FLIR ONE Pro (for smartphones), Seek Thermal Compact.
Works on both metal and plastic pipes.
How to Use It:
Run hot water for 2–3 minutes.
Scan walls with the thermal camera.
Look for warm vertical streaks—these indicate active supply lines.
For drains, flush toilets or run sinks and watch for cooling trails.
📊 Stat: A 2023 study by the National Association of Home Builders found that 68% of professional plumbers now use thermal imaging for non-invasive diagnostics.
5. Hire a Professional with Pipe Locating Equipment
For complex layouts or buried outdoor lines, professional pipe locators are unmatched.
✅ Recommendation: Combine 2–3 methods for best results. For example, trace from a sink and verify with a thermal scan.
Common Mistakes to Avoid
Assuming all pipes are vertical: Drain lines often run horizontally under floors.
Ignoring slab foundations: In slab homes, pipes run under concrete—drilling blindly risks catastrophic damage.
Using metal detectors on plastic pipes: PEX and PVC won’t register.
Skipping shut-off valve checks: Know where your main water shutoff is before you start probing.
FAQ Section
Q1: Can I find plumbing pipes without tearing down walls?
Yes! Non-invasive tools like thermal cameras, advanced stud finders, and professional pipe locators can identify pipe locations through drywall, tile, and even concrete (to a depth limit).
Q2: Are plumbing pipes usually in the same place in every house?
Not exactly. While building codes dictate general practices (e.g., drains must slope downward), exact pipe routes vary by builder, era, and renovation history. Never assume—always verify.
Q3: How deep are plumbing pipes under a concrete slab?
In most U.S. homes, supply and drain lines under slabs are buried 18–24 inches deep. However, this can vary based on local frost lines and soil conditions.
Q4: Does homeowners insurance cover damage from drilling into a pipe?
Sometimes—but not always. If the damage results from negligence (e.g., drilling without checking), your claim may be denied. Always document your due diligence.
Q5: Can I use a phone app to find pipes?
Most free “pipe finder” apps are unreliable gimmicks. They misuse your phone’s magnetometer, which can’t penetrate walls effectively. Invest in a real tool instead.
Q6: What should I do if I accidentally hit a pipe?
Turn off the main water supply immediately.
Dry the area thoroughly to prevent mold.
Call a licensed plumber for repair.
Document everything for insurance purposes.
Conclusion
Knowing how do I find out where my plumbing pipes are isn’t just handy—it’s a crucial home maintenance skill that can save you thousands in repairs and stress. Whether you’re using blueprints, smart tools, or professional help, accuracy and caution are your best allies.
