Buying an older home or noticing unexplained moisture spots can trigger a wave of anxiety for any homeowner. You might be asking yourself, “How do I know if I have polybutylene plumbing?” because this specific type of piping, widely used between 1978 and 1995, is notorious for failing unexpectedly.
Identifying these pipes early is not just about curiosity; it is about protecting your financial investment and your peace of mind. In this guide, we will walk you through the exact steps to identify polybutylene (PB) pipes, explain why they are risky, and provide actionable advice on what to do next.
What Exactly Is Polybutylene Plumbing?
Before we dive into identification, it is crucial to understand what you are looking for. Polybutylene is a form of plastic resin that was manufactured into piping and marketed as “the pipe of the future.” It was inexpensive, flexible, and easy to install, which made it incredibly popular among builders during the housing boom of the 1980s and early 1990s.
However, over time, it became apparent that polybutylene pipes are chemically unstable when exposed to common disinfectants found in public water supplies, such as chlorine. This exposure causes the plastic to become brittle and flake away from the inside out, leading to pinhole leaks and catastrophic bursts.
According to historical data, it is estimated that over 6 million homes in the United States were built with polybutylene plumbing systems. If your home was constructed or renovated between 1978 and 1995, there is a significant probability that you have this material in your walls or under your slab.
For a deeper technical understanding of the polymer’s chemical properties and failure modes, you can refer to the detailed analysis on Polybutylene – Wikipedia.

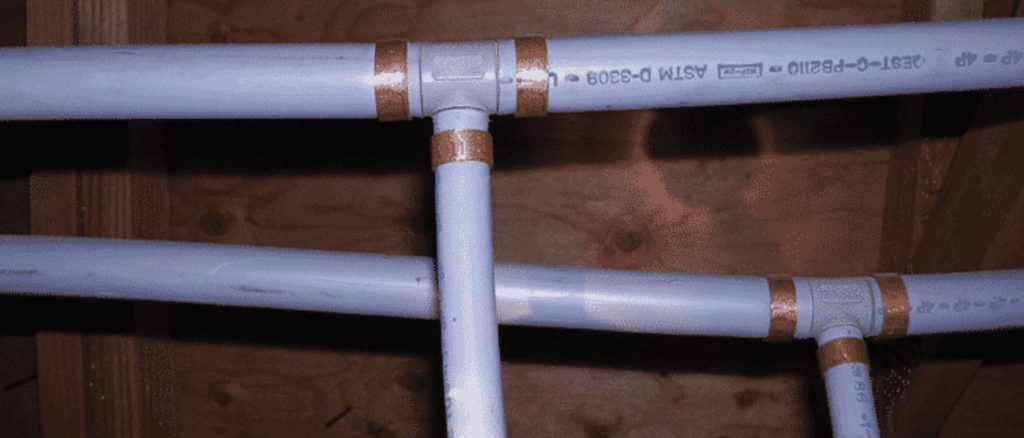

Visual Identification: The “Gray Pipe” Test
The most reliable way to answer “how do I know if I have polybutylene plumbing” is through visual inspection. Unlike copper (which is metallic and shiny) or PEX (which is often red, blue, or white), polybutylene has distinct characteristics.
1. Check the Color
Polybutylene pipes are almost always gray. However, in some rare instances, they may appear blue, black, or silver. If you see gray plastic piping, proceed with caution.
2. Look for the Stamp
This is the definitive test. Polybutylene pipes are stamped with the code PB2110.
- Go to your basement, crawl space, or utility room.
- Locate the water supply lines coming from the main shut-off valve.
- Look closely at the side of the pipe for printed text.
- If you see “PB2110” followed by a size (e.g., 1/2″ or 3/4″), you have polybutylene plumbing.
3. Examine the Fittings
Polybutylene systems rarely use soldered joints like copper. Instead, they use one of two connection methods:
- Copper Crimp Rings: You will see copper metal rings crimped tightly around the pipe where it connects to a fitting.
- Acetal Plastic Fittings: These are gray or black plastic inserts that look somewhat like barbs. Note: Acetal fittings are also prone to failure and are often found alongside PB pipes.
Where to Look: A Room-by-Room Checklist
You don’t need to tear down drywall to find these pipes. Start your inspection in these accessible areas:
| Location | What to Look For |
|---|---|
| Water Heater Area | Check the pipes connecting to the top and bottom of the heater. This is the most common place to spot the “PB2110” stamp. |
| Under Sinks | Look at the supply lines running from the wall to the faucet. Are they gray plastic with copper crimps? |
| Toilet Supply Lines | Check the flexible hose or rigid pipe connecting the wall valve to the toilet tank. |
| Basement/Crawlspace | Follow the main water line entering the house. If the main feed is gray plastic, the entire house likely uses PB. |
| Laundry Room | Inspect the hookups for the washing machine. |
Why Is Polybutylene Considered Dangerous?
Understanding the risk helps clarify why identification is urgent. The failure of polybutylene is not usually due to external pressure or freezing temperatures, but rather oxidative degradation.
Chlorine and chloramines in municipal water attack the polymer chains of the pipe. Over 10–20 years, this causes:
- Micro-fractures: Tiny cracks form on the inner wall of the pipe.
- Flaking: Layers of plastic begin to flake off, restricting water flow.
- Brittleness: The pipe loses its flexibility and becomes prone to snapping at the fittings.
The Scary Part: These failures often happen without warning. A pipe can burst while you are at work or on vacation, causing tens of thousands of dollars in water damage to flooring, drywall, and personal belongings.
Polybutylene vs. PEX vs. Copper: A Comparison
If you are unsure if your gray pipe is PB or modern PEX, use this comparison table. Note that PEX was introduced later and is generally considered safe and durable.
| Feature | Polybutylene (PB) | PEX (Cross-linked Polyethylene) | Copper |
|---|---|---|---|
| Primary Color | Gray (mostly) | Red, Blue, White, or Gray | Metallic Orange/Brown |
| Stamp Code | PB2110 | PEX, ASTM F876, etc. | Type L, Type M, etc. |
| Fittings | Copper Crimps or Plastic Insert | Brass/Copper Crimps or Push-to-connect | Soldered/Sweated Joints |
| Flexibility | Stiff but slightly flexible | Very Flexible | Rigid |
| Risk Level | High (Prone to bursting) | Low (Industry Standard) | Low (Prone to pinholes only in acidic water) |
| Installation Era | 1978–1995 | 1990s–Present | 1960s–Present |
What Should You Do If You Have Polybutylene Pipes?
If you have confirmed the presence of PB2110 pipes, do not panic, but do act strategically. Here is a step-by-step approach:
Step 1: Document Everything
Take clear photos of the pipes, specifically focusing on the “PB2110” stamp and the fittings. This documentation is vital for insurance discussions or home sales.
Step 2: Contact Your Home Insurance Provider
Call your insurer and ask specifically about their policy on polybutylene plumbing.
- Some insurers may deny coverage for water damage resulting from PB failures.
- Others may require you to replace the plumbing within a certain timeframe to maintain coverage.
- Tip: Be honest. Hiding this information can lead to claim denials later.
Step 3: Get Quotes for Repiping
Replacing polybutylene plumbing is the only permanent solution. You have two main options:
- PEX Repiping: The most common and cost-effective modern solution. PEX is flexible, resistant to chlorine, and easier to install.
- Copper Repiping: More expensive and labor-intensive, but offers a long lifespan and higher resale value perception in some markets.
Step 4: Prioritize High-Risk Areas
If a full repipe is not immediately financially feasible, consider replacing the most accessible sections first, such as the lines under sinks and behind toilets, where leaks are most likely to cause immediate visible damage.
FAQ: Common Questions About Polybutylene Plumbing
1. Can I repair a leaking polybutylene pipe instead of replacing it?
While you can patch a single leak using a coupling, this is not a recommended long-term solution. Because the degradation happens throughout the entire length of the pipe, fixing one leak does not prevent another from occurring next week. Most professionals advise against spot repairs.
2. Does homeowners insurance cover polybutylene pipe replacement?
Generally, no. Most standard homeowners insurance policies consider repiping a maintenance issue, similar to replacing an old roof. They may cover the water damage caused by a burst pipe, but many carriers are now excluding coverage for damages stemming from known defective materials like polybutylene. Always check your specific policy details.
3. How much does it cost to repipe a house with polybutylene?
The cost varies based on the size of the home and the material chosen. On average, repiping a standard 2,000-square-foot home with PEX costs between $4,000 and $8,000. Copper repiping can range from $8,000 to $15,000 or more. While expensive, it is significantly cheaper than repairing major water damage.
4. Will having polybutylene plumbing lower my home’s value?
It can. Many informed buyers will request a price reduction to account for the cost of repiping, or they may walk away from the deal entirely due to the perceived risk. Disclosing the presence of PB pipes is legally required in most states during a sale. Proactively replacing them can actually increase your home’s marketability.
5. Is all gray plastic pipe polybutylene?
Not necessarily. Some modern PEX pipes are gray. The key differentiator is the stamp. If the gray pipe is stamped with PEX or ASTM F876, it is safe. If it is stamped PB2110, it is polybutylene. If there is no stamp, consult a licensed plumber for verification.
6. How long do polybutylene pipes last?
While they were expected to last 50+ years, real-world data shows that most polybutylene systems begin to fail between 10 and 20 years after installation. Given that most were installed before 1995, nearly all existing PB systems are now well beyond their reliable lifespan.
Conclusion
Knowing how do I know if I have polybutylene plumbing is the first step in safeguarding your home. By checking for the gray color and the distinctive PB2110 stamp, you can quickly determine if your home is at risk.
While the prospect of repiping may seem daunting, it is a proactive investment that prevents catastrophic water damage and enhances your home’s value. Don’t wait for a leak to appear. Inspect your pipes today, consult with a licensed plumber, and secure your home’s future.
Found this guide helpful? Share it with friends who bought homes built in the 80s or 90s to help them avoid potential plumbing disasters!
