Moving into a new home or replacing an old washer? Figuring out how do I plumb in a washing machine can feel overwhelming—especially if you’ve never touched a pipe before. But don’t worry: with the right tools and a clear guide, most homeowners can install a washing machine in under an hour. This step-by-step tutorial walks you through everything you need to know, from locating water valves to preventing costly leaks. Let’s get your laundry room up and running—safely and efficiently.
Why Proper Washing Machine Plumbing Matters
Improper installation is a leading cause of household water damage. According to the Insurance Information Institute, water damage and freezing account for nearly 25% of all homeowners’ insurance claims—many stemming from faulty appliance hookups. A correctly plumbed washing machine not only protects your floors and walls but also ensures your machine runs efficiently and lasts longer.
What Tools and Supplies Do You Need?
Before you begin, gather these essentials:
Adjustable wrench
Screwdriver (flathead and Phillips)
Bucket or towels (for spills)
Teflon tape (plumber’s tape)
New washing machine hoses (stainless steel braided hoses recommended)
Drain hose (usually included with the machine)
Level (to ensure the washer doesn’t vibrate excessively)
💡 Pro Tip: Always replace rubber hoses with stainless steel braided hoses. The U.S. Consumer Product Safety Commission estimates that over 200,000 washing machine floods occur annually—many due to burst rubber hoses. Braided hoses cost just $15–$25 and can prevent thousands in water damage.
Step-by-Step: How Do I Plumb In a Washing Machine?
Follow these precise steps to install your washing machine like a pro:
1. Turn Off the Water Supply
Locate the hot and cold water shut-off valves behind your laundry area (usually labeled “H” and “C”). Turn both clockwise until fully closed. Open the old machine’s water taps briefly to relieve pressure and drain residual water into a bucket.
2. Position the Washing Machine
Slide the machine into place, leaving at least 4–6 inches of clearance behind for hoses and ventilation. Use a level to adjust the machine’s feet until it sits evenly—this reduces vibration and noise during spin cycles.

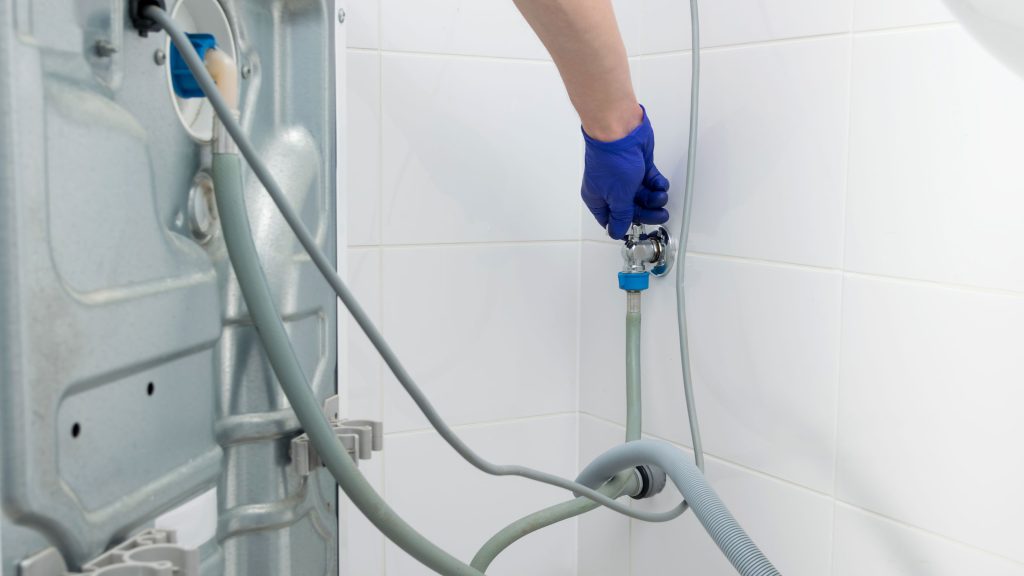

3. Connect the Water Inlet Hoses
Attach the cold water hose (usually marked blue) to the cold valve and the washer’s cold inlet.
Attach the hot water hose (usually red) to the hot valve and the hot inlet.
Hand-tighten first, then give a quarter-turn with a wrench—do not overtighten, as this can crack fittings.
Wrap Teflon tape clockwise around threaded connections for a leak-proof seal.
4. Install the Drain Hose
Route the drain hose into the standpipe (the vertical pipe in the wall) or a utility sink. Ensure it’s secured with a clip and forms a loop (called a “high loop”) at least 30 inches above the floor. This prevents siphoning and backflow.
📌 Note: Per the International Residential Code (IRC), the standpipe must be 2 inches in diameter and extend 30–48 inches above the floor.
5. Turn On Water & Test for Leaks
Slowly open both shut-off valves. Check all connections for drips. Run a quick rinse cycle and inspect again. If you spot moisture, tighten slightly or reapply Teflon tape.
You’re installing in a basement without a floor drain (flood risk)
Local codes require professional certification (check with your municipality)
FAQ Section
Q: Can I plumb a washing machine myself?
A: Yes! If you have basic tools and shut-off valves, most homeowners can safely install a washing machine in 30–60 minutes. Just follow safety steps and use quality hoses.
Q: Do I need both hot and cold water connections?
A: Most modern machines use cold-fill only, even for warm washes (they heat the water internally). Check your manual—but if it’s a cold-fill model, you only need to connect the cold hose.
Q: How far can the drain hose go?
A: The drain hose should not exceed 6–8 feet in length and must maintain a vertical rise (high loop). Longer runs reduce drainage efficiency and may cause backups.
Q: What if my laundry room has no standpipe?
A: You can drain into a utility sink using a sink adapter, but ensure the hose is securely clipped and doesn’t fall out during cycles. Never lay the hose flat on the floor.
Q: How often should I replace washing machine hoses?
A: Every 5 years, even if they look fine. Rubber degrades over time, and stainless steel hoses aren’t immune to wear. Mark the install date with a permanent marker as a reminder.
Q: Why is my washing machine leaking after installation?
A: Most leaks come from loose hose connections or damaged washers inside hose fittings. Turn off water, dry the area, and re-tighten or replace the hose ends.
Conclusion
Now you know exactly how do I plumb in a washing machine—safely, correctly, and confidently. By following these steps, you’ll avoid common pitfalls, protect your home from water damage, and extend your appliance’s lifespan. Plus, you’ll save $100–$200 on professional installation fees!
If this guide helped you, share it with a friend who’s setting up their first laundry room! And don’t forget to pin it on Pinterest or tweet it—your DIY win could save someone else from a flooded basement.
Got questions? Drop them in the comments below—we’re happy to help!
