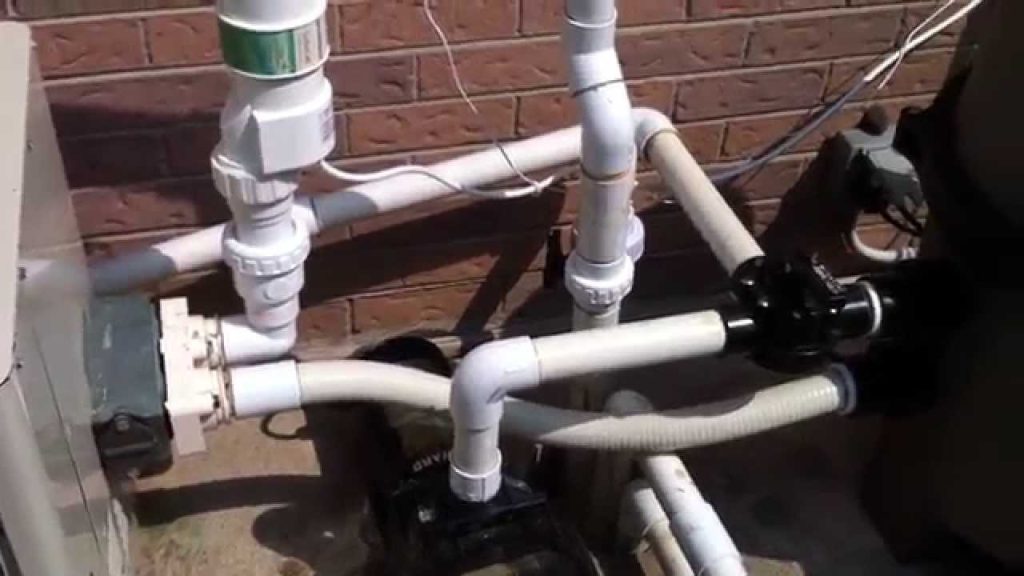

How Do I Relocate Pool Flow Switch in Pool Plumbing?

If you’ve ever wondered, “How do I relocate pool flow switch in pool plumbing?”—you’re not alone. Many pool owners face this challenge when upgrading equipment, reconfiguring plumbing layouts, or troubleshooting inconsistent system performance. A properly positioned flow switch is essential for protecting your heater and ensuring efficient circulation. In this guide, we’ll walk you through the entire process with clarity, safety, and precision—so you can get it right the first time.

Why Would You Need to Relocate a Pool Flow Switch?

Before diving into the “how,” it’s important to understand the “why.” Common reasons include:

• Equipment upgrades: Installing a new heater or pump may require repositioning the flow switch.
• Plumbing rerouting: Renovations or leak repairs often shift pipe configurations.
• Incorrect initial installation: Some older systems place the flow switch too close to elbows or valves, causing false readings.
• Compliance with codes: Local building or safety codes may mandate specific placement relative to other components.

According to the Association of Pool & Spa Professionals (APSP), improper flow switch placement is among the top three causes of premature heater failure—making relocation not just convenient, but critical for longevity.

Where Should a Pool Flow Switch Be Installed? (Best Practices)

The ideal location isn’t arbitrary—it’s engineered for accuracy and safety. Here’s what experts recommend:

✅ Downstream of the filter and pump, but upstream of the heater
✅ At least 12 inches of straight pipe before and after the switch
✅ Horizontal orientation (unless specified otherwise by the manufacturer)
✅ Away from turbulent zones like elbows, tees, or valves

⚠️ Note: Most manufacturers (like Hayward, Pentair, and Jandy) require the flow switch to be installed vertically or horizontally per their manual. Always consult yours first.

For reference, Wikipedia’s entry on flow sensors explains how turbulence and pipe geometry affect measurement accuracy—reinforcing why straight pipe runs matter.

Step-by-Step Guide: How to Relocate Your Pool Flow Switch

Follow these steps carefully. Safety first—always turn off power at the breaker before working on electrical or plumbing components.

Step 1: Turn Off Power and Water Supply

• Shut off the circuit breaker for your pool equipment.
• Close isolation valves upstream and downstream of the current flow switch.
• Drain water from the section you’ll be working on using drain plugs or a wet/dry vac.

Step 2: Remove the Old Flow Switch

• Use a pipe cutter or hacksaw to remove the section containing the old switch.
• Clean pipe ends thoroughly—any debris can cause leaks or poor glue adhesion.

Step 3: Plan the New Location

• Measure and mark where the new switch will go, ensuring:
  • Minimum 12″ straight pipe before and after
  • Easy access for future maintenance
  • Proper alignment with wiring conduit

Step 4: Cut and Prepare New Pipe Section

• Cut PVC or CPVC pipe to length (use Schedule 40 for most residential pools).
• Dry-fit all pieces before gluing to confirm alignment.

Step 5: Install the Flow Switch

• Apply PVC primer and cement to pipe ends and fittings.
• Insert the flow switch into the assembly quickly but carefully—hold for 30 seconds to set.
• Ensure the arrow on the switch body points in the direction of water flow.

Step 6: Reconnect Wiring

• Route the low-voltage wires to the heater control panel.
• Match wire colors (typically red/black or as labeled).
• Secure connections with waterproof wire nuts or terminal blocks.

Step 7: Pressure Test and Restore Power

• Slowly open isolation valves and check for leaks.
• Once confirmed leak-free, restore power and run the system.
• Verify the heater activates only when adequate flow is detected.

💡 Pro Tip: Use a flow meter or bucket test to confirm flow rate is within your heater’s required range (usually 20–60 GPM for residential units).

Common Mistakes to Avoid

Tools & Materials You’ll Need

• PVC pipe cutter or hacksaw
• PVC primer and cement
• Measuring tape & marker
• Screwdriver & wire strippers
• Teflon tape (for threaded models)
• Bucket or shop vac (for draining)
• Replacement flow switch (e.g., Honeywell W935A1007 or equivalent)

Most DIYers complete this job in 2–4 hours with basic tools. If you’re unsure about electrical work, consult a licensed pool technician—safety is non-negotiable.

FAQ Section

Q1: Can I install a flow switch vertically?

Yes—but only if the manufacturer allows it. Check your model’s spec sheet. Vertical installs must have water flowing upward through the switch to prevent air pockets.

Q2: What happens if the flow switch is bypassed?

Bypassing disables a critical safety feature. Without it, your heater could fire with no water flow, causing catastrophic overheating and potential fire risk. Never bypass permanently.

Q3: How do I test if my relocated flow switch works?

Run the pump and observe the heater. It should only ignite when flow is present. Alternatively, use a multimeter to check continuity across the switch terminals during operation.

Q4: Do all pool heaters require a flow switch?

Most gas and heat pump heaters do. Electric resistance heaters often use internal pressure switches instead. Confirm your system type before proceeding.

Q5: Can I reuse my old flow switch?

Only if it’s in perfect condition—no cracks, corrosion, or sluggish paddle movement. Given their low cost ($30–$70), replacement is often smarter than reuse.

Q6: Is a flow switch the same as a pressure switch?

No. A flow switch detects actual water movement (via a paddle or turbine). A pressure switch responds to system pressure changes. They serve similar safety roles but operate differently.

Conclusion

Relocating your pool flow switch might seem technical, but with the right planning and precautions, it’s a manageable DIY project that pays off in system reliability and safety. By following best practices—straight pipe runs, correct orientation, and secure wiring—you’ll ensure your heater operates efficiently for years.

✅ Key Takeaways:

• Always maintain 12+ inches of straight pipe around the switch
• Never skip the pressure and flow tests post-installation
• When in doubt, consult a professional—your safety is worth more than savings
