How Do Plumbing Pipes Run Under Your House?

Have you ever wondered what lies beneath your feet when you walk through your living room? For most homeowners, the network of water and waste lines hidden under the foundation is a mystery—until something goes wrong. Understanding how do plumbing pipes run under the house is not just for plumbers; it is essential knowledge for anyone looking to renovate, troubleshoot leaks, or simply protect their biggest investment.

Whether you are dealing with a mysterious damp spot on the floor or planning a bathroom addition, knowing the layout of your underground plumbing can save you thousands of dollars in unnecessary demolition. In this guide, we will break down the common configurations, materials, and maintenance tips for under-house plumbing, ensuring you have the expertise to handle your home’s infrastructure with confidence.

The Three Main Foundation Types and Plumbing Layouts

The way your plumbing is installed depends heavily on your home’s foundation. In the United States, residential construction generally falls into three categories: slab-on-grade, crawlspace, and basement. Each has a unique “plumbing personality.”

1. Slab-on-Grade Foundations

Common in warmer climates like California, Texas, and Florida, a slab-on-grade foundation consists of a single layer of concrete poured directly on the ground.

• How it works: All water supply lines and sewer drains are installed before the concrete is poured. They rest on a bed of sand or gravel and are then encased in concrete.
• The Challenge: Once the slab cures, the pipes are inaccessible. If a leak occurs, it is considered a “slab leak,” which often requires electronic detection and specialized repair methods rather than simple access.
• Key Insight: Supply lines are typically routed through the walls (stud bays) to reach fixtures, while drain lines remain under the slab.

2. Crawlspace Foundations

Prevalent in the Southeast and Mid-Atlantic regions, crawlspaces elevate the home slightly above the ground, creating a shallow accessible area (usually 18 inches to 3 feet high).

• How it works: Plumbing runs through the air within the crawlspace, suspended from joists or resting on the ground.
• The Advantage: Accessibility. Plumbers can easily inspect, repair, or replace pipes without breaking concrete.
• The Risk: Pipes in unconditioned crawlspaces are susceptible to freezing in winter and humidity damage year-round. Proper insulation and vapor barriers are critical here.

3. Basement Foundations

Common in the Northeast, Midwest, and Pacific Northwest, basements provide full-height access to the home’s underside.

• How it works: Similar to crawlspaces but with ample headroom. Main sewer lines often run along the ceiling of the basement (under the first-floor joists) before exiting the house.
• The Advantage: Easiest access for modifications. You can see every pipe, valve, and connection.
• Key Insight: Gravity is your friend here. Drain lines must maintain a specific slope (pitch) to ensure waste flows out toward the municipal sewer or septic tank.

Supply Lines vs. Drain-Waste-Vent (DWV) Systems

To truly understand how do plumbing pipes run under the house, you must distinguish between the two separate systems operating beneath your floor.

The Water Supply System (Pressurized)

This system brings fresh water into your home. Because it is pressurized by the municipal supply or a well pump, the pipes can run vertically and horizontally with ease.

• Material: Modern homes use Copper, PEX (cross-linked polyethylene), or CPVC. Older homes may have Galvanized Steel or Polybutylene.
• Routing: The main line enters the house, passes through a shut-off valve and meter, and splits into hot and cold lines. Under a slab, these lines often run in straight shots to reduce friction and potential leak points.

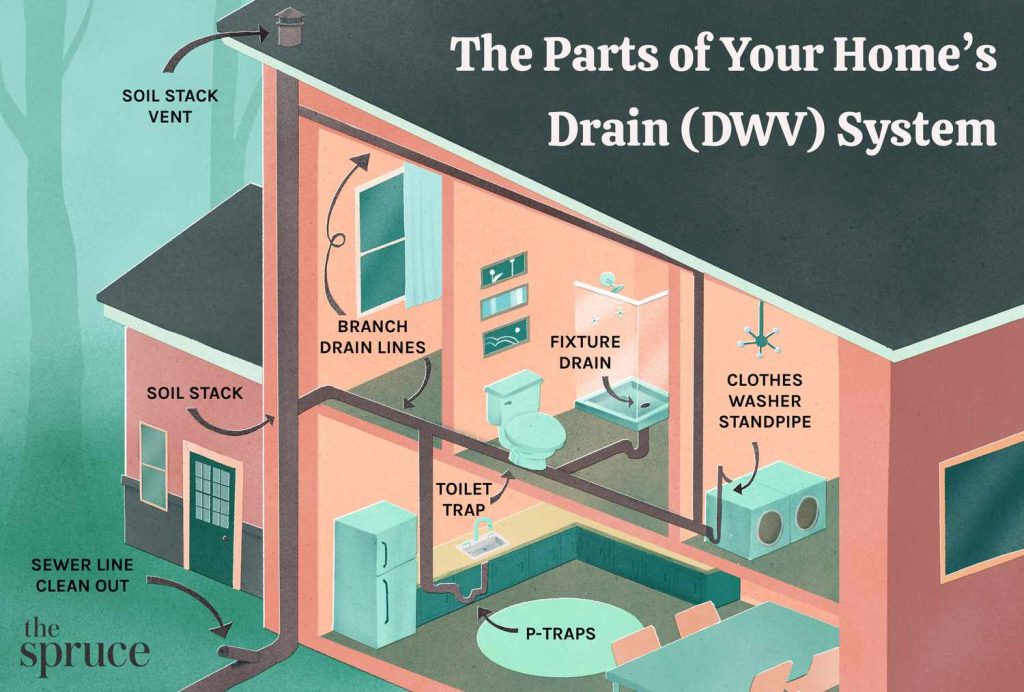

The DWV System (Gravity-Based)

The Drain-Waste-Vent system removes wastewater and sewage. Unlike supply lines, DWV pipes rely entirely on gravity.

• Material: Typically PVC (white plastic) or ABS (black plastic) in modern construction. Cast iron was standard in homes built before the 1980s.
• Routing: These pipes must slope downward at a precise rate. According to the International Plumbing Code (IPC), a 3-inch pipe should slope at least 1/8 inch per foot, while a 4-inch pipe needs 1/4 inch per foot.
• Venting: Vent pipes extend up through the roof to allow air into the system, preventing vacuum locks that would slow drainage. Under the house, vent lines connect to the main drain stack.

For a deeper technical understanding of material standards, you can refer to the Wikipedia page on Plumbing, which outlines the historical evolution of pipe materials used in residential construction.

Common Materials Found Under Houses

Knowing what your pipes are made of helps you assess their lifespan and vulnerability.

Step-by-Step: How to Locate Your Under-House Pipes

If you are planning a renovation or suspect a leak, follow these steps to map your plumbing safely.

1. Check Your Home Inspection Report: If you bought your home recently, the inspection report often includes photos of the crawlspace or basement plumbing. Look for notes on material types and visible conditions.
2. Use Electronic Leak Detection: For slab foundations, never guess. Hire a professional who uses acoustic listening devices or thermal imaging cameras. These tools detect the sound of escaping water or temperature changes in the concrete.
3. Trace from Fixtures: In a crawlspace or basement, start at a sink or toilet. Follow the drain line backward to see how it connects to the main stack. Note any elbows or joints, as these are common failure points.
4. Look for Cleanouts: A cleanout is a capped pipe that provides direct access to the sewer line. Locating this outside your house helps you understand the exit point of your under-house plumbing.
5. Consult As-Built Drawings: If your home is newer, the builder may have provided “as-built” blueprints showing the exact routing of utilities. Contact your local county recorder’s office if you do not have these copies.

FAQ: Common Questions About Under-House Plumbing

1. How deep are plumbing pipes under a house?

For slab foundations, pipes are typically buried 12 to 24 inches below the concrete surface, resting on a sand bed. In crawlspaces and basements, they are suspended above the ground or attached to joists, so depth is not applicable, but clearance from the earth is vital to prevent moisture damage.

2. Can I run new plumbing under an existing slab?

It is highly discouraged. Cutting into a structural slab compromises its integrity and is expensive. The preferred method is to reroute pipes through the walls (attic or stud bays) or build a false floor to conceal new lines. If you must go under, trenching outside the foundation is safer.

3. What are the signs of a slab leak?

Common signs include:

• Unexplained spikes in your water bill.
• The sound of running water when all fixtures are off.
• Warm spots on the floor (for hot water lines).
• Cracks in flooring or walls due to soil expansion from moisture.
• Mold or mildew smells near the baseboards.

4. How long do underground plumbing pipes last?

It depends on the material. Copper and PVC can last 50–100 years. Cast iron lasts 50–75 years. Galvanized steel often fails within 20–50 years due to internal rust. If your home is older than 40 years and has original galvanized pipes, consider a repipe.

5. Does homeowners insurance cover slab leaks?

Typically, no. Most standard policies cover the result of the leak (e.g., water damage to floors) but not the repair of the pipe itself, which is considered a maintenance issue. However, some insurers offer optional service line coverage for an additional fee.

6. Why do pipes freeze in crawlspaces but not under slabs?

Concrete acts as an insulator and retains heat from the earth. In a crawlspace, pipes are exposed to ambient air temperatures. If the crawlspace is not insulated or heated, pipes can freeze when outdoor temperatures drop below freezing for extended periods.

Conclusion

Understanding how do plumbing pipes run under the house empowers you to make smarter decisions about home maintenance and renovations. Whether you have a slab, crawlspace, or basement, each system has unique strengths and vulnerabilities. By identifying your pipe materials, monitoring for leaks, and respecting the gravity-based design of DWV systems, you can avoid costly emergencies.

Remember, while DIY curiosity is great, working with pressurized water lines and sewage systems often requires professional expertise. If you suspect a leak or plan major changes, always consult a licensed plumber.
