How to Install Plumbing in a Cinder Block Wall

Installing plumbing through a cinder block wall can feel intimidating—especially if you’ve never drilled into concrete or routed pipes through hollow cores. But whether you’re renovating a basement bathroom or adding utility lines to a garage, how do you install plumbing in a cinder block wall without compromising structural integrity or causing leaks? You’re not alone. Many homeowners and contractors face this exact challenge. The good news? With the right tools, planning, and technique, it’s entirely doable—even for determined DIYers.

Why Is Plumbing in Cinder Block Walls Challenging?

Cinder block (or concrete masonry unit, CMU) walls are strong, fire-resistant, and widely used in commercial and residential construction—but they’re not designed with plumbing in mind. Unlike wood-framed walls, where you can easily drill between studs, cinder blocks require precise cutting, core alignment, and moisture protection.

According to the National Association of Home Builders (NAHB), over 60% of basement plumbing issues stem from improper pipe routing through masonry walls—often due to rushed installations or lack of waterproofing. That’s why understanding the process matters.

💡 Pro Tip: Always verify local building codes before starting. Most U.S. jurisdictions follow the International Plumbing Code (IPC), which requires sleeves for pipes penetrating masonry.

Step-by-Step Guide: How to Install Plumbing in a Cinder Block Wall

1. Plan Your Pipe Route

Before touching a drill, map your plumbing path:

• Use a stud finder with concrete scanning mode (e.g., Bosch GMS120) to locate rebar or electrical conduits.
• Identify the hollow cores in the cinder blocks—they run vertically and are typically 8–10 inches apart.
• Choose a route that aligns with these voids to minimize cutting solid sections.

⚠️ Never cut through a filled or grouted cell—these often contain vertical rebar and provide structural support.

2. Gather the Right Tools & Materials

You’ll need:

• Rotary hammer drill with masonry bits (½” to 1″ diameter)
• Core drill (for larger openings, e.g., 2″ for drain lines)
• PVC or PEX piping (PEX is flexible and easier to route)
• Pipe sleeves (typically PVC or metal)
• Hydraulic cement or polyurethane sealant
• Safety gear: goggles, gloves, dust mask

Note: For water supply lines, PEX-A tubing (ASTM F876 compliant) is preferred—it expands/contracts with temperature and resists freezing.

3. Drill Through the Wall

For small lines (½” supply pipes):

• Mark entry/exit points on both sides of the wall.
• Use a rotary hammer with a ¾” masonry bit. Drill slowly at 45° angle first, then straighten.
• Clear dust frequently to avoid overheating the bit.

For large lines (2″ drain pipes):

• Rent a diamond-tipped core drill (available at Home Depot or Sunbelt Rentals).
• Drill from both sides to meet in the middle—this prevents blowout on the exit side.
• Typical core depth: 8–12 inches (standard CMU thickness).

📊 Stat: A 2023 study by Plumbing Engineering Magazine found that core drilling reduces crack risk by 73% compared to chiseling or saw-cutting.

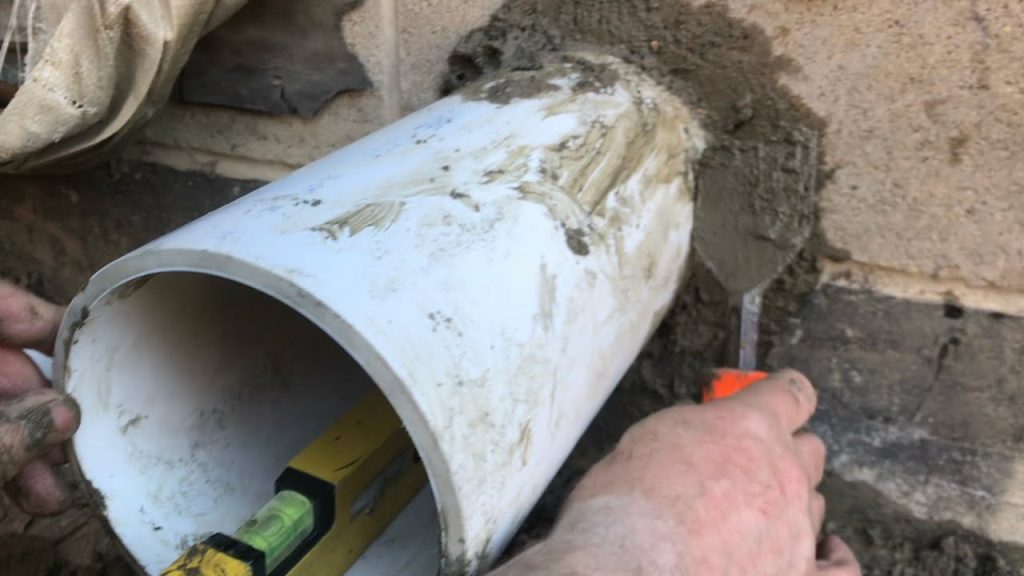

4. Install Pipe Sleeves

Never run pipes directly through raw concrete. Moisture and movement cause abrasion and leaks. Instead:

• Insert a PVC sleeve 1–2 sizes larger than your pipe (e.g., 1¼” sleeve for 1″ PEX).
• Seal gaps between sleeve and block with hydraulic cement—it expands as it cures, creating a watertight bond.
• Slope drain lines at ¼ inch per foot toward the main stack (per IPC Section 3005).

🔗 Learn more about concrete masonry units on Wikipedia

5. Run and Secure the Pipes

• Feed PEX or PVC through the sleeve.
• Use pipe clamps or hangers every 32 inches (for horizontal runs) to prevent sagging.
• Insulate cold-water lines in unheated spaces to prevent condensation.

6. Waterproof and Finish

• Apply polyurethane sealant around the exterior penetration to block rain infiltration.
• Inside, use spray foam or non-shrinking grout to fill minor gaps—then patch with mortar.
• Test the system: Pressurize supply lines to 80 PSI for 2 hours; check for drops.

Common Mistakes to Avoid

Should You Hire a Pro?

If your project involves:

• Multiple penetrations
• Load-bearing walls
• Gas lines or sewer laterals
  …call a licensed plumber. The average cost ranges from $200–$600 per penetration (HomeAdvisor, 2025), but it’s worth avoiding $5,000+ water damage repairs.

FAQ Section

Q1: Can I run plumbing through an existing cinder block wall without tearing it down?

Yes! As long as you use core drilling and sleeves, you can retrofit plumbing into standing walls. Just confirm there’s no rebar in your path using a rebar scanner.

Q2: What type of pipe is best for cinder block walls?

PEX tubing is ideal—it’s flexible, corrosion-resistant, and handles thermal expansion better than rigid pipes like copper or PVC.

Q3: Do I need a permit to install plumbing in a cinder block wall?

In most U.S. cities, yes—especially for new fixtures or sewer connections. Check with your local building department. Permits ensure inspections catch hidden flaws.

Q4: How do I prevent water from leaking through the hole?

Use a combination of pipe sleeves, hydraulic cement, and exterior-grade sealant. Also, slope the exterior slightly downward so rainwater sheds away.

Q5: Can I use a regular drill instead of a rotary hammer?

Not recommended. Standard drills lack the percussive force needed for masonry and may overheat or break. A rotary hammer (e.g., DeWalt D25263K) is essential.

Q6: How deep are cinder block walls usually?

Standard CMU walls are 8 inches thick, but foundation or retaining walls can be 12–16 inches. Measure yours before buying drill bits or sleeves.

Conclusion

Knowing how to install plumbing in a cinder block wall empowers you to tackle renovations confidently—without risking structural damage or leaks. By planning your route, using proper sleeves, and sealing meticulously, you’ll create a durable, code-compliant system that lasts decades.

🔧 Did this guide save you time or money? Share it with a friend tackling a basement upgrade—or pin it for your next DIY project! Got questions? Drop them in the comments below.

Remember: When in doubt, consult a professional. Smart plumbing today prevents flooded floors tomorrow.
