How P-Traps Connect to Drain Lines: A Pro Guide

Have you ever noticed a faint, unpleasant odor lingering around your sink, or perhaps heard a gurgling sound when the dishwasher runs? These are classic signs that your plumbing trap isn’t doing its job correctly. Understanding how a P-trap connects to plumbing drain lines is essential not just for fixing leaks, but for maintaining a healthy, safe, and odor-free home environment.

Whether you are a DIY enthusiast looking to replace an old, corroded trap or a homeowner trying to diagnose a persistent clog, this guide will walk you through the mechanics, codes, and best practices of P-trap connections. We’ll break down the technical jargon into simple, actionable steps so you can tackle your plumbing projects with confidence.

What Is a P-Trap and Why Is It Critical?

Before we dive into the connection mechanics, it is vital to understand what we are connecting. A P-trap is that U-shaped pipe section located directly beneath your sink, bathtub, or shower drain. Its name comes from its shape, which resembles the letter “P” lying on its side.

The Science Behind the Seal

The primary function of a P-trap is not to catch jewelry (though it often does), but to hold a small amount of water after every use. This water creates an airtight seal that prevents sewer gases—such as methane and hydrogen sulfide—from entering your living space. Without this water barrier, your home would essentially be open to the municipal sewer system.

According to basic plumbing physics, gravity pulls wastewater down, but the curve of the trap retains just enough liquid to block air flow while allowing solids and liquids to pass through. If the connection to the drain line is improper, this seal can be siphoned out or blown out, rendering the trap useless.

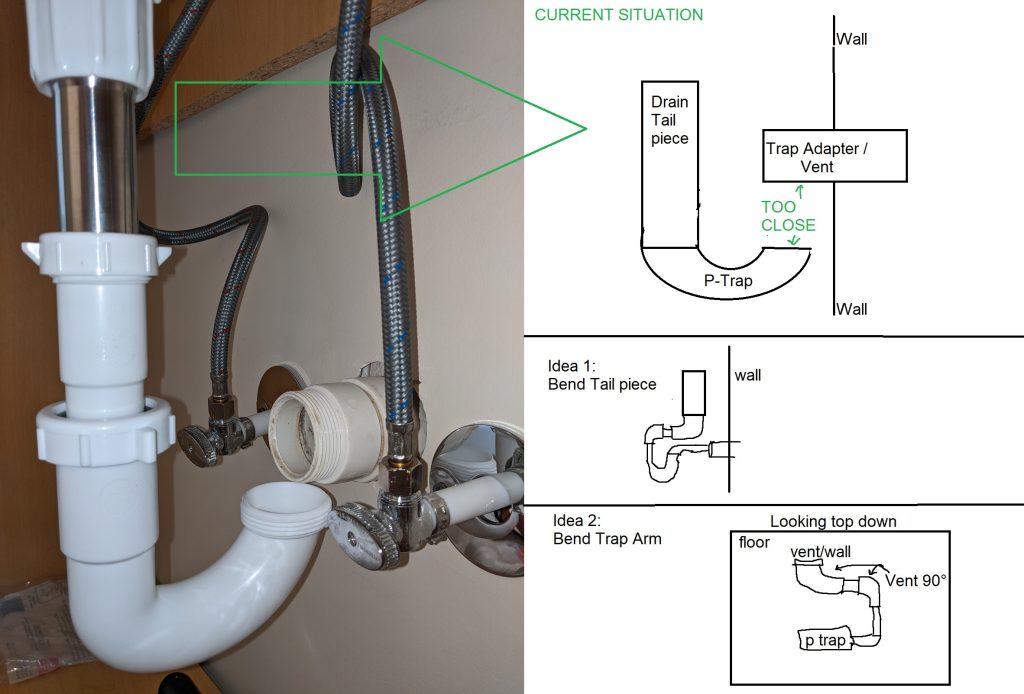

How Does the P-Trap Physically Connect to the Wall Drain?

The connection between the P-trap and the main drainage system is a critical junction point. It involves several components working in harmony to ensure a leak-free and code-compliant setup.

The Components of the Connection

1. The Trap Arm: This is the horizontal pipe that extends from the bottom of the P-trap curve into the wall or floor drain.
2. The Slip Nut and Washer: These create the mechanical seal between the trap arm and the wall stub-out.
3. The Wall Stub-Out: This is the pipe protruding from your wall, usually made of PVC, ABS, or copper, depending on your home’s age and local codes.

The Importance of Slope

One of the most common mistakes DIYers make is ignoring the slope. The trap arm must slope downward toward the drain line. The standard requirement, as outlined in most US plumbing codes, is a 1/4 inch drop per foot of length.

• Too Flat: Water won’t drain efficiently, leading to sediment buildup and clogs.
• Too Steep: The water may move too fast, potentially siphoning the trap dry or causing “self-siphonage,” which breaks the water seal.

Pro Tip: Always use a level when installing the trap arm. A digital level can help you achieve the precise 2% slope (1/4 inch per foot) required for optimal performance.

What Are the Standard Materials and Fittings Used?

When learning how a P-trap connects to plumbing drain lines, you must choose the right materials. Mixing incompatible materials can lead to chemical reactions, leaks, or code violations.

Common Pipe Materials

Essential Fittings

• Slip Joints: These allow for minor adjustments in height and depth during installation. They use a rubber or plastic washer to create a seal.
• Sanitary Tee vs. Wye: When connecting to the vertical stack, a Wye fitting is generally preferred over a Sanitary Tee for horizontal-to-vertical transitions because it offers less resistance to flow and reduces the chance of clogging. For detailed standards on pipe fittings, you can refer to the Wikipedia entry on Pipe Fittings which outlines the historical and technical evolution of these components.

Step-by-Step: How to Install and Connect a P-Trap

If you are replacing an old trap or installing a new one, follow these steps to ensure a secure connection to your drain lines.

Step 1: Measure and Dry Fit

Before applying any glue or tightening nuts, disassemble the old trap and measure the distance from the sink tailpiece to the wall stub-out. Assemble the new P-trap components loosely (dry fit) to ensure they align correctly.

• Check Height: Ensure the bottom of the P-trap is higher than the wall drain entry point.
• Check Length: The trap arm should not be excessively long. Most codes limit the trap arm length to 24 inches for a 1.25-inch pipe and 36 inches for a 1.5-inch pipe.

Step 2: Cut the Pipes

If the trap arm is too long, cut it using a hacksaw or a PVC cutter.

• Deburr: After cutting, use sandpaper or a deburring tool to smooth the edges. Rough edges can catch debris and cause clogs.
• Clean: Wipe the ends of the pipes with a clean cloth to remove dust and grease.

Step 3: Assemble with Washers

Insert the slip nut onto the pipe first, followed by the tapered washer. The tapered end of the washer should face the fitting it is sealing against.

• Hand-Tighten First: Screw the nut on by hand until it is snug. Do not use pliers yet.
• Align: Ensure the P-trap is centered under the drain and the trap arm is straight.

Step 4: Final Tightening

Use channel-lock pliers to tighten the nuts.

• Caution: Overtightening can crack the plastic nuts or distort the washers, leading to leaks. Tighten until the nut stops turning, then give it a quarter-turn more.
• Test: Run water for 2–3 minutes. Check for drips at every connection point. If you see a leak, tighten slightly more or reseat the washer.

Common Mistakes That Break the Trap Seal

Even if the physical connection looks solid, certain hydraulic issues can compromise the P-trap’s function.

1. Siphonage

If the vent pipe is blocked or improperly installed, draining water can create a vacuum that pulls the water out of the P-trap. This is known as siphonage. You might hear a “glug-glug” sound as the trap empties.

2. Wind Effect

Strong winds outside can sometimes pressurize the sewer line, forcing air back through the drain and bubbling out the trap seal. Proper venting on the roof mitigates this.

3. Evaporation

In guest bathrooms or floor drains that are rarely used, the water in the trap can evaporate over time, breaking the seal.

• Solution: Run water in unused sinks once a month to replenish the trap seal.

FAQ Section

Q1: Can I connect a P-trap directly to a horizontal drain line without a vent?

A: No. Every P-trap must be protected by a vent. Without a vent, the flowing water can siphon the trap dry, allowing sewer gases into your home. The vent equalizes pressure in the drain system.

Q2: What is the maximum distance a P-trap can be from the vent?

A: According to the International Plumbing Code (IPC), a 1.25-inch diameter trap arm can be up to 30 inches from the vent. A 1.5-inch trap arm can be up to 42 inches away. Always check your local building codes, as they may be stricter.

Q3: Why is my P-trap leaking at the wall connection?

A: This is usually due to a misaligned washer or an overtightened nut. Ensure the trap arm is not putting stress on the wall stub-out. If the pipe is too short, use an extension tube rather than forcing the connection.

Q4: Can I use flexible P-traps?

A: While flexible traps are available and easy to install, they are prone to sagging and collecting debris in their ridges. Rigid PVC or ABS pipes are recommended for better flow and longevity. Flexible traps should only be used in tight spaces where rigid pipes cannot fit.

Q5: How do I know if my P-trap is clogged?

A: Slow drainage, gurgling sounds, or water backing up into the sink are primary indicators. You can remove the P-trap (place a bucket underneath first) to clean out any accumulated hair, soap scum, or food particles.

Q6: Is it okay to glue the slip joints on a P-trap?

A: Generally, no. Slip joints are designed to be removable for cleaning and maintenance. Use the provided washers and nuts for sealing. Glue is only used for permanent solvent-welded joints (like where the trap arm connects to a fixed pipe inside the wall).

Conclusion

Understanding how a P-trap connects to plumbing drain lines empowers you to maintain a safer and more efficient home plumbing system. By ensuring the correct slope, using compatible materials, and respecting the need for proper venting, you can prevent costly repairs and health hazards associated with sewer gas exposure.

Remember, the key to a successful installation lies in the details: the right washer orientation, the precise 1/4-inch-per-foot slope, and avoiding overtightening. If you ever feel unsure about complex venting issues or major rerouting, don’t hesitate to consult a licensed plumber.
