How Does Plumbing Work in an Apartment Building?

Ever wondered why your faucet still runs when your neighbor upstairs is doing laundry—or why a clog in one unit can sometimes affect others? Understanding how plumbing works in an apartment building isn’t just for engineers or superintendents; it’s useful knowledge for every resident. Whether you’re dealing with low water pressure, strange gurgling sounds, or just want to be a more informed tenant or homeowner, this guide breaks down the complex—but fascinating—world of vertical plumbing in clear, practical terms.

What Makes Apartment Plumbing Different From Single-Family Homes?

Apartment buildings use stacked plumbing systems designed to serve multiple units vertically and horizontally. Unlike a single-family home with one main water line and drain, high-rises rely on a network of risers, branch lines, and vent stacks that must balance efficiency, code compliance, and space constraints.

According to the International Plumbing Code (IPC), buildings over three stories require specialized design considerations—including backflow prevention, pressure-reducing valves, and separate waste stacks for upper floors to prevent siphoning.

💡 Did you know? A typical 10-story apartment building may have 3–5 main vertical pipes (called “stacks”) handling water supply, wastewater, and venting—each serving dozens of fixtures.

The Core Components of Apartment Plumbing Systems

1. Water Supply System: Bringing Clean Water In

Freshwater enters the building through a main service line from the municipal supply. In taller buildings (usually over 4–5 stories), booster pumps are installed to maintain adequate pressure on upper floors.

• Cold water risers: Vertical pipes that distribute cold water to each floor.
• Hot water recirculation loops: Keep hot water moving so it’s instantly available—reducing wait time and water waste.
• Pressure-reducing valves (PRVs): Prevent excessive pressure that could damage fixtures on lower floors.

⚠️ Tip: If your shower pressure drops when someone flushes a toilet, your building may lack proper pressure balancing—a common issue in older apartments.

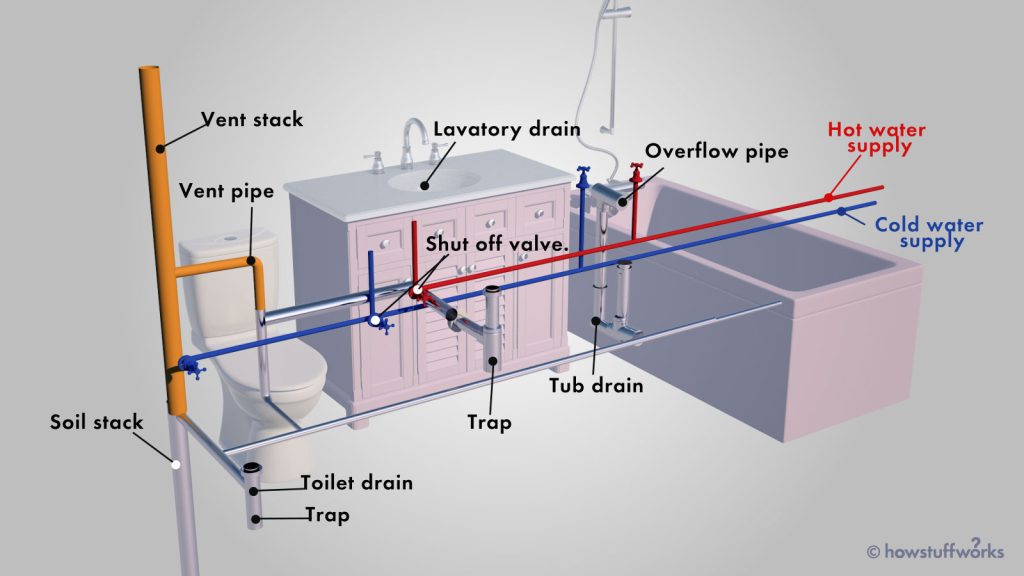

2. Drain-Waste-Vent (DWV) System: Removing Used Water

This is where things get intricate. The DWV system handles three critical functions:

All fixtures connect to branch drains that feed into the main waste stack. Vents extend through the roof, equalizing pressure so water flows smoothly without gurgling or slow drainage.

For deeper insight, see the Wikipedia entry on plumbing systems , which outlines global standards and historical evolution.

3. Fixture Units & Load Calculations

Plumbers don’t just guess pipe sizes—they calculate fixture units (FUs) based on expected water use. For example:

• Toilet: 4 FUs
• Kitchen sink: 2 FUs
• Shower: 2 FUs

These values determine pipe diameter and vent sizing to prevent backups. In a 50-unit building, total fixture load can exceed 300 FUs—requiring 4-inch or larger main stacks.

How Water and Waste Move Through Multiple Floors

Step-by-Step Flow in a Typical Mid-Rise Building

1. Municipal water enters via a 2–4 inch main line at street level.
2. Booster pumps (if needed) increase pressure for upper floors.
3. Cold water risers run vertically through mechanical chases.
4. Each floor branches off to individual units via ½-inch or ¾-inch lines.
5. Used water drains into branch lines sloped at ¼ inch per foot toward the stack.
6. Waste flows down the main stack by gravity—no pumps needed for drainage.
7. Vents release air and prevent negative pressure that could siphon trap seals.
8. Sewer line exits the building underground to the city sewer or septic system.

📊 Real-World Example: In a 2019 NYC case study, a 12-story building reduced water waste by 18% after upgrading to low-flow fixtures and optimizing recirculation timing—proving that smart plumbing design saves money and resources.

Common Plumbing Issues in Apartment Buildings (And How They Happen)

Even well-designed systems face challenges:

• Low water pressure on upper floors: Often due to undersized risers or failing booster pumps.
• Gurgling drains: Caused by blocked or undersized vent stacks.
• Cross-unit leaks: Shared walls mean a pipe leak in Unit 3B can drip into 2B below.
• Sewer backups: Usually from tree roots infiltrating old cast-iron stacks or grease buildup in shared lines.

🔧 Pro Tip: If multiple units report slow drains simultaneously, the issue is likely in the main stack or sewer lateral—not individual lines. Notify management immediately.

Modern Innovations Improving Apartment Plumbing

Today’s high-rises use smarter, more sustainable solutions:

• PEX piping: Flexible, corrosion-resistant tubing replacing copper in many new builds.
• Smart water meters: Detect leaks in real time by monitoring usage anomalies.
• Greywater recycling: Some luxury buildings reuse sink/shower water for irrigation or toilet flushing.
• Acoustic leak detection: Sensors pinpoint hidden leaks behind walls without demolition.

These upgrades not only enhance reliability but also support LEED certification and energy efficiency goals.

FAQ: Your Top Questions About Apartment Plumbing

Q1: Can my neighbor’s plumbing affect mine?

Yes. Since units share vertical stacks and sometimes horizontal branch lines, a major clog or vent blockage in one unit can cause backups or odors in adjacent or lower units. However, each fixture has a P-trap (that U-shaped pipe under sinks) to block sewer gases—so minor issues usually stay contained.

Q2: Why do I hear water running in the walls when no one’s home?

This is often normal. In buildings with hot water recirculation systems, pumps run periodically to keep water hot. You might also hear drainage from upper-floor neighbors—sound travels easily through metal pipes.

Q3: Who’s responsible for plumbing repairs in an apartment?

It depends on your lease and local laws:

• Landlord/management: Responsible for main stacks, risers, and building-wide systems.
• Tenant: Usually covers clogs caused by misuse (e.g., flushing wipes) in their unit’s branch lines.

Always check your rental agreement or condo bylaws.

Q4: How often should plumbing be inspected in an apartment building?

The IPC recommends annual inspections of main stacks, cleanouts, and backflow devices. Older buildings (pre-1980s) with cast-iron or galvanized pipes may need more frequent checks due to corrosion risk.

Q5: What should I do if I smell sewer gas?

First, pour water down unused floor drains—dry traps are the #1 cause. If the smell persists, it could indicate a cracked vent pipe or failed seal. Report it to maintenance immediately; sewer gas contains hydrogen sulfide, which is hazardous in high concentrations.

Q6: Are apartment plumbing systems eco-friendly?

Modern systems are increasingly sustainable. Low-flow fixtures, leak detection, and water-efficient appliances can reduce a building’s water use by 20–30%. Some cities (like Los Angeles and Seattle) now mandate water-saving features in new multi-family constructions.

Conclusion

Now you know how plumbing works in an apartment building—from the moment clean water enters to how waste exits, all while serving dozens of households in a compact vertical space. Understanding these systems helps you troubleshoot issues faster, communicate effectively with property managers, and even advocate for upgrades that save water and prevent costly damage.
