How Does Plumbing Work in a Manufactured Home?

Owning a manufactured home offers an affordable path to homeownership, but it comes with unique maintenance challenges that differ significantly from site-built houses. One of the most critical systems you need to understand is the water supply and drainage network, as mistakes here can lead to costly repairs. If you are wondering how does the plumbing work in a manufactured home, you are not alone; many owners struggle with identifying leaks or preventing frozen pipes until it is too late. This guide will walk you through the specifics of mobile home plumbing, empowering you to maintain your home with confidence and avoid common pitfalls.

The Unique Anatomy of Manufactured Home Plumbing

To understand how to fix or maintain your system, you must first understand how it is built. Unlike traditional homes where pipes are often buried deep within concrete slabs or framed walls with ample insulation, manufactured home plumbing is designed for transportability and cost-efficiency.

The “Underside” Reality

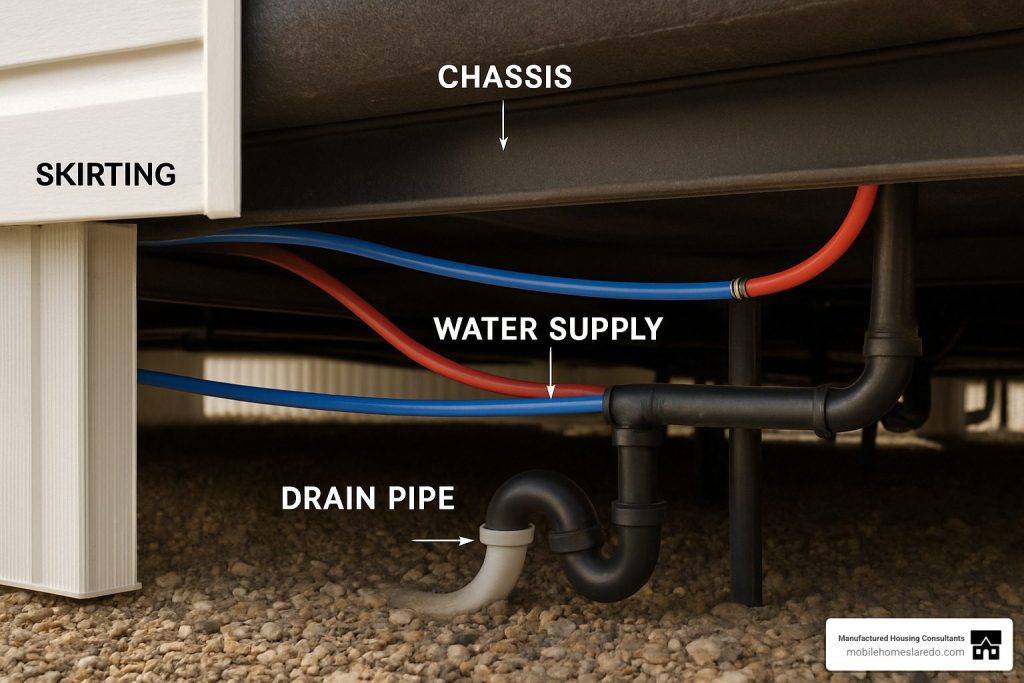

In most manufactured homes, the primary water supply lines and drain-waste-vent (DWV) systems are located beneath the floor, in what is known as the “belly” of the home. This area is enclosed by a material called the belly board or underbelly covering.

• Accessibility: Because the pipes are underneath, accessing them usually requires crawling into the crawl space or removing panels from the bottom of the home.
• Exposure: These pipes are more susceptible to temperature fluctuations and pest damage than those in site-built homes.
• Material Flexibility: The system must withstand the slight flexing of the home during transport and settling, which dictates the type of materials used.

According to industry standards, the plumbing system must be securely fastened to the floor joists to prevent movement during transit. This structural difference is why understanding how does the plumbing work in a manufactured home is vital for any owner—it is a system built for mobility, not just static living.

Key Components: PEX vs. Copper and PVC

The materials used in manufactured homes have evolved significantly over the last few decades. Knowing what pipes you have is the first step in proper maintenance.

The Rise of PEX Tubing

Today, the vast majority of manufactured homes use PEX (Cross-linked Polyethylene) tubing for water supply lines. PEX has replaced copper and CPVC in many applications due to its superior flexibility and resistance to freezing.

Drain-Waste-Vent (DWV) Systems

For drainage, ABS (Acrylonitrile Butadiene Styrene) or PVC pipes are standard. These black or white plastic pipes carry wastewater away from sinks, toilets, and showers. Unlike supply lines, DWV systems rely on gravity. Therefore, the pitch (slope) of these pipes is critical. If a manufactured home is not leveled correctly after installation, the drainage slope can be compromised, leading to slow drains or sewage backups.

How Water Enters and Exits Your Home

Understanding the flow of water helps you troubleshoot issues effectively. The system is divided into two distinct loops: the pressurized supply side and the gravity-based drainage side.

The Supply Side: Pressurized Flow

Water enters your home through the main shut-off valve, typically located near the water heater or where the supply line connects to the city water or well pump. From there, it travels through a manifold system (in newer homes) or a trunk-and-branch system (in older homes).

1. Main Shut-Off: The master control for all water entering the home.
2. Manifold/Trunk Lines: Distributes hot and cold water to various fixtures.
3. Fixture Valves: Individual shut-offs under sinks and behind toilets allow you to isolate specific areas for repair.

The Drainage Side: Gravity and Venting

Wastewater exits through drain pipes that slope downward at a rate of approximately 1/4 inch per foot. However, drainage cannot occur without proper venting.

Vent pipes extend through the roof to allow air into the drainage system. This prevents vacuum locks that would slow down drainage and stops sewer gases from entering your living space. In manufactured homes, these vents are carefully integrated into the roof structure during factory assembly. For more detailed technical standards on plumbing codes, you can refer to general plumbing principles outlined on Wikipedia.

Critical Challenge: Freeze Protection and Insulation

The biggest enemy of manufactured home plumbing is freezing temperatures. Because pipes are located in the unheated belly of the home, they are at high risk during winter months. Understanding how does the plumbing work in a manufactured home means understanding how to protect it from the cold.

The Role of the Belly Board

The belly board is a protective layer of foil-backed insulation and fabric that wraps the underside of the home. It serves two purposes: thermal insulation and wind barrier. If this board is torn or missing, cold air can sweep directly across your pipes, causing them to freeze rapidly.

Best Practices for Winterization

If you live in a climate with freezing temperatures, take these proactive steps:

• Inspect the Underbelly: Regularly check for tears, sagging, or animal damage. Repair any breaches immediately with approved belly board tape or replacement material.
• Heat Tape: Apply self-regulating heat tape to exposed pipes in vulnerable areas, such as near the hitch or outer edges of the home.
• Skirting: Install high-quality vinyl or metal skirting around the base of your home. This creates a buffer zone that traps ground heat and keeps wind away from the plumbing.
• Keep Cabinets Open: During extreme cold snaps, open cabinet doors under sinks to allow warm indoor air to circulate around the pipes.

Common Plumbing Issues and Troubleshooting

Even with proper maintenance, issues can arise. Here are the most common problems manufactured home owners face and how to address them.

1. Leaky Joints and Fittings

Due to the vibration of transport and settling, fittings can loosen over time.

• Symptom: Damp spots on the floor or increased water bills.
• Fix: Tighten compression fittings or replace push-to-connect connectors. If using PEX, ensure crimp rings are secure.

2. Slow Drains

This is often a result of improper leveling rather than a clog.

• Symptom: Water pools in the shower or sink drains slowly.
• Fix: Check the level of your home. Adjust the jacks or piers to ensure the home is perfectly level. This restores the correct gravity slope for the DWV system.

3. Burst Pipes

If a pipe freezes and thaws, it may crack.

• Symptom: No water pressure or visible spraying under the home.
• Fix: Turn off the main water supply immediately. Replace the damaged section of PEX using a coupling kit. Never attempt to solder copper pipes in tight crawl spaces without proper fire safety measures.

Step-by-Step: How to Locate a Hidden Leak

Finding a leak under a manufactured home can be daunting. Follow this logical process to identify the source.

1. Turn Off All Water: Ensure no faucets, toilets, or appliances are using water.
2. Check the Meter: If you are on city water, watch your water meter. If the dial is moving, you have a leak.
3. Isolate the Area: Turn off individual fixture valves one by one to see if the meter stops. This helps narrow down the location.
4. Visual Inspection: Crawl under the home with a flashlight. Look for wet insulation, dripping sounds, or mold growth on the belly board.
5. Use Food Coloring: For toilet leaks, put a few drops of food coloring in the tank. If color appears in the bowl without flushing, the flapper is leaking.

FAQ Section

1. Can I replace PEX pipes with copper in my manufactured home?

While technically possible, it is not recommended. Copper is rigid and expensive, and it does not handle the flexing of a manufactured home as well as PEX. Additionally, connecting copper to existing PEX systems requires special transition fittings. Stick with PEX for consistency and ease of repair.

2. How often should I inspect the underbelly of my home?

You should inspect the belly board and skirting at least twice a year: once in the fall before winter sets in, and once in the spring to check for winter damage. Look for tears, sagging, or signs of pests.

3. Why do my pipes make banging noises?

This phenomenon, known as “water hammer,” occurs when water flow is suddenly stopped, creating a shockwave. In manufactured homes, this can be exacerbated by loose pipe straps. Install water hammer arrestors on washing machines and dishwashers, and ensure all pipes are securely strapped to the joists.

4. Is it safe to use chemical drain cleaners in a manufactured home?

Use them with caution. Older ABS or PVC pipes can become brittle over time. Harsh chemicals can weaken these plastics. It is safer to use a plunger, a drain snake, or enzymatic cleaners that break down organic matter without damaging the pipes.

5. What is the lifespan of plumbing in a manufactured home?

PEX piping can last 50 years or more if protected from UV light and freezing. ABS and PVC drain lines also have a long lifespan. However, the fittings and connections may need attention sooner, especially if the home has been moved multiple times.

6. Do I need a special permit to repair plumbing in a manufactured home?

Minor repairs like fixing a leaky faucet or replacing a section of PEX usually do not require a permit. However, major modifications, such as adding a new bathroom or relocating the water heater, may require local permits and inspection. Always check with your local housing authority.

Conclusion

Understanding how does the plumbing work in a manufactured home is the key to protecting your investment and ensuring comfortable living. By recognizing the unique layout of under-floor piping, utilizing flexible PEX materials, and prioritizing freeze protection, you can prevent most common plumbing disasters. Regular inspections of the belly board and skirting, along with prompt attention to leaks, will extend the life of your system significantly.

Don’t wait for a burst pipe to teach you these lessons. Take action today by inspecting your home’s underbelly and sharing this guide with fellow manufactured home owners on social media. Knowledge is the best tool in your maintenance toolkit!
