If you’ve ever peeked under your kitchen or bathroom sink and wondered, “How far down can the U in sink plumbing go?”—you’re not alone. That curved pipe (called a P-trap) plays a crucial role in keeping sewer gases out of your home. But installing it too low—or too high—can cause serious drainage issues or even violate building codes. In this guide, we’ll break down exactly how deep that U-bend can go, what the plumbing codes say, and how to get it right the first time.
What Is the “U” in Sink Plumbing?

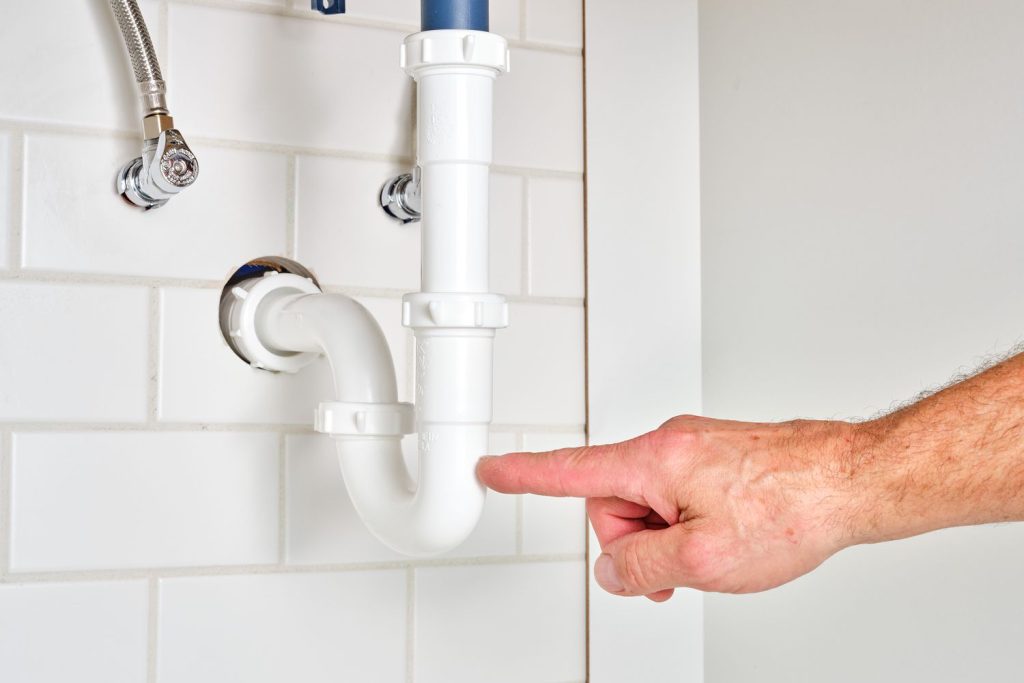

The “U” you see under your sink is actually part of a P-trap assembly—a U-shaped or J-shaped pipe designed to hold water and create a seal against harmful sewer gases. Despite its simple look, it’s a critical component of your home’s drainage system.
According to the International Plumbing Code (IPC), every fixture connected to a drainage system must have a trap to prevent backflow of gases. Without it, you’d be breathing in methane, hydrogen sulfide, and other noxious fumes from your sewer line.
💡 Fun Fact: The water trapped in the U-bend typically holds about 2–4 inches of standing water—just enough to block odors but not so much that it slows drainage.
How Far Down Can the U in Sink Plumbing Go? (Code Limits Explained)
This is the core question—and the answer depends on plumbing codes, fixture type, and ventilation.
The Official Rule: Maximum Trap Arm Length & Height
Per the IPC Section 1002.2, the vertical distance between the fixture outlet (the bottom of your sink drain) and the trap weir (the top of the U-bend’s outlet) must not exceed 24 inches.
- Minimum height: There’s no strict minimum, but the trap must maintain its water seal. If installed too low without proper venting, siphoning can occur.
- Maximum height: 24 inches is the legal limit in most U.S. jurisdictions following IPC standards.
📏 Example: If your sink drain exits 36 inches above the floor, the top of your P-trap’s outlet should be no lower than 12 inches above the floor (36″ – 24″ = 12″).
Going beyond 24 inches risks:
- Loss of water seal due to siphonage
- Slow drainage
- Gurgling sounds from air being pulled through the trap
For reference, the Uniform Plumbing Code (UPC)—used in some western states—also enforces a 24-inch maximum for most residential sinks.
🔗 Learn more about plumbing traps on Wikipedia
Why Does P-Trap Height Matter?
Getting the height wrong isn’t just a technicality—it affects your home’s safety and functionality.
Consequences of Installing the U Too Low:
| Issue | Explanation |
|---|---|
| Siphonage | Water gets sucked out of the trap when other fixtures drain, breaking the seal. |
| Sewer Odors | Without a water barrier, gases enter your living space. |
| Code Violation | Failed inspections during remodels or new builds. |
| Poor Drainage | Excessive drop can cause turbulence and slow flow. |
On the flip side, placing the trap too high (e.g., just below the sink) may not provide enough slope for proper drainage toward the main stack.
Step-by-Step: Installing a P-Trap at the Correct Depth
Follow these steps to ensure your U-bend is within code and functions properly:
- Measure from the sink drain outlet
Use a tape measure to find the exact height from the floor to the bottom of the sink’s drain tailpiece. - Subtract up to 24 inches
This gives you the lowest allowable height for the trap outlet. Example:- Sink drain at 34″ → Trap outlet max depth = 34″ – 24″ = 10″ above floor
- Ensure proper slope after the trap
The horizontal pipe (trap arm) leading to the vent stack must slope ¼ inch per foot downward toward the main drain. - Use standard fittings
Most P-traps come in 1¼” (bathroom) or 1½” (kitchen) diameters. Don’t force non-standard bends to “make it fit”—this can cause clogs. - Test for leaks and airflow
Run 2–3 gallons of water through the sink. Listen for gurgling. If you hear it, your vent may be inadequate or the trap too deep.
✅ Pro Tip: Always install an accessible cleanout plug if the trap is near the 24-inch limit—future clogs will be easier to clear.
Common Mistakes Homeowners Make
Even experienced DIYers slip up. Here are frequent errors:
- Using flexible accordion hoses (not code-compliant in most areas—they trap debris and lack proper slope).
- Ignoring vent placement—a trap deeper than 18″ often needs a nearby vent to prevent siphoning.
- Double-trapping—installing two P-traps in series, which violates code and causes airlock.
- Cutting pipes too short—leading to misalignment and leaks.
🛠️ Case Study: A homeowner in Austin, TX, installed a vanity with a 30-inch-deep P-trap to hide plumbing in a custom cabinet. Within weeks, foul odors appeared. An inspector cited IPC 1002.2—trap was 6 inches too deep. Fix: Raised the trap and added an air admittance valve (AAV).
P-Trap Depth: Kitchen vs. Bathroom Sinks
While the 24-inch rule applies to both, practical differences exist:
| Feature | Kitchen Sink | Bathroom Sink |
|---|---|---|
| Typical Drain Height | 32–36″ | 28–32″ |
| Max Trap Outlet Height | 8–12″ above floor | 4–8″ above floor |
| Pipe Diameter | 1½” | 1¼” |
| Debris Load | High (food waste) | Low |
| Risk of Clogs | Higher if too deep | Lower, but odor risk remains |
Always check local amendments—some cities (like Chicago or Los Angeles) have stricter rules.
FAQ Section
Q1: Can I install a P-trap below the floor?
A: Generally, no. Traps must be accessible and installed above the floor unless part of a specially designed system (e.g., island sink with an AAV). Concealing a trap in a wall or under concrete violates IPC 1002.1.
Q2: What if my cabinet is too shallow for a standard P-trap?
A: Use a shallow P-trap or offset trap designed for tight spaces. Never compromise the 24-inch max height rule. Alternatively, raise the sink slightly during installation.
Q3: Does the U-bend need to be perfectly level?
A: The inlet and outlet arms should be level with each other, but the entire assembly can tilt slightly as long as the water seal is maintained and the trap arm slopes correctly toward the drain.
Q4: How do I know if my P-trap is too deep?
A: Signs include:
- Sewer smell after using other fixtures
- Gurgling sink
- Slow drainage despite no clog
Measure from the sink drain to the trap outlet—if over 24″, it’s likely the culprit.
Q5: Can I use an S-trap instead?
A: No. S-traps are banned in modern plumbing because they easily siphon dry. All fixtures must use a P-trap with proper venting.
Q6: Do garbage disposals change the P-trap depth rules?
A: No—the 24-inch rule still applies. However, disposals add height, so measure from the disposal outlet (not the sink) to the trap.
Conclusion
Knowing how far down the U in sink plumbing can go isn’t just about fitting pipes into a cabinet—it’s about health, safety, and code compliance. Stick to the 24-inch maximum, ensure proper venting, and avoid makeshift solutions like flexible hoses. When installed correctly, your P-trap will silently protect your home for decades.
🔧 Got a tricky sink setup? Share your experience or questions in the comments below!
👍 Found this helpful? Share it on Facebook, Pinterest, or Twitter to help fellow homeowners avoid plumbing pitfalls!
Remember: Good plumbing isn’t seen—but you’ll definitely notice when it’s wrong.
