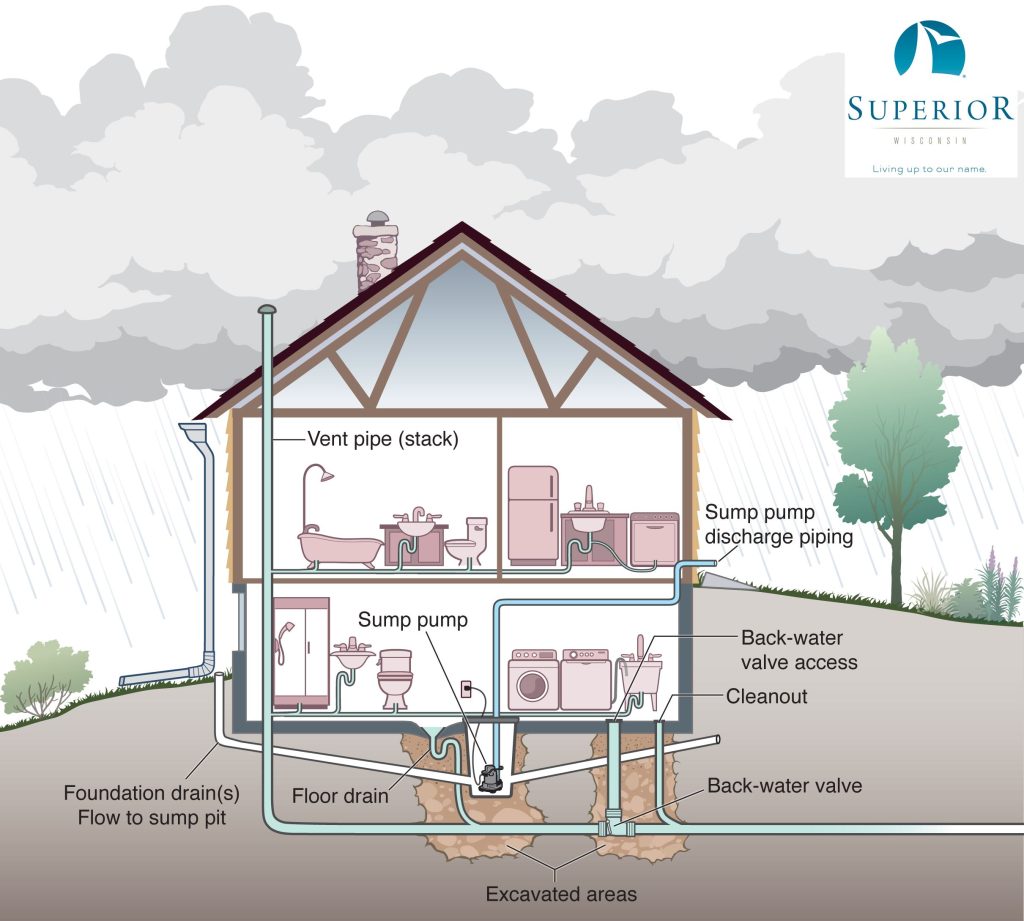

How Is Plumbing Laid Out Under a House?

Have you ever wondered what lies beneath your floorboards, keeping your home running smoothly? Understanding how plumbing is laid out under a house is crucial for homeowners facing leaks, renovations, or simply wanting to protect their investment. Whether you are dealing with a mysterious damp spot on the carpet or planning a bathroom remodel, knowing the hidden infrastructure of your home can save you thousands of dollars and significant stress.

In this guide, we will demystify the complex network of pipes beneath your feet. We will explore the differences between foundation types, identify common materials, and provide actionable advice on maintaining these critical systems. Let’s dive into the depths of your home’s plumbing anatomy.

The Foundation Factor: Slab vs. Crawl Space vs. Basement

The layout of your plumbing is dictated primarily by your home’s foundation. In the United States, three main foundation types determine where and how pipes are installed.

1. Slab-on-Grade Foundations

Common in warmer climates like Texas, Florida, and California, a slab foundation involves pouring concrete directly onto the ground.

• The Layout: Water supply lines and drain-waste-vent (DWV) pipes are installed before the concrete is poured. They rest on a bed of sand or gravel and are often secured with wire ties.
• The Challenge: Once the concrete cures, these pipes are encased in stone-hard material. This makes repairs difficult and expensive, often requiring specialized leak detection equipment.
• Key Insight: According to industry standards, PEX (cross-linked polyethylene) has largely replaced copper in new slab constructions due to its flexibility and resistance to corrosion.

2. Crawl Space Foundations

Prevalent in the Southeast and Mid-Atlantic regions, crawl spaces elevate the home slightly above the ground, creating a shallow accessible area.

• The Layout: Pipes run horizontally through the air, suspended between floor joists or resting on the dirt floor. Supply lines are usually insulated to prevent freezing, while drain lines slope downward toward the main sewer exit.
• The Advantage: Accessibility. If a leak occurs, a plumber can often crawl under the house to fix it without breaking through floors.
• The Risk: Exposure to humidity, pests, and temperature fluctuations can degrade pipes faster than in enclosed environments.

3. Basement Foundations

Common in the Northeast and Midwest, basements offer full-height access to plumbing.

• The Layout: Most main water lines and sewer exits enter through the basement walls. From there, pipes run along the ceiling joists of the basement before rising vertically into the walls of the first floor.
• The Benefit: This is the most homeowner-friendly layout for maintenance. You can visually inspect pipes for condensation, leaks, or corrosion easily.

The Two Main Systems: Supply and Drainage

To understand how plumbing is laid out under a house, you must distinguish between the two distinct systems operating beneath your foundation. They serve different purposes and operate under different physical principles.

The Water Supply System (Pressurized)

This system brings fresh water into your home. It is under constant pressure, meaning water is always pushing against the pipe walls.

• Direction: Flows up and out to fixtures.
• Material: Typically Copper, CPVC, or PEX.
• Layout Logic: The main line enters the house, splits into hot and cold lines (via the water heater), and branches out to every faucet, toilet, and appliance.
• Expert Note: Because these pipes are pressurized, even a tiny pinhole leak can waste hundreds of gallons of water a month. Learn more about water conservation standards to understand the environmental impact of hidden leaks.

The DWV System (Gravity-Based)

The Drain-Waste-Vent system removes wastewater and sewage. It relies entirely on gravity.

• Direction: Flows down and away from the house.
• Material: Typically PVC or ABS plastic.
• Layout Logic: Every drain pipe must have a precise slope, known as “fall.” The standard is 1/4 inch of drop for every foot of horizontal pipe. If the slope is too flat, waste stagnates; if it’s too steep, water outruns the solids, causing clogs.
• Venting: You will notice vertical pipes extending through the roof. These are vents. They allow sewer gases to escape and let air into the system so water flows smoothly (like putting your thumb over a straw).

Common Materials Found Under Your House

The age of your home determines what materials you’ll find beneath it. Here is a quick breakdown of what you might encounter:

• Copper: The gold standard for decades. Durable and resistant to bacteria, but expensive and susceptible to pinhole leaks in acidic soil conditions.
• PEX (Cross-linked Polyethylene): The modern favorite. Flexible, freeze-resistant, and easy to install. It expands if water freezes, reducing burst risks.
• PVC/ABS: White or black plastic pipes used exclusively for drainage. They are immune to corrosion but can become brittle in extreme cold or UV exposure.
• Galvanized Steel: Found in homes built before 1960. Warning: These pipes corrode from the inside out, restricting water flow and eventually leaking. If you have galvanized pipes under your house, replacement should be a priority.
• Cast Iron: Used for main sewer lines in older homes. Heavy and durable, but prone to rusting through after 50–75 years.

Step-by-Step: How to Locate Your Main Plumbing Lines

If you suspect a leak or need to shut off water, follow these steps to locate your primary underground connections.

1. Find the Water Meter: Usually located near the street in a concrete box. The pipe running from the meter to your house is the “service line.”
2. Identify the Entry Point: Look at your foundation exterior. Where does the pipe enter the wall or slab? This is a high-risk area for leaks due to shifting soil.
3. Trace the Main Shut-Off: Inside the house, find the main valve. It is typically within 3–5 feet of where the pipe enters the foundation.
4. Check for Moisture: In crawl spaces, look for dark spots on the dirt or insulation. In slabs, look for warm spots (hot water leak) or damp carpet patches.

FAQ: Common Questions About Under-House Plumbing

1. How deep are water lines buried under a house?

For slab foundations, pipes are typically embedded 2–4 inches below the concrete surface. For exterior service lines entering the house, they must be buried below the frost line to prevent freezing. In the US, this ranges from 12 inches in the South to 6+ feet in the North.

2. Can I repipe my house without tearing up the slab?

Yes, in many cases. Plumbers can reroute water lines through the attic, walls, or crawl space (if available), bypassing the slab entirely. This is often cheaper and less destructive than jackhammering the concrete floor.

3. What are the signs of a slab leak?

Common indicators include:

• Unexplained spikes in your water bill.
• The sound of running water when all fixtures are off.
• Warm spots on the floor (indicating a hot water line leak).
• Cracks in the foundation or flooring due to soil erosion.

4. How long do plumbing pipes last under a house?

It depends on the material. Copper lasts 50–70 years, PEX can last 25–50+ years, and PVC drainage pipes can last indefinitely if undisturbed. Galvanized steel, however, may fail within 20–50 years.

5. Does homeowners insurance cover slab leaks?

Typically, insurance covers the damage caused by the leak (e.g., ruined flooring) but not the cost of repairing the pipe itself or accessing it through the slab. Always check your specific policy details.

6. Why do my drains smell like sewage?

This usually indicates a dry P-trap or a blocked vent pipe. If the smell persists, it could mean a crack in the DWV system under the house, allowing sewer gas to escape into the crawl space or basement.

Conclusion

Understanding how plumbing is laid out under a house empowers you to make smarter decisions about maintenance, renovations, and emergency responses. Whether you have a slab, crawl space, or basement, each layout has unique vulnerabilities and advantages. Regular inspections, especially for older homes with galvanized or cast iron pipes, can prevent catastrophic failures.

Remember, while DIY checks are valuable, complex issues like slab leaks require professional detection and repair. Don’t wait for a small drip to become a flooded foundation.
