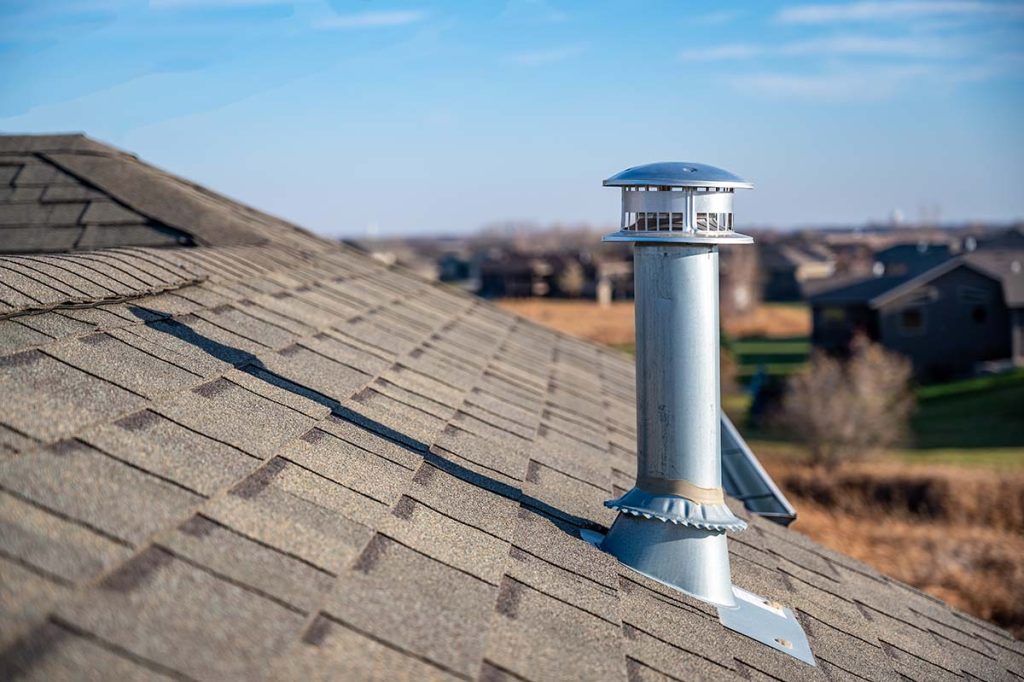

How Long Should Plumbing Stack Be On Roof?

Have you ever noticed a faint, unpleasant odor lingering around your home’s exterior, or perhaps heard strange gurgling sounds from your drains after a heavy rain? These are often signs that your plumbing vent system isn’t functioning correctly, specifically regarding its height above the roofline. Knowing how long should plumbing stack be on roof is not just a matter of aesthetic preference; it is a critical safety requirement mandated by building codes to protect your family from hazardous sewer gases.

In this guide, we will break down the exact measurements required by the International Plumbing Code (IPC) and International Residential Code (IRC). We will explain why these dimensions matter, how snow and weather affect your vents, and what steps you need to take to ensure your home remains safe, odor-free, and up to code.

The Golden Rule: Minimum Height Requirements

When asking how long should plumbing stack be on roof, the answer is dictated by strict building codes designed to ensure proper airflow and prevent back-drafting. In the United States, most jurisdictions adopt either the IPC or the IRC. While local amendments can vary, the baseline standards are remarkably consistent.

The 6-Inch and 12-Inch Rule

According to the International Plumbing Code (IPC Section 905.5), a vent terminal must extend at least 6 inches (152 mm) above the roof. However, there is a crucial caveat: if the roof is used for any purpose other than weather protection (such as a deck or patio), or if the vent is within a certain distance of windows and air intakes, the requirements change.

More importantly, the code states that the vent must extend at least 12 inches (305 mm) above any portion of the roof within 10 feet (3048 mm) horizontally. This is often referred to as the “10-foot rule.”

This gradient ensures that wind blowing over the roof creates a positive pressure zone that pulls sewer gases out of the pipe, rather than pushing them back into your home. If the stack is too short, turbulent air can force gases back down the pipe, leading to the dreaded “sewer smell” in your bathroom or kitchen.

Why Does Vent Height Matter?

You might wonder why a few inches make such a big difference. The plumbing vent system, also known as the stack vent, serves two primary purposes: it allows sewer gases to escape safely into the atmosphere, and it equalizes pressure within the drainage system.

Preventing Sewer Gas Entry

Sewer gas contains methane, hydrogen sulfide, and other potentially harmful compounds. If the vent is too low, wind currents hitting the roof can create a downdraft. This downdraft can push these gases back into your living spaces. By extending the stack to the required height, you ensure that the exhaust point is in a zone of consistent upward airflow.

Maintaining Trap Seals

Every drain in your home (sink, toilet, shower) has a P-trap—a U-shaped pipe that holds water. This water block prevents gases from entering your home. If the vent stack is improperly sized or positioned, pressure fluctuations can siphon this water out of the trap (known as “trap seal loss”). A properly heighted vent stabilizes this pressure, keeping your traps full and your home safe. For more detailed information on fluid dynamics in plumbing systems, you can refer to general engineering principles on Wikipedia.

Adjusting for Weather: Snow and Rain Considerations

One of the most common mistakes DIYers and even some inexperienced contractors make is ignoring local weather patterns when determining how long should plumbing stack be on roof. The code provides minimums, but nature often demands more.

The Snow Load Factor

If you live in regions with significant snowfall—such as the Northeast, Midwest, or Mountain West—the standard 6-inch or 12-inch rule is insufficient. If your vent terminates below the typical snow accumulation line, it will become blocked during winter.

A blocked vent is functionally identical to no vent at all. You will experience slow drains, gurgling noises, and potential sewer gas backups.

Expert Recommendation: In snowy climates, your plumbing stack should extend at least 12 to 24 inches above the historical maximum snow depth for your area. Some local codes explicitly state that the vent must extend above the “design snow load.” Check with your local building department for the specific snow-load height requirements in your zip code.

Rain and Debris Protection

While height helps with snow, it also aids in preventing rainwater from entering the stack. Although vents are designed to handle some moisture, excessive water entry can lead to corrosion inside the pipe or freeze-ups in colder climates. Ensuring the stack is tall enough and properly capped (with a weatherhead that allows air but blocks rain) is vital for longevity.

Step-by-Step: How to Measure and Extend Your Stack

If you have determined that your current stack is too short, or if you are installing a new one, follow these steps to ensure compliance and functionality.

Step 1: Check Local Codes

Before cutting any pipe, call your local building department. Ask specifically about:

• Adopted code version (IPC, IRC, or UPC).
• Local amendments regarding snow loads.
• Permit requirements for vent extension.

Step 2: Measure the Current Height

Use a tape measure to determine the current height of the stack above the highest point of the roof within a 10-foot radius.

• Example: If your roof slopes and the vent is 5 feet down from the ridge, measure from the vent top to the roof surface directly below it, and also check the distance to the ridge.

Step 3: Select the Right Materials

• Pipe Material: Match the existing material. If you have ABS (black plastic), use ABS. If you have PVC (white plastic), use PVC. Do not mix materials without proper transition couplings.
• Diameter: Maintain the same diameter as the existing stack (usually 1.5, 2, or 3 inches). Never reduce the diameter of a vent stack.

Step 4: Install the Extension

1. Clean the Existing Pipe: Ensure the top of the existing stack is clean and dry.
2. Apply Primer and Cement: Use approved primer and solvent cement for your pipe type. Apply primer to both the inside of the coupling and the outside of the pipes.
3. Connect the Coupling: Slide a slip coupling onto the existing pipe.
4. Insert New Pipe: Cut the new section of pipe to the desired length. Insert it into the coupling. Ensure it is pushed in fully and held for 30 seconds to set.
5. Secure the Stack: If the extension is significant (over 2 feet), you may need to brace it against the roof structure or use guy-wires to prevent wind damage.

Step 5: Install a Proper Vent Cap

Install a high-quality vent cap. Avoid cheap plastic caps that crack in UV light. Look for:

• Stainless Steel or Copper Mesh: To keep birds and rodents out.
• Weatherhead Design: To deflect rain while allowing air flow.
• No Moving Parts: Mechanical vents often fail; static caps are more reliable.

Common Mistakes to Avoid

Even with the right height, several errors can compromise your plumbing system.

• Screening the Vent Too Tightly: While you need to keep pests out, using fine mesh screen can clog with lint, dust, and spider webs, restricting airflow. Use a coarse mesh specifically designed for plumbing vents.
• Locating Vents Near Air Intakes: Never place a vent stack within 10 feet of a window, door, or HVAC air intake unless it extends significantly higher (often 2-3 feet above the intake). This prevents sewer gas from being sucked into your fresh air supply.
• Ignoring Roof Flashing: When extending a stack, ensure the roof flashing (the metal or rubber seal around the pipe) is intact. A tall stack acts like a sail in the wind; if it wobbles, it can break the flashing seal, leading to roof leaks.

FAQ: Frequently Asked Questions

1. Can I cover my plumbing vent with a decorative box?

You can install a decorative cover, but it must not restrict airflow. The cover must have ample open space for air to escape freely. Additionally, the cover cannot trap moisture or debris. Always ensure the actual pipe still meets the minimum height requirements above the roof surface, not just above the decorative box.

2. What happens if my plumbing vent is too short?

If the vent is too short, you risk several issues: sewer gases entering your home, slow draining fixtures due to poor pressure equalization, and the possibility of rain or snow blocking the vent. In severe cases, it can siphon water out of your P-traps, leaving your home unprotected from methane and bacteria.

3. Do I need a permit to extend my plumbing stack?

In most US jurisdictions, modifying the plumbing vent system requires a permit. This ensures that the work is inspected and meets local safety codes. Always check with your local building department before starting work to avoid fines or issues when selling your home.

4. Can I use a flexible pipe to extend my vent?

No. You should never use flexible corrugated pipe for a roof vent extension. The ridges in flexible pipe catch debris, restrict airflow, and are not durable enough to withstand UV exposure and extreme weather conditions. Always use rigid Schedule 40 PVC or ABS pipe.

5. How do I know if my vent is blocked?

Signs of a blocked vent include gurgling sounds from toilets or sinks, slow drainage in multiple fixtures, and foul odors coming from drains. If you suspect a blockage, you can try running water to see if it clears, or use a plumber’s snake from the roof opening. If unsure, hire a professional plumber.

Conclusion

Understanding how long should plumbing stack be on roof is essential for maintaining a healthy, safe, and compliant home. By adhering to the minimum 6-inch to 12-inch height requirements—and adjusting for snow loads in colder climates—you ensure that sewer gases are effectively vented away from your living spaces.

Remember, plumbing codes are in place to protect your health and property. Whether you are a DIY enthusiast or hiring a professional, never cut corners on vent height. Proper ventilation protects your trap seals, prevents odors, and keeps your drainage system flowing smoothly.
